| Brand | Anton Paar |
|---|---|
| Origin | Austria |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Origin Category | Imported Instrument |
| Model | SurPASS 3 |
| Measurement Principle | Streaming Potential Method |
| pH Range | pH 2 – pH 12 |
| Temperature Range | 20 °C to 40 °C |
| Temperature Control | Integrated Peltier-based thermostating |
| Sample Compatibility | Flat solids (min. 20 mm × 10 mm, ≤2 mm thick |
| Brand | Anton Paar |
|---|---|
| Origin | Austria |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |

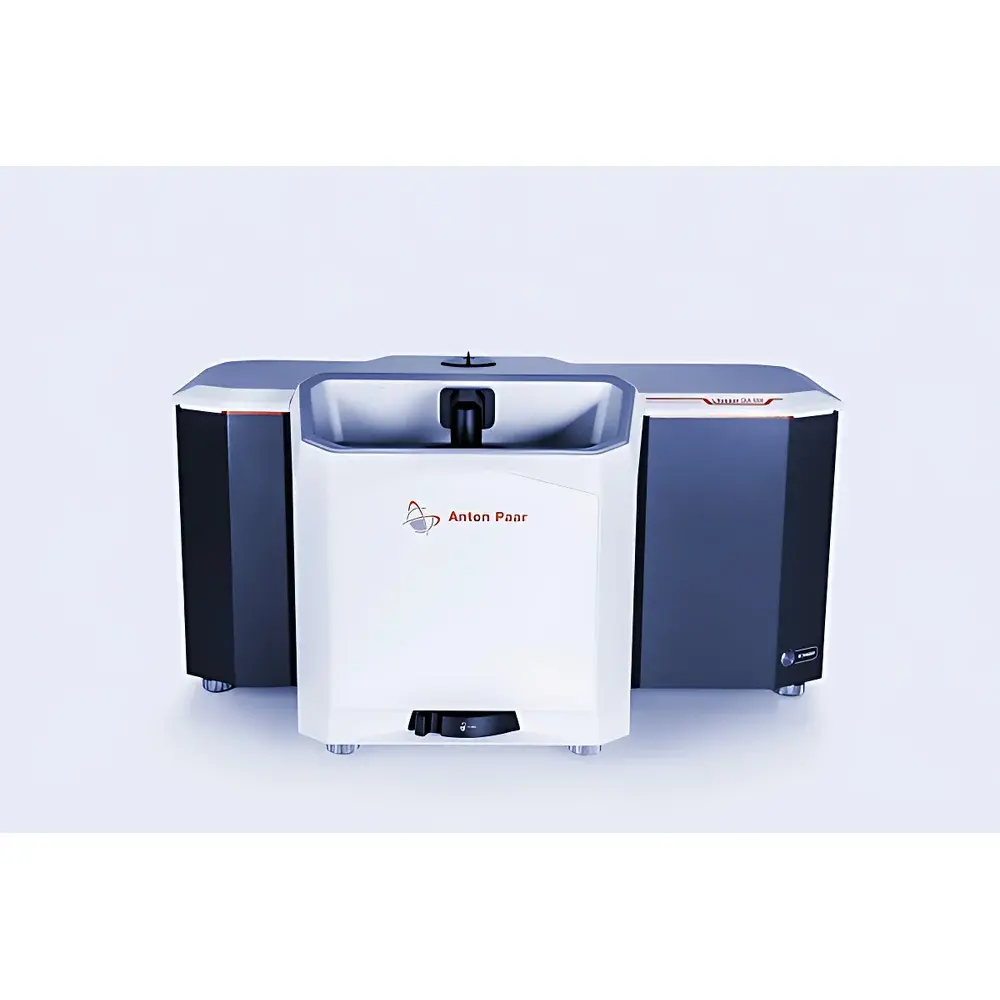

| Model | Litesizer |
| Particle Size Range | 0.3 nm – 10 µm |
| Size Measurement Repeatability | ±2% |
| Temperature Control Accuracy | ±0.2 °C |
| Sample Concentration Range | 0.1 mg/L – 100 mg/L |
| Sample Volume Range | 12 µL – 1000 µL |
| Zeta Potential Range | −500 mV to +500 mV |
| Brand | Anton Paar |
|---|---|
| Origin | Austria |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Category | Imported Instrument |
| Model | Litesizer DIA Series |
| Pricing | Upon Request |
| Dispersion Methods | Wet, Dry, and Free-Fall Dispersion |
| Instrument Type | Laboratory-Based Dynamic Image Analyzer |
| Measurement Range | 0.5 µm to 16,000 µm |
| Repeatability | <1% RSD |
| Measurement Time | 10–15 seconds per analysis |
| Brand | Anton Paar |
|---|---|
| Origin | Austria |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Import Status | Imported |
| Model | Litesizer DIA Series |
| Measurement Principle | Dynamic Image Analysis (DIA) |
| Measurement Range | 0.5 µm to 16,000 µm (dependent on dispersion mode and magnification) |
| Camera Resolution | 5 MPix (2448 × 2048 pixels) with pixel sizes of 0.5 µm / 0.8 µm / 10 µm (model-dependent) |
| Dispersion Modes | Wet dispersion (liquid carrier + optional ultrasonication), dry dispersion (compressed air jet), free-fall dispersion (gravity-driven) |
| Shape & Size Parameters | Feret min/max, projected area-equivalent diameter, length, geodesic length (for fibers), Legendre ellipse major/minor axes, aspect ratio, ellipticity, irregularity, elongation, circularity, shape factor, compactness, convexity, solidity — all compliant with ISO 9276-6:2023 |
| Data Acquisition Rate | Up to 220 fps (Litesizer DIA 700, 5 MPix) |
| Optical Magnification | 0.3×, 1×, and 6× (DIA 700) |
| Interface | 1 × 10 GbE, 1 × USB-A 3.0 |
| Dimensions (H×W×D) | 400 mm × 790 mm × 290 mm |
| Weight | 41 kg |
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Compressed Air | 5–10 bar (72–145 psi) |
| Liquid Supply Pressure | ≤8 bar (116 psi) |
