Ekspla
Filter
Showing 1–30 of 89 results
| Brand | Ekspla |
|---|---|

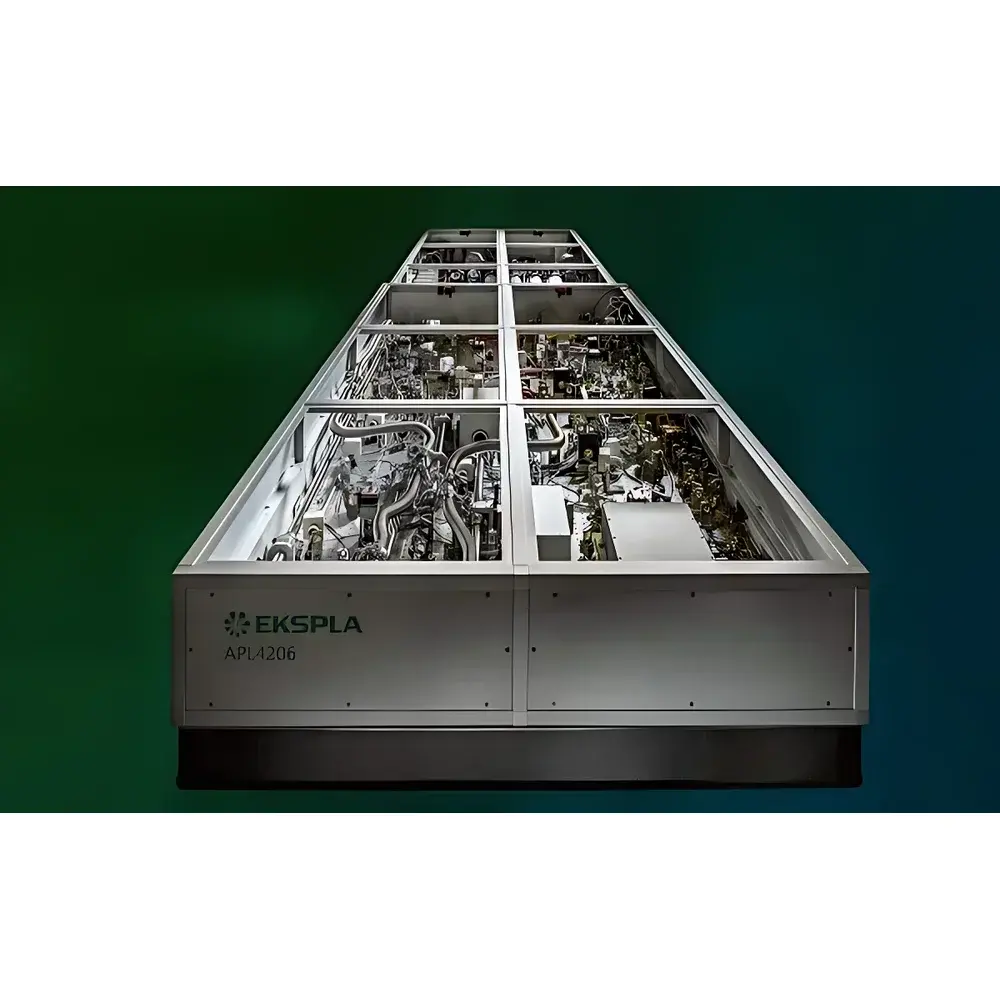

| Model | APL4206 |
| Pulse Energy | up to 130 mJ per channel (8 channels) |
| Pulse Duration | 90 ps |
| Repetition Rate | 1 kHz |
| Pump Source | Diode-pumped solid-state (DPSS) |
| Cooling | Integrated water-to-water chiller |
| Control Interface | USB with LabVIEW™ drivers |
| Harmonic Generation | Optional temperature-stabilized SHG, THG, and FHG modules |
| Compliance | CE-marked, RoHS-compliant, designed for Class 4 laser operation per IEC 60825-1 |
| Brand | Ekspla |
|---|---|
| Origin | Imported (Lithuania) |

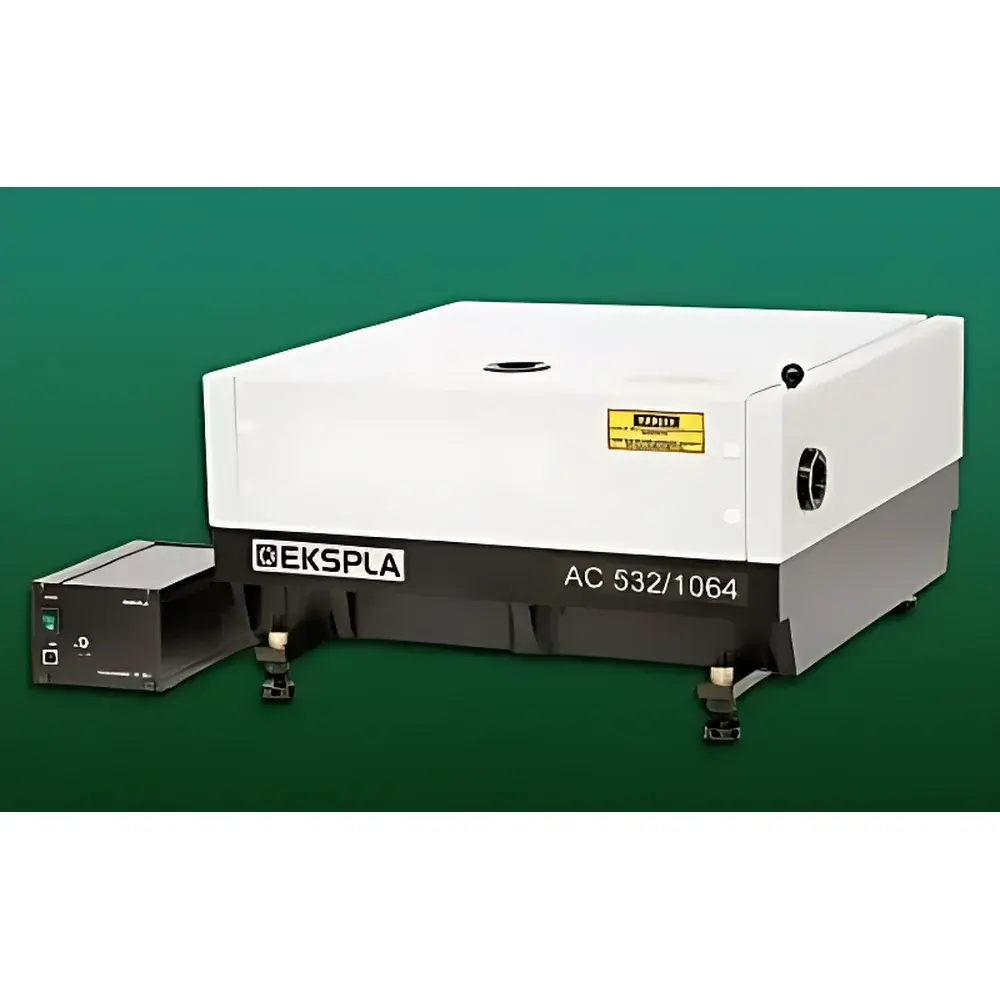

| Model | AC |
| Wavelength Range | 420–2000 nm (standard: 532 nm / 1064 nm) |
| Pulse Duration Range | 5–400 ps (extendable to ±1200 ps) |
| Measurement Principle | Non-collinear Second Harmonic Generation (SHG) Autocorrelation |
| Crystal Type | Single thin nonlinear crystal (BBO or LBO, wavelength-optimized) |
| Software | LabVIEW™-based control & analysis suite (source code available upon request) |
| Compliance | Compatible with GLP/GMP data integrity workflows |
| Input Energy Monitoring | Integrated photodiode-based pulse energy gating |
| OS Requirement | Windows XP/Vista/7 (64-bit compatible) |
| Computer | Not included |
| Brand | Ekspla |
|---|---|
| Model | ANL AWG |
| Output Pulse Energy | Up to 1 J @ 1064 nm |
| Repetition Rate | Up to 1 kHz |
| Pulse Duration | 2–4 ns or 5 ns (selectable) |
| Beam Profile | Spatial flat-top |
| Pumping | High-efficiency diode-pumped |
| Footprint | 1 × 2 m |
| Harmonics Options | Optional 532 nm (2nd) and 355 nm (3rd) generation |
| Housing | Optional industrial-grade portable enclosure with integrated power supply and closed-loop cooling |
| Diagnostics | Internal real-time system diagnostics |
| Compliance | Designed for ISO 11146-compliant beam characterization and EN 60825-1 laser safety class IV operation |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | OEM Manufacturer (not distributor) |
| Product Type | Solid-State Q-Switched Nd:YAG Laser System |
| Model | ANL MM |
| Output Pulse Energy | Up to 1 J @ 1064 nm |
| Repetition Rate | Up to 1 kHz |
| Pulse Duration | 2–4 ns or 5 ns (selectable) |
| Beam Profile | Spatially uniform flat-top |
| Harmonics Options | Optional internal 532 nm (2ω) and 355 nm (3ω) generation |
| Pumping | High-efficiency diode-pumped laser chambers |
| Footprint | 1000 × 2000 mm |
| Cooling & Power | Integrated industrial-grade power supply and closed-loop chiller unit (optional) |
| Diagnostics | Internal real-time system diagnostics with status monitoring |
| Brand | Ekspla |
|---|---|
| Output Pulse Energy | Up to 1 J at 1064 nm |
| Repetition Rate | Up to 1 kHz |
| Pulse Duration | 2–4 ns or 5 ns (selectable) |
| Beam Profile | Spatially uniform flat-top |
| Pumping | High-efficiency diode-pumped |
| Footprint | 1 × 2 m |
| Housing Options | Industrial-grade portable enclosure with integrated power supply and cooling |
| Harmonics | Optional SHG (532 nm) and THG (355 nm) modules |
| Diagnostics | Internal real-time system diagnostics |
| Maintenance | Low operational maintenance requirements |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Model | ANL SLM |
| Output Wavelength | 1064 nm |
| Max Pulse Energy | 1 J |
| Repetition Rate | Up to 1 kHz |
| Pulse Duration | 2–4 ns or 5 ns (selectable) |
| Beam Profile | Spatially uniform flat-top |
| Pumping | High-efficiency diode-pumped |
| Footprint | 1 × 2 m |
| Harmonics Options | Optional 532 nm (2nd) and 355 nm (3rd) generation modules |
| Housing | Optional industrial-grade portable enclosure with integrated power supply and closed-loop cooling |
| Diagnostics | Internal real-time system diagnostics |
| Compliance | Designed for integration into ISO/IEC 17025-compliant labs and GLP/GMP environments |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | APL2100 |
| Core Technology | Diode-Pumped Regenerative Amplifier System |
| Pulse Energy | Up to 100 mJ (configurable) |
| Pulse Duration | <10 ps (FWHM) |
| Repetition Rate | 1–10 Hz (standard), up to 100 Hz (optional) |
| Output Wavelength | 1053 nm (fundamental), optional harmonic generation (2ω, 3ω, 4ω) |
| Beam Quality | M² < 1.3 |
| Timing Jitter | <10 ps RMS (sync output) |
| Cooling | Dual-stage water-to-water heat exchanger |
| Control Interface | CAN bus, USB 2.0 (RS232 optional) |
| Compliance | CE, RoHS, IEC 61000-6-3/6-4 |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Scientific Laser System |
| Model | APL2200 |
| Core Technology | Diode-Pumped Solid-State (DPSS) Picosecond Amplifier |
| Repetition Rate | Up to 1 kHz |
| Pulse Duration | <15 ps (FWHM) |
| Output Energy | Up to 3.5 mJ @ 1064 nm |
| Harmonic Options | Optional Temperature-Stabilized 2ω, 3ω, and 4ω Modules |
| Control Interface | USB with LabVIEW™ Drivers |
| Cooling | Integrated Thermo-Electric Cooler (TEC), No External Water Required |
| Compliance | CE, RoHS, IEC 60825-1:2014 Class 4 Laser Safety |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Industrial Laser System |
| Model | Atlantic 6 |
| Output Power | 5 W @ 1064 nm |
| Repetition Rate | Up to 1 MHz |
| Pulse Energy | Up to 30 µJ |
| Pulse Duration | < 10 ps |
| Beam Quality | M² < 1.3 |
| Cooling | Forced-air (dry laser head) |
| Triggering | Smart external synchronization (TTL, LVDS) |
| Operating Voltage | Single-phase AC, 100–240 V |
| Enclosure | IP54-rated sealed industrial housing |
| Maintenance Interval | > 20,000 hours MTBF |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Industrial Laser System |
| Model | Atlantic |
| Output Power | Up to 60 W @ 1064 nm |
| Repetition Rate | Up to 1 MHz |
| Pulse Energy | Up to 200 µJ |
| Pulse Duration | 10 ps (FWHM) |
| Beam Quality | M² < 1.3 |
| Triggering | Smart TTL/RS-422 Synchronization |
| Cooling | Air-cooled (no external water required) |
| Power Supply | Single-phase AC, 230 V ±10%, 50/60 Hz |
| Enclosure | IP54-rated sealed industrial chassis |
| Maintenance Interval | >15,000 hours MTBF |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Industrial Laser Source |
| Model | Atlantic HR |
| Output Wavelengths | 1064 nm / 532 nm / 355 nm |
| Average Output Power | Up to 16 W |
| Repetition Rate | Up to 88 MHz |
| Pulse Duration | < 8 ps |
| Beam Quality (M²) | < 1.3 |
| Cooling | Air-Cooled |
| Power Supply | Single-Phase AC |
| Design | Compact, Sealed, Industrial-Grade Enclosure |
| Maintenance Requirement | Minimal |
| Primary Use Cases | Ultrafast Micromachining, Optical Parametric Amplifier (OPA) Seeding, OPO Pumping, Precision Ablation |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported Instrument |
| Model | CARS |
| Instrument Type | Confocal Micro-Raman Spectrometer |
| Spectral Range | 740–4000 cm⁻¹ |
| Spectral Resolution | 1 cm⁻¹ |
| Spatial Resolution | 0.5 µm |
| Minimum Wavenumber | 740 cm⁻¹ |
| Spectral Reproducibility | ±1% |
| Brand | Ekspla |
|---|---|
| Model | Fast Scan |
| Spectral Range | 0.2–3.5 THz (6–116 cm⁻¹) |
| Spectral Resolution (Fast Mode) | 10 GHz |
| Spectral Resolution (Fast/Slow Hybrid Mode) | 5 GHz |
| Acquisition Rate | 10 spectra/s |
| SNR | >10⁶:1 @ 0.4 THz |
| Origin | Lithuania |
| Import Status | Imported Instrument |
| Distributor Type | Authorized General Distributor |
| Category | Terahertz Time-Domain Spectroscopy (THz-TDS) System |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania (Imported) |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Model | FemtoLux3 |
| Output Power | Up to 3 W (avg.) |
| Pulse Energy | Up to 2 µJ/pulse (single), up to 10 µJ/burst |
| Pulse Duration | Adjustable from 300 fs to 5 ps |
| Beam Quality | M² < 1.2 |
| Cooling | Passive convection (24/7 continuous operation) |
| Operation Mode | CW, burst, and individual pulse control |
| Compliance | CE, RoHS, IEC 60825-1:2014 Class 4 Laser Product |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Industrial Femtosecond Laser System |
| Model | FemtoLux30 |
| Core Technology | Diode-Pumped Solid-State (DPSS) Yb-based Femtosecond Oscillator + Amplifier |
| Output Wavelengths | 1030 nm (fundamental), 515 nm (SHG), 343 nm (THG) |
| Avg. Power | ≥27 W @ 1030 nm, ≥11 W @ 515 nm, ≥6 W @ 343 nm |
| Pulse Energy | >90 µJ @ 1030 nm (single pulse), >250 µJ in MHz burst mode |
| Repetition Rate | Single shot to 4 MHz (AOM-controlled) |
| Pulse Duration | Tunable <350 fs – 1 ps (FWHM) |
| Beam Quality | M² < 1.2, Beam Circularity > 0.85 |
| Cooling | Integrated Direct Refrigerant Cooling (dry, hermetically sealed, no water) |
| Control Interface | RS232 / LAN with REST API |
| Form Factor | 4U rack-mounted PSU + detachable laser head (total system weight: 15 kg) |
| Compliance | CE, RoHS, IEC 60825-1:2014 (Class 4 Laser Product), ISO 9001-certified manufacturing |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported |
| Model | FemtoTune |
| Core Architecture | Solid-State Femtosecond Pumped Optical Parametric Amplifier (OPA) |
| Repetition Rate | Up to 100 kHz |
| Pulse Duration | < 50 fs |
| Tuning Range (Standard) | 650–950 nm & 1000–2000 nm |
| Extended Tuning Options | UV-Vis (330–470 nm, 550–650 nm), Mid-IR (2300–10,000 nm) |
| Synchronization | Fully motorized, time-synchronized wavelength tuning |
| Scan Speed | Full spectral sweep in seconds |
| Narrowband Option | Centered at 1030 nm or 515 nm, spectral bandwidth < 8 cm⁻¹ (down to < 3 cm⁻¹ with synchronized ps pump) |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Model | FF200 |
| Pulse Duration | down to 130 fs |
| Output Power | up to 200 mW |
| Delivery | fiber-coupled |
| Design | compact and rugged |
| Maintenance Requirement | low |
| Application Scope | ultrafast spectroscopy, time-domain terahertz (THz) spectroscopy |
| Optional Accessory | acousto-optic pulse picker (FF200-AOM) |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | FFS |
| Core Technology | All-Fiber Mode-Locked Oscillator with Solid-State Pump Laser |
| Pulse Energy | >250 nJ @ <200 kHz |
| Pulse Duration (compressed) | Down to 300 fs |
| Output Configuration | Free-space collimated (optional, code FFS10/100-COL) or fiber-pigtailed |
| Repetition Rate Tunability | 26 kHz – 52 MHz (with integrated AOM pulse picker option, code FFS10/100-AOM) |
| Spectral Bandwidth | Broadband (chirped or compressed output) |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Device Type | Fiber-Based Picosecond Seed Source |
| Model | FPS |
| Pulse Energy | >50 nJ (at rep rate <1 MHz) |
| Pulse Duration | <10 ps |
| Spectral Bandwidth | Near Fourier-Transform Limited |
| Repetition Rate Range | 20 kHz – 40 MHz (fiber-integrated AOM pulse picker, burst mode supported) |
| Output Configuration | Free-space collimated output optional (FPS10/FPS100-COL) |
| Synchronization | TTL-compatible interface for external triggering (FPS10/FPS100-AOM option) |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Laser Type | Diode-Pumped Solid-State (DPSS) |
| Wavelength | 532 nm |
| Pulse Duration | <15 ns |
| Repetition Rate | Up to 100 kHz |
| Average Output Power | Up to 5.5 W |
| Beam Quality (M²) | <1.3 |
| Cooling | Air- or Water-Cooled Options |
| Compliance | CE, RoHS, IEC 60825-1 |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | LightWire FP200 |
| Core Technology | All-Fiber, Diode-Pumped, Mode-Locked Picosecond Oscillator-Amplifier System |
| Pulse Duration | 9 ps (transform-limited) |
| Pulse Energy | >50 nJ at ≤200 kHz |
| Repetition Rate Range | 20 kHz – 40 MHz (continuous & burst mode) |
| Wavelength | 1064 nm (fundamental), optional 532 nm via SHG module (FP200-SH, peak conversion efficiency 20%) |
| Cooling | Air-cooled, maintenance-free operation |
| Form Factor | Compact OEM-integrated module (19″ rack-mountable or benchtop) |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported High-Energy Pulsed Solid-State Laser |
| Model | Nd:Glass |
| Output Pulse Duration | Nanosecond (ns) Range |
| Gain Medium | Neodymium-Doped Phosphate Glass (Nd:Glass) |
| Oscillator Architecture | Diode-Pumped Single-Longitudinal-Mode (SLM) or Multi-Mode (MM) Master Oscillator |
| Amplifier Configuration | Flashlamp- or Laser-Diode-Pumped Pre-Amplifier + Final Flashlamp-Pumped Power Amplifier |
| Max Aperture | 60 mm |
| Beam Wavefront Correction | Deformable Mirror-Based Adaptive Optics |
| Optional Pulse Compression | Stimulated Brillouin Scattering (SBS) Compressor |
| Harmonic Generation Options | Second-Harmonic (532 nm) and Third-Harmonic (355 nm) Modules Available |
| Control System | Microprocessor-Based with Diagnostic GUI Software |
| Compliance | CE Marked, RoHS Compliant, Designed for ISO/IEC 17025 Laboratory Environments |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Solid-State Laser System |
| Model | NL120 |
| Pulse Energy | Up to 10 J per pulse |
| Pulse Duration | 2 ns (7 ns or 25 ns optional) |
| Repetition Rate | Up to 50 Hz |
| Beam Mode | TEM₀₀ |
| Linewidth | < 0.005 cm⁻¹ (SLM operation) |
| Harmonic Generation | Optional temperature-stabilized harmonic modules (2ω, 3ω, 4ω, 5ω) |
| Control Interface | USB 2.0, Ethernet, and handheld remote controller |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | NL220 |
| Pulse Energy | Up to 30 mJ @ 1064 nm |
| Repetition Rate | Up to 1 kHz |
| Pulse Duration | <10 ns (typical) |
| Beam Profile | Near TEM₀₀ |
| Laser Type | Q-switched DPSS Nd:YAG |
| Brand | Ekspla |
|---|---|
| Model | NL230 |
| Laser Type | Diode-Pumped Solid-State (DPSS) Nd:YAG |
| Wavelength (Fundamental) | 1064 nm |
| Pulse Energy (1064 nm) | Up to 190 mJ |
| Repetition Rate | Up to 100 Hz |
| Pulse Duration | 3–6 ns |
| Beam Divergence | Low (typ. < 1.5 mrad) |
| Output Coupler | Variable-Reflectivity |
| Harmonic Generation Options | Optional temperature-stabilized SHG (532 nm) and THG (355 nm) modules |
| Control Interfaces | USB, RS232, LAN, WLAN |
| Remote Control | REST API compliant |
| Operating Mode | Q-switched |
| Cooling | Forced-air or optional water-cooling |
| Enclosure | Sealed, monolithic, ruggedized laser head |
| Brand | Ekspla |
|---|---|
| Model | NL300 |
| Pulse Energy | up to 800 mJ |
| Pulse Duration | 3–6 ns |
| Repetition Rate | 10–30 Hz |
| RMS Pulse Energy Stability | <1% |
| Harmonics Generation | 2nd–5th (thermo-stabilized modules) |
| Cooling Options | water-to-water or water-to-air |
| Beam Profile Optimization | NL30×G (OPO-pumping grade), NL30×HT (high-energy extraction) |
| Control Interface | RS232/USB with LabVIEW™ drivers, keypad remote |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Scientific Laser System |
| Model | NL300D |
| Laser Medium | Diode-Pumped Solid-State (DPSS) |
| Wavelength Options | 1064 nm / 532 nm / 355 nm / 266 nm |
| Pulse Energy | up to 2 × 720 mJ at 1064 nm |
| Pulse Duration | <8 ns (FWHM) |
| Pulse Separation | Adjustable from 100 ns to 10 s |
| Repetition Rate | Up to 20 Hz (dual-pulse mode) |
| Beam Quality | M² < 2.5 |
| Cooling | Water-cooled |
| Compliance | CE, RoHS, IEC 60825-1:2014 Class 4 Laser Product |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Model | NL310 |
| Pulse Energy | up to 10 J |
| Pulse Width | 4–6 ns (FWHM) |
| Repetition Rate | 10 Hz or 20 Hz |
| RMS Pulse Energy Stability | < 0.5% |
| Harmonic Generation | Integrated temperature-stabilized 2nd–5th harmonic modules |
| Trigger Jitter | < 1 ns (internal/external sync) |
| Control Interface | Handheld controller + USB-CAN interface |
| Laser Type | Diode-pumped solid-state (DPSS), Nd:YAG-based |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported High-Power Solid-State Nanosecond Laser |
| Model | NL740 |
| Pulse Energy | Up to 100 mJ per pulse |
| Repetition Rate | 100 Hz |
| Pulse Width | 2–10 ns (adjustable) |
| Wavelength Options | 1064 nm, 532 nm, 355 nm |
| Output Configuration | Fiber-coupled front-end amplified via diode-pumped regenerative amplifier |
| Core Technology | Q-switched Nd:YAG solid-state laser with active stabilization architecture |
| Brand | Ekspla |
|---|---|
| Origin | Lithuania |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Scientific Laser System |
| Model | NL940 |
| Core Architecture | Diode-Pumped Solid-State (DPSS) Regenerative Amplifier with OPCPA Front-End Pumping Capability |
| Output Wavelengths | 1064 nm (fundamental), 532 nm (frequency-doubled) |
| Pulse Duration | 3–10 ns (adjustable, temporally shaped) |
| Repetition Rate | Up to 10 Hz |
| Maximum Pulse Energy | 10 J @ 1064 nm |
| Beam Delivery | Free-space collimated output on optical table platform |
| Primary Applications | OPCPA pump source, Ti:Sapphire amplifier pumping, laser peening, high-energy plasma and shockwave physics |
