| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | FD115 |
| Instrument Type | Precision Forced-Air Drying Oven |
| Temperature Range | RT + 5 °C to 300 °C |
| Temperature Uniformity | ±0.3 °C (at setpoint) |
| External Dimensions | 710 × 735 × 605 mm (W × H × D) |
| Internal Chamber Dimensions | 550 × 550 × 385 mm (W × H × D) |
| Internal Volume | 115 L |
| Chamber Material | Stainless Steel (AISI 304) |
| Heating Method | Forced-air convection with APT.line® preheating jacket |
| Air Exchange Rate | 29 h⁻¹ @ 70 °C |
| Recovery Time (after 30-s door opening) | ≤2 min to 70 °C |
| Safety Class | Independent dual-stage temperature safety device (DIN 12880, Class 2) |
| Controller | DS digital controller with electronic timer (0–99 h 59 min), 1 °C resolution |
| Standard Accessories | 2 chrome-plated stainless steel shelves (load capacity: 20 kg/shelf, total 50 kg) |
| Power Supply | 230 V, 50/60 Hz, 1.6 kW |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | ED115 |
| Temperature Range | Ambient +5 °C to 300 °C |
| Temperature Uniformity | ±1.5 °C at 70 °C, ±2.5 °C at 150 °C, ±4.5 °C at 300 °C |
| Temperature Fluctuation | ±0.3 °C |
| Chamber Volume | 115 L |
| Internal Dimensions (W×H×D) | 600 × 480 × 400 mm |
| External Dimensions (W×H×D) | 834 × 702 × 645 mm |
| Interior Material | Stainless Steel (AISI 304) |
| Heating Method | Electric Resistive Heating |
| Air Exchange Rate | 12 h⁻¹ at 70 °C, 10 h⁻¹ at 150 °C and 300 °C |
| Recovery Time (after 30-sec door opening) | 2 min to 70 °C, 9 min to 150 °C, 14 min to 300 °C |
| Power Supply | 230 V, 50/60 Hz, 1.6 kW |
| Net Weight | 57 kg |
| Standard Shelving | 2 stainless steel shelves (load capacity: 20 kg per shelf, total 50 kg) |
| Controller | Microprocessor-based with LED display, programmable timer (0–99 h 59 min or continuous), APT.Line™ preheating chamber technology |
| Safety | Dual independent temperature safety devices (TWB), overtemperature protection |
| Interface | RS422 for optional APT-COM software integration |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | ED53 |
| Temperature Range | Ambient + 5 °C to 300 °C |
| Temperature Uniformity | ±2.0 °C @ 70 °C, ±2.5 °C @ 150 °C, ±4.5 °C @ 300 °C |
| Temperature Fluctuation | ±0.3 °C |
| Chamber Volume | 53 L |
| Internal Dimensions (W×H×D) | 400 × 400 × 330 mm |
| External Dimensions (W×H×D) | 634 × 617 × 575 mm |
| Chamber Material | Stainless Steel (AISI 304) |
| Heating Method | Electric Resistance Heating |
| Air Exchange Rate | 8 h⁻¹ @ 70 °C, 19 h⁻¹ @ 150 °C, 20 h⁻¹ @ 300 °C |
| Recovery Time (30-sec door opening) | 2 min @ 70 °C, 9 min @ 150 °C, 11 min @ 300 °C |
| Heating Time to 70/150/250 °C | 14 / 23 / 61 min |
| Power Supply | 230 V, 50/60 Hz, 1.2 kW |
| Net Weight | 42 kg |
| Standard Shelves | 2 (max. 5), Load Capacity: 15 kg/shelf, 40 kg total |
| Safety | Dual independent temperature safety device (TWB), APT.Line® preheating chamber technology |
| Brand | Truelab |
|---|---|
| Origin | Shanghai, China |
| Model | BPG-9070A |
| Temperature Range | RT+10°C to 300°C |
| Temperature Uniformity | ±0.5°C |
| Interior Dimensions (W×D×H) | 400×425×445 mm |
| Exterior Dimensions (W×D×H) | 545×580×800 mm |
| Interior Material | Mirror-Finish Stainless Steel |
| Heating Method | Calibrated Nichrome Wire Heater |
| Power Supply | AC 220 V, 50 Hz |
| Input Power | 1100 W |
| Volume | 80 L |
| Standard Shelves | 2 pcs |
| Timer Range | 1–9999 min |
| Temperature Resolution | 0.1°C |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | FD115 |
| Temperature Range | Ambient +5 °C to 300 °C |
| Temperature Uniformity | ±0.7 °C at 150 °C (DIN 12880) |
| Temperature Fluctuation | ±0.3 °C |
| Internal Dimensions (W×H×D) | 600 × 480 × 400 mm |
| Internal Volume | 115 L |
| Chamber Material | Stainless Steel (AISI 304) |
| Heating Method | Electric, Forced-Air Convection with APT.line® Preheating Technology |
| External Dimensions (W×H×D) | 834 × 702 × 645 mm |
| Net Weight | 62 kg |
| Power Supply | 230 V, 1.6 kW, 50/60 Hz |
| Standard Shelving | 2 chrome-plated stainless steel shelves (20 kg load per shelf, 50 kg total) |
| Safety | Dual-stage independent temperature safety device (DIN 12880 Class 2), visual alarm |
| Ventilation | Adjustable front baffle + rear 50 mm exhaust duct |
| Controller | DS digital controller with electronic timer (0–99 h 59 min), 1 °C setpoint resolution |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | VD23 / VD53 / VD115 |
| Temperature Range | Ambient +5 °C to 200 °C |
| Temperature Uniformity | ±0.4 °C |
| Interior Dimensions (W×H×D) | 285×285×285 mm (VD23) / 400×400×330 mm (VD53) / 506×506×450 mm (VD115) |
| Exterior Dimensions (W×H×D) | 515×655×500 mm (VD23) / 634×775×550 mm (VD53) / 740×900×670 mm (VD115) |
| Chamber Material | Electropolished Stainless Steel 1.4571 (AISI 316Ti) |
| Heating Method | Electric, APT.Line® Preheated Jacket |
| Vacuum Tightness | ≤0.01 mbar |
| Inert Gas Inlet | 3/8″ Fitting with Precision Flow Control Valve |
| Safety | Dual-Stage Independent Temperature Limit Controller (DIN 12880 Class 2), Explosion-Proof Tempered Glass Door, Silicone Gasket Sealing |

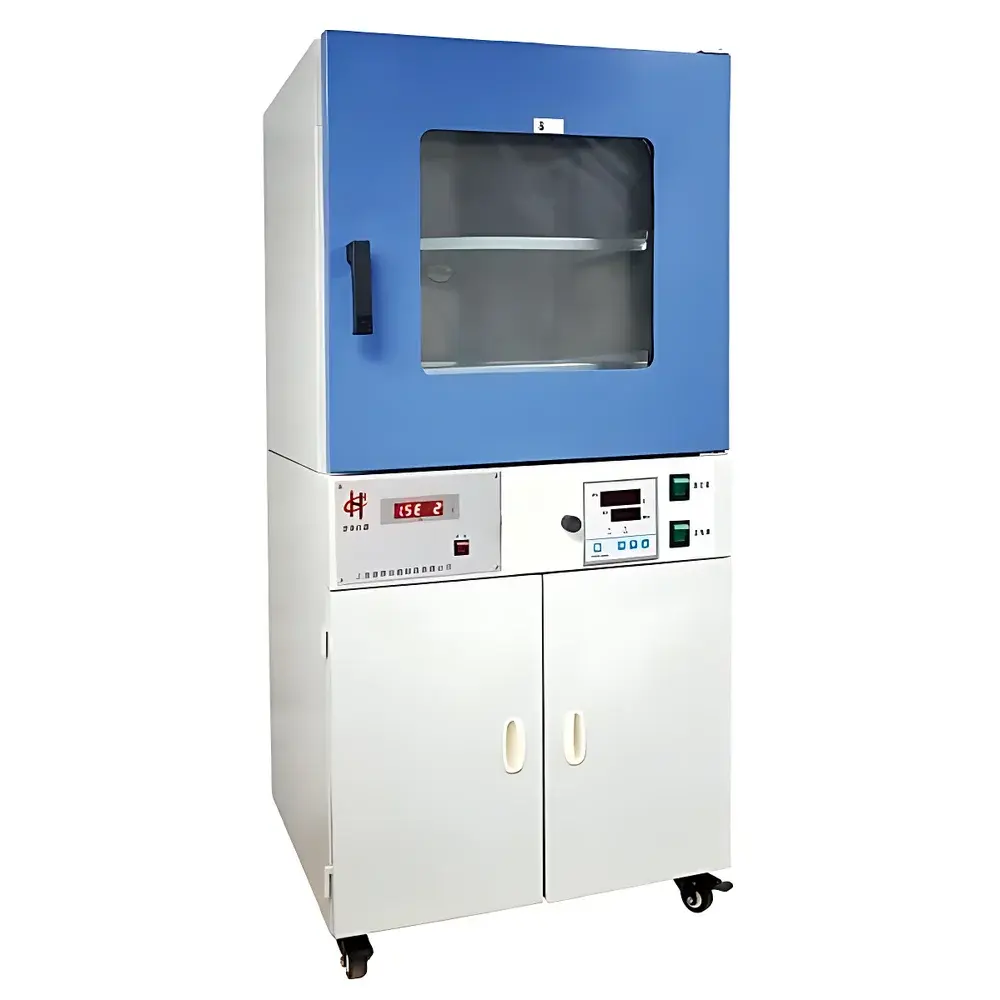

| Brand | Truelab |
|---|---|
| Origin | Shanghai, China |
| Model | HTZ-6050L / HTZ-6090L |
| Instrument Type | Vacuum Oven |
| Temperature Range | RT+10°C to 250°C |
| Temperature Uniformity | ±1°C |
| Chamber Dimensions (W×D×H) | 415 × 370 × 345 mm |
| External Dimensions (W×D×H) | 710 × 510 × 1430 mm |
| Interior Material | Stainless Steel (SUS304) |
| Heating Method | Embedded Resistance Wire Heaters on Aluminum Alloy Shelves |
| Vacuum Control Range | 2 kPa to 100 kPa (absolute) |
| Control Accuracy | ±1% of setpoint |
| Vacuum Sensor | Silicon Piezoresistive Pressure Transducer |
| Power Supply | AC 220 V, 50 Hz |
| Input Power | 1200 W (HTZ-6050L) |
| Standard Shelf Quantity | 2 pcs |
| Timer Range | 1–9999 minutes |
| Optional Accessories | Dual-stage rotary vane vacuum pump (oil-lubricated), desiccant drying canister, inert gas inlet port (N₂/Ar) |
