| Brand | Truelab |
|---|---|
| Origin | Shanghai, China |
| Model | MBE-1 |
| Power Supply Compatibility | DC high-voltage source (0–30 kV) |
| Syringe Pump Interface | Standard Luer-lock input |
| Grounding Options | Adjustable 6 cm / 8 cm / 10 cm metallic grounding rings |
| Base Dimensions | 300 × 200 mm |
| Structural Material | Polypropylene insulating frame with grounded square metal plate |
| Needle Mounting | X–Z manual translation stage |
| Compatible Nozzle Configurations | Single-, coaxial-, and triaxial needle assemblies |
| Safety Features | Interlocked protective hood, dedicated HV terminal mounting holes, ESD-safe base architecture |
| Regulatory Alignment | Designed to support GLP-compliant process documentation and ASTM D7945-15 (electrospinning/electrospray methodology guidelines) |

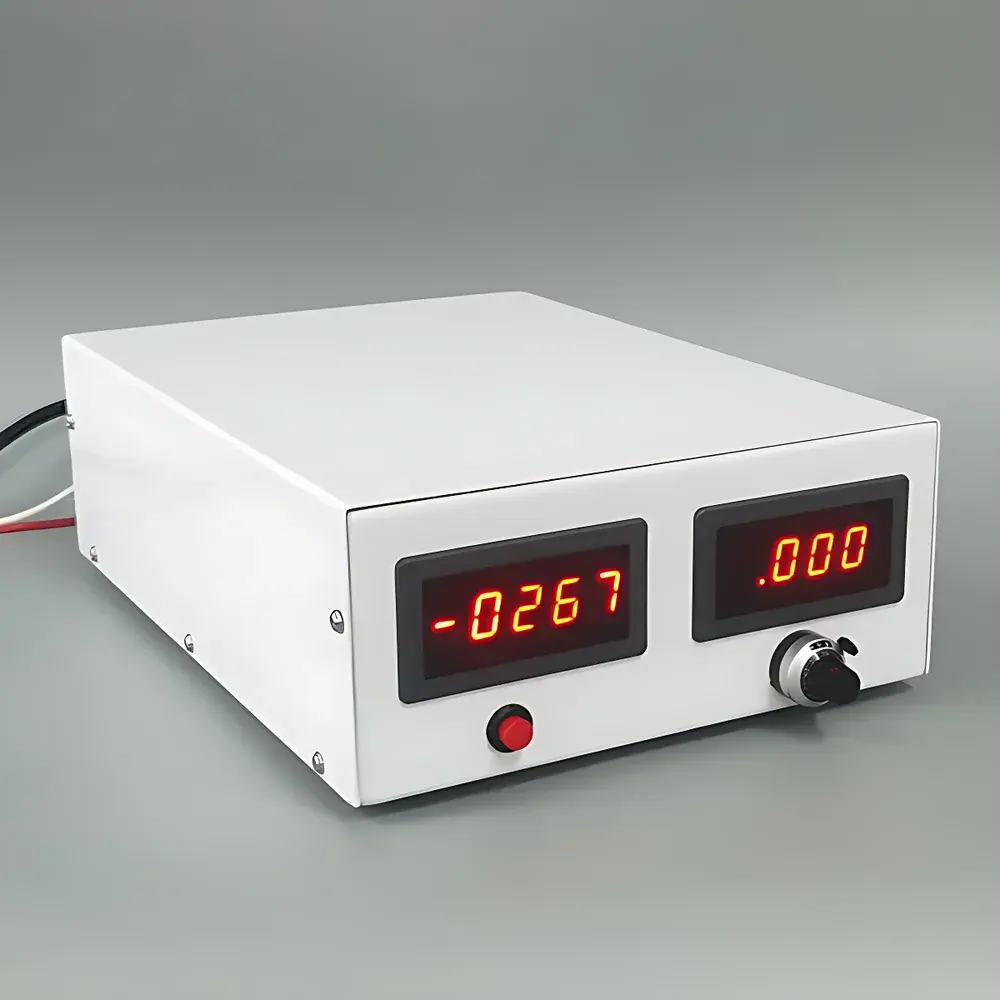

| Brand | Truelab |
|---|---|
| Output Voltage Range | 0 to –3,000 V DC |
| Voltage Resolution | ±2 V |
| Load Regulation | < 0.05% |
| Temperature Drift | < 0.05%/°C |
| Time Drift | < 0.05%/h |
| Display | 4-digit voltage LED, 3-digit current LED |
| Grounding | Common-ground configuration (compatible with positive HV supply) |
| Protection | Auto-recovery shutdown |
| Control | Analog rotary potentiometer for precise voltage setting |
| Operating Temperature | 0–65 °C |
| Operating Humidity | 20–90% RH (non-condensing) |
| Dimensions (W×H×D) | 200 × 95 × 300 mm |
| Weight | 2.8 kg |
| Brand | Truelab |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PEC-1 |
| Price Range | USD 125 – 140 |
| Electrode Spacing | 0–80 mm |
| Electrode Length | 100 mm |
| Electrode Width | 10 mm |
| Overall Dimensions (L×W×H) | 120 × 120 × 90 mm |
| Electrode Material | Oxygen-Free Copper (OFHC) |
| Electrode Holder & Base Material | Polypropylene (PP) |
| Surface Finish | Sharp-edged collection faces |
| Alignment Tolerance | < 0.1° deviation over full length |
| Weight | ~1.3 kg |
| Brand | Truelab |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

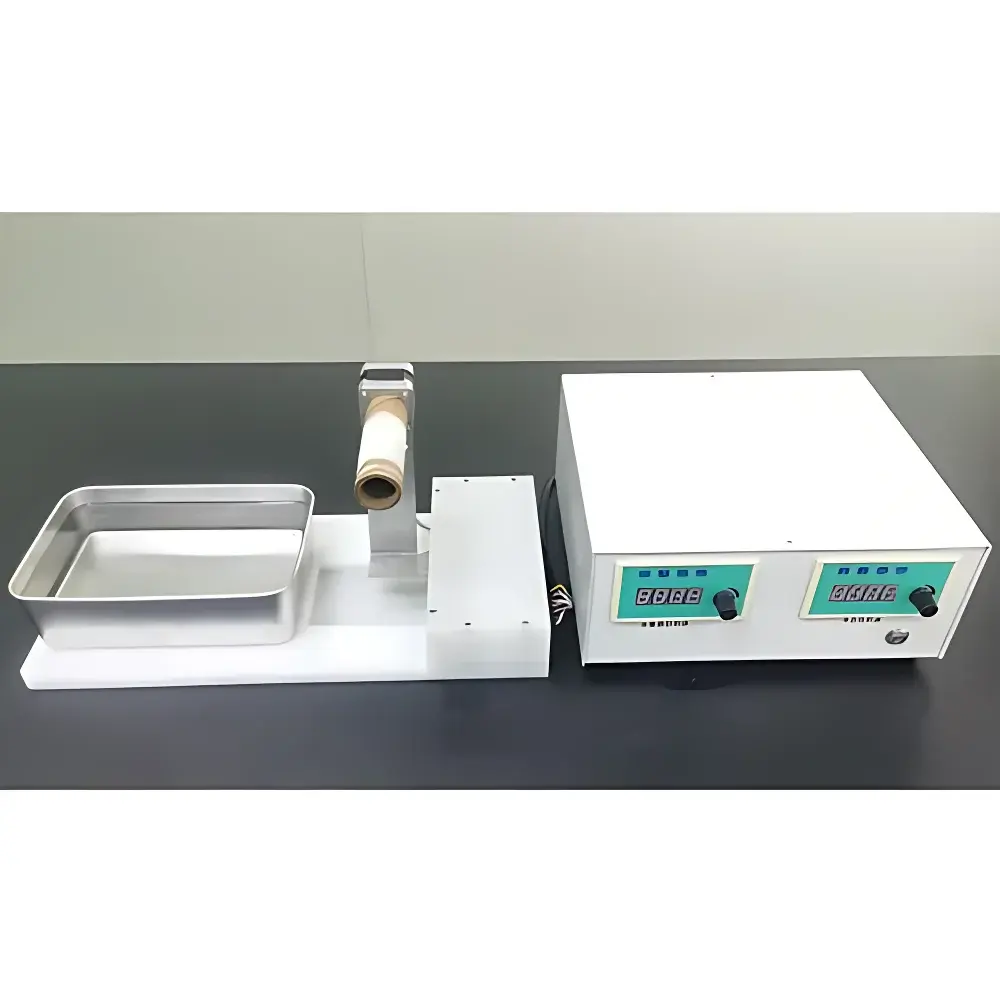

| Model | JSY-1 |
| Price Range | USD 0.14 – 1,430 (FOB) |
| Collection Drum Speed | 0.01–10 rpm |
| Reciprocating Stroke | 50 mm |
| Reciprocating Speed | 0.01–10 mm/s |
| Water Bath Dimensions (W×D×H) | 220 × 145 × 65 mm |
| Grounding Method | Alligator Clip |
| Water Bath Material | AISI 304 Stainless Steel |
| Base & Enclosure Material | Polypropylene (PP) |
| Support Frame Material | AISI 304 Stainless Steel |
| Net Weight | 3.5 kg (water bath only, empty, excluding control box) |
| Cable Length | 1.5 m (aviation connector) |
| Operating Temperature Range | 5–45 °C |
| Brand | Truelab |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | NMS-1 |
| Price Range | USD 1,400 – 2,800 |
| Funnel Diameter | 60 mm |
| Funnel Speed Range | 0–650 rpm |
| Winding Drum Speed | 0.01–10 rpm |
| Reciprocating Stroke | ≤50 mm |
| Reciprocating Speed | 0.01–10 mm/s |
| Yarn Component Width | 100 mm |
| Max. Yarn Spool Diameter | 100 mm |
| Weight | 4 kg |
| Max. Power Consumption | 45 W |
| Supply Voltage | 24 V DC |
| Operating Temperature | 5–45 °C |
