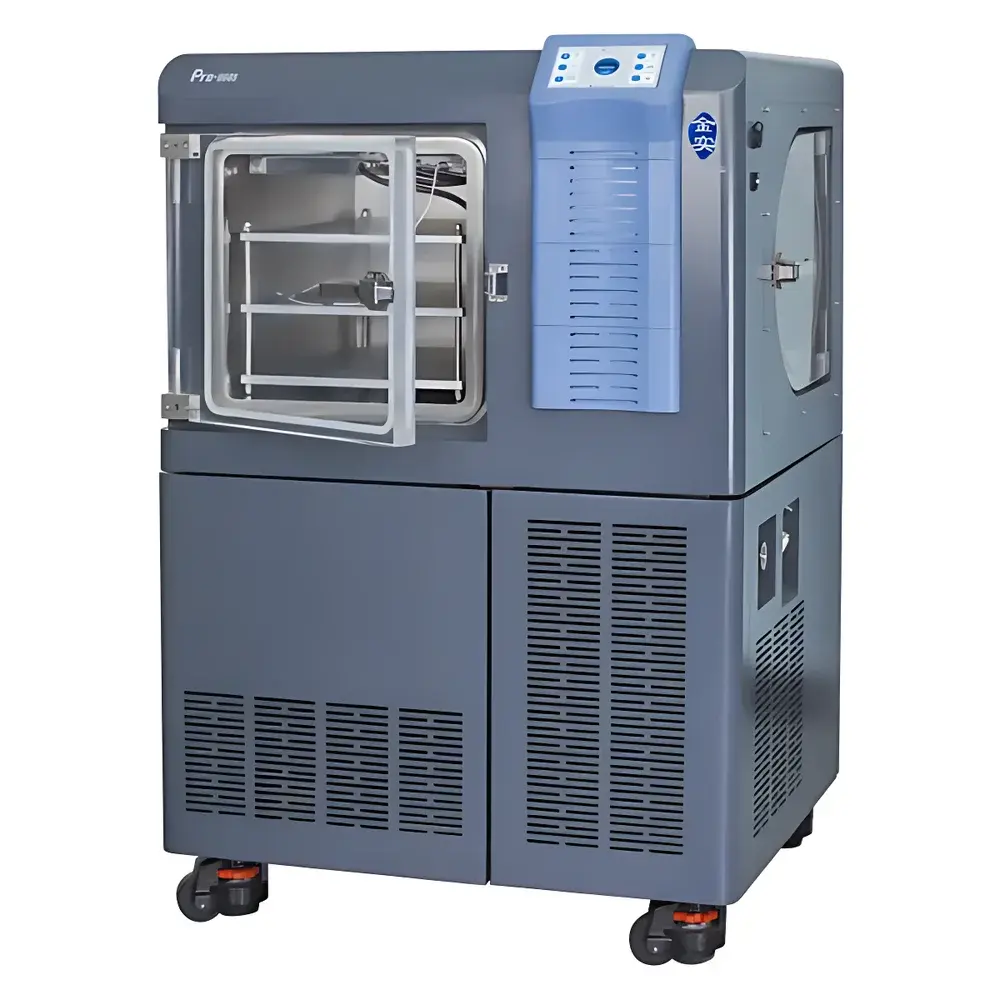

| Brand | Goldstar Instruments |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | Pro 9085 |
| Instrument Type | Manifold-Freezing Shelf Hybrid Freeze Dryer |
| Scale | Pilot-Scale |
| Lyophilization Area | ≥0.48 m² |
| Ultimate Vacuum | 0.01 mbar (1 Pa) |
| Condensate Capacity (24 h) | 9 kg |
| Condenser Temperature | ≤−85 °C |
| Dimensions (W×D×H) | 850 × 760 × 1300 mm |
| Weight | 180 kg |
| Power Supply | 220 V, 16 A, 2.2 kW |
| Shelf Configuration | 3 heated shelves (325 × 500 mm each) |
| Shelf Temperature Uniformity | ±1 °C |
| Vacuum Control Range | 0.001–1000 mbar |
| Vacuum Pump | Corrosion-Resistant, Anti-Oil-Backflow Design |
| Condenser | External Coil with PTFE-Coated Surface |
| Insulation | Frost-Resistant Thermal Barrier |
| Defrosting | Hot-Gas Automatic Defrost |
| Pressure Release | One-Touch Controlled Venting |
| Compliance | Designed for GLP-compliant laboratories |

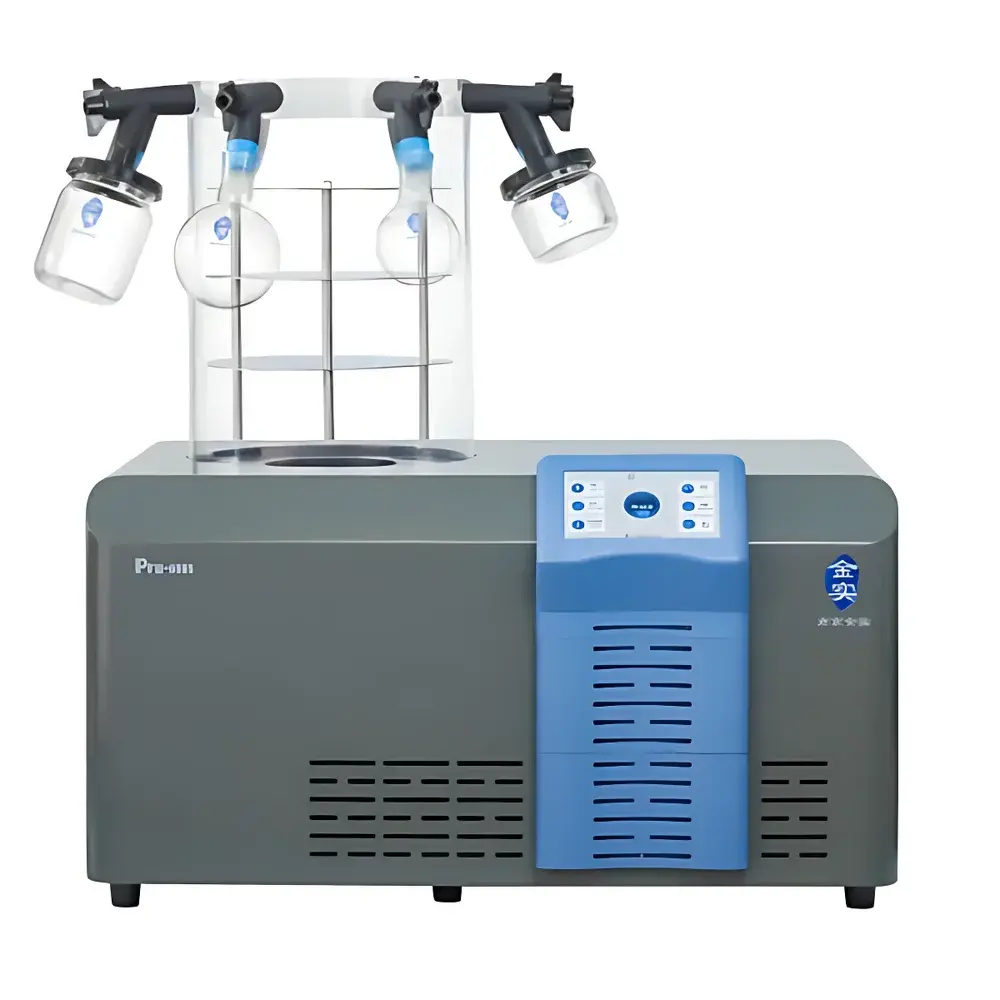

| [Brand | Golden Real |
|---|---|
| Origin | Jiangsu, China |
| Model | Golden Real Pro 6085 Freeze Dryer |
| Instrument Type | Manifold (Multi-Port) Freeze Dryer |
| Application | Laboratory-Scale Lyophilization |
| Shelf Area | ≥0.16 m² |
| Ultimate Vacuum | ≤0.01 mbar (≤1 Pa) |
| Condenser Capacity (24 h) | 6 kg |
| Condenser Temperature | ≤−85 °C |
| Dimensions (W×D×H) | 55 × 80 × 42 cm] |

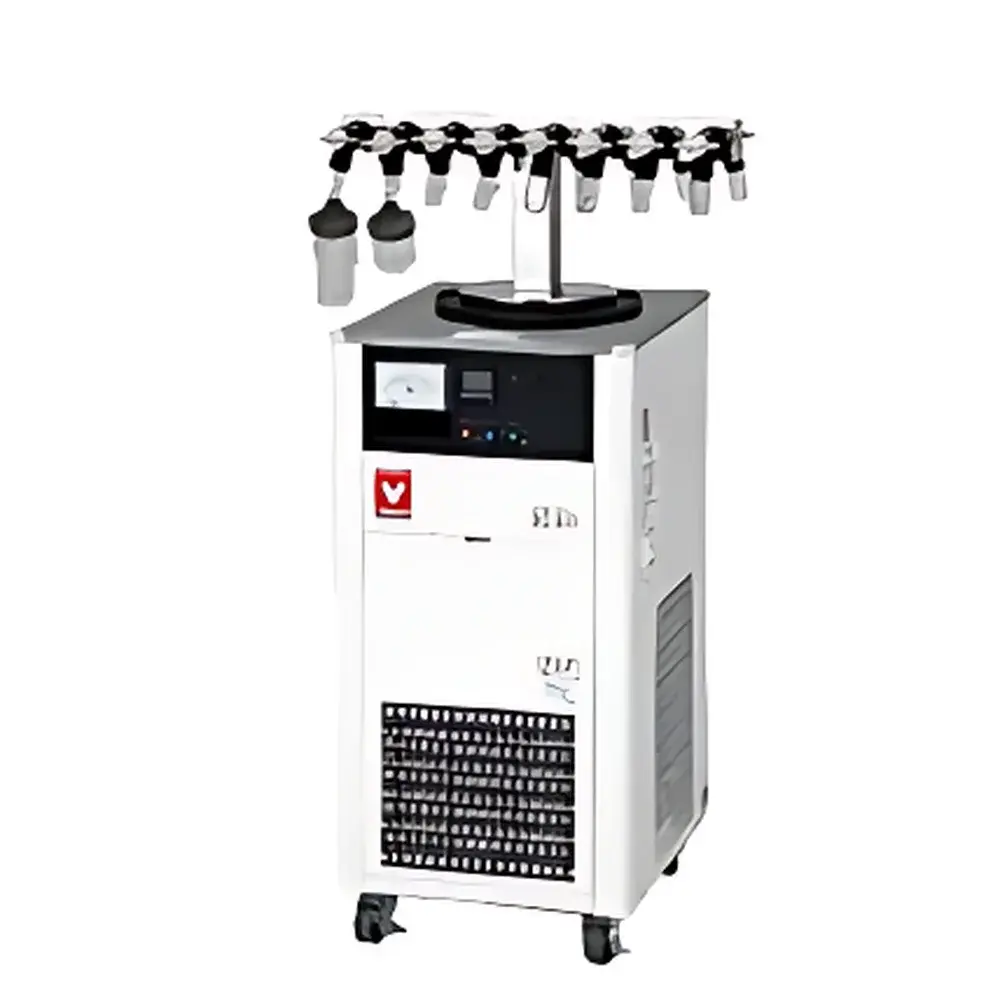

| Brand | YAMATO |
|---|---|
| Origin | Japan |
| Model | DC801 |
| Instrument Type | Manifold Freeze Dryer |
| Application | Laboratory Use |
| Shelf Area | 0.12 m² |
| Ultimate Vacuum | 60 Pa |
| Condensate Capacity (24 h) | 1.0 L |
| Cold Trap Temperature | −85 °C |
| Dimensions (L×D×H) | 405 × 500 × 846 mm |
| Weight | ~65 kg |
| Power Supply | AC 100 V, 50/60 Hz, 7 A (20 A max) |
| Refrigerant | R600a + blended refrigerant |
| Cooling Method | Air-cooled compressor (350 W) |
| Vacuum Gauge | Pirani gauge |
| Defrosting Method | Hot-gas bypass |
| Safety Features | Overcurrent leakage breaker, compressor overload protection, reverse-flow prevention valve |
| Ambient Operating Temperature | 5–30 °C |
| Cold Trap Dimensions | Ø153 × H235 mm |
| Internal Volume | ~4 L |
| Vacuum Pump Compatibility | 50–60 L/min displacement |
| Brand | Panasonic |
|---|---|
| Origin | Liaoning, China |
| Manufacturer Type | Authorized Distributor |
| Product Type | Flake Ice Machine |
| Ice Production Method | Dual-Screw Extrusion |
| Ice Output | ~130 kg/day (at 20°C ambient, 15°C water) / ~110 kg/day (at 30°C ambient, 25°C water) |
| Ice Storage Capacity | ~28 kg (gravity-fed: 19 kg) |
| Water Consumption | ~0.16 m³/day (20°C/15°C) / ~0.14 m³/day (30°C/25°C) |
| Cooling System | HFC-based Refrigerant Cycle |
| Compressor | Hermetic, 300 W |
| Rated Power Input | 435 W |
| Ambient Operating Range | 5–35°C |
| Water Inlet Temp. Limit | ≤35°C |
| External Dimensions (W×D×H) | 600 × 600 × 800 mm |
| Net Weight | ~72 kg |
| Materials | Front/Sides – Coated Stainless Steel |
| Adjustable Feet | 4 (70–105 mm range) |
| Drain Ports | Water Inlet – 1/2″ BSP |
| Standard Accessories | Stainless Steel Ice Scoop, Inline Water Filter Valve, Stainless Steel Supply Hose, Condensate Drain Hose, Ice Bin Drain Hose |
| Control System | Microprocessor-Based with Self-Diagnostic Alarms |
| Hygienic Features | Antimicrobial Treatment on Frequently Touched Surfaces (Door Handle, Ice Scoop, Ice Bin Interior, Water Reservoir) |
| Brand | Goldstar Instruments |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | ECO mini |
| Instrument Type | Manifold-Style Freeze Dryer |
| Application | Laboratory-Scale Lyophilization |
| Shelf Area | 0.16 m² |
| Ultimate Vacuum | 0.1 Pa |
| Condensate Capacity (24 h) | 4 kg |
| Cold Trap Temperature | −60 °C |
| Dimensions (W×D×H) | 420 mm × 550 mm × 440 mm |
| Display | 7-inch LCD Touchscreen |
| Shelf Diameter | 260 mm |
| Number of Shelves | 3 |
| Manifold Ports | 8 |
| Defrost Method | Natural Thawing |
| Power Consumption | 0.75 kW |
| Net Weight | 47 kg |
| Brand | YAMATO |
|---|---|
| Origin | Japan |
| Model | DC401 |
| Instrument Type | Manifold Freeze Dryer |
| Application | Laboratory-Scale Lyophilization |
| Shelf Area | 0.12 m² |
| Ultimate Vacuum | 60 Pa |
| Condenser Capacity (24 h) | 0.6 L |
| Condenser Temperature | −45 °C |
| Dimensions (W × D × H) | 300 mm × 404 mm × 696 mm |
| Net Weight | ~32 kg |
| Power Supply | AC 100 V, 50/60 Hz |
| Compressor Power | 400 W |
| Refrigerant | R404A |
| Condenser Chamber | Ø153 mm × 235 mm (stainless steel cylindrical design) |
| Vacuum Gauge | Pirani-type |
| Defrost Method | Hot-Gas Bypass |
| Safety Features | Overcurrent leakage circuit breaker, compressor overload protection, reverse-flow prevention valve |
| Ambient Operating Temperature | 5–30 °C |
| Included Accessories | Vacuum silicone grease, vacuum hose, 10 A fuse |
