Showing 61–90 of 104 results

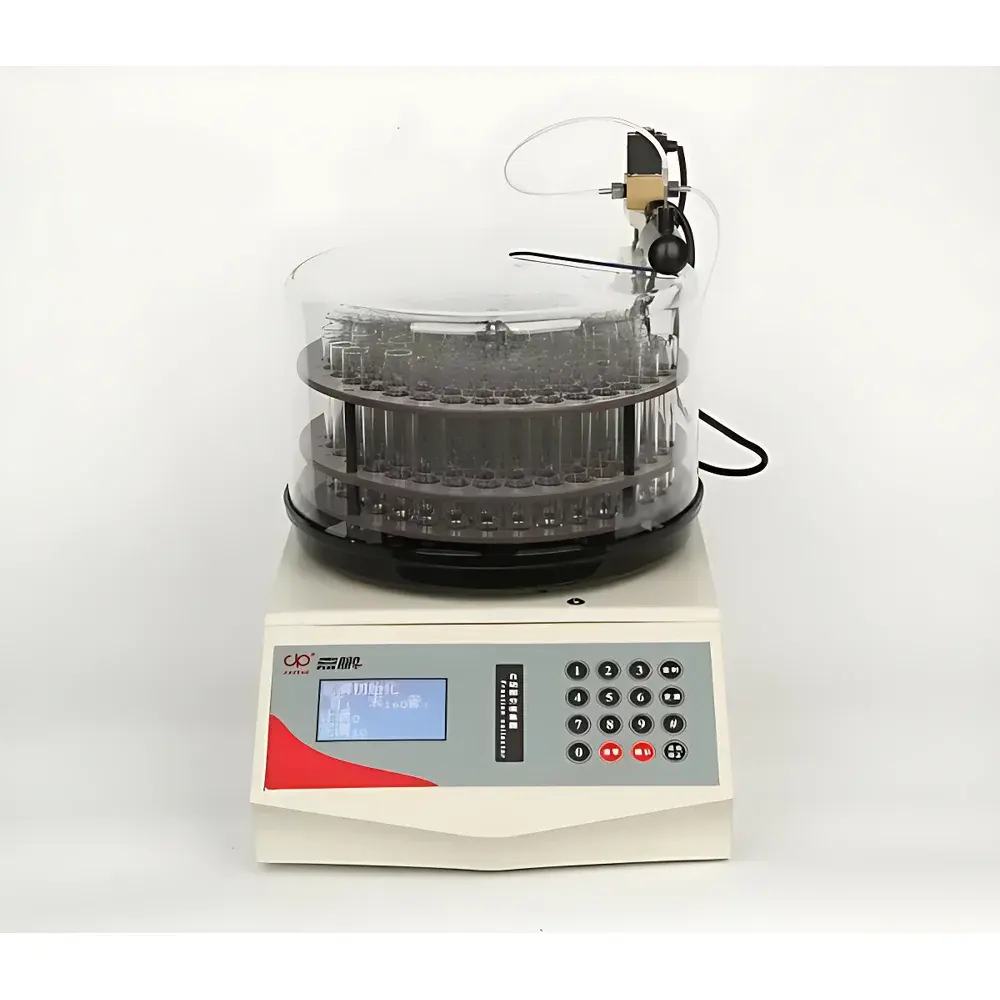

| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | SBS-100 |
| Fraction Collection Type | Liquid-phase |
| Collection Modes | Time-based, Drop-counting, Peak-triggered |
| Tube Capacity | 12 mL per tube |
| Number of Tubes | 100-position circular rack |
| Time Range | 1 s – 199 h 59 min 59 s |
| Drop Count Range | 1–9999 drops |
| Peak Detection Input | 0–100 mV analog signal |
| Display | Large blue-backlit Chinese-language LCD |
| Power Supply | AC 220 V, 50/60 Hz |
| Dimensions (W×D×H) | 265 × 390 × 390 mm |
| Weight | 8.35 kg |
| Data Retention After Power Loss | ≥10 years |
| Continuous Operation Time | >200 hours |
| Housing Material | ABS polymer, injection-molded, fully enclosed |
| Compliance | Designed for GLP-compliant chromatography workflows in R&D and pilot-scale purification |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | SBS-160 |
| Fraction Capacity | 160 × 5 mL tubes |
| Timing Range | 1 s – 199 h 59 min 59 s |
| Droplet Counting Range | 1–9999 drops |
| Peak Trigger Range | 0–100 mV (for SBS-100 variant |
| Display | Large blue-backlit Chinese LCD |
| Power Supply | AC 220 V, 50/60 Hz |
| Dimensions (W×D×H) | 265 × 390 × 390 mm |
| Weight | 8.35 kg |
| Data Retention After Power Loss | ≥10 years |
| Continuous Operation Time | >200 hours |
| Housing Material | ABS plastic (injection-molded, fully enclosed) |
| Tube Rack | Circular, digitally numbered (1–160), compatible with standard 12 × 75 mm or 13 × 100 mm test tubes |
| External Trigger Interface | RS-232 COM port for synchronized control with peristaltic pumps (e.g., Keebio constant-flow pumps) |
| Valve Type | Solenoid-actuated fluid cutoff valve (optional solvent-resistant version available) |
| Brand | Jiapeng |
|---|---|
| Model | TH-1000A |
| Gradient Volume Capacity | 2000 mL |
| Gradient Profile Type | Linear |
| Solvent Compatibility | Organic Solvent–Resistant Construction |
| Display | LED Digital Speed Indicator |
| Power Supply | AC 220 V, 50/60 Hz |
| Dimensions (L×W×H) | 270 × 170 × 90 mm |
| Net Weight | 1.2 kg |
| Application Class | Laboratory Gradient Generation System for Chromatography & Fractionation |
| Instrument Type | Magnetic Stirrer–Integrated Gradient Mixer |
| Maximum Stirring Volume (as stirrer mode) | 1000 mL |
| Brand | Jiapeng |
|---|---|
| Model | TH-300A |
| Gradient Volume | 600 mL |
| Gradient Profile | Linear |
| Solvent Compatibility | Organic-solvent resistant |
| Display | LED digital speed indicator |
| Power Supply | AC 220 V, 50/60 Hz |
| Dimensions (W×D×H) | 270 × 170 × 90 mm |
| Weight | 1.2 kg |
| Instrument Type | Magnetic Stirrer-Integrated Gradient Mixer |
| Brand | Jiapeng |
|---|---|
| Model | TH-500A |
| Gradient Volume Capacity | 1000 mL |
| Gradient Profile | Linear Only |
| Solvent Compatibility | Organic Solvent–Resistant Construction |
| Display | LED Digital Speed Readout |
| Input Power | AC 220 V, 50/60 Hz |
| Dimensions (L×W×H) | 270 × 170 × 90 mm |
| Weight | 1.2 kg |
| Equipment Type | Magnetic Stirrer–Integrated Gradient Mixer |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | UV-1000 |
| Instrument Type | Benchtop |
| UV Wavelength | 302 nm (transmission) |
| UV Lamp Configuration | Eight 8 W low-pressure mercury lamps |
| UV Transmission Area | 200 × 250 mm |
| UV Filter Dimensions | 200 × 200 mm |
| Power Consumption | 64 W |
| UV Intensity | ≥20 µW/cm² at 20 cm distance (per JJF 1936–2021) |
| Cut Window UV Blocking Efficiency | >99% |
| Input Voltage | AC 220 V, 50/60 Hz |
| Dimensions (L×W×H) | 325 × 260 × 140 mm |
| Net Weight | 2.3 kg |
| Compliance | Designed and validated per JJF 1936–2021 “Verification Regulation for UV Analyzers” |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | UV-2000 |
| Instrument Type | Darkroom-style transilluminator |
| Wavelength Modes | Multi-wavelength (transmission: 302 nm |
| reflection | 254 nm & 365 nm) |
| UV Lamp Count | 12 × 8 W tubes |
| Transmission Filter Size | 200 × 250 mm |
| Transmission Area | 200 × 250 mm |
| Reflected Light Filter Size | 200 × 50 mm (for 254/365 nm) |
| White Light Panel Size | 210 × 260 mm |
| Power Supply | AC 220 V, 50/60 Hz |
| Dimensions (L×W×H) | 420 × 355 × 580 mm |
| Weight | 10 kg |
| UV Intensity | ≥20 µW/cm² at 20 cm distance (302 nm transmission) |
| Safety Features | UV-blocking shield (blocks >99% UV), automatic lamp shutoff upon drawer opening, integrated cooling fan |
| Compliance | Designed per JJF 1936–2021 “Verification Regulation for UV Analyzers” (PRC National Metrological Technical Specification) |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | UV-3000 |
| Instrument Type | Darkroom-style transilluminator |
| Wavelength Modes | Multi-wavelength (transmission: 302 nm |
| reflection | 254 nm & 365 nm) |
| UV Lamp Count | 12 × 8 W tubes |
| Transmission Filter Size | 200 × 250 mm |
| Reflection Filter Area | 200 × 50 mm (dual-side) |
| Transmission Illuminated Area | 200 × 250 mm |
| White Light Panel Size | 210 × 260 mm |
| White Light Source | 4 W LED panel |
| Input Power | AC 220 V, 50/60 Hz |
| UV Intensity at 20 cm | ≥20 µW/cm² |
| Compliance | JJF 1936–2021 (National Verification Regulation for UV Analyzers) |
| Dimensions (L×W×H) | 420 × 355 × 580 mm |
| Net Weight | 10 kg |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | UV-A |
| Instrument Type | Darkroom-style |
| Wavelengths | 254 nm & 365 nm (dual-band) |
| UV Filter Dimensions | 200 × 50 mm |
| UV Lamps | 8 W × 2 (low-pressure mercury vapor lamps) |
| Power Consumption | 20 W |
| UV Intensity | ≥20 µW/cm² at 20 cm distance from lamp surface |
| Input Voltage | AC 220 V, 50/60 Hz |
| Dimensions (L×W×H) | 340 × 270 × 265 mm |
| Net Weight | 2.0 kg |
| Compliance | JJF 1936–2021 “Verification Regulation for Ultraviolet Analyzers” (drafting enterprise) |
| Patents | ZL202221777391.4, ZL202222383825.9 |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | Vortex-2 |
| Instrument Type | Orbital Vortex Mixer |
| Operating Mode | Continuous Operation |
| Speed Range | 0–2800 rpm |
| Oscillation Frequency | 50/60 Hz |
| Orbital Diameter | 4.5 mm |
| Motor Input Power | 60 W |
| Motor Output Power | 10 W |
| Ambient Temperature Range | 5–40 °C |
| Platform Type | Single Flat Platform |
| Platform Material | Wear-Resistant Rubber Surface |
| Housing Material | Reinforced Engineering Plastic (Acid/Alkali Resistant, Impact Resistant) |
| IP Rating | IP56 |
| Voltage | 198–242 V AC |
| Dimensions (W×D×H) | 140 × 145 × 145 mm |
| Net Weight | 1.75 kg |
| Compliance | Designed for GLP-compliant laboratory environments |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | Vortex-3 |
| Speed Range | 0–2800 rpm |
| Operating Modes | Continuous / Touch-Start (Pulse) |
| Motion Type | Orbital (Circular) |
| Platform Amplitude | 5 mm |
| Display | Analog Scale (Calibrated Dial) |
| Housing Material | ABS Engineering Plastic |
| Platform Surface | Wear-Resistant Rubber |
| Input Voltage | 198–242 V AC, 50 Hz |
| Power Consumption | 60 W (Motor Input: 85 W |
| Mechanical Output | 15 W) |
| Ambient Operating Conditions | 5–40 °C, ≤80% RH |
| IP Rating | IP56 |
| Dimensions (W×D×H) | 140 × 145 × 145 mm |
| Net Weight | 1.75 kg |
| Compliance | Designed for general laboratory use per IEC 61010-1 safety requirements |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | Vortex-5 |
| Oscillation Mode | Orbital |
| Orbit Diameter | 4.5 mm |
| Speed Range | 0–3000 rpm |
| Speed Display | Analog Scale |
| Operating Modes | Continuous & Touch-Start |
| Input Power | 60 W |
| Output Power | 10 W |
| Frequency | 50 Hz |
| Ambient Temperature Range | 5–40 °C |
| IP Rating | IP56 |
| Voltage | 198–242 V AC |
| Dimensions (W×D×H) | 170 × 145 × 165 mm |
| Weight | 1.75 kg |
| Material | Reinforced Engineering Plastic with Rubberized Platform |
| Compliance | CE-marked per EN 61010-1 for laboratory equipment |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | XW-80A |
| Oscillation Frequency | 50/60 Hz |
| Oscillation Amplitude | 5 mm |
| Operating Voltage | 198–242 V AC |
| Power Consumption | 60 W |
| Dimensions (L×W×H) | 140 × 145 × 145 mm |
| Net Weight | 1.75 kg |
| Protection Rating | IP56 |
| Ambient Temperature Range | 5–40 °C |
| Relative Humidity Limit | ≤80% RH |
| Motor Output Power | 15 W |
| Drive Mechanism | Circular orbital motion |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | ZF-1 |
| Instrument Type | Benchtop |
| Wavelengths | 254 nm and 365 nm (dual-band) |
| UV Filter Dimensions | 200 × 50 mm |
| UV Lamp Power | 8 W × 2 tubes |
| Visible Light Source | 4 W × 1 lamp |
| UV Intensity | 20 µW/cm² at 20 cm distance |
| Input Voltage | AC 220 V, 50/60 Hz |
| Dimensions (L×W×H) | 270 × 280 × 270 mm |
| Weight | 1.2 kg |
| Compliance | JJF 1936–2021 (National Verification Regulation for UV Analyzers) |
| Patents | ZL201920792756.2, ZL202221777391.4, ZL202222383825.9 |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | ZF-1 |
| Instrument Type | Darkroom-style |
| Wavelength | 302 nm (transmission), 254 nm & 365 nm (reflection) |
| UV Filter Size | 200 × 200 mm |
| UV Lamp Power | 8 W × 8 tubes |
| UV Intensity | 20 µW/cm² at 20 cm distance |
| Input Power | AC 220 V, 50/60 Hz |
| Dimensions (L×W×H) | 375 × 280 × 380 mm |
| Weight | 4.88 kg |
| White Light Panel | Not equipped |
| Camera Mount | Integrated DSLR-compatible port |
| UV Observation Window | >99% UV blocking |
| Compliance | JJF 1936–2021 (National Verification Regulation for UV Analyzers) |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | ZF-108 |
| Price Range | USD 280–700 |
| Instrument Type | Darkroom-style |
| Wavelength Options | 254 nm and 365 nm |
| UV Filter Size | 200 × 50 mm |
| UV Lamps | 2 × 20 W |
| Power Consumption | 20 W |
| Display | LCD with Chinese interface |
| Control System | Microcontroller-based |
| UV Lamp Angle | Adjustable |
| UV Intensity at 20 cm | ≥20 µW/cm² |
| Built-in Rechargeable Battery | 4800 mAh |
| Dimensions (L×W×H) | 310 × 200 × 300 mm |
| Weight | 3 kg |
| Compliance | NY/T 1257–2006 (Detection of Fluorescent Substances in Edible Fungi) |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | ZF-109 |
| Instrument Type | Darkroom-style transilluminator |
| Wavelengths | 254 nm and 365 nm |
| UV Filter Dimensions | 200 × 50 mm |
| UV Lamps | 2 |
| Input Voltage | 220 V AC |
| Operating Mode | AC-powered (with optional DC operation via internal rechargeable battery) |
| Display | LCD with Chinese interface |
| Camera Integration | Built-in digital camera module |
| Image Storage Capacity | ≥5000 images |
| UV Intensity at 20 cm | ≥20 µW/cm² |
| Dimensions (L×W×H) | 310 × 200 × 300 mm |
| Weight | 3 kg |
| Compliance | Designed per NY/T 1257–2006 (Detection of Fluorescent Substances in Edible Fungi) |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | ZF-288 |
| Instrument Type | Standard Gel Imaging System |
| CCD Resolution | 5 MP (3096 × 2080 pixels) |
| Bit Depth | 16-bit |
| Dynamic Range | 4.5 OD |
| CCD Sensor Size | 1/2.5" |
| Minimum Detectable DNA | 0.01 ng (EB-stained dsDNA) |
| Signal-to-Noise Ratio | ≥56 dB |
| Lens | Motorized High-Transmission Zoom Lens (Computar, f/1.2, 8–48 mm) |
| Transmission UV Source | 300 nm (210 × 260 mm area) |
| Reflected UV Sources | 254 nm & 365 nm |
| Blue/White Light Transilluminator | 210 × 300 mm |
| Standard Emission Filter | 590 nm |
| Software | JP-GEL 1D Image Analysis Suite |
| Power Supply | AC 220 V, 50/60 Hz |
| Dimensions (W×D×H) | 435 × 390 × 760 mm |
| Weight | 19.68 kg |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | ZF-5 |
| Instrument Type | Portable (Handheld) |
| Wavelength Options | 254 nm & 365 nm (or 302 nm) |
| UV Filter Dimensions | 200 × 50 mm |
| UV Lamps | 8 W × 2 |
| UV Intensity | ≥20 µW/cm² at 20 cm distance |
| Input Power | AC 220 V, 50/60 Hz |
| Dimensions (L×W×H) | 280 × 80 × 120 mm |
| Weight | 0.7 kg |
| Compliance | JJF 1936–2021 (National Verification Regulation for UV Analyzers) |
| Patents | ZL202221777391.4, ZL202222383825.9 |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | ZF-6 |
| Instrument Type | Benchtop |
| Wavelength Modes | 254 nm and 365 nm (dual-band) |
| UV Filter Dimensions | 200 × 50 mm |
| UV Lamp Power | 8 W × 2 |
| Visible Light Lamp | 4 W × 1 |
| UV Intensity | 20 µW/cm² at 20 cm distance |
| Input Voltage | AC 220 V, 50/60 Hz |
| Dimensions (L×W×H) | 270 × 280 × 270 mm |
| Weight | 1.2 kg |
| Compliance | JJF 1936–2021 (National Verification Regulation for UV Analyzers) |
| Enclosure Material | High-strength, eco-friendly ABS polymer |
| UV Lamp Angle | Adjustable |
| Regulatory Status | Domestic (PRC) |
| Manufacturer Role | Authorized Distributor |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | ZF-7 |
| Instrument Type | Darkroom-style |
| Wavelengths | 254 nm & 365 nm (dual-band) |
| Visible Light Source | 4 W white LED |
| UV Transillumination Area | 200 × 50 mm |
| UV Lamp Configuration | Two 8 W low-pressure mercury lamps (254 nm & 365 nm) |
| UV Filter Dimensions | 200 × 50 mm |
| Adjustable UV Lamp Angle | Yes |
| Viewing Window | UV-blocking acrylic (99% UVC/UV-A attenuation) |
| Operating Distance | 20 cm |
| UV Intensity at 20 cm | 20 µW/cm² |
| Power Input | AC 220 V, 50/60 Hz |
| External Dimensions (L×W×H) | 280 × 330 × 330 mm |
| Internal Cavity Dimensions | 280 × 245 × 220 mm |
| Net Weight | 2.65 kg |
| Compliance | JJF 1936–2021 (National Verification Regulation for UV Analyzers) |
| Patents | ZL201920792756.2, ZL202221777391.4, ZL202222383825.9 |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | ZF-7N |
| Instrument Type | Darkroom-style |
| Wavelength Modes | Dual UV (254 nm & 365 nm) + Visible Light |
| UV Emission | 254 nm (reflective), 365 nm (reflective) |
| Filter Type | Transparent short-wave cutoff filter |
| UV Lamp Quantity | 2 × 8 W |
| UV Filter Dimensions | 200 × 50 mm |
| UV Transillumination Area | 200 × 50 mm |
| Visible Light Lamp | 4 W (1 unit) |
| Input Power | AC 220 V, 50/60 Hz |
| Internal Chamber Dimensions | 280 × 245 × 220 mm |
| External Dimensions | 280 × 330 × 330 mm |
| Weight | 2.65 kg |
| Compliance | JJF 1936–2021 (National Verification Regulation for UV Analyzers) |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | ZF-7ND |
| Instrument Type | Darkroom-style |
| Wavelength Types | Dual-band UV (254 nm & 365 nm) + Visible Light |
| UV Emission | 254 nm (reflective), 365 nm (reflective) |
| UV Lamp Count | 2 × 8 W |
| UV Filter Size | 200 × 50 mm |
| UV Transillumination Area | 200 × 50 mm |
| Visible Light Lamp | 1 × 4 W |
| Power Input | AC 220 V, 50/60 Hz |
| Internal Dimensions | 280 × 245 × 220 mm |
| External Dimensions | 280 × 330 × 330 mm |
| Weight | 2.65 kg |
| UV Intensity | ≥20 µW/cm² at 20 cm (per JJF 1936–2021) |
| Compliance | JJF 1936–2021 (National Verification Regulation for UV Analyzers) |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | ZF-8 |
| Instrument Type | Darkroom-style |
| Wavelengths | 254 nm (reflective), 302 nm (transmissive), 365 nm (reflective) |
| UV Lamp Quantity | 4 × 8 W |
| UV Filter Size | 200 × 80 mm |
| Transillumination Area | 200 × 80 mm |
| Visible Light Lamp | 1 × 6 W |
| Total Power Consumption | 38 W |
| UV Lamp Adjustability | Yes (articulated mounting) |
| Observation Window | UV-blocking acrylic (≥99% UVC/UVB attenuation) |
| Compliance | JJF 1936–2021 (National Verification Regulation for UV Analyzers) |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Region of Manufacture | Domestic (China) |
| Model | ZF-8N |
| Price Range | USD 280–700 |
| Instrument Type | Darkroom-style |
| Wavelength Modes | Multi-wavelength |
| UV Emission Wavelengths | 302 nm (transillumination), 254 nm (epi-illumination), 365 nm (epi-illumination) |
| UV Lamp Count | 4 |
| UV Filter Dimensions | 200 × 80 mm |
| Transillumination Area | 200 × 80 mm |
| UV Lamp Power Rating | 8 W per lamp |
| Total Power Consumption | 38 W |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | ZF-8ND |
| Instrument Type | Darkroom-style |
| Wavelength Modes | 254 nm (reflective), 302 nm (transmissive), 365 nm (reflective), plus visible white light (6 W) |
| UV Lamp Count | 4 × 8 W |
| UV Transillumination Area | 200 × 80 mm |
| UV Filter Dimensions | 200 × 80 mm |
| UV Intensity | ≥20 µW/cm² at 20 cm distance (per JJF 1936–2021) |
| Power Input | AC 220 V, 50/60 Hz |
| Internal Cavity Dimensions | 280 × 245 × 220 mm |
| External Dimensions | 280 × 330 × 330 mm |
| Weight | 3.2 kg |
| Compliance | JJF 1936–2021 (National Verification Regulation for UV Analyzers) |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | ZF-9 |
| Instrument Type | Darkroom Transilluminator |
| UV Wavelength | 366 nm |
| UV Lamp Quantity | 4 × 8 W |
| UV Transmission Area | 200 × 80 mm |
| UV Filter Dimensions | 200 × 50 mm |
| Visible Light Lamp | 6 W (1 unit) |
| Power Supply | AC 220 V ±10%, 50 Hz |
| External Dimensions | 320 × 220 × 310 mm |
| Compliance | Designed for GB/T 5750.12–2006 and GB 5749–2006 water quality testing protocols |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | ZF1-I |
| Instrument Type | Darkroom-style |
| Wavelength Modes | Multi-wavelength (Transmitted: 302 nm |
| Reflected | 254 nm & 365 nm) |
| UV Lamp Count | 12 × 8 W |
| UV Transillumination Area | 200 × 200 mm |
| UV Reflective Area | 200 × 80 mm |
| UV Filter Dimensions | 200 × 200 mm (transmission), 200 × 80 mm (reflection) |
| White Light Panel | 210 × 260 mm |
| Input Power | AC 220 V, 50/60 Hz |
| UV Intensity at 20 cm | ≥20 µW/cm² |
| Compliance | JJF 1936–2021 (National Verification Regulation for UV Analyzers) |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | ZF1-II |
| Instrument Type | Darkroom-style |
| Wavelength Modes | Multi-wavelength |
| UV Transmission Wavelength | 302 nm |
| UV Reflection Wavelengths | 254 nm, 365 nm |
| Filter Type | Transparent short-wave cutoff filter |
| UV Lamp Count | 10 |
| UV Filter Dimensions | 200 × 150 mm |
| UV Transmission Area | 200 × 150 mm |
| UV Lamp Power | 8 W per lamp |
| Input Power | AC 220 V, 50/60 Hz |
| White Light Source | 40 W incandescent lamp |
| UV Intensity at 20 cm | 20 µW/cm² |
| Cut-out Tool Kit | 1 gel-cutting blade with 4 replaceable tips |
| Darkroom Dimensions (L×W×H) | 375 × 280 × 380 mm |
| Net Weight | 4.88 kg |
| Brand | Jiapeng |
|---|---|
| Origin | Shanghai, China |
| Model | ZF1-IIN |
| Instrument Type | Darkroom-style |
| Wavelength Modes | 302 nm (transmission), 254 nm & 365 nm (reflection) |
| Transmission Area | 200 × 150 mm |
| Reflection Filter Size | 200 × 80 mm |
| White Light Panel | 210 × 260 mm |
| UV Lamp Configuration | Twelve 8 W UV tubes (ten 302 nm transmission + two dual-wavelength reflection lamps) |
| Total Power Consumption | 80 W |
| UV Intensity at 20 cm | 20 µW/cm² |
| Display | 3.5-inch Chinese LCD with touch membrane keypad |
| Timer Range | 1 min – 24 h (user-programmable) |
| Safety Features | >99% UV-blocking observation window, integrated gel-cutting tools (1 handle + 4 interchangeable blades) |
| Compliance | Designed per JJF 1936–2021 “Verification Regulation for UV Analyzers” |
