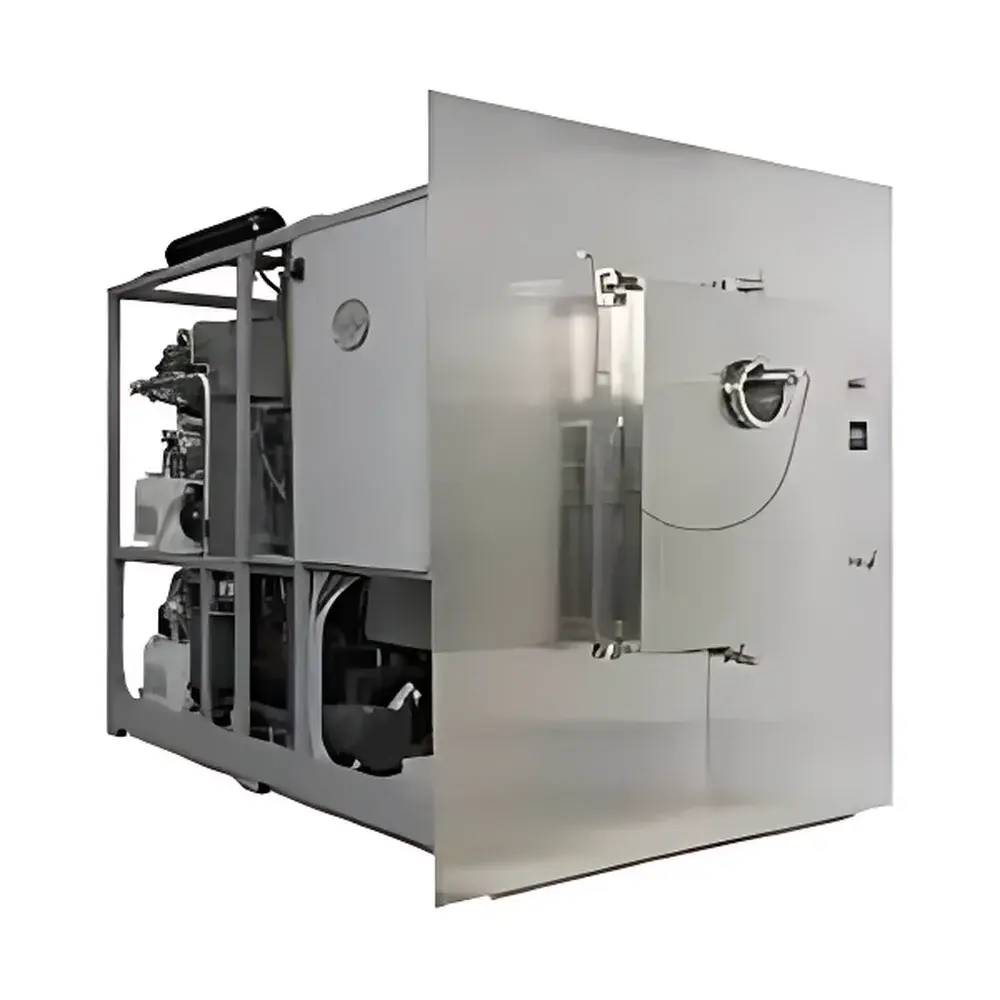

| Brand | SP Scientific |
|---|---|
| Origin | USA |
| Manufacturer | SP Scientific (integrated VirTis, FTS, Hull) |
| Type | Manifold & Shelf-Style Pilot-Scale Freeze Dryer |
| Application | Pilot Production & Process Development |
| Shelf Area | 2.13 m² |
| Ultimate Vacuum | ≤15 mTorr |
| Condenser Capacity (24 h) | 35 L |
| Condenser Temperature | −85 °C |
| Shelf Temperature Range | −55 °C to +65 °C |
| Shelf Uniformity | ±1.5 °C |
| Available Configurations | Tray-Loading or Stoppering |
| Optional Accessories | Pirani Gauge, Capacitance Manometer, Pressure Rise Test (PRT), Manifold Drying Module |
| Compliance | ISO 9001:2000 certified |
| Brand | SP Scientific |
|---|---|
| Origin | USA |
| Manufacturer | SP Scientific (integrated VirTis, FTS, and Hull brands) |
| Type | Shelf-Type Production Freeze Dryer |
| Application Scope | Pilot-Scale to Industrial Manufacturing |
| Shelf Area | Up to 22.3 m² (Tray Configuration) / Up to 38.6 m² (Stoppering Configuration) |
| Condenser Capacity | Configurable for High-Throughput Ice Load |
| Ultimate Vacuum | ≤ 0.1 mTorr (≤ 0.013 Pa) |
| Condenser Temperature | ≤ –85 °C |
| Control System | 21 CFR Part 11–Compliant PLC-Based Platform with Audit Trail |
| Compliance | ISO 9001:2000 Certified Design |
| Validation Support | IQ/OQ/PQ Documentation Available |
| Chamber Options | Rectangular or Circular Tray Chamber |
| Structural Certification | Designed for ISO Class 5–8 Cleanroom Installation |
| Brand | SP Scientific |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | HULL |
| Instrument Type | Stoppering Freeze Dryer |
| Application Scope | Production-Scale |
| Shelf Area | Not Applicable (Modular System) |
| Ultimate Vacuum | ≤ 1 × 10⁻³ mbar (Typical Operating Range) |
| Condensate Capacity (24 h) | Up to 150 kg |
| Cold Trap Temperature | ≤ –85 °C |
| Footprint Dimensions | 609.6 mm × 914.4 mm (Base Frame Only |
| Brand | SP Scientific |
|---|---|
| Origin | USA |
| Model | AdVantage Plus |
| Instrument Type | Stoppering-Compatible Benchtop Freeze Dryer |
| Application | Laboratory R&D |
| Shelf Area | 0.09–0.27 m² |
| Ultimate Vacuum | < 20 mTorr |
| Condensate Capacity (24 h) | 3.5 L or 6 L |
| Condenser Temperature | –53 °C, –70 °C, or –85 °C |
| Shelf Temperature Range | –55 °C to +60 °C |
| Shelf Uniformity | ±1 °C |
| Maximum Shelf Count | 3 stainless steel shelves |
| Pressure Units Supported | mTorr, µBar, Pa |
| Programmable Cycles | Up to 16 stored protocols |
| Temperature Monitoring | 4 thermocouple inputs |
| Vial Capacity (2 mL, 14.75 mm OD × 40 mm H, partially stoppered) | up to 1,197 vials across 3 trays |
| Brand | SP Scientific |
|---|---|
| Origin | USA |
| Manufacturer | SP Scientific (integrating VirTis, FTS, and Hull) |
| Model | LyoConstellation |
| Instrument Type | Manifold-Free Shelf-Type Pilot Freeze Dryer |
| Application Scope | Pilot-Scale Production & Process Development |
| Shelf Area | 1–3 m² (10.7–32.3 ft²) |
| Ultimate Vacuum | ≤100 mTorr |
| Condensate Capacity (24 h) | 16 L/24 h |
| Cold Trap Temperature | −60 °C |
| Shelf Temperature Range | −55 °C to +65 °C (±1 °C uniformity) |
| Shelf Configuration | 6 shelves |
| Max Vial Capacity | 2640 × 2 mL vials |
| Refrigerant | Non-ozone-depleting, HFC-free formulation |
| Brand | SP Scientific |
|---|---|
| Origin | USA |
| Model | Ultra Prime 50 |
| Condenser Capacity | 50 L |
| Shelf Temperature Range | −70 °C |
| Condenser Temperature | −85 °C |
| Shelf Area | up to 2.13 m² |
| Shelf Configuration | 8–15 adjustable shelves |
| Refrigerant | Low-GWP hydrofluoroolefin (HFO) blend (GWP = 2–6) |
| Construction Material | 316L stainless steel chamber, condenser, and shelves |
| Compliance | Designed for GLP/GMP environments |
| Brand | SP Scientific |
|---|---|
| Origin | USA |
| Manufacturer | SP Scientific (Virtis Division) |
| Model | LyoCapsule™ |
| Instrument Type | Manifold-Free, Chamber-Based R&D Freeze Dryer |
| Application Scale | Pilot-Process Development & Formulation Screening |
| Shelf Area | 76.1 cm² |
| Ultimate Vacuum | ≤10 mTorr |
| Condenser Capacity | 2 L/24 h |
| Condenser Temperature | −70 °C |
| Shelf Temperature Range | −55 °C to +60 °C |
| Shelf Temperature Uniformity | ±1 °C |
| Chamber Geometry | Cylindrical, Wall-Temperature-Controlled |
| Vial Capacity | 7 vials (2–20 mL) |
| Vacuum Pump | 100 L/min oil-lubricated pump with oil mist filter |
| Defrost Mode | Automatic hot-gas defrost |
| Software Platform | Lyos™ Control Software (with BE, PRCM, auto-backfill, stoppering) |
| Optional Add-on | Smart™ Auto-Process Development Software |
| Compliance | ISO 9001 certified, CE & CSA marked, designed for GLP/GMP-aligned R&D environments |
| Brand | SP Scientific |
|---|---|
| Origin | USA |
| Model | LyoStar 4.0 |
| Instrument Type | Shelf-Type Freeze Dryer |
| Application Scale | Pilot-Scale |
| Shelf Area | 0.42 m² / 0.56 m² |
| Ultimate Vacuum | 13 µbar (10 mTorr) |
| Condensate Capacity (24 h) | 30 L |
| Cold Trap Temperature | −85 °C |
| Shelf Temperature Range | −70 °C to +60 °C |
| Dimensions (W×H×D) | 994 mm × 2137.6 mm × 1208.5 mm |
| Brand | SP Scientific |
|---|---|
| Origin | USA |
| Model | AdVantage Pro |
| Instrument Type | Stoppering-Compatible Benchtop Freeze Dryer |
| Scale | Pilot-Scale R&D |
| Shelf Area | 0.28–0.84 m² |
| Ultimate Vacuum | <20 mTorr |
| Condensate Capacity (24 h) | 35 L |
| Condenser Temperature Options | −53 °C, −70 °C, −85 °C |
| Shelf Temperature Range | −65 °C to +60 °C (±1 °C accuracy) |
| Shelf Configuration | Up to 3 stainless-steel shelves |
| Control System | Intellitronics™ microprocessor-based programmable controller with full-color LCD touchscreen interface |
| Programmable Protocols | ≥12 user-defined lyophilization cycles |
| Temperature Monitoring | 4 independent thermocouple inputs |
| Pressure Units | Selectable (mTorr, µbar, Pa) |
| Tray Rack Capacity | Up to 1197 × 2 mL vials (14.75 mm OD × 40 mm H, including stopper insertion height) |
| Optional Accessories | 4-valve manifold with quick-seal ports, automated stoppering system |
| Brand | Innoteg |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | InnoFreeze Pro |
| Instrument Type | Multi-Manifold |
| Application Scope | Laboratory Use |
| Condenser Capacity | 7 kg ice capacity |
| Minimum Condenser Temperature | −100 °C |
| Compressor | European-sourced hermetic scroll compressor |
| Refrigeration Technology | Dual-circuit eco-friendly refrigerant system with dedicated plate heat exchanger and high-capacity condenser |
| Control Interface | 5-inch color TFT touchscreen |
| Data Logging | Real-time vacuum pressure, condenser temperature, and shelf/sample temperature with graphical lyophilization curve |
| Data Export | USB port for offline analysis, printing, and archival |
| Vacuum Monitoring | Auto-shutoff if set vacuum threshold not achieved |
| Pump Maintenance | Cumulative runtime tracking with oil change alert |
| Safety Protections | Compressor restart delay & thermal overload protection |
| Vacuum Pump | Dual-stage oil-sealed rotary vane pump with anti-backstreaming design |
| Vacuum Interface | KF25 quick-release flange standard |
| Structural Design | Integrated arc-shaped chassis with 45° ergonomic touchscreen tilt |
| Top Panel Material | 304 stainless steel |
| Condenser Chamber | Large-diameter open cavity, coil-free interior, full-shelf immersion capability for in-situ pre-freezing |
| Thermal Bridge Mitigation | Cold-bridge interrupted condenser flange with wave-profile silicone gasket (molded) and triple-seal architecture |
| Brand | SP Scientific |
|---|---|
| Origin | USA |
| Model | Freezemobile |
| Type | Manifold Freeze Dryer |
| Scale | Pilot-Scale |
| Shelf Area | 0.12 m² |
| Ultimate Vacuum | < 20 Pa |
| Condensate Capacity | 4 kg/24 h |
| Condenser Temperature | < −80 °C |
| Brand | SP Scientific |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Equipment |
| Model | Ultra & VirTual |
| Instrument Type | Stoppering (Lyophilization) System |
| Application Scope | Pilot-Scale Production |
| Shelf Area | 2.13 m² |
| Ultimate Vacuum | ≥15 mTorr |
| Condensate Capacity (24 h) | 35 L |
| Condenser Temperature | −85 °C |
| Main Unit Dimensions | Not Specified |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | Microcool |
| Instrument Type | Integrated Circulating Chiller |
| Cooling Method | Water-Cooled |
| Temperature Range | –10 °C to +50 °C |
| Refrigeration Capacity | 1200 W |
| Temperature Stability | ±0.5 K |
| Circulation Pump Pressure | 1.3 bar |
| Circulation Flow Rate | 35 L/min |
| Reservoir Volume | 7 L |
| Operating Mode | Continuous |
