| Brand | Pharma-test |
|---|---|
| Origin | Germany |

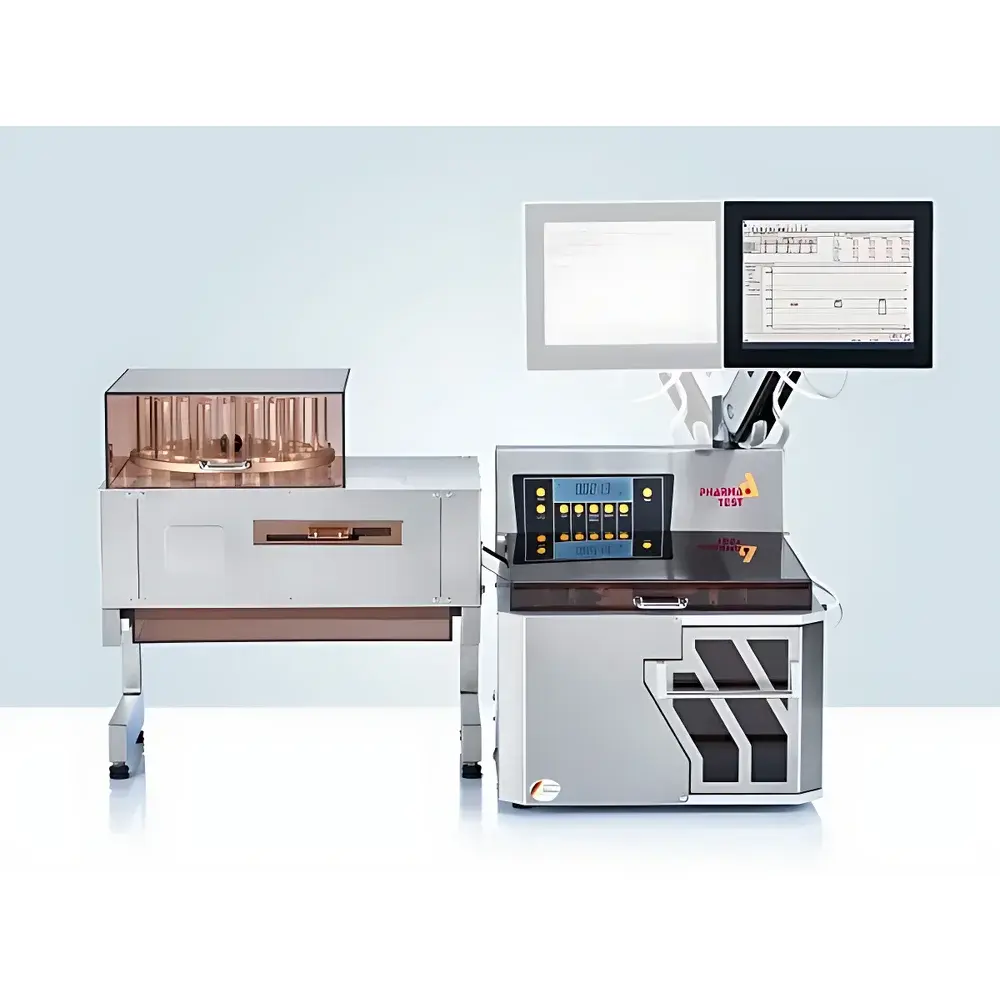

| Model | WHT 4ME |
| Compliance | EP <2.9.8>, USP <1217> |
| Testing Parameters | Hardness (constant-speed or constant-force mode), Weight, Thickness/Height, Diameter/Length |
| Sample Capacity | 20-position auto-feeder, up to 250 tablets per run |
| Throughput Modes | Single-batch or multi-batch (up to 10 distinct tablet types/batches) |
| Software | WHT 32 compliant with FDA 21 CFR Part 11 (audit trail, electronic signatures, configurable data storage paths) |
| User Interface | Integrated high-resolution touchscreen PC |
| Sample Handling | Tool-free adaptation for round, oblong, rectangular, and irregularly shaped tablets |
| Mechanical Design | Patented tapping mechanism ensures precise tablet centering prior to hardness and diameter measurement |
| Regulatory Alignment | Designed for GLP/GMP environments |
| Brand | Pharma-test |
|---|---|
| Origin | Germany |
| Model | PTB 311E |
| Hardness Range | 2–330 ±1 N |
| Thickness Range | 2–15 mm |
| Diameter/Length Range | 2–40 mm |
| Measurement Modes | Constant-Force & Constant-Speed |
| Force Units | N, kp, Sc |
| Dimension Units | mm, inch |
| Compliance | FDA 21 CFR Part 11 (via PTB32 software), GMP/GLP-ready |
| Interface | RS-232, Printer Port |
| Construction | Full Stainless Steel Housing |
| Brand | Pharma-test |
|---|---|
| Origin | Germany |
| Model | PTB 211E |
| Measurement Principle | Constant-Speed and Constant-Force Methods |
| Force Range | 2–330 N |
| Resolution | 1 N |
| Optional Units | N, kp, Sc |
| Interface | RS-232, Parallel Printer Port |
| Compliance Option | 21 CFR Part 11–compliant Software Available |
| Sample Capacity | 1–30 mL Ampoules |
| Brand | Pharma-Test |
|---|---|
| Origin | Germany |
| Model | PTB 330 |
| Compliance | USP <1217>, Ph. Eur. 2.9.8 |
| Test Modes | Linear Force Ramp & Linear Speed Ramp |
| Output Parameters | Hardness (N), Thickness (mm), Width (mm), Diameter/Length (mm), Mass (g, via external analytical balance) |
| User Authentication | Integrated Fingerprint Sensor |
| Data Management | Onboard Statistics (Mean, SD, RSD, Min/Max), Force-Profile Printing, Multi-Point Validation Protocol |
| Interface | Graphical Touchscreen GUI with Contextual Guidance |
| Connectivity | Optional Ethernet/Wi-Fi Network Integration |
| Mechanical Design | Dual-axis motorized actuator with calibrated load cell and precision linear encoder |
| Brand | Pharma-test |
|---|---|
| Origin | Germany |
| Model | PTB 500 |
| Compliance | USP <1217>, EP <2.9.8> |
| Test Modes | Dual-force (linear speed increase & linear force increase) |
| Measured Parameters | Hardness, Thickness, Width, Diameter/Length, Weight (via external analytical balance) |
| Integrated Components | Sample carousel, GUI-controlled actuation, statistical engine, network interface |
| Validation | Built-in multi-point validation protocol |
| Output | Force–displacement curve, full statistical summary (mean, SD, RSD, min/max), configurable print/export |
