| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | Ultracool |
| Type | Refrigerated/Heating Recirculating Chiller |
| Circulation Mode | Internal & External |
| Temperature Range | 0–100 °C |
| Temperature Stability | ±0.1 °C (typical, dependent on load and ambient conditions) |
| Refrigerant | Low-GWP hydrofluoroolefin (HFO-1234ze, GWP < 250) |
| Enclosure Rating | IP54 |
| Max Ambient Operating Temperature | 50 °C |
| Construction | Electroplated copper housing with epoxy resin coating |
| Reservoir Material | Insulated polyethylene tank with integrated level switch |
| Heat Exchanger | External plate-type evaporator |
| Pump | High-efficiency stainless steel centrifugal pump with internal bypass |
| Safety Features | Freeze-protection thermostat, pressure monitoring switch, integrated water filter with biostatic additive |
| Optional Configurations | Stainless steel enclosure, casters, external bypass valve, deionized water compatibility, air-cooled or water-cooled condenser variants |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Type | Refrigerated/Heating Circulating Bath |
| Temperature Range | −90 °C to +200 °C |
| Temperature Stability | ±0.01 °C (at 20 °C, depending on model and load) |
| Bath Volume | 5.5–35 L |
| Pump Flow Rate | Up to 25 L/min (pressure), 23 L/min (suction) |
| Pump Pressure Head | Up to 1.1 bar |
| Heating Power | 3.5 kW |
| Refrigeration Power | 0.38–1.6 kW (model-dependent) |
| Control Interface | Command or Master Controller |
| Circulation | Internal & External |
| Safety Features | Dual-level liquid level detection, overtemperature/overpressure/low-fluid alarms, dry-run protection, integrated error logging |

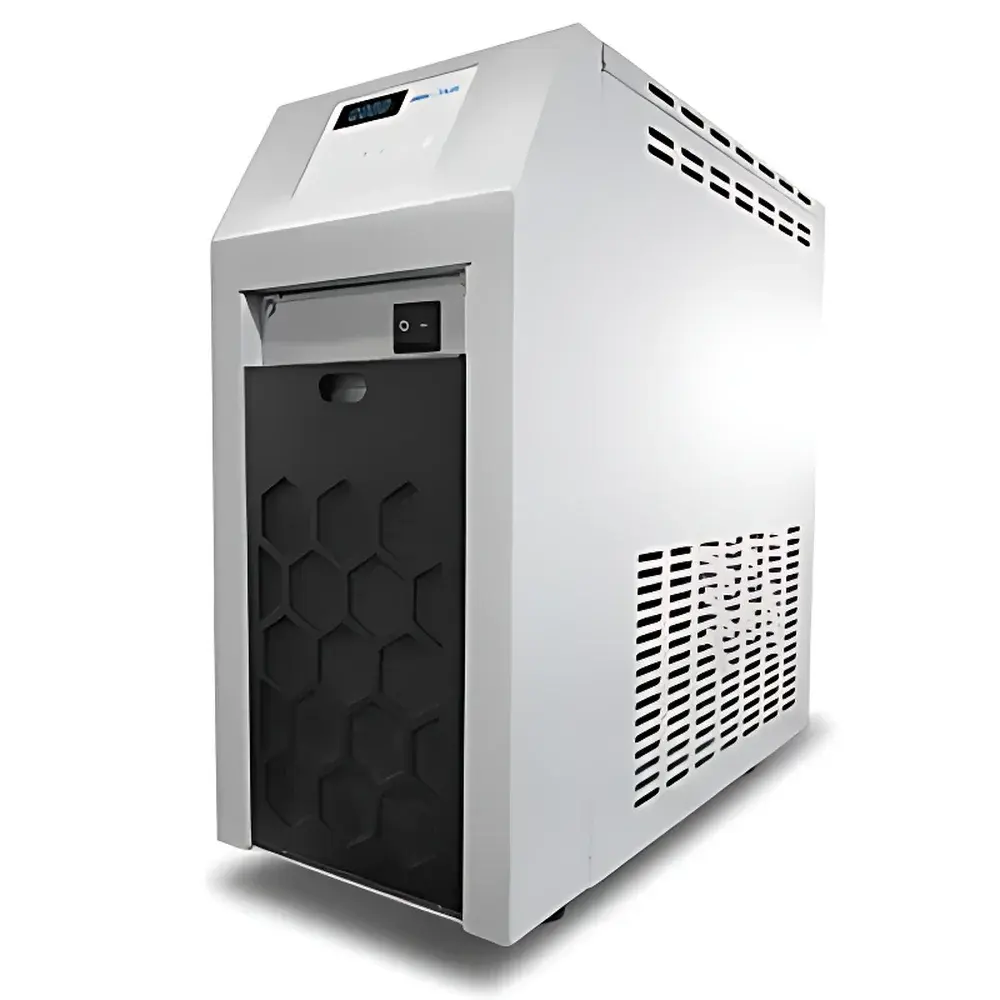

| Brand | INNOTEG |
|---|---|
| Origin | Guangdong, China |
| Model | TCS-3 |
| Instrument Type | Constant-Temperature Bath Chiller |
| Circulation Mode | External Circulation |
| Temperature Control | Refrigeration & Heating |
| Bath Volume | 5 L |
| Temperature Range | −20 °C to Ambient |
| Temperature Stability | ±0.3 K |
| Pump Type | Pressure/Suction Dual-Mode |
| Refrigeration Power | 0.45 kW @ 10 °C |
| Dimensions (W×D×H) | 222 × 480 × 495 mm |
| Weight | 25 kg |
| Temperature Sensor | PT100 |
| Display | High-Brightness LED |
| Safety Features | Over-Temp, Low-Level, Dry-Run, and Over-Pressure Protection |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | Ecoline Star Edition |
| Temperature Control Type | Refrigerated/Heating Circulating Bath |
| Circulation Mode | Internal & External |
| Application | Primary Reference Standard for Thermometer and Sensor Calibration |
| Temperature Stability | ±0.01 °C (typical, dependent on model and operating conditions) |
| Temperature Range | –40 °C to +300 °C (model-dependent) |
| Bath Volume | 12–54 L |
| Pump Flow Rate | 12–25 L/min |
| Maximum Pump Pressure | 0.2–0.8 bar |
| Heating Power | 1.2–3.5 kW |
| Compliance | Designed for DKD/DAkkS-accredited calibration laboratories |
| Software Interface | RS232/RS485, optional Ethernet (via LAUDA TC software suite) |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | PRO P10 |
| Bath Volume | 10–28.5 L |
| Temperature Range | 30 °C to 250 °C |
| Temperature Stability | ±0.01 K |
| Circulation Type | Internal & External |
| Standard Interfaces | USB, Ethernet |

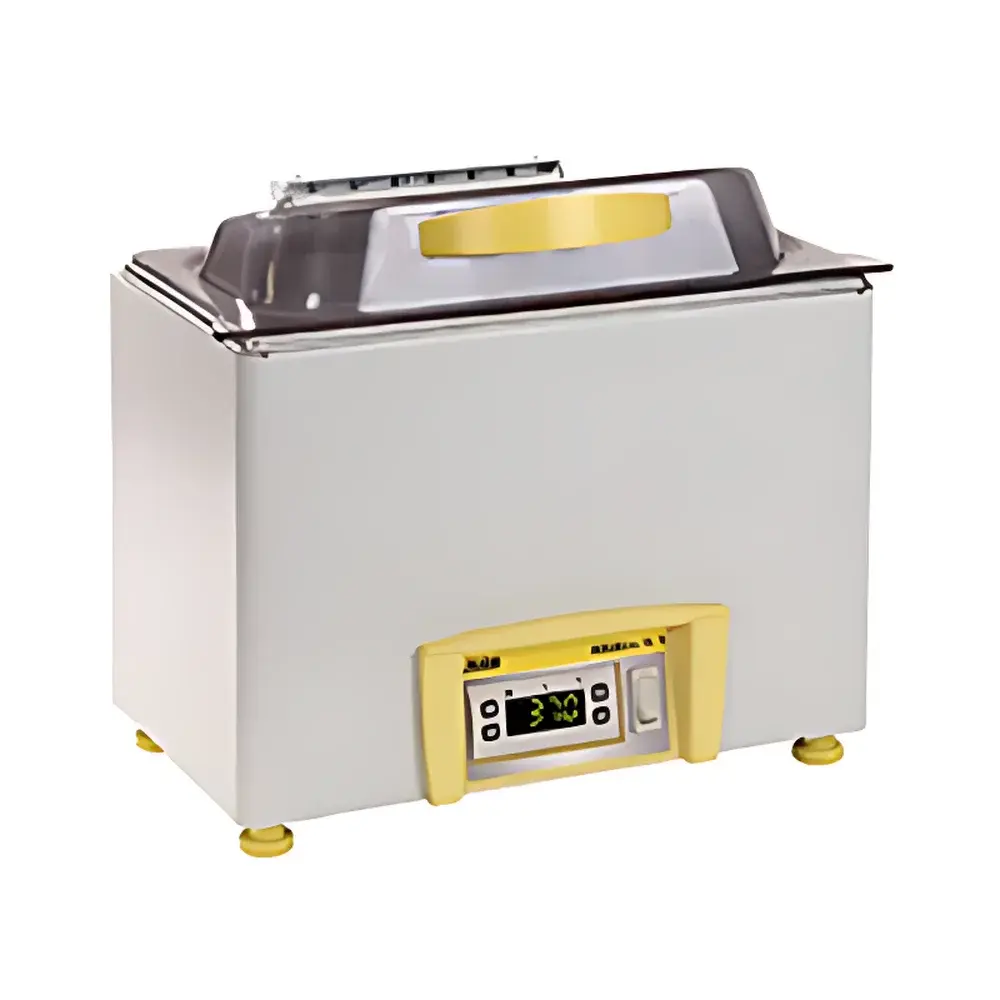

| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | Aqualine |
| Instrument Type | Circulating Constant-Temperature Bath |
| Circulation Mode | Internal & External |
| Temperature Control | Heating & Cooling |
| Bath Volume Range | 1.7 L to 25.2 L |
| Temperature Range | 25 °C to 95 °C |
| Temperature Stability | ±0.2 K |
| Construction | Seamless Deep-Drawn Stainless Steel |
| Heating Element | Bottom-Mounted Surface Heater |
| Safety Features | Dry-run Protection (Min. Liquid Level: 20 mm), Over-Temperature Alarm |
| Display | LED Digital Interface |
| Lid Design | Hinged Stainless Steel Roof Lid with Condensate-Prevention Geometry |
| Compliance | Designed for GLP-compliant laboratory environments |
| Brand | INNOTEG |
|---|---|
| Model | TCS-2 |
| Type | Refrigerated/Heating Circulating Bath |
| Capacity | 10 L |
| Temperature Range | −20 °C to 100 °C |
| Temperature Stability | ±0.05 °C (at 25 °C, water or ethanol) |
| Display Resolution | 0.1 °C |
| Cooling Power | 0.47 kW @ 20 °C |
| Bath Opening Dimensions | 215 mm × 170 mm × 150 mm (W × D × H) |
| Circulation Mode | Internal & External |
| Control System | Microprocessor-based PID with Auto-tuning |
| Construction | 304 Stainless Steel Interior, Insulated Foam Housing |
| Safety Features | Dual-level Liquid Level Detection (Visual + Audible Alarm), Dry-run Protection, Independent Heating/Cooling Status Indicators, Programmable Heating Timer |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | Alpha |
| Instrument Type | Circulating Bath |
| Temperature Range | -25 to 100 °C |
| Temperature Stability | ±0.05 K |
| Bath Volume Options | 7.5 L – 22 L |
| Circulation Mode | Internal & External |
| Compatible Fluids | Water, Water/Glycol (non-flammable only) |
| Compressor Power | Up to 0.425 kW |
| Pump Flow Rate | Adjustable from 5 to 15 L/min |
| User Calibration | Single-point temperature calibration supported |
| Enclosure Access | Tool-free front panel removal for condenser maintenance |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | RA8 |
| Temperature Range | -25 °C to +85 °C |
| Temperature Stability | ±0.05 °C |
| Heating Power | 1.5 kW |
| Cooling Capacity (at 20 °C) | 0.225 kW |
| Pump Pressure | 0.2 bar |
| Pump Flow Rate | 15 L/min (adjustable between 5–15 L/min) |
| Bath Volume | 5–7.5 L |
| Opening Dimensions × Depth | 165 × 190 × 160 mm |
| Construction | Stainless Steel Bath Chamber |
| Control Interface | 3-button LED Display |
| Circulation Type | Internal & External |
| Temperature Control Mode | Dual-mode (Heating & Refrigeration) |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | Integral XT |
| Type | Circulating Bath Chiller/Heater |
| Temperature Range | −50 °C to +300 °C |
| Temperature Stability | ±0.05 °C (typical) |
| Heating Power | up to 10.4 kW |
| Cooling Capacity at 20 °C | up to 18.5 kW |
| Pump Flow Rate | up to 90 L/min |
| Max. Pump Pressure | 5.8 bar |
| Reservoir Volume | 5.5–17.4 L |
| Cooling Method | Air-cooled or Water-cooled |
| Control Interface | Graphical LCD with detachable remote controller |
| Communication | RS-232/RS-485 standard, optional Ethernet/Modbus/Profibus modules |
| Compliance | CE, UL, ATEX optional |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | Proline-X |
| Type | Circulating Temperature Bath |
| Temperature Range | -90 °C to +200 °C |
| Temperature Stability | ±0.01 °C |
| Heating Power | 3.5 kW |
| Pump Pressure Head | 0.7–1.1 bar |
| Pressure Pump Flow Rate | 25 L/min |
| Suction Pump Flow Rate | up to 23 L/min |
| Bath Volume Options | 15 L, 24 L, 36 L, or custom external bath compatibility (310–500 mm width) |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | T1200 |
| Temperature Range | −25 °C to +120 °C |
| Temperature Stability | ±0.2 °C |
| Heating Power | 2.25 kW |
| Cooling Capacity at 20 °C | 1.2 kW |
| Pump Flow Rate | 40 L/min |
| Maximum Pump Pressure | 3.2 bar |
| Bath Volume | 7 L |
| Dimensions (W×D×H) | 450 × 550 × 790 mm |
| Cooling Type | Air-Cooled |
| Circulation Mode | Internal & External Dual Loop |
| Control System | Microprocessor-Based with Programmable Ramp-Soak Profiles (5 Programs, 150 Segments) |
| Display | Dual-Line LCD (Setpoint & Actual Temperature) |
| External Sensor Input | Pt100 Compatible for Remote Temperature Control |
| Key | Brand: LAUDA |
|---|---|
| Origin | Germany |
| Type | Circulating Bath (Heating & Cooling) |
| Temperature Range | –50 °C to +200 °C (model-dependent) |
| Temperature Stability | ±0.01 K |
| Bath Volume | 3.5 L to 40 L |
| Circulation | Internal & External |
| Cooling Power | 180–700 W @ 20 °C |
| Controller Options | Silver (monochrome LCD) or Gold (color TFT) |
| Pump | 6-stage adjustable flow, front-mounted flow selector switch |
| Standard Interfaces | Mini-USB |
| Optional Modules | RS232/485, Profibus, Ethernet, EtherCAT, analog I/O, Pt100 L-Bus |
| Cooling Method | Air-cooled or water-cooled variants available |
| Refrigerant | Environmentally optimized natural refrigerants (e.g., R744, R290) compliant with F-Gas Regulation (EU) No 517/2014 |
| Compliance | CE, RoHS, EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | Proline |
| Type | Circulating Bath (Heating-Only) |
| Temperature Range | -35 °C to +300 °C |
| Temperature Stability | ±0.01 °C |
| Heating Power | 3.5 kW |
| Pump Type | Variable-Speed Centrifugal |
| Max. Pressure Head | 0.7 bar |
| Max. Suction Head | 0.4 bar |
| Flow Rate (Pressure) | up to 25 L/min |
| Flow Rate (Suction) | up to 23 L/min |
| Bath Volume | 5.5–27.0 L |
| Bath Opening Dimensions | 150×50 mm to 300×350 mm |
| Depth | 200–320 mm |
| External Circulation | Dual-port (rear & side) |
| Sensor Input | External PT100 support |
| Safety | Triple-heater redundancy, overtemperature cutoff, dry-run protection, leak detection, error-code display |
| Interface | 3-button intuitive control panel |
| Expandability | Modular slot for optional accessories (e.g., refrigeration, communication modules) |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | Proline Thermostats |
| Temperature Range | -90 °C to +200 °C |
| Temperature Stability | ±0.01 °C (typ. at 20 °C) |
| Heating Power | 3.5 kW |
| Refrigeration Power (at 20 °C) | up to 1.6 kW |
| Pump Pressure | 0.7 bar |
| Suction Head | 0.4 bar |
| Pressure Flow Rate | 25 L/min |
| Suction Flow Rate | 23 L/min |
| Bath Volume | 8–35 L |
| Bath Opening Dimensions | 150×150 mm to 300×350 mm |
| Depth | 200–250 mm |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | PRO P2E |
| Instrument Type | Circulating Temperature Control Bath |
| Circulation Mode | Internal & External |
| Temperature Control | Refrigeration & Heating |
| Bath Volume | 4.4 L |
| Temperature Range | −40 °C to +250 °C |
| Temperature Stability | ±0.05 K |
| Interface Standard | USB, Ethernet, Pt100 |
| Pump Type | Varioflex® High-Performance Pressure/Draw Pump |
| Cooling Method | Hybrid (Ambient Air + Optional Water-Cooled Condenser) |
| Refrigeration Capacity | 0.6 kW / 0.8 kW (model-dependent) |
| Max. Remote Control Distance | 50 m |
