| Brand | Pharma-test |
|---|---|
| Origin | Germany |
| Model | ADS |
| Instrument Type | Offline Dissolution Tester |
| Dissolution Vessels | 6, 8, or 7 (configurable) |
| Temperature Range | 10–50 °C |
| Temperature Accuracy | ±0.1 °C |
| Rotation Speed Range | 15–150 rpm |
| Paddle Wobble Amplitude | ≤1 mm |
| Basket Wobble Amplitude | ≤1 mm |
| Water Bath Temperature Control Range | Ambient to 45 °C |
| Water Bath Temperature Resolution | 0.1 °C |
| Water Bath Volume | 12 L |
| Brand | Pharma Test |
|---|---|
| Origin | Germany |
| Model | PT-DDS4 |
| Degassing Residual Oxygen | <5 ppm |
| Preheating Temperature | 37 °C ± 0.1 °C |
| Delivery Method | Pressurized (direct connection to deionized water supply) or Vacuum-assisted (from external reservoir) |
| Compliance | Designed in alignment with USP <711>, FDA Guidance for Industry on Dissolution Testing, and ICH Q5C stability requirements |
| Cleaning | Fully drainable, CIP-compatible design |
| Brand | Pharma-test |
|---|---|
| Origin | Germany |
| Model | PT-DT Series |
| Instrument Type | Offline Dissolution Tester |
| Sample Positions | 8 |
| Dissolution Vessel Options | 250 mL, 1 L, 2 L, 4 L |
| Temperature Range | 25–45 °C |
| Temperature Accuracy | ±0.2 °C |
| Rotational Speed Range | 25–250 rpm |
| Speed Accuracy | ±1 rpm |
| Water Bath Volume | 35 L |
| Construction | Stainless Steel (GLP-compliant) |
| Modular Architecture | Supports upgrade to semi-automated (offline) and fully automated (online) configurations |
| Validation Support | IQ/OQ/PQ documentation and execution available |
| Regulatory Compliance | Designed to meet USP <711>, EP 2.9.3, JP XVII, and ChP (Chinese Pharmacopoeia) General Chapter 0931 requirements |
| Brand | Pharma-test |
|---|---|
| Origin | Germany |
| Model | PTWS 820D |
| Instrument Type | Offline Dissolution Tester |
| Compliance | USP <711>, USP <724>, Ph. Eur. 2.9.3 & 2.9.4, DAB, JP <15>, ChP |
| Sample Positions | 8 (4+4 arrangement) |
| Drive Mechanism | Single motor-driven vertical lift |
| Temperature Monitoring | Real-time auto-check at each sampling point |
| Data Storage | SD card (method storage capacity: >10,000 protocols) |
| User Access Control | Role-based authentication (admin/operator) |
| Status Indication | Tri-color LED traffic-light display (green = ready, yellow = warming/stabilizing, red = error/failure) |
| Calibration Support | Built-in OQ/PQ reminder prompts |
| Cup Sealing | Low-volatility precision-fit lid |
| Bath Accessibility | Tool-free water bath removal for cleaning |
| Brand | Pharma-test |
|---|---|
| Origin | Germany |
| Model | PTWS 820D |
| Instrument Type | Online Dissolution Tester |
| Compliance | USP <711>, USP <724>, EP 2.9.3/2.9.4, ChP (Chinese Pharmacopoeia), JP |
| Vessel Options | 250 mL, 1 L, 2 L, 4 L |
| Construction | Stainless Steel (GLP-compliant) |
| Automation Level | Fully Automated Online System with Integrated Sampling |
| Sampling Mechanism | EPE Robotic Arm with Precise Z-axis Positioning |
| Stirring Stations | 8 Independent Vessels |
| Method Storage | Unlimited Methods via USB |
| Validation Support | IQ/OQ/PQ Documentation & Services Available |
| Temperature Uniformity | Optimized Water Bath with Diffuser & Low-Noise Circulation Pump |
| Connectivity | USB (Remote Control & Data Export), RS232 (Printer Interface) |
| User Management | Password-Protected Role-Based Access |
| System Diagnostics | Pre-run Self-Check Routine |
| Alert System | Visual (LED) and Audible Status Indication |
| Cleaning | Removable Bath Assembly & Dedicated System Rinse Kit |
| Brand | Pharma-test |
|---|---|
| Origin | Germany |
| Model | DFC1220SP |
| Instrument Type | Offline Dissolution Tester |
| Configuration | Includes PTWS 1220 dissolution bath, PTFC-16 fraction collector, two PT-SP8 syringe pumps (or optional Ismatec peristaltic / CAT piston pumps), EPE-1220 automated sampling system or in-situ probe, ITM-1220 inline temperature monitoring (optional), TM-1220/TMA-1220 tablet drop alignment module (optional), PT-RP80 thermal printer (optional) |
| Compliance | USP <711>, USP <724>, Ph. Eur. 2.9.3 & 2.9.4 |
| Brand | Pharma-test |
|---|---|
| Origin | Germany |
| Model | ASP2000 |
| Instrument Type | Offline Dissolution System with Online Detection Capability |
| Sampling Capacity | 50 positions |
| Online Dilution Ratio | up to 1:100 |
| Compatible Detection Methods | UV-Vis Spectrophotometry and HPLC |
| Control Software | WinDiss32 |
| Integration | Designed for seamless coupling with all Pharma-test dissolution testers (e.g., PT-DT series) |
| Brand | Pharma-test |
|---|---|
| Origin | Germany |

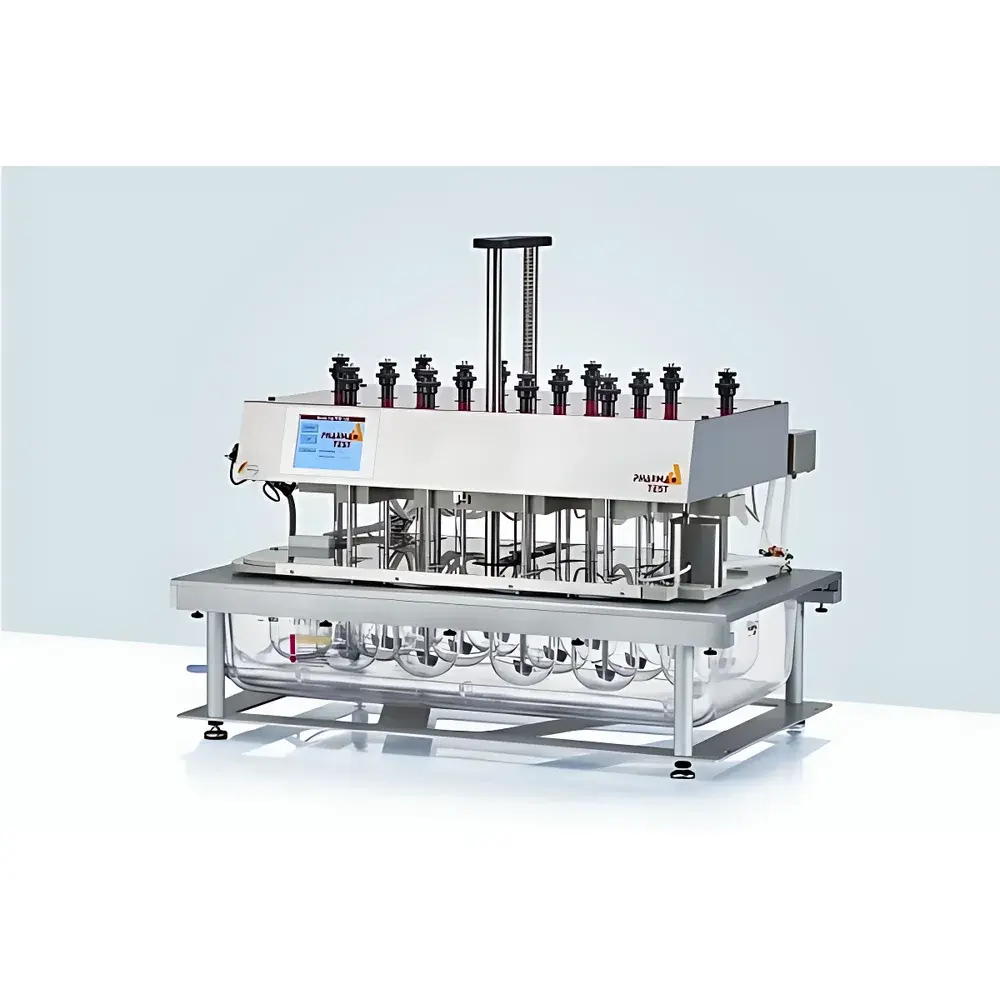

| Model | PTWS 1420 |
| Instrument Type | Offline Dissolution Tester |
| Number of Vessels | 14 |
| Temperature Range | 25–45 °C |
| Temperature Accuracy | ±0.2 °C |
| Rotational Speed Range | 25–250 rpm |
| Paddle Wobble | ≤0.2 mm |
| Basket Wobble | ≤0.2 mm |
| Water Bath Temperature Resolution | ±0.2 °C |
| Water Bath Volume | 0.5 m³ |
