| Brand | BioDot |
|---|---|
| Origin | USA |

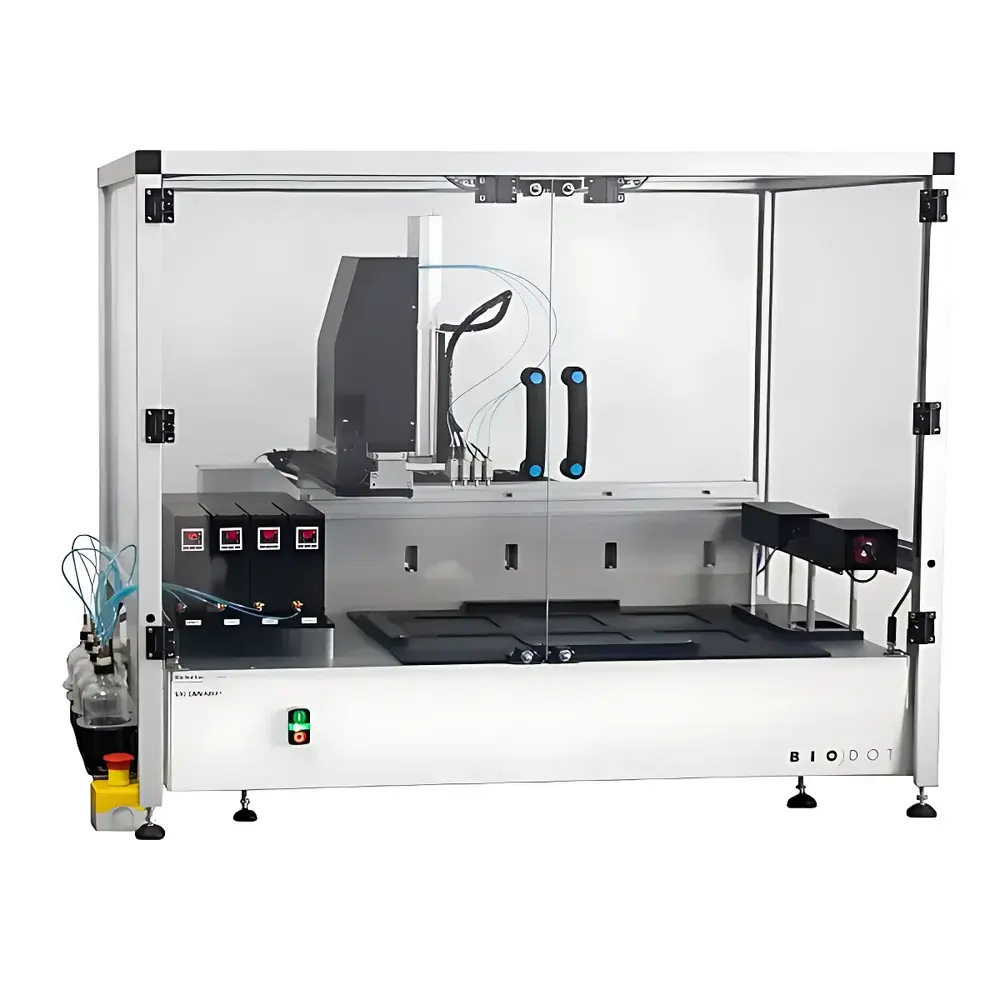

| Model | Sphera™ |
| Dimensions (L×W×H) | 107 × 66 × 89 cm |
| Weight | 90 kg |
| Droplet Volume Range | 2–30 µL |
| Volume Precision | CV < 3% |
| Throughput per Nozzle | Up to 10,000 microspheres/h |
| Max Configurable Nozzles | 4 |
| Total Throughput (4-nozzle) | Up to 40,000 microspheres/h |
| Dispensing Technology | Non-contact, high-speed discrete droplet dispensing via BioJet™ solenoid valves and adaptive pneumatic pump |
| Imaging System | Horizontal CCD camera with real-time droplet imaging, volume calculation, and CV monitoring |
| Dispensing Modes | Step-and-Repeat & On-the-Fly |
| Compliance | Designed for GLP/GMP-aligned environments |
