| Brand | RAYSCIENCE |
|---|---|
| Origin | Shanghai, China |
| Model | SCS-4000 |
| Product Type | Motorized Translation Stage |
| Pulling Accuracy | 0.2 µm |
| Pulling Speed Range | 0.2–10,000 µm/s |
| Max Pulling Distance | 50 mm |
| Fiber Clamping Diameter | φ0.1–0.5 mm |
| Flame Axial Stroke | 0–20 mm |
| Flame Scanning Speed | 0–4 mm/s |
| H₂ Flow Rate | 0–200 sccm (adjustable) |
| O₂ Flow Rate | 0–200 sccm (adjustable) |
| Detector Options | InGaAs (850–1600 nm), Si (400–1000 nm) |
| Light Source Options | 1310/1550 nm FP Laser Diode, 1 mW |
| Packaging Temperature Range | 0–130 °C |
| Power Supply | 220 V, 6 A |
| Brand | Rayscience |
|---|---|
| Origin | Shanghai, China |

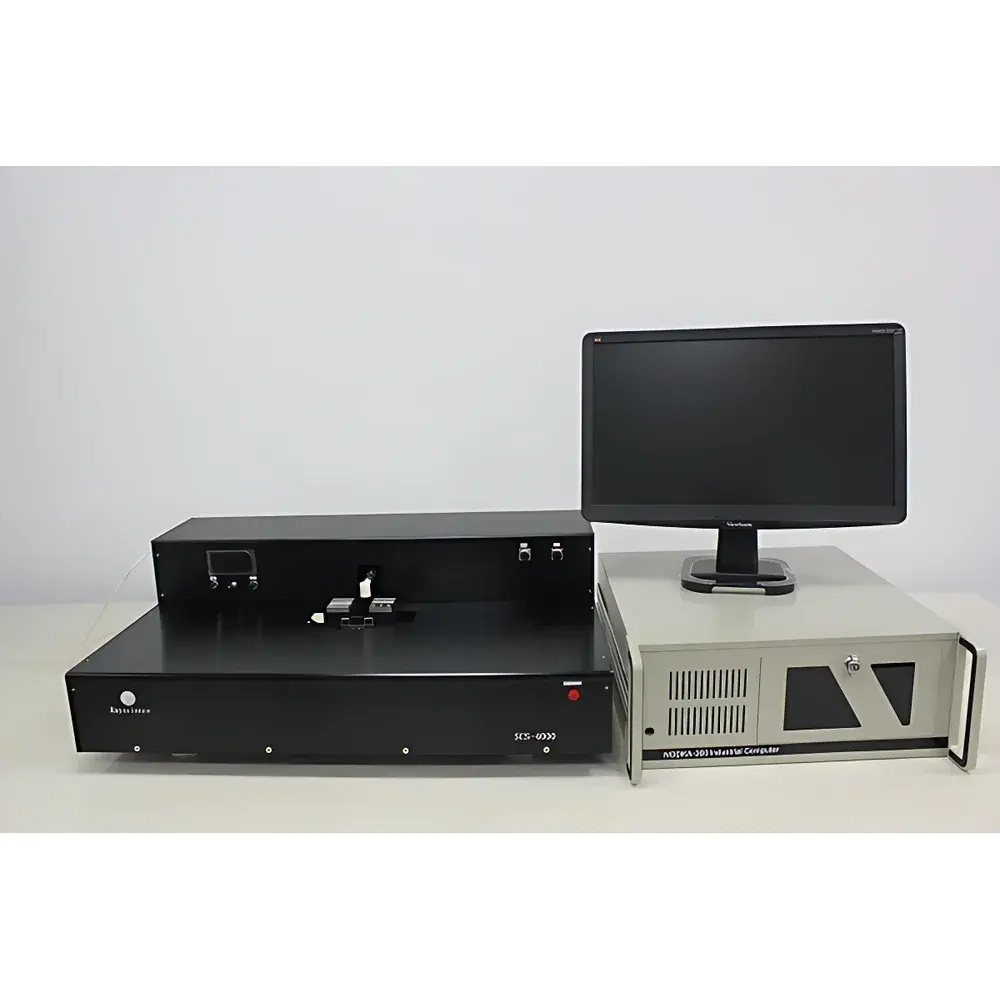

| Model | SCS-4000-ST |
| Product Type | Motorized Translation Stage |
| Pulling Precision | 0.2 µm |
| Pulling Speed | 0.2–10,000 µm/s |
| Max Biaxial Pulling Distance | 80 mm |
| Fiber Clamping Range | Ø0.1–0.5 mm |
| Flame Axial Stroke | 0–20 mm |
| Flame Translation Speed | 0–4 mm/s |
| H₂ Flow Rate | 0–500 SCCM (adjustable) |
| O₂ Flow Rate | 0–200 SCCM (adjustable) |
| Detector Options | InGaAs (800–1700 nm), Si (400–1000 nm), Ge (1000–1800 nm) |
| Light Sources | 1310/1550 nm FP Laser (1 mW), 633 nm HeNe (2 mW), 850/1310 nm Multimode LD |
| Packaging Temperature Range | 0–200 °C |
| Input Voltage | 220 V AC |
| Max Current | 6 A |
| Brand | Rayscience |
|---|---|
| Origin | Shanghai, China |
| Model | SCS-4000-B |
| Product Type | Motorized Translation Stage |
| Compatible Fiber Core/Cladding Diameters | 105/125 µm, 200/220 µm, 400/440 µm, 600/660 µm |
| Numerical Aperture Range | 0.11–0.48 |
| Taper Configuration Support | N×1 (N = 2–7) and (N+1)×1 architectures |
| Heating Source | Hydrogen-Oxygen Flame |
| Control Interface | PC-based Timing Sequencer |
| Power Handling Capacity | Watt-level (scale-dependent on fiber core diameter and NA) |
| Brand | Rayscience |
|---|---|
| Origin | Shanghai, China |
| Model | SCS-4000-T |
| Type | Motorized Translation Stage |
| Fiber Compatibility | Single-mode (core diameter 1–9 µm), Multimode (core diameter 200–600 µm, 62.5–400 µm) |
| Drive Mechanism | Precision Stepper Motor with Closed-Loop Position Feedback |
| Travel Range | 50 mm (X-axis), 25 mm (Y-axis), 15 mm (Z-axis) |
| Minimum Incremental Motion | 0.1 µm |
| Repeatability | ±0.5 µm |
| Load Capacity | 2 kg (horizontal), 1 kg (vertical) |
| Interface | USB 2.0 + RS-485 |
| Control Software | Rayscience TaperControl v3.2 (Windows 10/11, 64-bit) |
