| Origin | Japan |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | ET200 |
| Price | USD 22,500 (FOB Japan) |
| Z-Range | 600 µm |
| Z-Resolution | 0.1 nm |
| Vertical Reproducibility | 1σ = 1 nm |
| Stylus Tip Radius | 2 µm |
| Normal Force Range | 1–50 mgf |
| X-Scan Length | 100 mm |
| X-Linearity Error | 0.2 µm / 100 mm |
| X-Position Resolution | 0.1 µm |
| Z-Axis Travel | 50 mm |
| Sample Max. Diameter | Ø160 mm |
| Sample Max. Thickness | 50 mm |
| Sample Max. Weight | 2 kg |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | IRV84499C |
| Pricing | Upon Request |
| Brand | Holoeye |
|---|---|
| Origin | Germany |
| Model | LC-R Series (LC-R-2500 / LC-R-768 / LC-R-720 / LC-R-1080) |
| Modulation Type | Amplitude and Phase |
| Pixel Count | 1024×768 to 1920×1200 |
| Pixel Pitch | 8.1 µm to 19 µm |
| Aperture Ratio | 90–93% |
| Contrast Ratio | 1000:1 to 5000:1 (wavelength-dependent) |
| Phase Modulation Depth | >1π to >1.2π across visible spectrum (400–700 nm) |
| Frame Rate | 60 Hz to 180 Hz |
| Diffraction Efficiency | ≥60% |
| Spectral Range | 400–700 nm |
| Bit Depth | 8-bit |
| Interface | DVI, optional USB |
| Display Technology | Reflective LCoS microdisplay |
| Origin | USA |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Imported |
| Model | DG535 |
| Price | Upon Request |
| Channels | 4 independent delay channels |
| Pulse Outputs | 2 fully defined pulse outputs |
| Delay Resolution | 5 ps |
| RMS Jitter | 50 ps |
| Max Delay Range | 1000 s |
| Max Trigger Frequency | 1 MHz (internal/external/serial/line) |
| Interface | Standard GPIB (IEEE-488.2) |
| Output Voltage Range | Adjustable amplitude and offset voltage |
| Output Voltage | Up to 35 V |
| Rise/Fall Time | 100 ps (with optional module) |
| Brand | pv-tools |
|---|---|
| Origin | Germany |
| Model | TLM-SCAN+ |
| Dimensions | 230 mm (W) |
| Probe Type | Motorized 14-Stripe Adjustable TLM Probe with Vacuum Chuck |
| Measurement Principle | Transfer Length Method (TLM) + Four-Point Probe (4PP) |
| Compliance | Designed for ISO/IEC 17025-aligned lab environments, supports GLP audit trails and measurement traceability to SI units |
| Origin | Russia |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Imported |

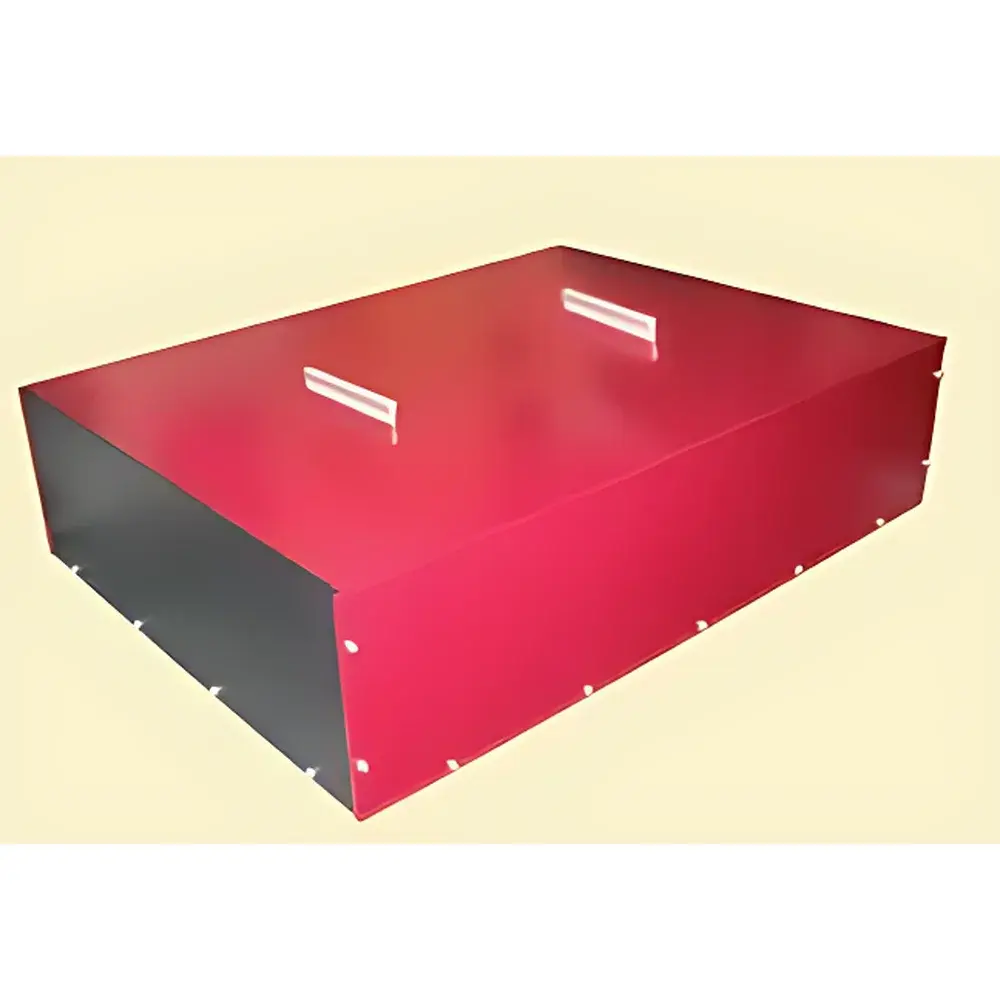

| Model | Tera-Ax |
| Pricing | Upon Request |
| Central Frequency | 1 THz |
| Spectral Bandwidth | 1.5 THz |
| Pulse Duration | <1 ps |
| Maximum THz Pulse Energy | 1 nJ |
| Pump Source Compatibility | Commercial Ti:Sapphire Amplifiers |
| Detection Option | EO-AX Electro-Optic THz Detector |
| Generation Mechanism | Tilted Pulse Front (TPF) |
| Nonlinear Crystal | MgO-doped LiNbO₃ |
| Origin | Imported |
|---|---|
| Manufacturer Type | Distributor |
| Model | PDA10A |
| Price | Upon Request |
| Wavelength Range | 320–1700 nm |
| Bandwidth | DC to 350 MHz |
| Detector Type | Si and InGaAs |
| Output Interface | BNC |
| Power Supply | External AC adapter (included), optional battery operation |
| Gain Options | Fixed or adjustable |
| Noise Equivalent Power (NEP) | <10 pW/√Hz (typ.) |
| Rise Time | <1 ns (Si), <0.8 ns (InGaAs) |
| Input | Free-space or fiber-coupled (FC/PC) |
| Compliance | CE, RoHS, FDA 21 CFR Part 11 ready (with optional audit trail software) |
| Brand | PV-Tools |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TLM-SCAN |
| Pricing | Available Upon Request |
| Brand | Edmund Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | 114 |
| Price | Upon Request |
| Wavelength Range | 300–1100 nm (400–1100 nm with LDFP) |
| Sensor Format | 2/3″ CMOS, 1280 × 1024 pixels, 6.7 µm pixel pitch |
| Active Area | 8.5 × 6.8 mm |
| Minimum / Maximum Beam Diameter (1/e²) | 0.20 mm / 6.0 mm |
| Beam Position Accuracy | ±1% typical, ±5% max |
| Trigger Input | TTL, rising or falling edge |
| Frame Rate | 27 Hz (Live Mode), 10 Hz (with real-time calculations) |
| Peak Noise Floor | 24 nW/cm² at 632.8 nm |
| CW Saturation Power Density | 40 mW/cm² at 632.8 nm (with LDFP) |
| Pulsed Saturation Energy Density | 8 mJ/cm² at 1.06 µm (without LDFP) |
| Damage Threshold | 32 mJ/cm² at 1.06 µm (without LDFP) |
| Shutter | Fixed 10 ms |
| Lens Mount | C-Mount |
| SNR | >60 dB |
| Gamma | 1.0 |
| Gain | Optimized linear dynamic range (non-adjustable) |
| OS Compatibility | Windows 98, NT 4.0, 2000, XP |
| Dimensions (with LDFP) | 68.1 × 79.3 × 40.9 mm |
| Weight | 110 g |
| Operating Temperature | −20 to +60 °C |
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | IRV84499C2X |
| Pricing | Upon Request |
| Origin | Russia |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TCOPRS-CCR-SW-25 |
| Pricing | Upon Request |
| Brand | Holoeye |
|---|---|
| Origin | Germany |
| Model | PLUTO-2.1 |
| Pixel Resolution | 1920 × 1080 |
| Pixel Pitch | 8 µm |
| Interface | USB (for gamma/dynamic range calibration), HDMI/DisplayPort (video input, green channel used for 8-bit phase addressing) |
| Phase Modulation | Pure-phase, software-defined |
| Wavelength Range | Multiple standard options (e.g., 400–450 nm, 532 nm, 633 nm, 785 nm, 1064 nm) |
| Operating Mode | Hot-pluggable, extended desktop display mode |
| Brand | Coherent |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | WaveMaster |
| Price | USD 14,500 (approx.) |
| Brand | HalfMoon |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | DV-LED |
| Pricing | Upon Request |
| Brand | Electrophysics |
|---|---|
| Origin | Belarus |
| Model | Abris-M Version 2 |
| Spectral Range | 350–2000 nm (UV/IR) |
| Resolution (center wavelength) | 60 lp/mm |
| Field of View | 18° |
| Magnification | 2× |
| Objective Lens | F2/50 mm with adjustable iris |
| Focus Range | 0.25 m to ∞ |
| Working Distance | 12.5 ± 0.2 mm |
| Battery | 1.5 V AAA (3 V internal HV conversion) |
| HV Output | 16–18 kV |
| Phosphor Emission | ~550 nm (green) |
| Screen Non-Uniformity | <20% |
| Response Non-Uniformity | <15% |
| Image Distortion | <18% |
| Battery Life | ~35 h |
| Weight | 0.55 kg |
| Dimensions | 205 × 78 × 52 mm |
| Operating Temperature | −10 °C to +40 °C |
| Mounting Thread | 1/4″-20 UNC |
| Compliance | CE, RoHS, IEC 61010-1 (safety), ISO 9001-manufactured supply chain |
