| Brand | Qioptiq |
|---|---|
| Origin | UK |
| Model | iFLEX-IRIS-405 |
| Wavelength | 405 nm |
| Output Power | 25 mW |
| Beam Mode | TEM₀₀ (M² < 1.1) |
| Beam Diameter (at aperture) | 0.7 mm |
| Beam Divergence | Diffraction-limited |
| Polarization Ratio | >200:1 (Vertical ±2°) |
| Power Stability (8 h) | <0.5% RMS |
| Intensity Noise | <0.05% RMS (20 Hz – 20 MHz) |
| Pointing Stability | <1 µrad/°C |
| Dimensions | 70 mm × 40 mm × 38 mm |
| Delivery | Free-space or single-mode polarization-maintaining fiber-coupled output |
| Illumination Type | External illumination |
| Brand | Qphotonics |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | FBG Series |
| Light Source Type | Semiconductor Laser Diode (FBG-Stabilized) |
| Wavelength Range | 405–1650 nm |
| Output Power Range | 0.5–350 mW |
| Spectral Linewidth | ≤500 kHz (typical), up to 10 MHz (select models) |
| Tuning Range | ±0.05 nm (center wavelength) |
| Package Options | 14-pin DIL or Butterfly |
| Fiber Options | Single-mode or Polarization-Maintaining (PM) |
| Connector | FC/PC or FC/APC |
| Built-in Components | Thermistor, TEC, Monitor Photodiode |
| Rise Time | 0.5 ns |
| Operating Mode | CW or Pulsed |
| Brand | Superlum |
|---|---|
| Origin | Russia |
| Model Series | S-series / D-series |
| Spectral Range | 850 nm, 930 nm, 1300 nm |
| Output Configuration | Free-space or single-mode fiber-coupled (dual-fiber option for D-series) |
| Operating Mode | Continuous-wave (CW), AC-powered |
| Form Factor | Benchtop |
| Light Source Type | Superluminescent Diode (SLD) |
| Illumination Geometry | External illumination (free-space or fiber-delivered) |
| Brand | Energetiq |
|---|---|
| Origin | USA |
| Model | EQ-99X |
| Light Source Type | Xenon-based Laser-Driven Plasma |
| Spectral Range | 170–2100 nm |
| Output Power | ~0.5 W |
| Spectral Radiance | ≥10 mW/mm²·sr·nm |
| Plasma Size | ~100 µm (minor axis) |
| Numerical Aperture | 0.47 NA |
| Lifetime | >9,000 hours (to 90% initial output) |
| Output Format | Free-space collimated beam |
| Dimensions (Lamp Head) | 82 × 86 × 76 mm |
| Weight (Lamp Head) | 0.7 kg |
| Controller Dimensions | 113 × 111 × 299 mm |
| Controller Weight | 1.4 kg |
| Brand | Keopsys |
|---|---|
| Origin | France |
| Model | PUFL |
| Wavelength | 355 nm |
| Output Type | Free-space, collimated beam |
| Pulse Energy | up to 1.6 µJ |
| Peak Power | up to 1.6 kW |
| Average Power | up to 80 mW |
| Repetition Rate | 50 kHz |
| Beam Quality (M²) | < 1.3 |
| Power Consumption | Low |
| Package | Compact and rugged |
| Application Fields | Aerosol detection, fluorescence excitation, Raman spectroscopy, biological experimentation, wafer inspection |
| Brand | Qphotonics |
|---|---|
| Origin | USA |
| Type | Single-mode laser diode |
| Wavelength range | 395–1650 nm |
| Output power | 1 mW to 1200 mW |
| Spectral linewidth | 0.01–10 nm (depending on type) |
| Package options | 14-pin DIL, 14-pin butterfly, coaxial, mini-DIL |
| Integrated components | Thermistor, TEC, monitor photodiode |
| Fiber coupling | SMF-28 with FC/PC or FC/APC connector |
| Operating mode | CW or pulsed |
| Brand | Spectrolight |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | Mighty Light |
| Light Source Type | Tungsten-Halogen |
| Illumination Mode | Internal Illumination |
| Dimensions | 125 × 75 × 70 mm |
| Output Power (Basic) | 2 W |
| Output Power (Plus variant) | 7 W |
| Spectral Range | 350 nm – 2.5 µm |
| Intensity Stability (Noise) | < ±0.5% RMS over 8 hours |
| Color Temperature (Basic) | 2900 K |
| Color Temperature (Plus) | 3400 K |
| Beam Delivery | Pre-aligned fiber-coupled output with homogenization and collimation |
| Brand | Energetiq |
|---|---|
| Origin | USA |
| Model | EQ-400 |
| Light Source Type | Xenon-based Laser-Driven Plasma |
| Spectral Range | 170–2100 nm |
| Output Power | ~15 W |
| Spectral Radiance | ~100 mW/mm²·sr·nm |
| Numerical Aperture | 0.5 NA |
| Lifetime | >9,000 hrs (10% output degradation) |
| Cooling | Water-cooled |
| Beam Configuration | Selectable dual-beam or single-beam (with rear reflector) |
| Lamp Chamber Dimensions | 136 × 145 × 56 mm |
| Lamp Chamber Weight | 2.7 kg |
| Controller Dimensions | 133 × 483 × 584 mm |
| Controller Weight | 18.8 kg |
| Brand | ISTEQ |
|---|---|
| Origin | Netherlands |
| Model | XWS-30 |
| Spectral Range | 190–2500 nm (UV version) |
| Spectral Radiance | ~40 mW/(mm²·sr·nm) |
| Spatial Output Power | ~1.5 W |
| Fiber-Coupled Output Power | ~0.4 W |
| Emitter Size | 100 × 200 µm |
| Lifetime | 10,000 hours |
| Stability (STD) | <0.15% |
| Numerical Aperture | 0.5–0.55 (adjustable) |
| Dimensions (L×W×H) | 110 × 110 × 120 mm |
| Weight | 2 kg |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Cooling | Air-cooled |
| Purge Gas | High-purity N₂ or Ar (≥ Class 6), flow rate 1 L/min |
| Output Interfaces | C-mount, Thorlabs SM1, 30 mm cage system |
| Control Interface | USB-RS485 |
| Brand | Denselight Semiconductor |
|---|---|
| Origin | Singapore |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | DL-CS Series |
| Light Source Type | Broadband ASE Source |
| Illumination Mode | Internal-Fiber-Coupled Illumination |
| Compliance | RoHS, Telcordia GR-468-CORE |
| Packaging Options | 14-pin Butterfly (BTF), Dual-In-Line (DIL), or Custom 8-pin Mini-Module |
| Fiber Output | Single-Mode (SMF-28), Optional Polarization-Maintaining (PM) Fiber |
| Operating Temperature | –20 °C to +70 °C |
| Power Stability | < ±0.01 dB (over 8 hrs, constant current & temperature) |
| Modulation Bandwidth | Analog — up to 20 MHz (–3 dB), Digital — rise time < 1 ns |
| Optical Isolation | Integrated >30 dB |
| Noise Performance | Relative Intensity Noise (RIN) < –135 dB/Hz (typ. at 1 MHz) |
| Monitoring Port | Tap port with photodiode for real-time output power feedback |
| Electro-Optic Efficiency | Up to 15% (W/W), enabling low drive current and thermal load |
| Brand | Qphotonics |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | DFB-1550-50 |
| Light Source Type | Semiconductor Laser Diode |
| Illumination Method | Internal (Fiber-Coupled) |
| Wavelength | 1550 nm ± 0.5 nm |
| Output Power | 45 mW (typ.) |
| Spectral Linewidth | < 1 MHz |
| Package | 14-pin Butterfly with TEC, Thermistor & Monitor Photodiode |
| Fiber Output | Single-Mode or Polarization-Maintaining (PM) Pigtail |
| Operating Mode | CW or Pulsed via Current/Temperature Tuning |
| Brand | ISTEQ |
|---|---|
| Origin | Netherlands |
| Model | XWS-X |
| Spectral Range | 190–2500 nm (UV), 250–2500 nm (OFR) |
| Spectral Radiance | ~120 mW/(mm²·sr·nm) |
| Spatial Output Power | ~3 W |
| Fiber-Coupled Output Power | ~0.6 W |
| Emitter Size | 250 × 500 µm |
| Lifetime | 10,000 h |
| Stability (STD) | <0.15% |
| Numerical Aperture | Adjustable 0.4–0.55 |
| Cooling | Air or Water (lamp housing & controller) |
| Input Power | 100–240 V, 50/60 Hz |
| Purge Gas | Grade 6+ N₂ or Ar, 1 L/min |
| Housing Dimensions (Lamp) | 130 × 110 × 74 mm, 1.8 kg |
| Controller Dimensions | 351 × 172 × 232 mm, 8 kg |
| Output Interfaces | C-mount, Thorlabs SM1, 30 mm cage (free-space) |
| Brand | ISTEQ |
|---|---|
| Origin | Netherlands |
| Model | XWS-65 |
| Light Source Type | Laser-Pumped Plasma |
| Spectral Range | 190–2500 nm (UV-VIS-NIR) |
| Spectral Radiance | ~50 mW/(mm²·sr·nm) |
| Output Power (Free-Space) | ~3 W |
| Output Power (Fiber-Coupled) | ~0.5 W |
| Plasma Emission Size | 250 × 500 µm |
| Stability (STD) | <0.15% |
| Lifetime | 10,000 h |
| Numerical Aperture | Adjustable 0.4–0.55 |
| Cooling | Air or Water (Lamp & Controller) |
| Input Power | 100–240 V, 50/60 Hz |
| Purge Gas | N₂ or Ar, ≥Grade 6, 1 L/min |
| Lamp Housing Dimensions | 130 × 110 × 74 mm, 1.3 kg |
| Controller Dimensions | 351 × 172 × 232 mm, 8 kg |
| Output Interfaces | C-mount, Thorlabs SM1, 30 mm cage system |
| Fiber Coupling | SMA or FC (FCU version only) |
| Optional Configurations | UV-optimized (190–2500 nm) or OFR-optimized (250–2500 nm), free-space or fiber-coupled output |
| Brand | Superlum |
|---|---|
| Origin | Russia |
| Model Series | T-series (3-SLD module coupling), Q-series (4-SLD module coupling) |
| Wavelength Ranges | 760–960 nm (T-series), 790–1090 nm / 1270–1470 nm / 1300–1550 nm (Q-series) |
| Output Power | 5–300 mW (model-dependent) |
| Spectral Bandwidth (FWHM) | 40–200 nm (model-dependent) |
| Integrated Optical Isolator | Yes (select models: T-850-HP-I, T-860-HP-I) |
| Illumination Mode | External (free-space or fiber-coupled output) |
| Compliance | CE-marked, RoHS-compliant |
| Brand | Optometric |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | 16S-300-009 |
| Light Source Type | Xenon Short-Arc Lamp |
| Irradiation Mode | External Vertical Illumination |
| Spectral Range | UVA (320–400 nm), UVB (280–320 nm), UVA+UVB, Full Spectrum AM0/AM1.5 |
| Uniformity | ≤5% (measured across 6-inch square field) |
| Dose Accuracy | ±2% (with PMA2100 radiometer & PMA2101 erythemal detector) |
| Dose Delivery | 4 MED in 23 min (per COLIPA/FDA protocol) |
| Sample Temperature Rise | <0.2 °C during full irradiation cycle |
| Compatible Substrates | HD2, HD6 PMMA plates (2", 4", 6" diameter or square) |
| Optional Configurations | LS1000-4S-009 (4-ft² field, 4 plates), custom 6×6 inch field (9 plates) |
| Brand | Energetiq |
|---|---|
| Origin | USA |
| Model | EQ-99XFC |
| Light Source Type | Xenon-based Laser-Driven Plasma Source |
| Illumination Mode | Internal Illumination |
| Spectral Range | 190–2100 nm |
| Output Power | ~80 mW |
| Spectral Radiance | ~60 µW/nm |
| Numerical Aperture | 0.22 NA |
| Lifetime | >9000 hrs (to 10% output degradation) |
| Output Interface | FC-terminated fiber |
| Fiber Core Diameters Available | 100, 115, 200, 230, 400, 600 µm |
| Fiber Length Options | 1 m or 2 m |
| Lamp Chamber Dimensions | 82 × 86 × 76 mm |
| Controller Dimensions | 113 × 111 × 299 mm |
| Lamp Chamber Weight | 0.7 kg |
| Controller Weight | 1.4 kg |
| Brand | Qphotonics |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | LP Series |
| Light Source Type | Broadband Semiconductor Light Source |
| Wavelength Range | 405–1650 nm |
| Output Power Range | 0.2–300 mW (CW) |
| Spectral Bandwidth (FWHM) | 1–120 nm |
| Package Options | Butterfly, 14-Pin DIL, 9 mm TO, Mini-DIL, Chip-on-Carrier |
| Fiber Coupling | Single-mode, FC/APC optional |
| Integrated Components | Monitor Photodiode, Thermistor, TEC |
| Operating Mode | CW or Pulsed (10 ns rise/fall time) |
| Brand | Qioptiq |
|---|---|
| Origin | United Kingdom |
| Model | iFLEX-IRIS |
| Dimensions | 70 mm × 40 mm × 38 mm |
| Output | Single-wavelength, fiber-coupled (single-mode, polarization-maintaining) |
| Modulation | Closed-Loop Modulation (CLM) with automatic power control |
| Thermal Stability | Active temperature stabilization, mode-hop-free operation |
| Beam Quality | TEM₀₀, high pointing stability |
| Compliance | Designed for integration into CE-compliant OEM instrumentation |
| Fiber Interface | KineFLEX® PM-fiber coupling, free-space/fiber-output dual configuration |
| Brand | Superlum |
|---|---|
| Origin | Russia |
| Model | BS-XXX-1/2-HP |
| Tuning Range | 765–815 nm / 805–880 nm / 900–980 nm / 1020–1090 nm |
| Output Power | up to 10,000 mW (HP variants) |
| Sweep Speed | up to 100,000 nm/s |
| Linewidth | 0.06–0.15 nm |
| Wavelength Resolution | 0.05 nm |
| Scan Linearity | >99.9% |
| Repeatability | ±0.01 nm |
| SMSR | >50 dB |
| Control Interface | RS-232 |
| Fiber Output | SMF or PMF, FC/APC |
| Operating Temperature | +15 °C to +30 °C |
| Dimensions (W×H×D) | 257×170×325 mm (standard) / 362×160×326 mm (HP) |
| Weight | 9 kg / 12 kg (HP) |

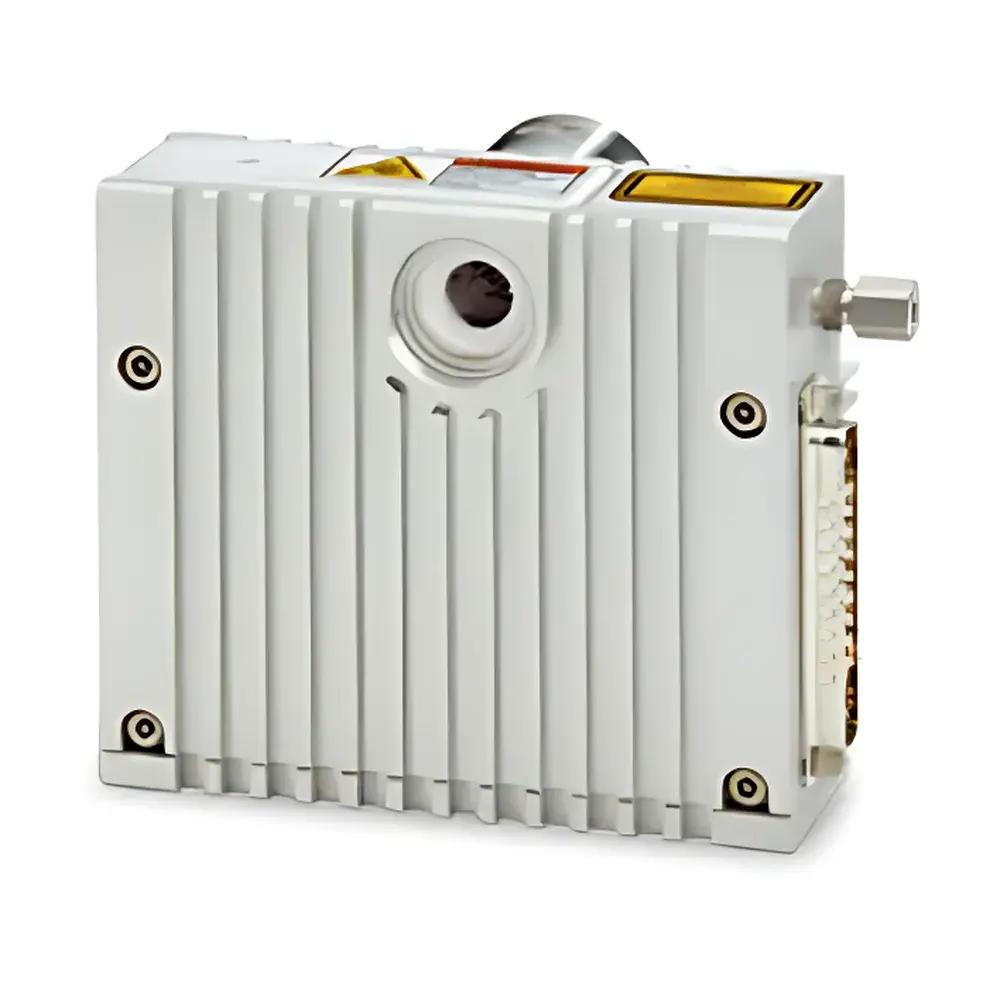

| Brand | Energetiq |
|---|---|
| Origin | USA |
| Model | EQ-9 |
| Light Source Type | Xenon-based Laser-Driven Plasma Source |
| Illumination Mode | Internal Illumination |
| Spectral Range | 170–2100 nm |
| Spectral Radiance | ~10 mW/mm²·sr·nm (lamp exit) |
| Output Options | Dual-beam or rear-reflector single-beam |
| Numerical Aperture | 0.56 NA |
| Lifetime | >9,000 hours (to 10% radiance degradation) |
| Lamp Housing Dimensions | 109 × 120 × 43 mm |
| Controller Dimensions | 38 × 197 × 93 mm |
| Lamp Housing Weight | 0.91 kg |
| Controller Weight | 0.68 kg |
| Total Output Power | ~0.5 W |
| Origin | Japan |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Imported |
| Model | AD1109F |
| Light Source Type | Amplified Spontaneous Emission (ASE) Source |
| Illumination Mode | External Illumination |
| Output Band | C-band (1530–1570 nm) |
| Output Power | >14 dBm (>25 mW) |
| Spectral Power Density | >−10 dBm/nm @ 1530–1560 nm |
| Power Stability | < ±0.005 dB (typical < ±0.001 dB, measured after 1-hr warm-up, over 15 min) |
| Output Fiber | SMF-28 |
| Connector | FC/PC |
| Dimensions | 66(H) × 160(W) × 230(D) mm (excl. protrusions) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | −10–60 °C |
| Weight | 3 kg |
| Input Power | AC 100–240 V, 50/60 Hz |
| Brand | Superlum |
|---|---|
| Origin | Russia |
| Product Type | Imported Optical Light Source |
| Model | M-S |
| Light Source Type | Infrared SLD-based Broadband Source |
| Illumination Mode | External Illumination |
| Output Power Range | Up to 35 mW (SMF-coupled) |
| Spectral Bandwidth (FWHM) | 15–70 nm |
| Center Wavelength Options | 670–1050 nm |
| Coherence Length | < 20 µm (typ.) |
| Optical Isolation | ≥30 dB |
| Power Adjustment | 0–100% in 10% steps |
| Control Interface | USB & TTL |
| Input Power | 100–240 V AC, 50/60 Hz, ≤40 VA |
| Dimensions (W×H×D) | 251 × 112 × 192 mm |
| Weight | ≤4 kg |
| Safety Class | IEC/EN 60825-1:2014 Class 3B |
Show next
