| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | ASOM-001 |
| Pricing | Available Upon Request |
| Brand | Lyncee Tec |
|---|---|
| Origin | Switzerland |

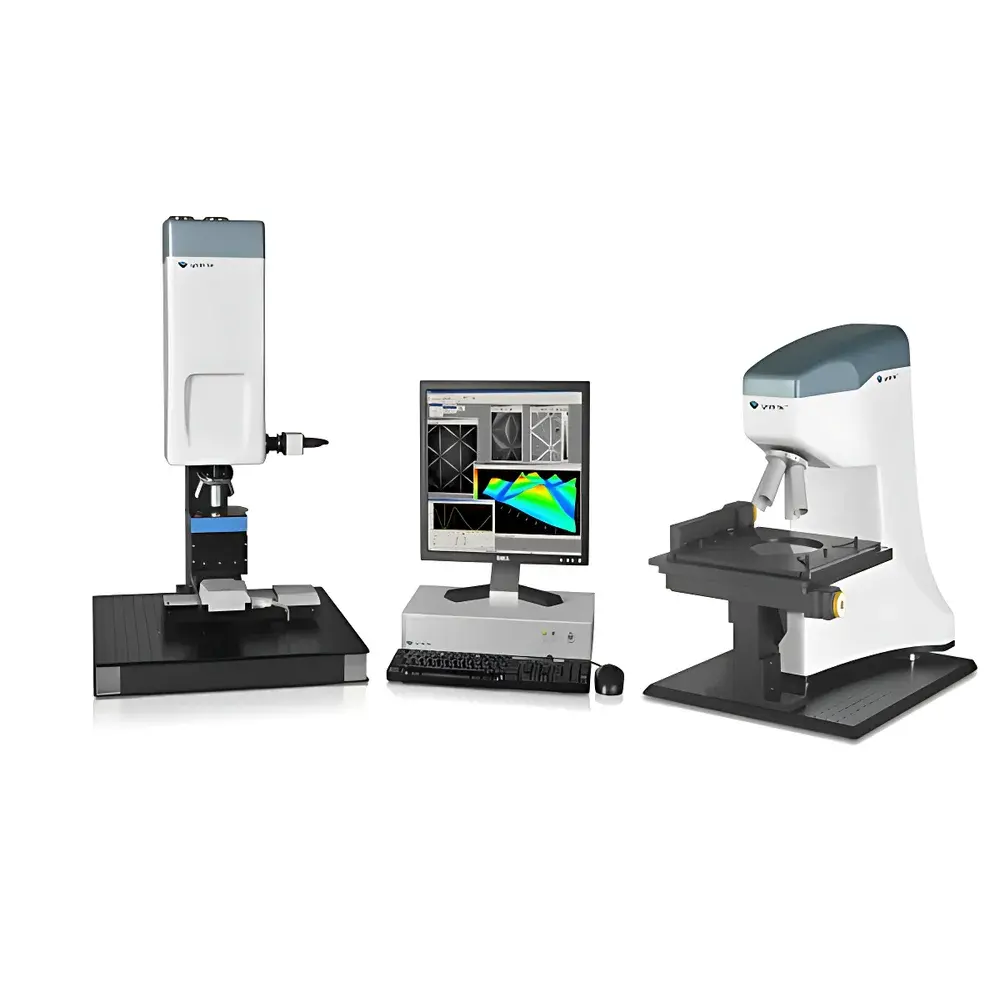

| Model | DHM |
| Measurement Principle | Digital Holographic Microscopy (Single- and Dual-Wavelength Interferometric Phase Imaging) |
| Vertical Resolution | 0.2 nm (single-wavelength), 50 nm (dual-wavelength) |
| Vertical Repeatability | <0.01 nm |
| Vertical Scan Accuracy | 0.1 nm |
| Lateral Resolution | 300 nm (with 1.4 NA oil immersion objective) |
| Field of View | 0.3–18 mm (objective-dependent) |
| Hologram Acquisition Speed | up to 15 fps (1024×1040 pixels), optional 30 fps |
| Reconstruction Rate | 15 fps @ 512×512, 4 fps @ 1024×1040 (single-wavelength) |
| Dual-Wavelength Scan Time | 1.5 s |
| Z-Scan Speed | 6 µm/s |
| Digital Focus Range | up to 50× depth of field |
| Illumination Intensity | <1 µW/cm² |
| Camera | 1392×1040 px, 8-bit monochrome CMOS |
| Software | Koala™ (C++/.NET-based, GLP-compliant workflow architecture) |
| Brand | Rayscience |
|---|---|
| Origin | United Kingdom |
| Distributor Type | General Distributor |
| Origin Category | Imported |

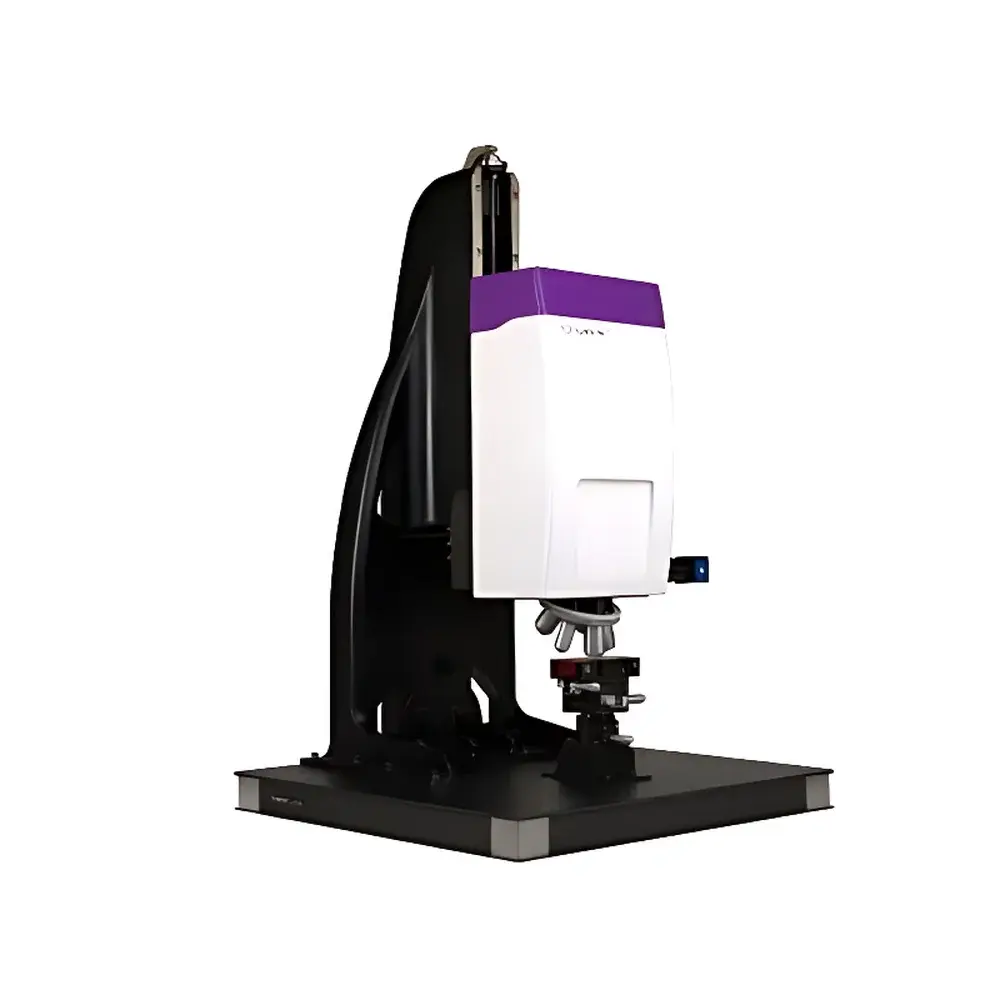

| Model | R2200 |
| Price | USD 280,000 (approx.) |
| Brand | Lyncee Tech |
|---|---|
| Origin | Switzerland |

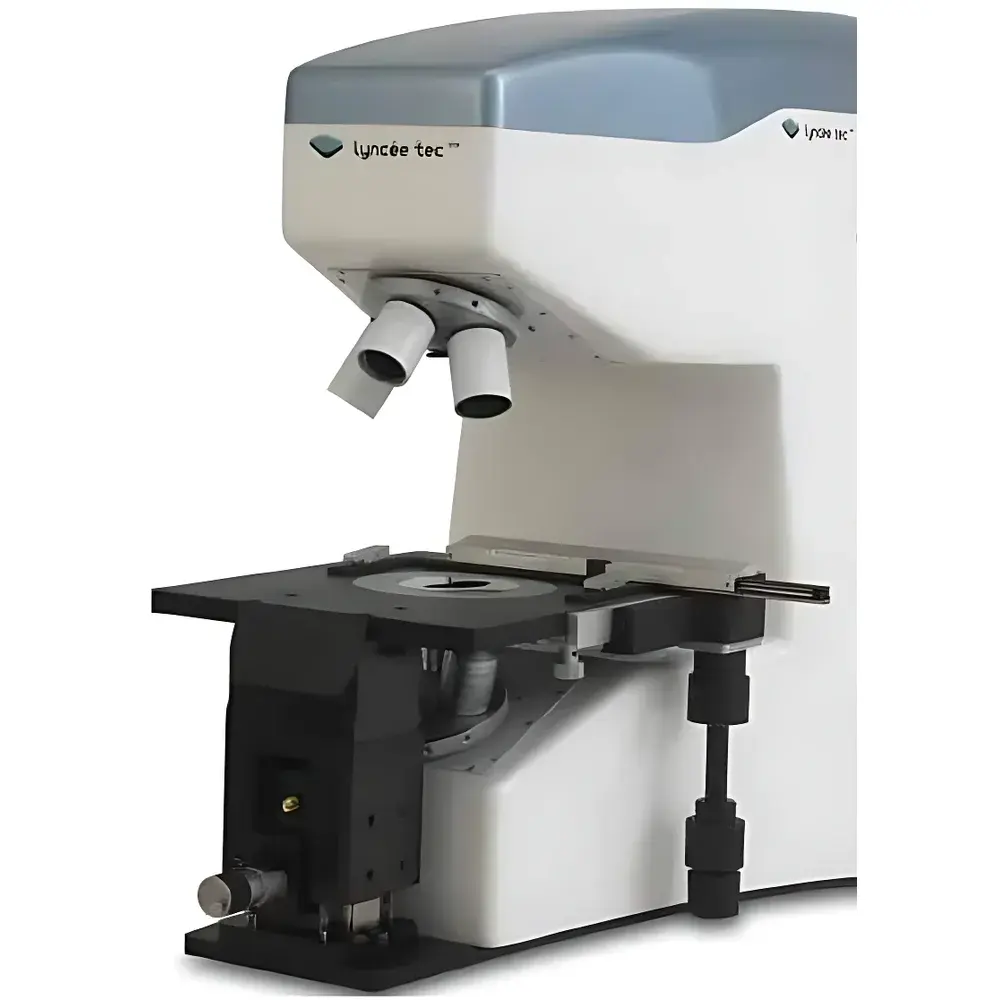

| Model | DHM™ R2100 |
| Vertical Resolution | 0.3 nm (single-wavelength), 6.0 nm (dual-wavelength synthetic) |
| Max Measurable Step Height | 2.1 µm |
| Dynamic Vertical Range | 200 µm |
| Lateral Resolution | 300 nm (at 1.4 NA) |
| Field of View | up to 4.4 mm |
| Working Distance | 0.3–18 mm |
| Digital Focus Range | up to 50× depth of field |
| Acquisition Time | < 500 µs (standard), down to 10 µs (optional) |
| Frame Rate | 30 fps (1024×1024), up to 1000 fps (high-speed camera) |
| Reconstruction Rate | 25 fps (real-time, 1024×1024), up to 100 fps |
| Laser Wavelengths | 666 nm & 794 nm |
| Synthetic Wavelength | 4.2 µm |
| Minimum Sample Reflectivity | < 1% |
| Illumination Intensity | < 1 µW/cm² |
| Sample Stage | Motorized XYZ, 300 mm × 300 mm × 38 mm travel |
| Software | Koala® v6.x (C++/.NET), MEMS Analysis Tool, Reflectometry Analysis Tool, Cell Analysis Tool |
| Compliance | ISO/IEC 17025-ready workflow architecture, GLP-compliant audit trail (optional), FDA 21 CFR Part 11–compatible data export |
| Brand | Lyncee Tec |
|---|---|
| Origin | Switzerland |
| Model | DHM™ R2100 |
| Vertical Resolution | 10 nm |
| Lateral Resolution | 300 nm (at 1.4 NA) |
| Field of View | 4.4 mm |
| Camera | 1392 × 1040 pixels, 8-bit |
| Frame Rate | 15 fps (1024 × 1024), up to 10,000 fps (region-of-interest) |
| Light Intensity on Sample | <1 µW/cm² |
| Maximum Sample Size | 200 mm × 200 mm |
| XYZ Stage Travel | 200 mm × 100 mm × 15 mm |
| Digital Refocusing Range | Up to 50× depth of field |
| Exposure Time | <1 µs |
| Power Supply | 85–260 VAC, 50/60 Hz, 480 W |
| Dimensions | 500 × 500 × 500 mm |
| Weight | 34.5 kg |
| Brand | Lyncee Tec |
|---|---|
| Origin | Switzerland |

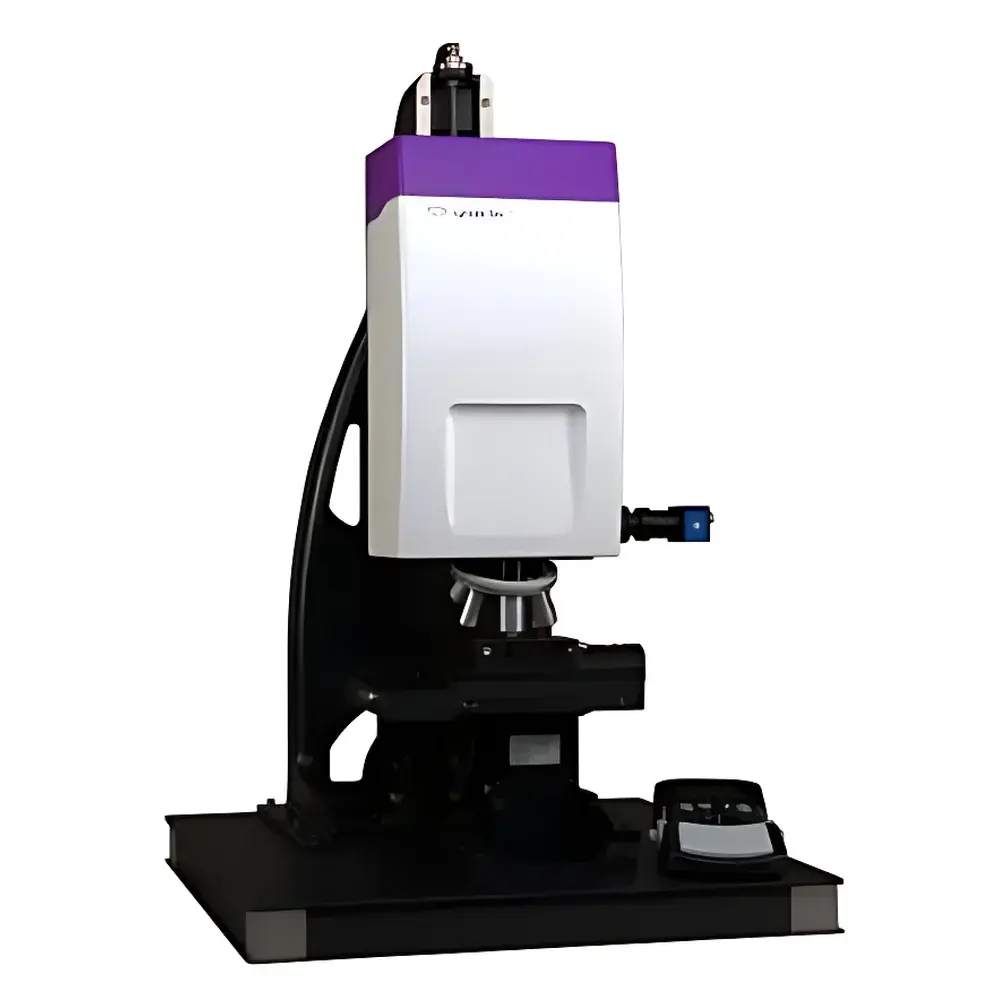

| Model | DHM-R1000 |
| Light Source | Single-wavelength laser (666 nm ± 0.1 nm) |
| Vertical Resolution | 0.3 nm |
| Vertical Measurement Range | Up to 200 µm |
| Maximum Step Height (Sharp Edge) | Up to 333 nm |
| Surface Compatibility | Smooth reflective surfaces |
| Frame Rate | Up to 1000 fps (full resolution 1024 × 1024) |
| Response Time | Standard 500 µs, optional 10 µs |
| Horizontal Resolution | Down to 300 nm (objective-dependent) |
| Field of View | 5 µm × 5 µm to 66 µm × 66 µm (objective-dependent) |
| Working Distance | 0.3 mm to 18 mm (objective-dependent) |
| Minimum Sample Reflectivity | <1% |
| Illumination Intensity | As low as 1 µW/cm² |
| Software Platform | Koala (C++/.NET), binary & TIFF export, ASCII-compatible data output |
| Brand | Lyncee Tec |
|---|---|
| Origin | Switzerland |
| Model | DHMT1001 |
| Light Source | Single-wavelength laser |
| Camera Resolution | 1392 × 1040 pixels, 8-bit |
| Vertical Resolution | 0.2 nm (instantaneous, in air) |
| Lateral Resolution | 300 nm (with 100× oil immersion objective, NA 1.4) |
| Imaging Speed | 15 fps at 512 × 512, 4 fps at 1024 × 1024 |
| Field of View | Up to 4.40 mm (dependent on objective) |
| Sample Stage | Manual XYZ (25 mm travel), optional motorized 2-/3-axis control |
| Software | Koala Software (C++/.NET, Windows XP-compatible) |
| Power Supply | 85–260 VAC, 50/60 Hz, <120 W |
| Dimensions | 400 × 400 × 500 mm, 34.5 kg |
| Key | Brand: HOLOEYE |
|---|---|
| Origin | Germany (Design & Core IP), Manufactured under license in Shanghai, China |
| Model | LCOS Series |
| Display Size | 0.55″–0.72″ diagonal |
| Resolution | 1280×768 (WXGA) to 1920×1080 (Full HD) |
| Frame Rate | 60–180 Hz |
| Drive Interface | Digital (LVDS, HDMI, or custom FPGA-compatible) |
| Modulation Mode | Amplitude, Phase, and Polarization |
| Pixel Architecture | Reflective CMOS-integrated liquid crystal on silicon |
| Fill Factor | >92% |
| Application Class | OEM Spatial Light Modulator (SLM) for coherent optical systems |
| Brand | Lyncée Tec |
|---|---|
| Origin | Switzerland |
| Model | DHM-T1000 |
| Laser Wavelength | 666 nm |
| Vertical Resolution | 2.0 nm |
| Vertical Accuracy | 1.0 nm |
| Repeatability | 0.02 nm |
| Vertical Measurement Range | up to 500 µm |
| Maximum Step Height (Sharp Edge) | up to 1.0 µm |
| Response Time | 500 µs (standard), optional 10 µs |
| Frame Rate | 30 fps (standard), optional up to 1000 fps |
| Hologram Reconstruction Rate | 25 fps (1024×1024 pixels), optional up to 60 fps |
| Lateral Resolution | down to 300 nm (objectives-dependent) |
| Field of View | 66 µm × 66 µm to 5 mm × 5 mm |
| Working Distance | 0.3–18 mm (objectives-dependent) |
| Digital Focus Depth Enhancement | up to 50× depth of field |
| Sample Illumination Intensity | as low as 1 µW/cm² |
