| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Model | CCA |
| Compliance | GB/T 16172–2007, ISO 5660-1/2/3/4:2002, ASTM E1354–2011 |
| Radiant Heat Flux Range | 0–100 kW/m² |
| Mass Loss Measurement | 0–2000 g ±0.1 g |
| Oxygen Analysis | 0–25% vol, ±0.1% accuracy |
| CO₂/CO Detection | 0–10% / 0–1% vol, ±0.1% accuracy |
| Exhaust Flow Control | 0.024 m³/s min, variable via inverter-driven fan |
| Laser Smoke Density System | He–Ne source (632.8 nm), ±2% stability over 8 h |
| Data Acquisition | Advantech industrial modules, 3000 Vdc isolation, 50/60 Hz auto-filtering |
| Software | VB-based, GLP-compliant, with full calibration traceability and audit trail |
| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Model | SBI |
| Compliance | EN 13823, GB/T 20284 |
| Heat Release Rate Measurement | Oxygen consumption calorimetry |
| Smoke Measurement | Optical density (light extinction) via white-light beam |
| Flame Spread Assessment | Lateral flame spread (LFS) up to 1.5 m × 1.0 m specimen edge |
| Droplet Collection | Integrated metal drip tray with thermal shielding |
| Chamber Dimensions | 3 m × 3 m × 2.4 m (W × D × H) |
| Ignition Source | 31 kW propane corner burner (250 mm × 250 mm × 80 mm) mounted on specimen trolley |
| Sampling Duct | Stainless-steel duct with integrated probe zone for multi-parameter gas analysis |
| Data Acquisition | Simultaneous sampling of O₂, CO, CO₂, flue gas temperature, mass flow, and optical density |
| Analyzer Specifications | Siemens OXYMAT 61 (0–25% O₂, ±1% FS/week drift, <3 s response), U23 NDIR (CO: 0–1%, CO₂: 0–10%, ±0.5% FS linearity) |
| Calibration Support | Full software-based calibration routines per ISO 5660-1 and EN 13823 Annex B |
| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Model | SBI- |
| Compliance | GB/T 20284-2006, EN 13823 |
| Power Supply | 380 V AC, 50 Hz |
| Fuel | 95% commercial propane |
| Exhaust Flow Rate | ≥8000 m³/h |
| Gas Flow Control | Mass flow controller (0–2.3 g/s C₃H₈, ±1% FS accuracy) |
| Temperature Measurement | K-type thermocouples (±0.5 °C) |
| Pressure Sensing | Differential pressure transducers (±0.5 Pa) |
| Oxygen Analysis | 0–25% vol, T90 ≤ 2 s, linearity < ±0.1% O₂ |
| CO/CO₂ Analysis | CO (0–1% vol, ±0.02% vol), CO₂ (0–10% vol, ±1% FS), T90 ≤ 2 s |
| Smoke Measurement | White-light extinction method (24 V, 6 W incandescent source |
| Data Acquisition | NI-compatible 16-bit analog input modules, LabVIEW-based real-time system |
| Cooling System | Active chiller (≤5 °C operational setpoint) |
| Filtration | Dual-stage (coarse ≤25 µm, fine ≤3 µm) |
| Exhaust Duct | J-shaped double-walled 304 stainless steel (ID 315 mm) |

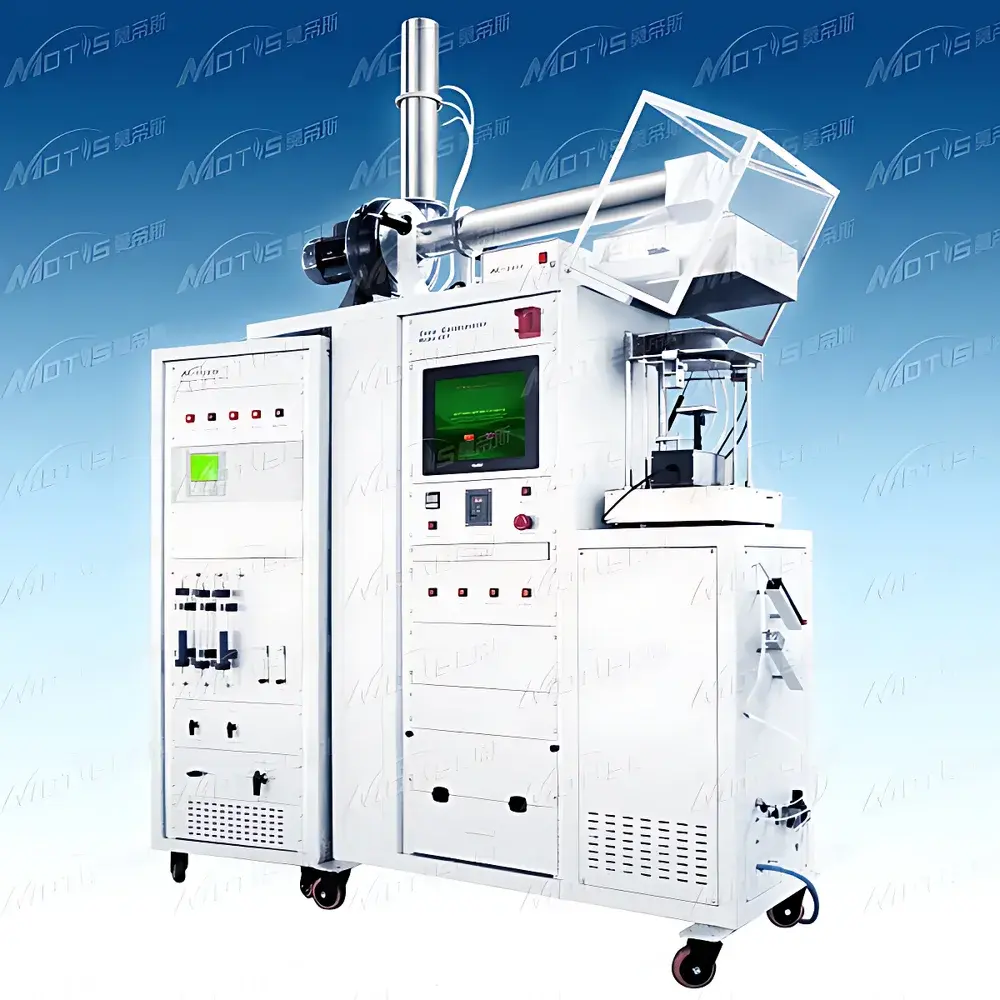

| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Model | CCT |
| Heating Source | 5 kW Cone Heater (0–100 kW/m²) |
| Sample Capacity | 100 mm × 100 mm × 50 mm |
| Mass Measurement Range | 0–3000 g (±0.1 g) |
| Oxygen Analyzer | ABB Paramagnetic (0–25% O₂) |
| CO/CO₂ Analyzers | ABB NDIR (CO: 0–1% |
| CO₂ | 0–10%) |
| Smoke Measurement | He-Ne Laser System (632.8 nm) |
| Exhaust Flow Control | 0–50 g/s (±0.1 g/s) |
| Heat Flux Calibration | NIST-Traceable Foil Heat Flux Meter (0–100 kW/m², ±3% accuracy) |
| Compliance | ISO 5660-1 & -2, ASTM E1354, GB/T 16172, BS 476-15 |
| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | C-CT |
| Price | USD 55,000 (FOB) |
| Standards Compliance | ISO 5660-1 & -2, ASTM E1354, GB/T 16172, BS 476-15 |
| Heat Flux Range | 0–100 kW/m² |
| Sample Capacity | 100 mm × 100 mm × 50 mm |
| Mass Measurement | 0–2000 g, ±0.1 g |
| Oxygen Analyzer | Paramagnetic, 0–25% O₂, T₉₀ < 1.5 s, drift < 0.5%/month |
| CO/CO₂ Analyzers | NDIR, CO: 0–1%, CO₂: 0–10% |
| Smoke Measurement | He-Ne laser (0.5 mW), dual photodiode detection |
| Exhaust Flow Control | 0–50 g/s, ±0.1 g/s |
| Cone Heater Power | 5000 W |
| Thermocouple | 1.6 mm sheathed, grounded junction, installed 100 mm above orifice plate |
| Heat Flux Sensor | Water-cooled Gardon gauge, 0–100 kW/m², ±3% accuracy, NIST-traceable calibration |
| C-factor Calibration | Brass burner with square aperture, automated C-value calculation per ISO 5660 |
| Data Acquisition | Synchronized multi-channel sampling (O₂, CO, CO₂, pressure, temperature, mass, smoke) |
| Software | Windows-based, CFR Part 11-compliant audit trail, Excel export, real-time sensor diagnostics, automatic delay compensation, C-factor logging |
| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Model | SBI |
| Compliance | EN 13823, GB/T 20284 |
| Measurement Principles | Oxygen depletion calorimetry, optical smoke density analysis, flame spread observation, droplet collection |
| Key Outputs | FIGRA, THR, SMOGRA, TSP, LFS, flaming droplets/particles |
| Gas Analysis | O₂ (0–25% vol), CO (0–1% vol), CO₂ (0–10% vol) |
| Temperature Sensing | K-type thermocouples (up to 1000 °C) |
| Flow Measurement | Stainless steel bidirectional pitot probe with micro-differential pressure sensor |
| Data Acquisition | Multi-channel analog input board (temperature, pressure, gas concentration, flow) |
| Software | ISO/IEC 17025-aligned calibration routines, real-time parameter calculation, audit-trail-enabled reporting |
| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SBI |
| Pricing | Available Upon Request |
| Standards Compliance | EN 13823, GB/T 20284 |
| Core Measurement Principles | Oxygen depletion calorimetry, optical smoke density analysis, flame spread observation, droplet collection |
| Key Outputs | FIGRA, THR, SMOGRA, TSP, LFS, flaming droplets/particles |
| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Model | SBI |
| Combustion Source | 31 kW Propane Corner Burner (250 mm × 250 mm × 80 mm) |
| Test Chamber Dimensions | 3 m × 3 m × 2.4 m (W × L × H) |
| Exhaust Flow Rate | 0.50–0.65 m³/s at 298 K |
| Exhaust Duct | SUS304 J-type, Ø315 ±5 mm, insulated with 50 mm mineral wool |
| Cone Calorimetry-Compatible Sampling Zone Length | 2155 mm |
| Oxygen Analyzer | Servomex 4100 (paramagnetic, 16–21% v/v O₂, ≤12 s response, drift <100 ppm/30 min) |
| CO₂ Analyzer | Servomex 4100 (NDIR, 0–10% v/v CO₂, linearity ≥1% FS) |
| Smoke Obscuration System | Incandescent light source (2900 ±100 K), collimated beam ≥20 mm diameter, Si photodiode detector compliant with CIE V(λ) ±5% |
| Thermocouples | Three OMEGA K-type armored, 0.5 mm dia., spaced 120° on 87 ±5 mm radius circle |
| Pressure Transducer | ±2 Pa accuracy, ≤1 s 90% response |
| Mass Flow Controller | 0–2.5 g/s, ±1.5% reading accuracy |
| Propane Supply Control | Dual independent solenoid valves, switch time ≤12 s, flame stabilization ±5 mg/s for 30.7 ±2 kW output |
| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Model | SBI |
| Compliance | EN 13823, GB/T 20284 |
| Measurement Principle | Oxygen depletion calorimetry + optical smoke density analysis + flame spread observation |
| Key Outputs | FIGRA, THR, SMOGRA, TSP, LFS, droplet formation assessment |
| Core Subsystems | Siemens-based gas analysis cabinet (O₂, CO, CO₂), data acquisition system, calibrated propane corner burner (31 kW), 3 m × 3 m × 2.4 m fire test chamber with conical hood and sampling duct |
| Brand | MEI / Marlin Engineering |
|---|---|
| Origin | USA |
| Model | ME1200-1 |
| Compliance | FAR 25 Appendix F Part IV, Airbus AITM 2.0006, Boeing BSS 7322 |
| Radiant Flux | 35 kW/m² |
| Heating Source | Four glow bars |
| Temperature Control | Dual independent PID controllers |
| Sample Introduction | Pneumatic actuated pusher with shielded access door |
| Burner Configuration | Fixed upper burner + movable lower burner |
| Calibration System | Movable T-type calibration burner with mass flow controller |
| Heat Flux Measurement | Water-cooled thermopile with active cooling circuit |
| Airflow Control | Regulated isothermal and isovolumetric supply via orifice flow meter |
| Data Acquisition | Integrated DAQ system with ASTM/ISO-compliant heat release rate test software |
| Brand | Marlin Engineering (MEI) |
|---|---|
| Origin | USA |
| Model | ME 1200-1 |
| Compliance | FAA-Approved OSU Apparatus |
| Standards | FAR Part 25 Appendix F Part IV, Airbus AITM 2.0006, Boeing BSS 7322, ASTM E906 |
| Sample Size | 15 cm × 15 cm (vertical orientation) |
| Radiant Heat Flux | 35 kW/m² (adjustable: 20–50 kW/m²) |
| Test Duration | Up to 15 min |
| Output Metrics | Peak Heat Release Rate (PHRR), Total Heat Release at 15 min (THR₁₅), Time-to-Flashover Estimation |
| Calibration | Water-cooled thermopile with mass flow-controlled calibration burner |
| Airflow Control | Orifice plate flowmeter + PID-regulated constant-temperature/constant-flow supply |
| Data Acquisition | Integrated high-speed DAQ system with NIST-traceable thermal sensors |
| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Model | CCT |
| Heating Source | 5 kW Cone Heater (0–100 kW/m²) |
| Sample Capacity | 100 mm × 100 mm × 50 mm |
| Mass Measurement Range | 0–2000 g (±0.1 g) |
| O₂ Analyzer | Paramagnetic, 0–25% vol, T₉₀ < 1.5 s, drift < 0.5%/month |
| CO/CO₂ Analyzers | NDIR, CO: 0–1%, CO₂: 0–10% |
| Smoke Measurement | He-Ne Laser (0.5 mW), Dual Photodiode Detection |
| Exhaust Flow Control | 0–50 g/s (±0.1 g/s) |
| Heat Flux Calibration | NIST-traceable foil-type heat flux meter (0–100 kW/m², ±3% accuracy, water-cooled, 12.5 mm aperture) |
| C-Factor Calibration | ISO 5660-compliant brass burner, auto-calculated C-value logging |
| Compliance | ASTM E1354, ISO 5660-1 & -2, GB/T 16172, BS 476-15 |
| Data Acquisition | Integrated 17″ touchscreen PC, real-time synchronization of O₂ delay, mass loss, gas concentration, and thermocouple signals |
| Software | Excel-based reporting, sensor calibration wizard (single/dual-point), C-factor history log, system health dashboard, GLP-ready audit trail |
| Brand | MOTIS |
|---|---|
| Model | FRF |
| Category | Full-Scale Fire Reaction Testing System |
| Compliance | ISO 9705:2003, GA111, GB/T 27904, GB/T 25207, GB 20286 Annex B & C |
| Gas Analyzers | Paramagnetic O₂ (0–25% vol), NDIR CO₂ (0–10% vol), NDIR CO (0–1% vol) |
| Data Acquisition | 16-bit analog I/O, K-type thermocouples (−200 °C to +1500 °C), dual-head sampling pump (≤30 m transfer), chilled dew point trap, integrated control & reporting software |
| Key Outputs | Peak/average HRR & SPR (0–2/10/12/20 min), mass flow (door & duct), smoke yield, CO/CO₂ generation, flashover detection & timing, surface temperature profiles, vertical gas temperature stratification at doorway |
| Brand | FESTEC |
|---|---|
| Origin | South Korea |
| Model | SBI |
| Compliance | EN 13823, GB/T 20284 |
| Measurement Principle | Oxygen Consumption Calorimetry & Optical Smoke Density Analysis |
| Heat Flux | 31 kW Propane Corner Burner (250 mm × 250 mm × 80 mm) |
| Test Chamber | 3 m × 3 m × 2.4 m (L × W × H) |
| Sampling Duct | Integrated multi-sensor zone for O₂, CO, CO₂, temperature, smoke obscuration (via light extinction), and volumetric flow |
| Data Acquisition | Analog inputs for thermocouples (K-type), differential pressure sensors, gas analyzers |
| Gas Analysis System | Siemens OXYMAT 61 (paramagnetic O₂, 0–25% vol, ±1% FS/week drift, <3 s response) + U23 NDIR (CO: 0–1%, CO₂: 0–10%, ±1% FS/week, <3 s response) |
| Smoke Measurement | Laser-based optical density (OD) at 532 nm, calibrated per ISO 5659-2 |
| Flame Spread Assessment | Lateral Flame Spread (LFS) time to 1.5 m × 1.0 m specimen edge |
| Key Outputs | FIGRA (Fire Growth Rate Index), THR (Total Heat Release), SMOGRA (Smoke Growth Rate Index), TSP (Total Smoke Production), LFS, Droplet Formation Observation |
| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | CCT- |
| Pricing | Upon Request |
| Standards Compliance | ISO 5660-1 & -2, ASTM E1354, GB/T 16172, BS 476-15 |
| Heating Source | 5 kW Conical Radiant Heater (0–100 kW/m²) |
| Sample Capacity | 100 mm × 100 mm × 50 mm |
| Mass Measurement Range | 0–2000 g (0.1 g resolution) |
| Oxygen Analyzer | Paramagnetic, 0–25% O₂, T₉₀ < 1.5 s, drift < 0.5%/month |
| CO/CO₂ Analyzers | NDIR, CO: 0–1%, CO₂: 0–10% |
| Smoke Measurement | He-Ne Laser (0.5 mW), dual photodiode detection |
| Exhaust Flow Control | 0–50 g/s (0.1 g/s resolution), sharp-edged orifice (Ø57 ±1 mm) |
| Heat Flux Calibration | NIST-traceable water-cooled foil heat flux meter (0–100 kW/m², ±3% accuracy, ±0.5% repeatability) |
| C-Factor Calibration | Integrated brass burner with automated gas flow control (1/3/5 kW), real-time C-factor calculation per ISO 5660-1 Annex B |
| Data Acquisition | Synchronized multi-channel sampling (O₂, CO, CO₂, ΔP, thermocouples, load cell, laser extinction) |
| Software | Windows-based, CFR Part 11-compliant audit trail, Excel report export, sensor delay compensation, C-factor logging, and full GLP/GMP-ready calibration management |
| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SBI |
| Pricing | Available Upon Request |
| Compliance | EN 13823, GB/T 20284 |
| Measurement Principle | Oxygen Consumption Calorimetry + Optical Smoke Density Analysis + Visual Flame Spread Observation |
| Brand | MOTIS |
|---|---|
| Model | FIPEC |
| Origin | Jiangsu, China |
| Category | Cone Calorimeter / Combustion Analyzer for Cables |
| Compliance | IEC 60332-3, ISO 5660-1, ASTM E1354, GB/T 18380.33–2022 |
| Heat Flux | 25–50 kW/m² (adjustable) |
| Oxygen Analysis | Paramagnetic (Shaw-Meter 4100) |
| CO/CO₂ Analysis | NDIR |
| Smoke Measurement | White-light obscuration (0.1–2.9 OD range) |
| Data Acquisition | Advantech DAQ board with 16-bit resolution, 100 Hz sampling |
| Calibration | Dual-flux (22.5 kW & 30 kW) via propane MFCs |
| Exhaust Flow Control | PID-regulated centrifugal blower (0.025–0.08 m³/s) |
| Temperature Sensing | OMEGA K-type thermocouples (±0.5 °C accuracy) |
| Gas Sampling | PTFE-lined probe + CAST diaphragm pump + cold trap dehydration |
| Software | FIPEC-CAL v3.2 (ISO 5660-1 compliant, GLP audit trail, CFR Part 11 ready) |
| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Model | SBI |
| Compliance | EN 13823, GB/T 20284 |
| Exhaust Flow Rate | 0.50–0.65 m³/s at 298 K |
| Propane Burner Output | 30.7 ± 2 kW |
| Optical Path Diameter | ≥20 mm |
| Smoke Measurement Resolution | ≤0.1% linear stability |
| O₂ Analyzer | Paramagnetic, 16–21% (v/v), response time ≤12 s, drift ≤100 × 10⁻⁶ (30 min) |
| CO₂ Analyzer | NDIR, 0–10% (v/v), linearity ≥1% FS, response time ≤12 s |
| Thermocouples | Three 0.5 mm sheathed K-type (GB/T 16839.1), spaced at 120° on arc radius (87 ± 5) mm |
| Pressure Sensor | 0–100 Pa, accuracy ±2 Pa, 90% response time ≤1 s |
| Light Attenuation System | Incandescent source at (2900 ± 100) K, DC power stability ±0.5%, 90% response time ≤3 s |
| Data Acquisition Interval | 3 s |
| Brand | MOTIS |
|---|---|
| Model | SBI |
| Standard Compliance | EN 13823, GB/T 20284 |
| Measurement Principle | Oxygen Consumption Calorimetry & Optical Smoke Density Analysis |
| Heat Release Rate (HRR) Derivation | Via O₂ depletion in exhaust duct |
| Smoke Production Quantification | Via light extinction coefficient (k) in sampling duct |
| Flame Spread Assessment | Lateral Flame Spread (LFS) on vertical specimen wing |
| Dripping Evaluation | Visual observation and collection of molten droplets |
| Chamber Dimensions | 3 m × 3 m × 2.4 m (W × L × H) |
| Ignition Source | 31 kW propane corner burner (250 mm × 250 mm × 80 mm) |
| Sampling Zone | Integrated in exhaust duct with multi-sensor array (O₂, CO, CO₂, temperature, differential pressure, optical density) |
| Data Acquisition | Simultaneous real-time logging of thermal, gas, and flow parameters |
| Software | Dedicated SBI calibration & analysis suite compliant with EN 13823 Annex A requirements |
| Power Supply | 220 VAC ±10%, 50–60 Hz |
| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SBI |
| Pricing | Available Upon Request |
| Compliance | EN 13823, GB/T 20284 |
| Core Measurement Principle | Oxygen Consumption Calorimetry & Optical Smoke Density Analysis |
| Key Outputs | FIGRA, THR, SMOGRA, TSP, LFS, Droplet Observation |
| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SBI |
| Pricing | Available Upon Request |
| Standards Compliance | EN 13823, GB/T 20284 |
| Core Measurement Principles | Oxygen depletion calorimetry, optical smoke density analysis, flame spread observation, droplet collection |
| Key Outputs | FIGRA, THR, SMOGRA, TSP, LFS, flaming droplets/particles |
| Brand | MOTIS |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SBI |
| Pricing | Upon Request |
| Standards Compliance | EN 13823, GB/T 20284 |
| Measurement Principles | Oxygen depletion calorimetry, optical smoke density analysis, flame spread observation, droplet collection |
| Key Outputs | FIGRA, THR, SMOGRA, TSP, LFS, flaming droplets/particles |
Show next
