| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | M265LM |
| Frequency Bands | Low Band 42–65 kHz (Beamwidth 25°–16°), Medium Band 85–135 kHz (Beamwidth 16°–11°) |
| Output Power | 1000 W |
| Installation Type | In-hull Mount |
| Housing Material | Polyurethane Encapsulated Plastic |
| Transducer Window | Polyurethane |
| Cable Length | 10 m |
| Integrated Temperature Sensor | Yes |
| Weight | 6.2 kg |
| Total Bandwidth | 73 kHz |
| Compatible Frequencies | 50 kHz, 88 kHz, 107 kHz |
| Hull Compatibility | Solid Fiberglass Hulls Only |
| Proprietary Technology | Xducer ID® |
| Brand | Airmar |
|---|---|
| Origin | USA |
| Model | B164 |
| Operating Frequencies | 50 kHz / 200 kHz |
| Beamwidth | 22° × 20° @ 50 kHz |
| Output Power | 1000 W |
| Mounting Type | Through-Hull (Low-Profile) |
| Housing Material | Bronze |
| Transducer Window | Polyurethane |
| Hole Diameter | 95 mm |
| Shaft Length | 71 mm |
| Cable Length | 10 m |
| Integrated Temperature Sensor | Yes |
| Tilt Options | 0°, 12°, or 20° |
| Maximum Hull Angle | 24° |
| Weight | 1.4 kg |
| Brand | Airmar |
|---|---|
| Origin | USA |
| Model | P39 |
| Operating Frequency | 235 kHz |
| Mounting Type | Through-Hull Beam-Mount |
| Depth Range | 0.5–100 m (NMEA 0183), 0.5–150 m (NMEA 2000) |
| Speed Sensing | Paddlewheel with Grooved Flow Channel |
| Temperature Range | −10 to +40 °C |
| Temp Accuracy | ±0.5 °C |
| Beam Angle Adjustment | 0°–22° |
| Weight | 0.5 kg |
| Pressure Rating | 3 m |
| Pulse Resolution | 20,000 pulses per nautical mile |
| Power Supply | 10–28 VDC (NMEA 0183), 9–16 VDC (NMEA 2000) |
| Current Draw | <40 mA (NMEA 0183), <200 mA (NMEA 2000) |
| NMEA 2000 LEN | 4 |
| Compliance | IEC 60945 |
| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | CM599LH |
| Frequency Bands | Low Band 28–60 kHz (Beamwidth 23°–9°), High Band 130–210 kHz (Beamwidth 8°–4°) |
| Total Bandwidth | 112 kHz |
| Transmit Power | 2000–3000 W |
| Mounting Type | In-Tank Installation |
| Hull Compatibility | Solid Fiberglass |
| Enclosure Material | Epoxy-Resin Housing |
| Weight | 13.73 kg |
| Cable Length | 10 m |
| Integrated Temperature Sensor | No |
| Brand | Airmar |
|---|---|
| Origin | USA |
| Model | M260 |
| Power Output | 1000 W |
| Operating Frequencies | 50 kHz / 200 kHz |
| Beamwidth | 19° @ 50 kHz / 6° @ 200 kHz |
| Installation Type | In-hull (through-hull cavity mount) |
| Housing Material | Polyurethane & plastic |
| Porthole Diameter | 30 mm |
| Mounting Stub Length | 121 mm |
| Cable Length | 10 m |
| Weight | 6.2 kg |
| Hull Tilt Compensation Range | 0–30° |
| Transducer Window Material | Polyurethane |
| Temperature Sensor | Not integrated |
| Compatible Hull Types | Fiberglass only |
| Minimum Vessel Length | 8 m |
| Proprietary Technology | XducerID® |

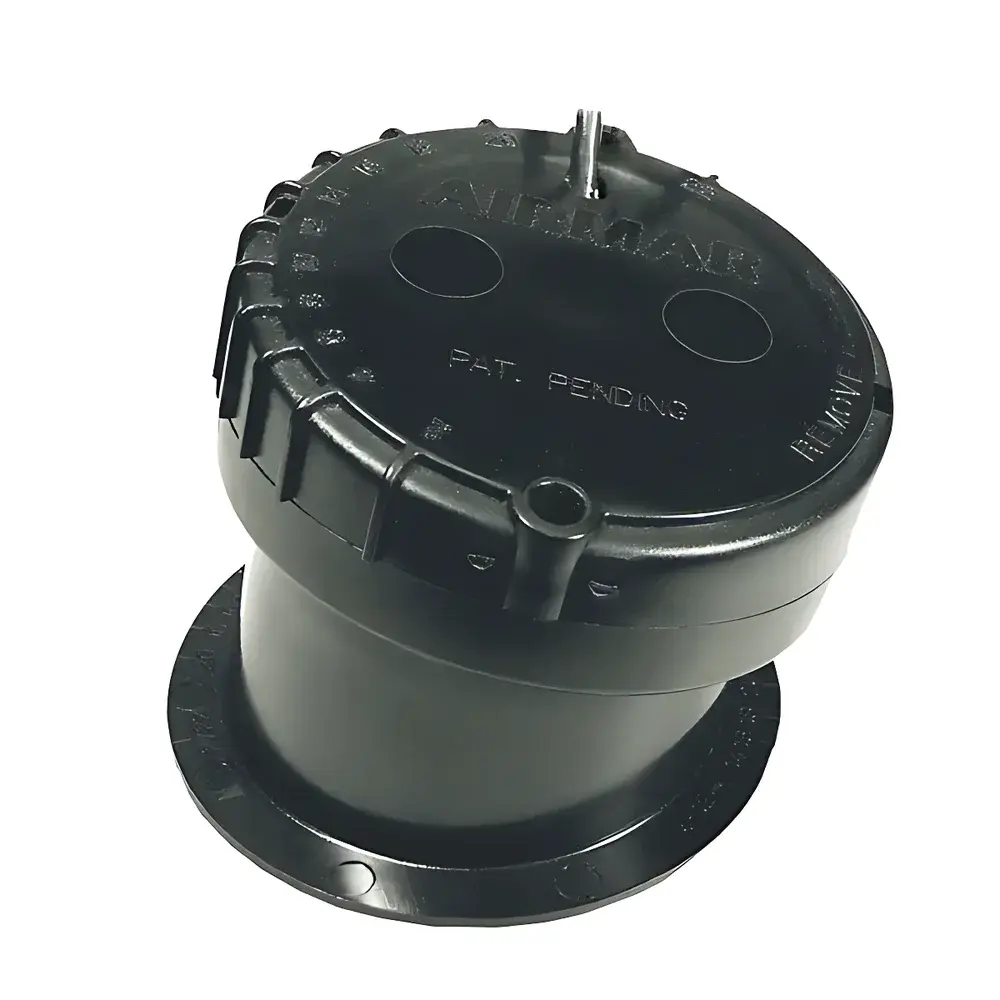

| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | P75M |
| Output Power | 600 W |
| Operating Frequency | 80–130 kHz (Chirp) |
| Beam Width | 24°–16° (adjustable) |
| Max Depth Range | 213 m (700 ft) |
| Depth Accuracy | ±0.54% of reading |
| Depth Resolution | 0.01 m |
| Housing Material | Polyurethane (liquid-filled) |
| Weight | 0.45 kg (1.1 lb) |
| Hull Angle Compensation | 2°–20° adjustable |
| Compatible Hull Type | Solid fiberglass only |
| Transducer Mounting | Internal through-hull installation with Xducer ID® technology |
| Environmental Fill Fluid | Non-toxic, freeze-resistant coupling medium |
| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | PM265LH |
| Transmit Power | 1000 W |
| Low-Frequency Range | 42–65 kHz (Beamwidth: 25°–16°, Max Depth: 914 m) |
| High-Frequency Range | 130–210 kHz (Beamwidth: 10°–6°, Max Depth: 304 m) |
| Total Transducer Bandwidth | 103 kHz |
| Housing Material | Bronze |
| Mounting Options | Tank, Hull Cavity, Pocket/Kiel Mount |
| Transducer Window | Polyurethane |
| Operating Temperature Sensor | Integrated Fast-Response Thermistor |
| Compatible Hull Types | Solid Fiberglass Only (≥8 m LOA) |
| Weight | 5.2 kg |
| Brand | Airmar |
|---|---|
| Origin | USA |
| Model | UDST800 |
| Output | NMEA 0183 |
| Transducer Frequency | 4.5 MHz |
| Pulse Repetition Frequency | 0.5–12 kHz (adaptive) |
| Speed Range | 0.1–50 knots |
| Operating Temperature | −4 to 40 °C |
| Supply Voltage | 9–16 VDC |
| Average Current Draw | 125 mA @ 12 VDC |
| Housing Material | Plastic / Bronze / Stainless Steel |
| Housing Diameter | 51 mm |
| Weight | 1.4 kg (plastic) / 1.8 kg (bronze) |
| Compliance | EN 60945, IEC 61162-1/-2 |
| Brand | Airmar |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | B122 |
| Operating Frequency | 235 kHz |
| Depth Range | 0.5–180 m |
| Temperature Range | −10 to +40 °C |
| Temp Accuracy | ±0.5 °C |
| Max Hull Angle (with fairing) | 28° |
| Housing Material | Bronze |
| Power Supply | 9–16 VDC, <200 mA |
| Weight | 3.9 kg |
| Transducer Window | Urethane |
| Mounting Options | Through-hull (51 mm hole) or Low-profile via Adapter Ring |
| IP Rating | IEC 60945 Compliant |
| NMEA 2000 LEN | 4 |

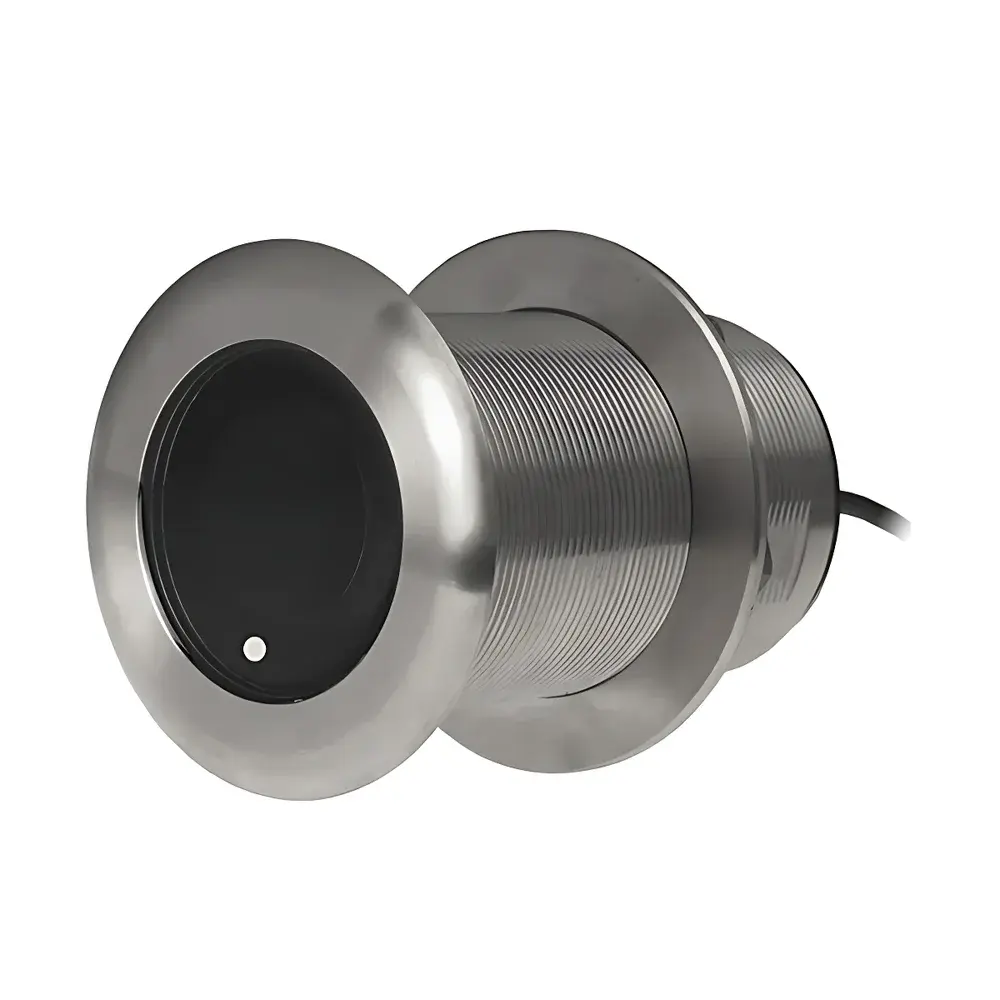

| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | SS75M |
| Operating Frequency Range | 80–130 kHz |
| Output Power | 600 W |
| Beamwidth | 24°–16° (depending on tilt) |
| Transducer Mounting | Through-hull |
| Housing Material | Stainless Steel |
| Cutout Diameter | 70 mm |
| Shaft Length | 95 mm |
| Cable Length | 10 m |
| Integrated Temperature Sensor | Yes |
| Weight | 1.4 kg |
| Maximum Hull Deadrise Angle | 28° |
| Acoustic Window Material | Polyurethane |
| Compatible Hull Materials | Fiberglass, Wood |
| Chirp Bandwidth | 50 kHz |
| Target Detection Depth | Up to 3,000 m |
| Tilt Options | 0°, 12°, 20° |

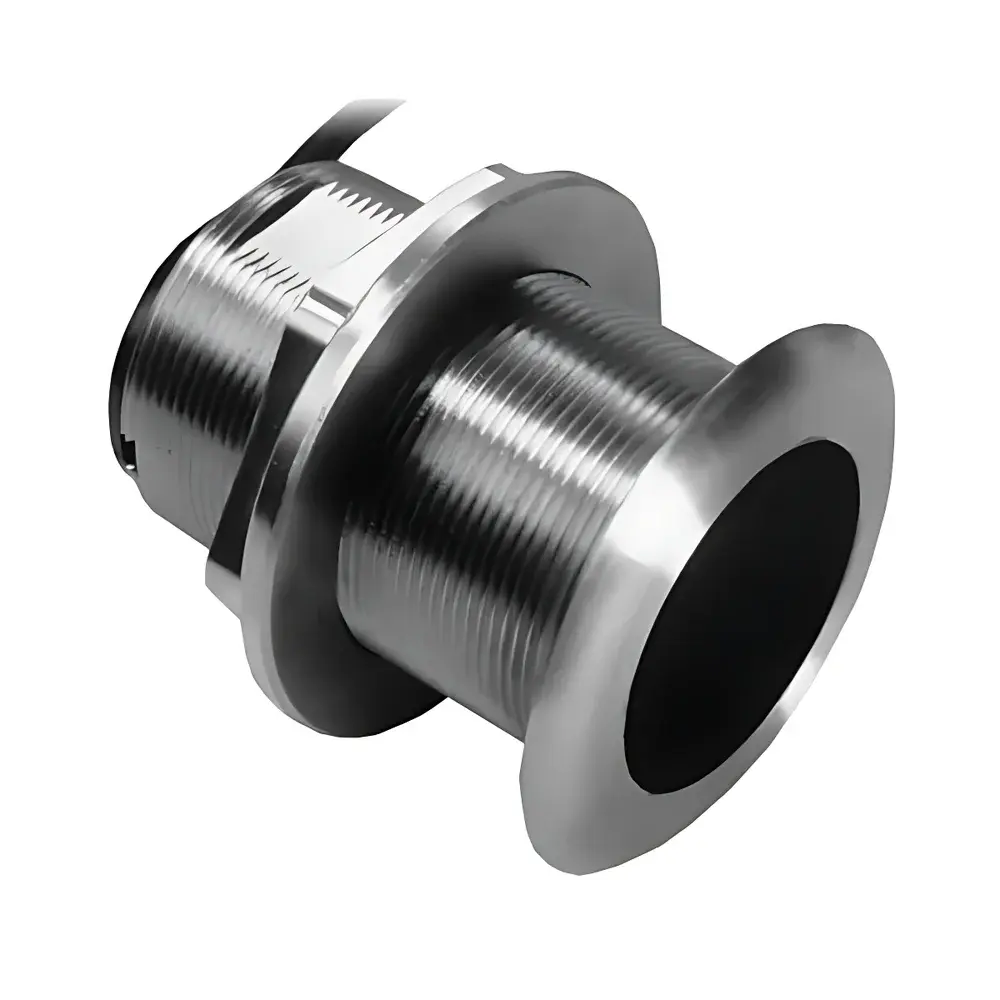

| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | SS60 |
| Frequency Bands | 50 kHz / 200 kHz |
| Beam Width | 45° @ 50 kHz, 12° @ 200 kHz |
| Transmit Power | 600 W |
| Housing Material | Stainless Steel |
| Mounting Type | Low-Profile Through-Hull |
| Cutout Diameter | 60 mm |
| Stub Length | 68.5 mm |
| Cable Length | 10 m |
| Integrated Tilt Sensor | Yes |
| Integrated Temperature Sensor | Yes |
| Maximum Hull Tilt Compensation | 24° |
| Acoustic Window Material | Polyurethane |
| Weight | 1.4 kg |
| Recommended Hull Length | Up to 8 m (25 ft) |
| Compatible Hull Inclinations | 0°, 12°, 20° |
| Brand | Airmar |
|---|---|
| Origin | USA |
| Model | M195 |
| Operating Frequencies | 30 kHz / 200 kHz |
| Depth Range | 0.4–200 m |
| Depth Accuracy | ±0.54% FS |
| Depth Resolution | 0.01 m |
| Temperature Sensor | 10 kΩ NTC thermistor |
| Temp Range | −5 to +60 °C |
| Temp Accuracy | ±0.05 °C |
| Temp Resolution | 0.09 °C |
| Output Protocols | NMEA 0183 (4800 baud), Echo-Envelope RS485 (921600 baud) |
| Power Supply | 9–40 VDC |
| Avg. Current Draw | 300 mA @ 12 VDC |
| Max. Power | 100 W |
| Submersible Depth | Up to 10 m |
| Cable | 15 m C304, 5-pair shielded twisted pair with polyurethane jacket |
| Housing Material | Seamless polyurethane (SeamCast™) |
| Certifications | CE, IEC 60945 |
| Reverse Polarity Protection | Yes |
| Weight | 6.5 kg |
| Dimensions | See official dimensional drawing |
| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | SS175H |
| Operating Frequency Range | 130–210 kHz |
| Transmit Power | 1000 W |
| Beamwidth | 15°–9° (variable with frequency) |
| Total Chirp Bandwidth | 80 kHz |
| Installation Type | Low-profile through-hull |
| Housing Material | Stainless Steel |
| Transducer Window Material | Polyurethane |
| Mounting Hole Diameter | 98 mm |
| Stub Length | 118 mm |
| Cable Length | 10 m |
| Integrated Temperature Sensor | Yes |
| Weight | 2.7 kg |
| Maximum Hull Deadrise Angle | 28° |
| Compatible Vessel Length | Up to 11 m |
| Hull Material Compatibility | Stainless steel or aluminum |
| Brand | Airmar |
|---|---|
| Origin | USA |
| Model | B75HW |
| Operating Frequency Range | 150–250 kHz |
| Beam Width | 30° |
| Maximum Depth Rating | 106 m (350 ft) |
| Transmit Power | 600 W |
| Housing Material | Bronze |
| Mounting Type | Through-hull with fixed-angle transducer element |
| Element Tilt Options | 0°, 12°, or 20° |
| Acoustic Window Material | Polyurethane |
| Required Hull Thickness | ≤ 45 mm |
| Minimum Hull Radius of Curvature | 150 mm |
| Operating Temperature Range | –15 °C to +60 °C |
| Integrated Temperature Sensor | Yes |
| Weight | 1.4 kg |
| Cutout Diameter | 70 mm |
| Shaft Length | 95 mm |
| Compatible Hull Types | Fiberglass, wood, aluminum (non-metallic hulls recommended for optimal performance) |
| Maximum Vessel Length | 8 m |
| Maximum Keel Angle | 24° |
| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | B75L |
| Operating Frequency Range | 40–75 kHz |
| Output Power | 300 W |
| Beam Width | 32°–21° (depending on tilt) |
| Transducer Mounting | Through-hull |
| Housing Material | Bronze |
| Porthole Diameter | 70 mm |
| Stub Length | 95 mm |
| Cable Length | 10 m |
| Integrated Temperature Sensor | Yes |
| Weight | 1.4 kg |
| Maximum Hull Deadrise Angle | 24° |
| Acoustic Window Material | Polyurethane |
| Compatible Hull Materials | Fiberglass, Wood |
| Total Bandwidth | 35 kHz |
| Xducer ID® Technology | Yes |
| Brand | Airmar |
|---|---|
| Origin | USA |
| Model | B744V |
| Frequency Bands | 50 kHz / 200 kHz |
| Beamwidth | 45° @ 50 kHz |
| Transmit Power | 600 W |
| Maximum Depth Range | 235–353 m (50 kHz), 118–206 m (200 kHz) |
| Hull Penetration Diameter | 51 mm |
| Fixed Shaft Length | 121 mm |
| Cable Length | 10 m |
| Housing Material | Bronze |
| Transducer Window | Polyurethane |
| Operating Speed Range | 1–45 knots |
| Maximum Hull Tilt Angle | 24° (with fairing) |
| Integrated Temperature Sensor | Yes |
| Integrated Paddlewheel Speed Sensor | Yes |
| Weight | 2.5 kg |
| Compatible Hull Size | Up to 9 m (30 ft) |

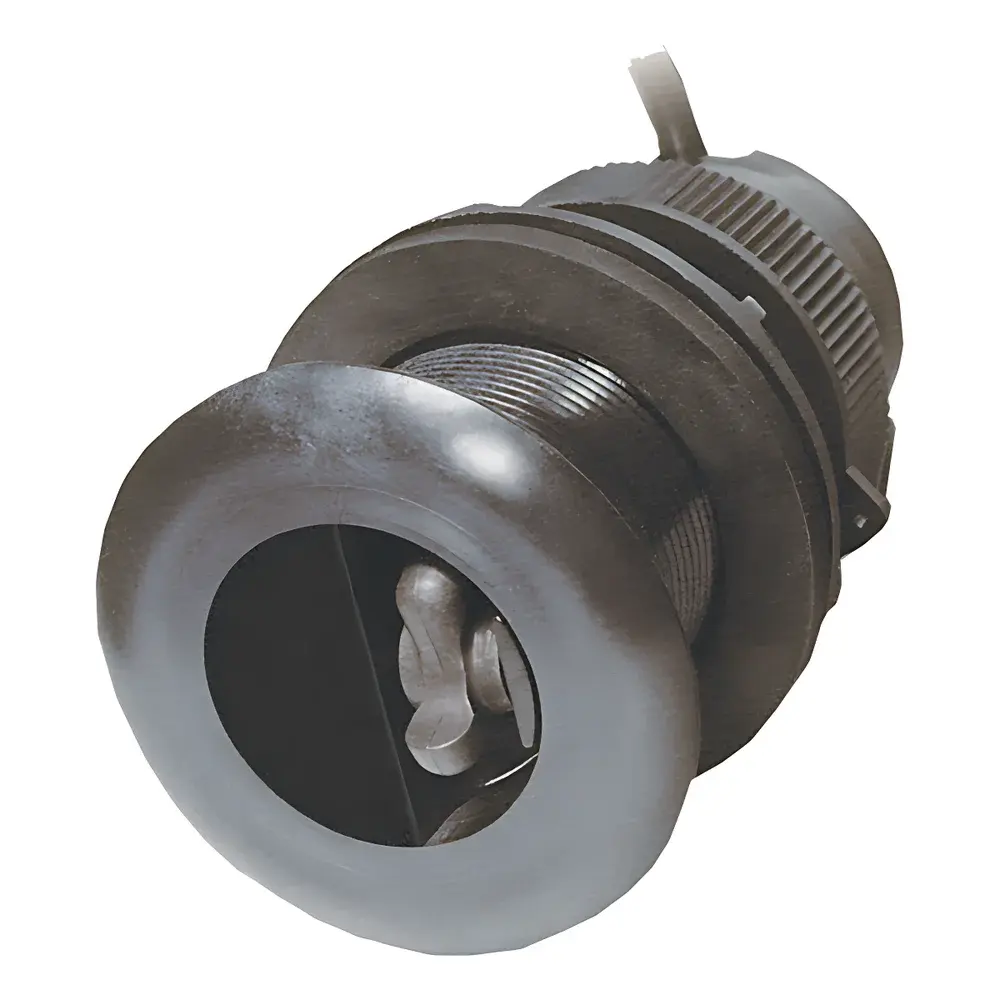

| Brand | Airmar |
|---|---|
| Origin | USA |
| Model | DST800 |
| Frequency | 235 kHz |
| Output Protocols | NMEA 0183 & NMEA 2000® |
| Depth Range | 0.5–70 m (NMEA 0183), up to 100 m (NMEA 2000®) |
| Speed Measurement | Paddlewheel-based, optimized <5 kn with linear output across full speed range |
| Temperature Accuracy | ±0.5°C |
| Operating Temp Range | −10°C to +40°C |
| Housing Options | Plastic, Bronze, or Stainless Steel |
| Beam Angle | Wide扇形 (broad fan-shaped beam, ~60° horizontal coverage) |
| Hull Tilt Compensation | Up to 22° |
| Power | 10–25 VDC (NMEA 0183), 9–16 VDC (NMEA 2000®) |
| Current Draw | <40 mA (NMEA 0183), <200 mA (NMEA 2000®) |
| Cable Length | 10 m (NMEA 0183), 6 m Devicenet (NMEA 2000®) |
| IP Rating / Pressure Rating | 3 m (10 ft) submersion |
| LEN (NMEA 2000® Load Equivalency Number) | 4 |
| Compliance | IEC 60945 |
| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | B258 |
| Power Output | 1000 W |
| Operating Frequencies | 50 kHz / 200 kHz |
| Beam Width | 14° × 23° @ 50 kHz / 3° × 5° @ 200 kHz |
| Housing Material | Bronze |
| Mounting Type | Through-Hull |
| Cutout Diameter | 30 mm |
| Stub Length | 121 mm |
| Cable Length | 10 m |
| Integrated Temperature Sensor | Yes, ±0.2°C accuracy |
| Maximum Hull Tilt Angle | 26° (with fairing) |
| Lens Material | Epoxy/Polyurethane |
| Weight | 3.6 kg |

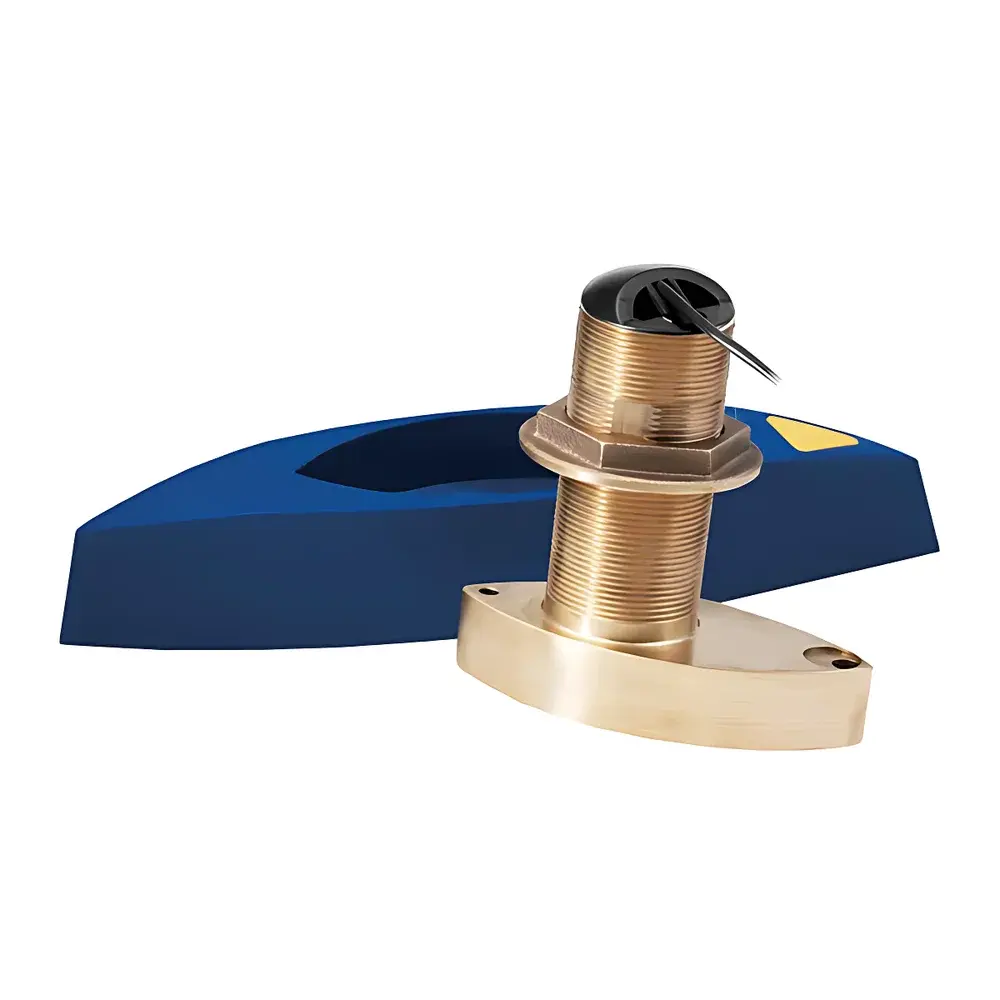

| Brand | AirMar |
|---|---|
| Origin | USA |
| Model | B765LM |
| Frequency Bands | Low Band 40–75 kHz (300 W, 32°–21° beamwidth) / Medium Band 80–130 kHz (600 W, 24°–16° beamwidth) |
| Total Bandwidth | 85 kHz |
| Transducer Material | Bronze housing with polyurethane fairing |
| Mounting | Through-hull with integrated fairing |
| Hull Compatibility | Fiberglass or wood hulls, max deadrise up to 24° |
| Hole Size | 51 mm |
| Stub Length | 121 mm |
| Cable Length | 10 m |
| Integrated Temperature Sensor | Yes |
| Weight | 2.5 kg |
| Max Operating Depth | 3000 m |
| Compliant Frequencies | 50 kHz, 88 kHz, 107 kHz |
| Brand | Airmar |
|---|---|
| Origin | USA |

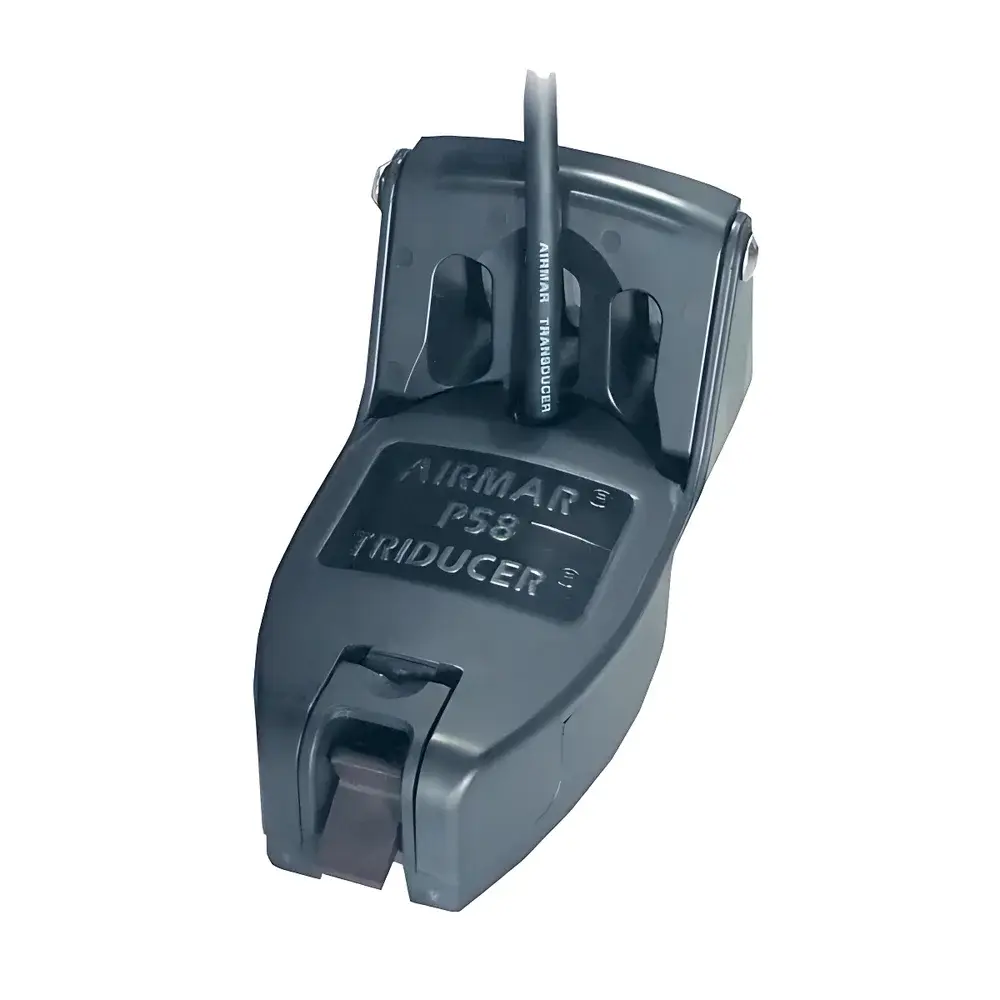

| Model | P58 |
| Frequency Bands | 50 kHz / 200 kHz |
| Beam Width | 45° / 11° |
| Transmit Power | 600 W (each band) |
| Transmit Voltage Response (TVR) | 153 dB / 173 dB |
| Receive Voltage Response (RVR) | −164 dB / −182 dB |
| Figure of Merit (FOM) | −33 / −20 |
| Max. Depth Range | 235–353 m (50 kHz) / 118–206 m (200 kHz) |
| Mounting | Transom-mount with adjustable tilt (2°–22°) |
| Housing Material | Polyurethane-coated LPU acoustic window + stainless steel hardware |
| Cable Length | 10 m |
| Integrated Sensors | NTC thermistor (temperature), quadruple-blade paddlewheel (speed), dual-frequency piezoceramic transducers (depth) |
| Weight | 0.5 kg |
| Hull Tilt Compatibility | 2°–22° |
| IP Rating | IP68 (submersible) |
| Origin | Canada |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SV |
| Pricing | Available Upon Request |
| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | CM275LHW |
| Power Output | 1000 W |
| Operating Frequency Bands | Low Band 42–65 kHz (beam width 25°–16°), High Wideband 150–250 kHz (fixed 25° beam width) |
| Max Depth Range | 914 m (low band), 152 m (high wideband) |
| Beamwidth Consistency | Fixed 25° across full high-band sweep |
| Transducer Housing | SEALCAST™ seamless polyurethane |
| Mounting Options | Tank, cavity, pocket/keel |
| Temperature Sensor | Integrated fast-response thermistor |
| Weight | 5.3 kg |
| Hull Compatibility | Metal hulls, ≥8 m length, variable deadrise adaptation |
| Material | Polyurethane acoustic window |
| Compliance | Designed for marine GLP-aligned data logging environments, compatible with NMEA 2000® and NMEA 0183 v3.00 protocols |
| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | CM599LM |
| Frequency Bands | Low Band 28–60 kHz (Beamwidth 23°–9°), Medium Band 80–130 kHz (Beamwidth 13°–8°) |
| Total Bandwidth | 82 kHz |
| Output Power | 2000–3000 W |
| Mounting Type | In-Tank (Hull-Mounted) |
| Housing Material | Epoxy-Encapsulated Composite |
| Hull Compatibility | Solid Fiberglass |
| Cable Length | 10 m |
| Weight | 13.73 kg |
| Temperature Sensor | Not Integrated |
| Compliance | CE, FCC, RoHS |
| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | PM275LHW |
| Power Output | 1000 W |
| Operating Frequency Bands | Low Band: 42–65 kHz (beam width: 25°–16°), High Band: 150–250 kHz (fixed 25° beam width) |
| Max Depth Range | 914 m (low band), 152 m (high band) |
| Beam Coverage | Fixed 25° wide beam across entire high band |
| Transducer Material | Bronze |
| Housing Material | Polyurethane acoustic window |
| Mounting Options | Pocket, Keel, Tank, Hull-Through (B275LHW), Transom (TM275LHW), or Clamp-on (CM275LHW) |
| Integrated Temperature Sensor | Yes |
| Compatible Hull Types | Solid fiberglass only, minimum hull length 8 m |
| Tilt Compensation | Customizable for hull deadrise angle |
| Weight | 5.3 kg |
| Total Frequency Span | 123 kHz |
| Compliance | CE, FCC, RoHS |
Show next
