| Key | Brand: Baineng |
|---|---|
| Model | N-SPC-25W |
| Rated Power | 25 W |
| Nominal Voltage | 18 V (for 12 V battery systems) |
| Peak Voltage (Vmp) | 17.9 V |
| Peak Current (Imp) | 1.4 A |
| Open-Circuit Voltage (Voc) | 22.41 V |
| Short-Circuit Current (Isc) | 1.54 A |
| Dimensions | 350 × 540 × 16 mm |
| Weight | 2 kg |
| Cell Type | Monocrystalline Silicon |
| Encapsulation | Tempered Glass + Aluminum Frame, IP65-rated waterproof lamination |
| Output Connector | DC 5.5×2.1 mm male plug |
| Cable Length | 2 m |
| Junction Box | Standard non-diode, lead-wire-free design |
| STC Conditions | 1000 W/m², AM1.5, 25 °C |

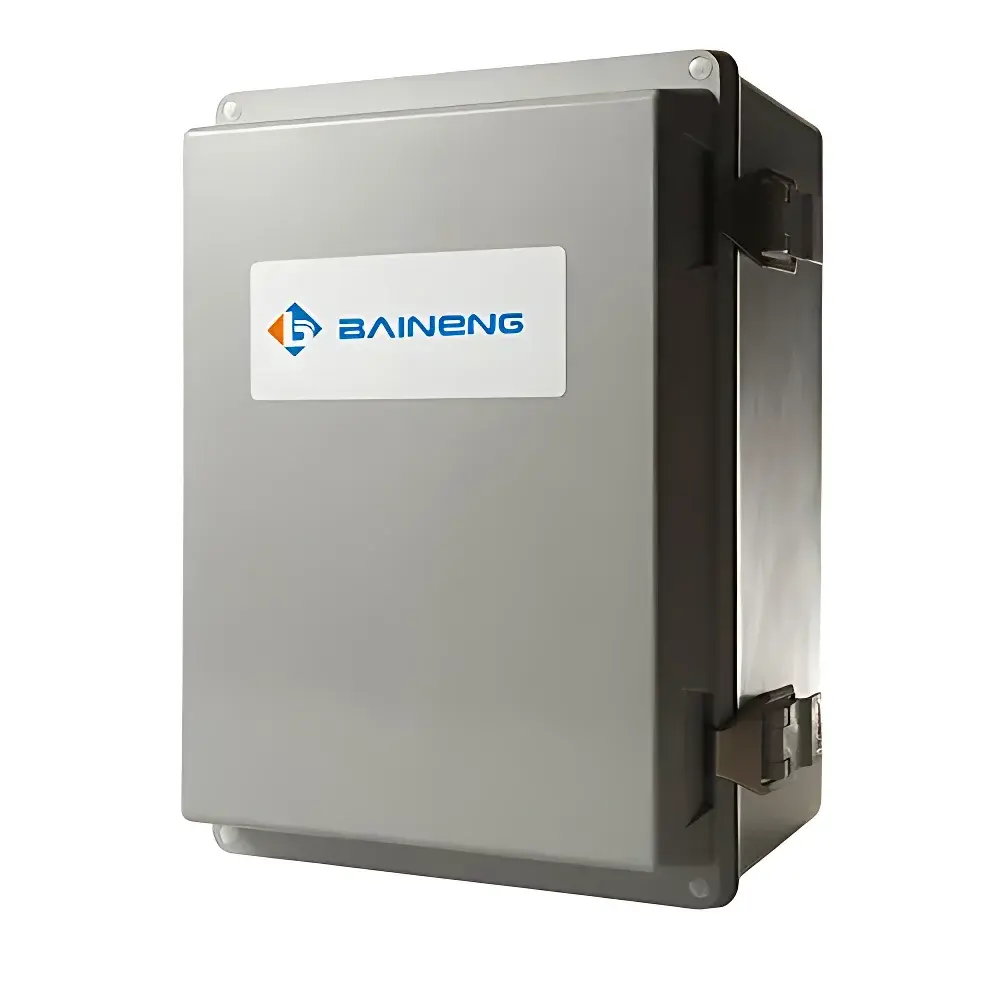

| Brand | Baineng |
|---|---|
| Origin | Shanghai, China |
| Model | BN-253515 |
| Enclosure Material | ABS Resin |
| Dimensions (W×L×H) | 250 × 350 × 150 mm |
| Color | Gray |
| IP Rating | IP67 |
| IK Rating | IK08 |
| Operating Temperature Range | −40 °C to +85 °C |
| Flame Resistance | UL94 HB |
| Internal Mounting Base | ABS Panel with Drillable Surface |
| Sealing | Integrated Silicone Rubber Gasket |
| Locking Mechanism | Stainless Steel Snap Latch |
| Hinges | One-Piece Molded Stainless Steel |
| Optional Solar Panel | BN-SPC-25W (25 W / 18 V, Monocrystalline Silicon, Glass-Laminated Aluminum Frame, DC5.5×2.1 Male Output, 2 m Cable, Max. Voc = 22.41 V, Isc = 1.54 A, Vmp = 17.9 V, Imp = 1.4 A, Dimensions: 350 × 540 × 16 mm, Weight: 2 kg) |
| Optional Pole-Mount Bracket | Stainless Steel, UV- and Corrosion-Resistant, Designed Specifically for BN-253515 |

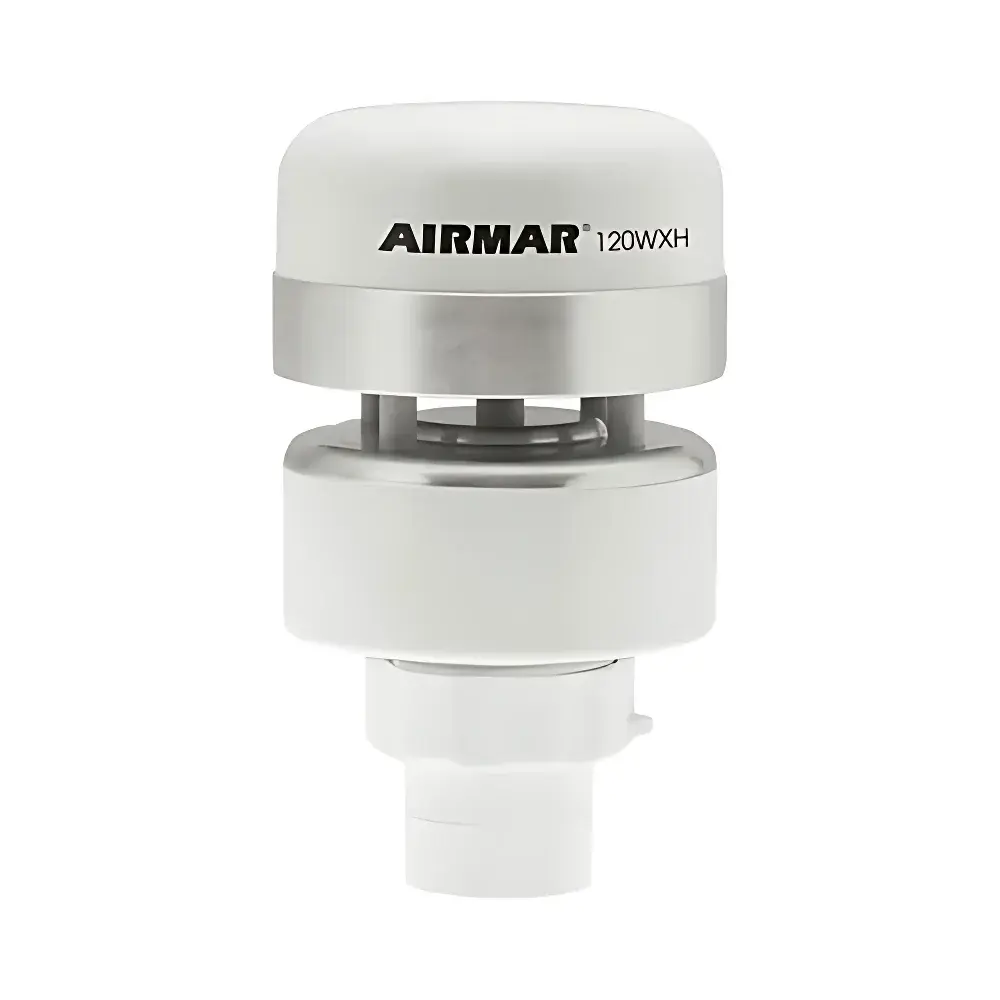

| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | 120WXH |
| Instrument Type | Portable Weather Station |
| Enclosure Rating | IPX6 |
| Communication Interface | NMEA 0183 (RS-422 or RS-232) |
| Heating Function | Integrated thermostatically controlled heater |
| Measurement Principle | Ultrasonic time-of-flight for wind speed & direction |
| Output Parameters | True/Relative wind speed & direction, atmospheric pressure, air temperature, wind chill |
| Discontinued Status | Yes (replaced by 220WXH) |
| Brand | Airmar |
|---|---|
| Origin | USA |
| Model | SS175HW |
| Operating Frequency Range | 150–250 kHz |
| Beam Width | Fixed 25° |
| Output Power | 1000 W |
| Housing Material | Stainless Steel |
| Mounting Type | Low-Profile Through-Hull |
| Transducer Window | Polyurethane |
| Maximum Hull Angle | 28° |
| Cable Length | 10 m |
| Integrated Temperature Sensor | Yes |
| Weight | 2.7 kg |
| Required Hull Cutout Diameter | 98 mm |
| Shaft Length | 118 mm |
| Compatible Hull Materials | Fiberglass, Wood, Aluminum, Stainless Steel |
| Vessel Length Limit | Up to 8 m |
| Xducer ID® Technology | Yes |
| Total Bandwidth | 100 kHz |

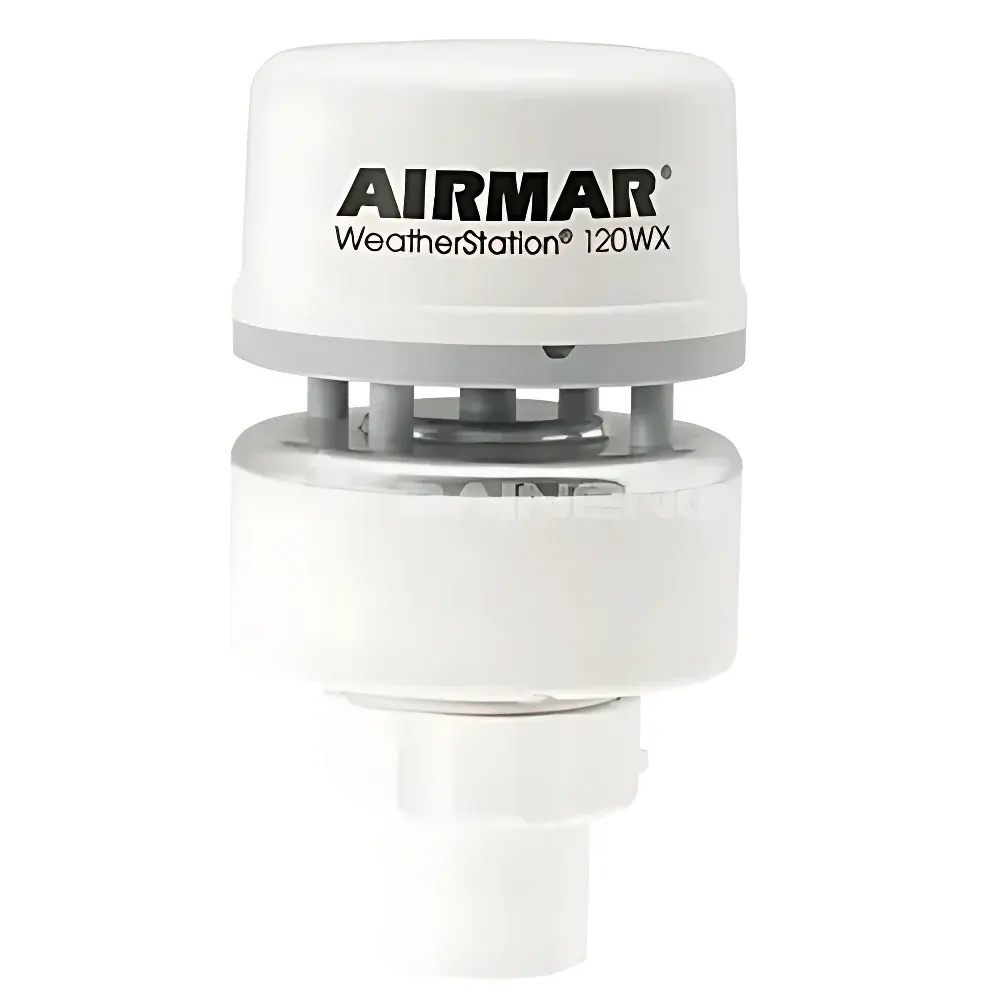

| Brand | Airmar |
|---|---|
| Origin | USA |
| Model | 120WX |
| Instrument Type | Portable Weather Station |
| Output Interfaces | RS232 / RS422 (NMEA 0183) / CAN Bus (NMEA 2000) |
| Environmental Rating | IPX6 (IPX4 with optional humidity sensor) |
| Power Supply | 12–24 VDC |
| Wind Measurement Principle | Ultrasonic Time-of-Flight |
| Optional Sensors | Relative Humidity, Heater |
| Compliance | NMEA 0183 v4.10, NMEA 2000 v2.00, ISO 8573-1 (compressed air quality reference for internal electronics cooling), RoHS III compliant |

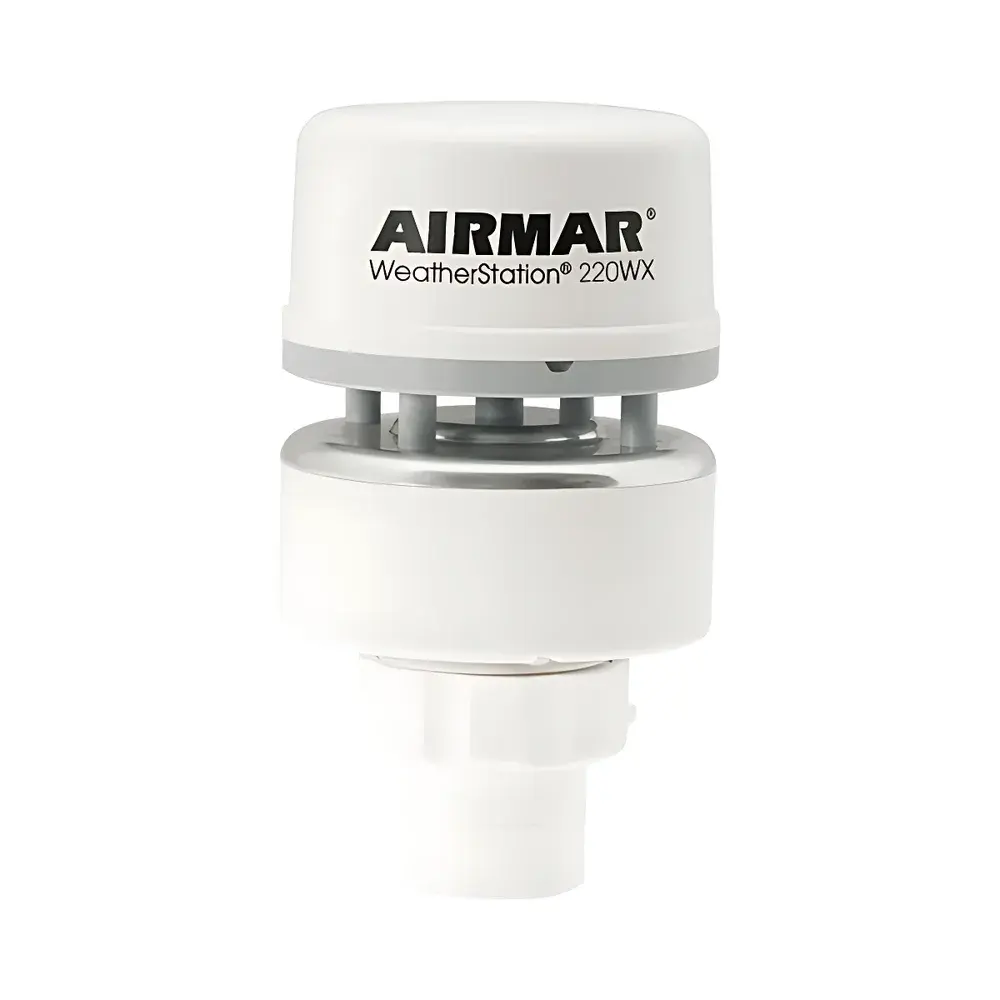

| Brand | Airmar |
|---|---|
| Origin | USA |
| Model | 220WX |
| Instrument Type | Portable Weather Station |
| Output Interfaces | RS232 / RS422 / CAN Bus |
| Communication Protocols | NMEA 0183 & NMEA 2000 |
| IP Rating | IPX6 |
| Power Supply | 9–40 VDC |
| Integrated Sensors | Ultrasonic Wind (Speed & Direction), Solid-State Compass, 10 Hz GPS, 3-Axis Accelerometer, 3-Axis Gyroscope, Barometric Pressure, Relative Humidity (Field-Replaceable), Air Temperature, Wind Chill |
| Optional | Heater Module |
| Mounting | 1"-14 UNS or ½" NPT |

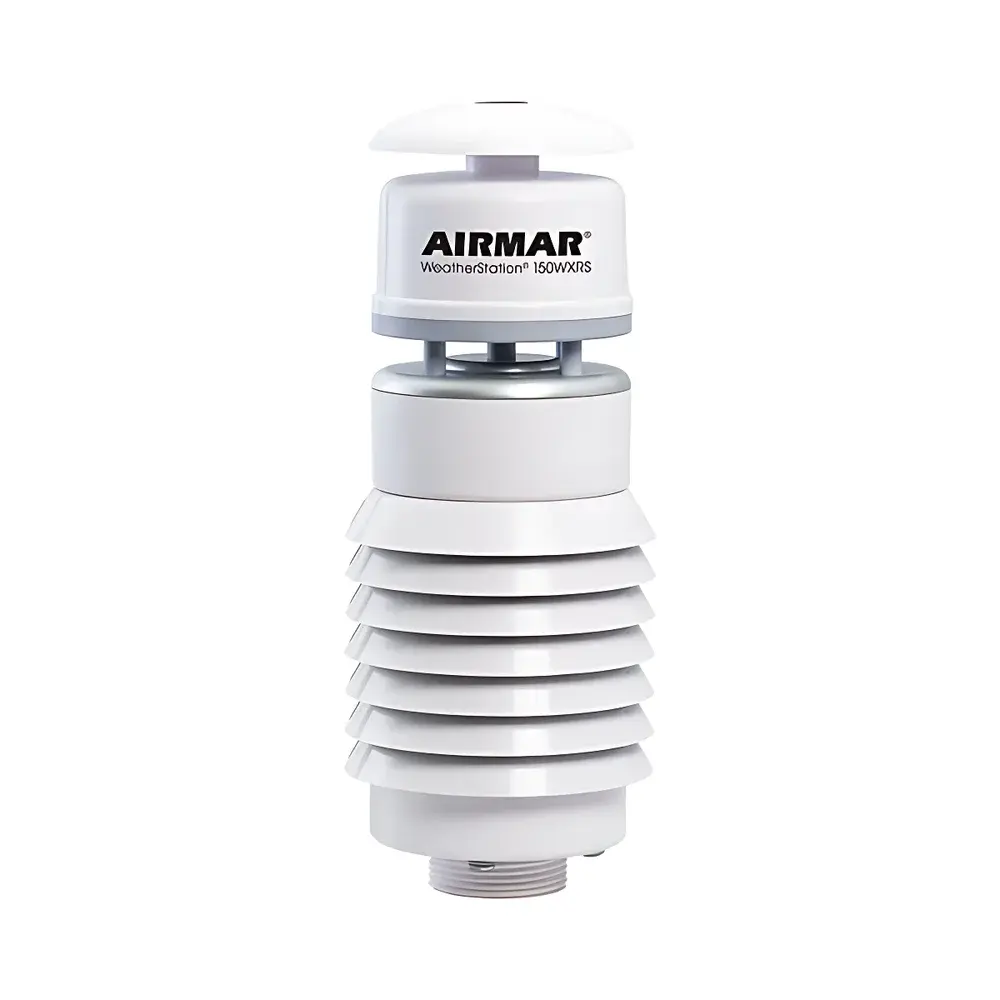

| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | 150WXRS |
| Instrument Type | Portable Weather Station |
| Communication Interface | RS232 / RS422 |
| GPS Update Rate | 10 Hz |
| Rain Measurement Principle | Acoustic Impact Detection |
| Wind Measurement Method | Ultrasonic Anemometry |
| Compass Accuracy | <1° (dynamic stabilization) |
| Enclosure Rating | IP66 |
| Operating Temperature Range | –25°C to +70°C |
| Power Supply | 9–36 VDC |
| Dimensions | 248 mm H × 140 mm D |
| Weight | 1.36 kg |
| Brand | Airmar |
|---|---|
| Origin | USA |
| Model | 200WX |
| Instrument Type | Portable Weather Station |
| Enclosure Rating | IPX6 |
| Output Protocols | NMEA 0183 (RS422/RS232) and NMEA 2000® (CAN Bus) |
| Integrated Sensors | Ultrasonic Wind (True & Apparent), 10 Hz GPS, 3-Axis Solid-State Compass, 3-Axis Rate Gyro, Tilt Sensor, Air Temperature, Barometric Pressure |
| Optional Sensor | Relative Humidity (Field-Replaceable) |

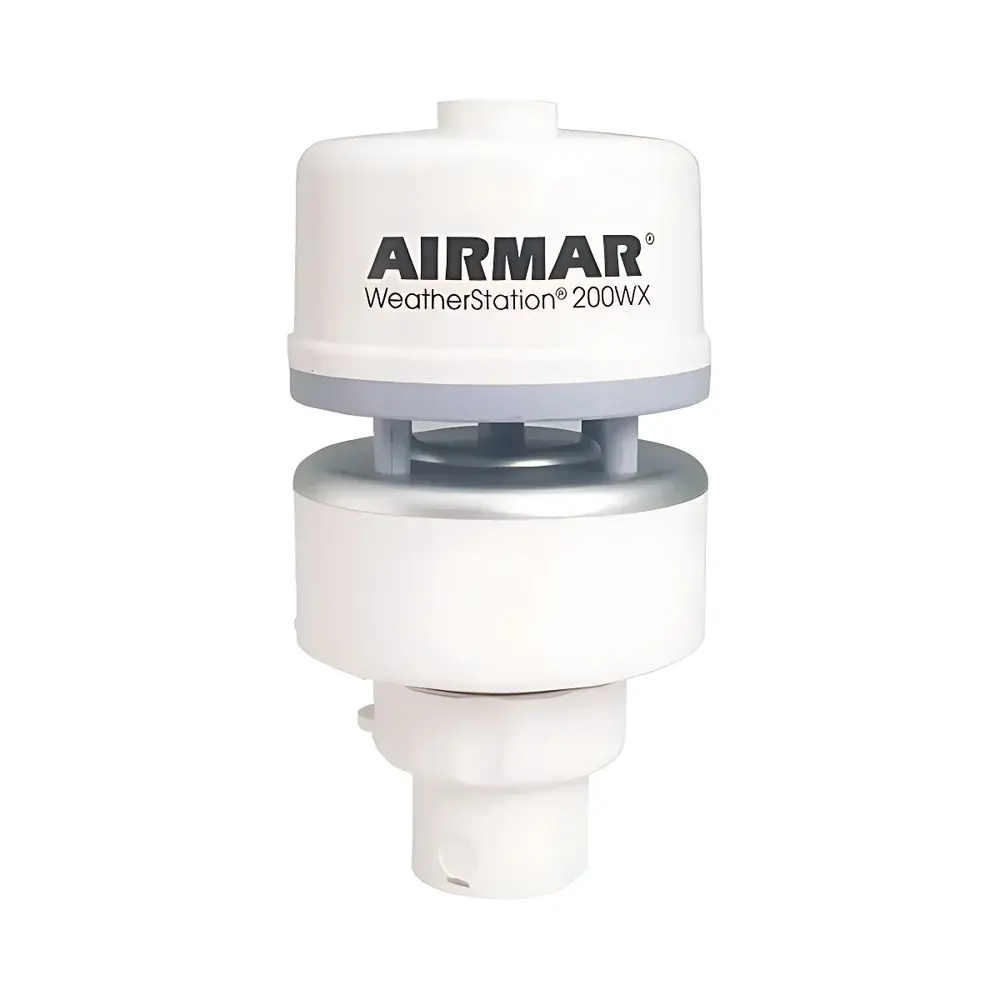

| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Model | 200WX-IPX7 |
| Instrument Type | Portable Weather Station |
| IP Rating | IPX7 |
| Output Protocols | NMEA 0183 (RS422/RS232) & NMEA 2000® (CAN bus) |
| GPS Update Rate | 10 Hz |
| Compass Accuracy | <1° (dynamic stabilization) |
| Wind Measurement Principle | Ultrasonic anemometry (no moving parts) |

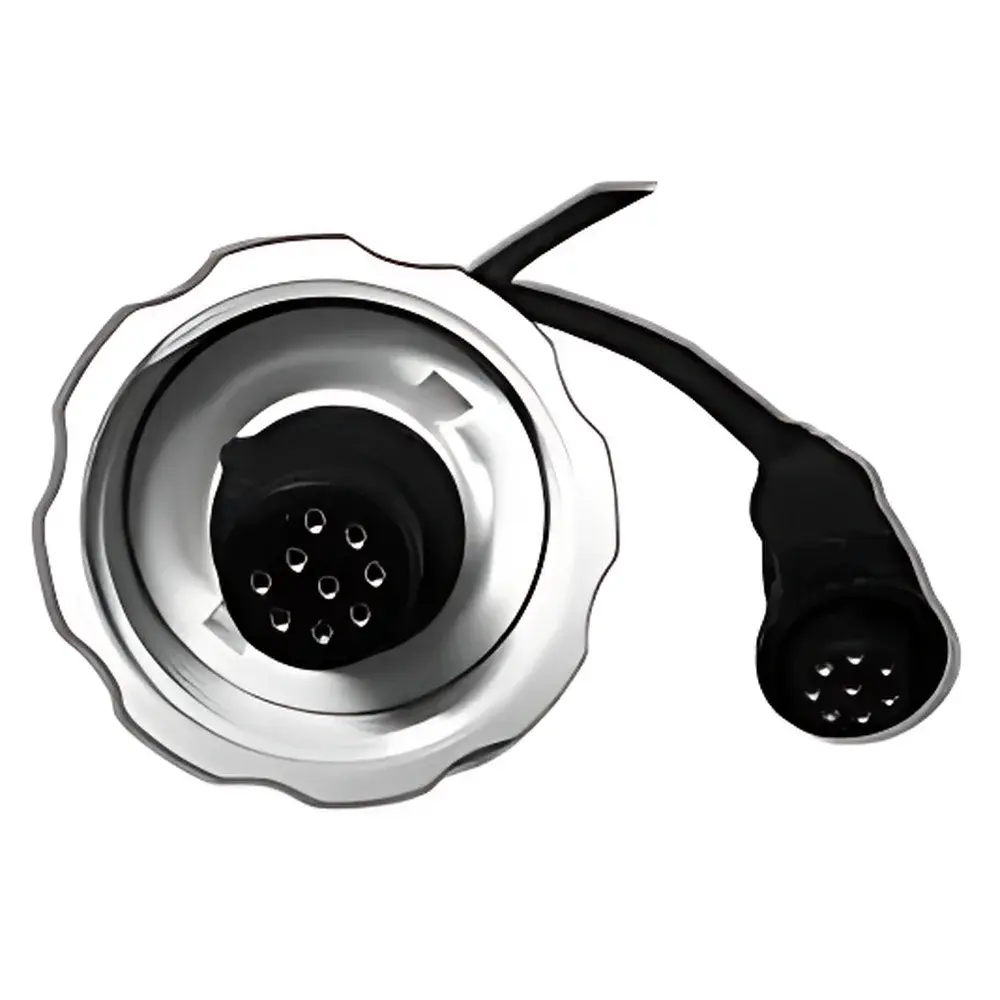

| Brand | AIRMAR |
|---|---|
| Origin | USA |
| Interface Standard | NMEA 0183 |
| Connector Type | 9-pin male (AIRMAR side) / 8-pin female (host side) |
| Customizable Termination | RS232 / RS422 / RS485 |
| Available Lengths | 10 m |

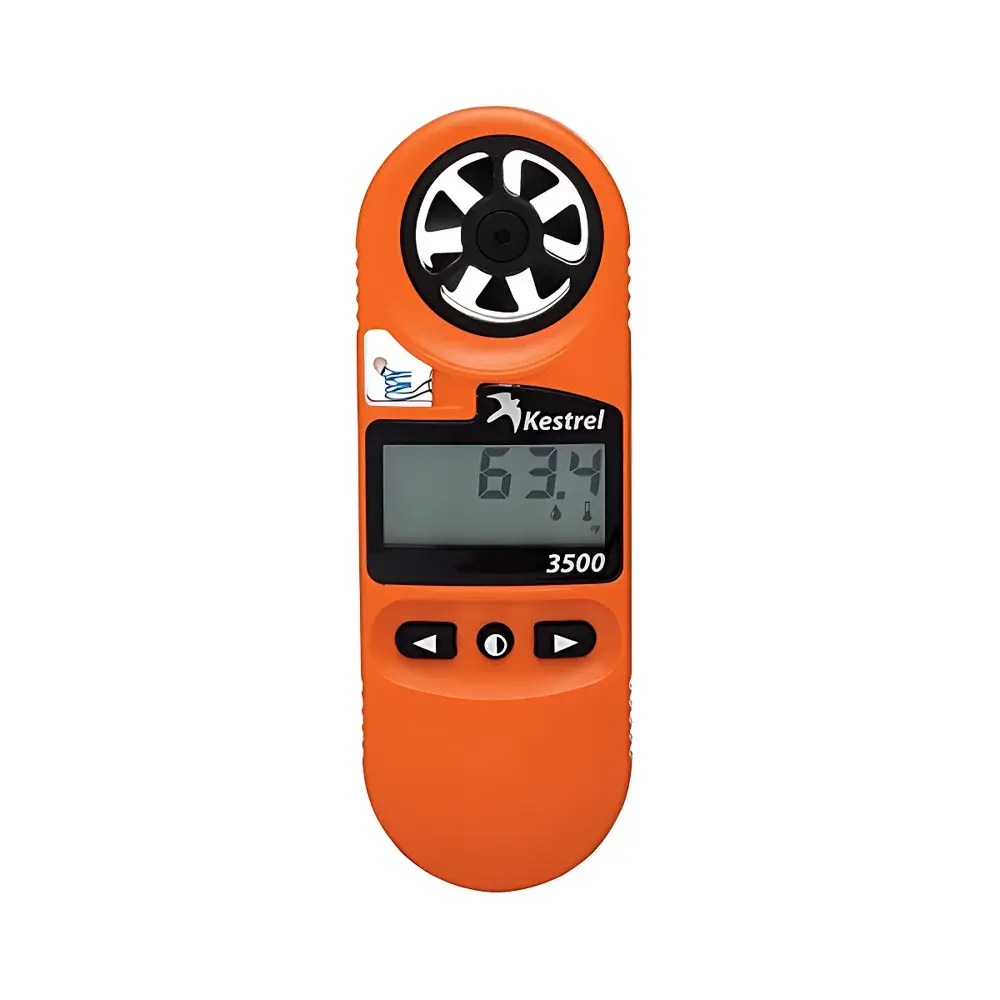

| Brand | NK |
|---|---|
| Origin | USA |
| Model | Kestrel 3500FW |
| Instrument Type | Handheld Weather Station |
| Battery Life | Up to 400 hours (typical) |
| Display | Backlit LCD |
| Wind Speed Range | 0.1–60 m/s |
| Temperature Range | –20 to 60 °C |
| Relative Humidity Range | 5–95% RH (non-condensing) |
| Barometric Pressure Range | 300–1100 hPa |
| Altitude Range | –500 to +5000 m |
| Fire Behavior Metrics | FDFM (Fine Dead Fuel Moisture), Ignition Probability Index, Heat Stress Index, Wind Chill |
