| Brand | Campbell Scientific |
|---|---|
| Model | CR800 |
| Origin | USA |
| Differential Input Channels | 3 (6 single-ended) |
| Analog Input Resolution | 13-bit A/D |
| Scan Rate | Up to 100 Hz |
| Operating Temperature Range | 0 to 40 °C |
| Voltage Measurement Resolution | 0.33 µV |
| Sleep Mode Current Draw | ~0.6 mA |
| Active Current Draw (w/o RS-232) | 1–16 mA |
| Active Current Draw (w/ RS-232) | 17–28 mA |
| Communication Interfaces | 1 × CS I/O port, 1 × RS-232 serial port |
| Supported Protocols | PakBus®, Modbus RTU/ASCII, SDI-12, SDM, DNP3, FTP, HTTP, XML, POP3, SMTP, Telnet, NTCIP, NTP |
| Onboard Memory | 4 MB (data + program storage) |
| Data Format | Tabular ASCII |
| Operating System | PakBus OS |
| Compatible Software | LoggerNet, PC400, Short Cut |
| Optional Peripheral | CR1000KD handheld display |
| Brand | dataTaker |
|---|---|
| Origin | Imported |
| Model | DT82I |
| Analog Inputs | 6 single-ended / 4 differential / 2 three- or four-wire |
| Resolution | 18-bit |
| Sampling Rate | up to 40 Hz |
| Analog Output | 16-bit DAC, 0–10 V or 0–20 mA |
| Excitation Outputs | 5 V / 12 V selectable, max. 150 mA |
| Digital I/O & Counter | 32-bit, up to 100 kHz |
| Communication Ports | RJ45, RS232 (host), RS232/RS485/RS422 |
| Protocols | MODBUS RTU (master/slave), MODBUS TCP/IP, ASCII, SDI12 |
| Power Supply | 10–30 VDC |
| Operating Temperature | −40 to +70 °C |
| Enclosure Rating | IP54 |
| Dimensions | 180 × 137 × 65 mm |
| Weight | 900 g |
| Internal Storage | 128 MB CompactFlash (upgradable to 4 GB), optional 8 GB USB storage |
| Real-Time Clock Accuracy | ±1 min/year (0–40 °C), ±4 min/year (−40–70 °C) |
| Built-in Battery | 6 V @ 1.2 Ah |
| Brand | CAMPBELL |
|---|---|
| Origin | USA |
| Model | CR350 |
| Operating Temperature | -40 to +70 °C (standard, non-condensing) |
| Max Scan Rate | 10 Hz |
| Enclosure Material | High-impact polycarbonate (Recycling Code 7) |
| Analog Inputs | 4 single-ended or 2 differential (software-configurable) |
| Pulse Counters | 8 (P_SW, P_LL, C1, C2, SE1–SE4) |
| Excitation Terminals | 2 (VX1, VX2) |
| Communication Interfaces | USB Type-C 2.0, RS-232, RS-485 |
| 12 V Switched Power Outputs | 2 |
| Digital I/O | 7 (C1, C2, P_SW, SE1–SE4 |
| Input Range | -100 to +2500 mV |
| Analog Voltage Accuracy | ±(0.04% of reading + offset) at 0–40 °C |
| ADC Resolution | 24-bit |
| Power Supply Input (CHG) | 16–32 Vdc (max 1.1 A for charger/solar input) |
| Real-Time Clock Accuracy | ±1 min/month |
| Supported IP Protocols | Ethernet, PPP, RNDIS, ICMP/Ping, Auto-IP (APIPA), IPv4, IPv6, UDP, TCP, TLS v1.2, DNS, DHCP, SLAAC, NTP, Telnet, HTTP(S), FTP(S), SMTP/TLS, POP3/TLS, MQTT(S) |
| Communication Protocols | PakBus, PakBus Encryption, Modbus RTU/ASCII/TCP, DNP3, SDI-12 |
| CPU & Program Memory | 50 MB serial flash |
| Data Storage | 50 MB serial flash |
| Idle Current Draw | 0.5 mA (@ 12 Vdc) |
| Active Current Draw | 8 mA (@ 12 Vdc, processor always on) |
| Dimensions | 16.3 × 8.4 × 5.6 cm (6.4 × 3.3 × 2.2 in.) |
| Weight | 288–306 g (0.64–0.68 lb), depending on comms options |
| Brand | DataTaker |
|---|---|
| Origin | Imported |
| Model | DT80G |
| Analog Inputs | 15 single-ended / 10 differential / 5 three- or four-wire |
| Resolution | 8-bit |
| Sampling Rate | up to 40 Hz |
| Vibrating Wire Channel | integrated, 500–5 kHz range, coil resistance 50–200 Ω, excitation pulse: 36 V @ 200 µs |
| Digital I/O & Counter | 32-bit, up to 100 kHz |
| Communication | RJ45 (Ethernet), USB, RS232/RS485/RS422 |
| Protocols | MODBUS RTU/TCP, SDI-12, ASCII, HTTP, FTP, SMTP |
| Power | 10–30 VDC |
| Operating Temperature | −40 to +70 °C |
| Enclosure Rating | IP54 |
| Dimensions | 180 × 137 × 65 mm |
| Weight | 1.5 kg |
| Internal Storage | 128 MB CompactFlash (upgradable to 4 GB), optional 8 GB USB drive |
| Real-Time Clock Accuracy | ±1 min/year (0–40 °C), ±4 min/year (−40–70 °C) |
| Internal Battery | 6 V @ 1.2 Ah |
| Brand | DataTaker |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Model | CEM20 |
| Price | USD 1,120 (FOB) |
| Input Channels | 20 per module |
| Max. Modules per DT80 (v2+) | 5 |
| Max. Modules per DT85 (v2+) | 16 |
| Max. Analog Inputs | 300 (DT80), 960 (DT85) |
| Isolation | Dual-channel galvanic isolation per input pair |
| Input Configurations | 2 isolated differential or 3 shared single-ended per channel |
| Max. Input Voltage | 30 Vdc |
| Sampling Rate | 12 Hz (per CEM20) |
| Power Supply | 12 Vdc ±5% (from host or external) |
| Power Consumption | 0.36 W (active), <0.1 W (sleep mode) |
| Operating Temperature | −45 °C to +70 °C |
| Enclosure | Anodized aluminum housing with steel end plates |
| Dimensions | 180 × 100 × 50 mm |
| Weight | 0.55 kg |
| Communication Interface | Digital control via 5D/6D I/O lines |
| Max. Cable Distance (host to last CEM20) | 100 m |
| Addressing | 4-bit DIP switch (address range 1–15) |
| Status Indication | LED indicators for power, communication, and sampling activity |
| Included | Analog interface cable for DT80/DT85 host connection |

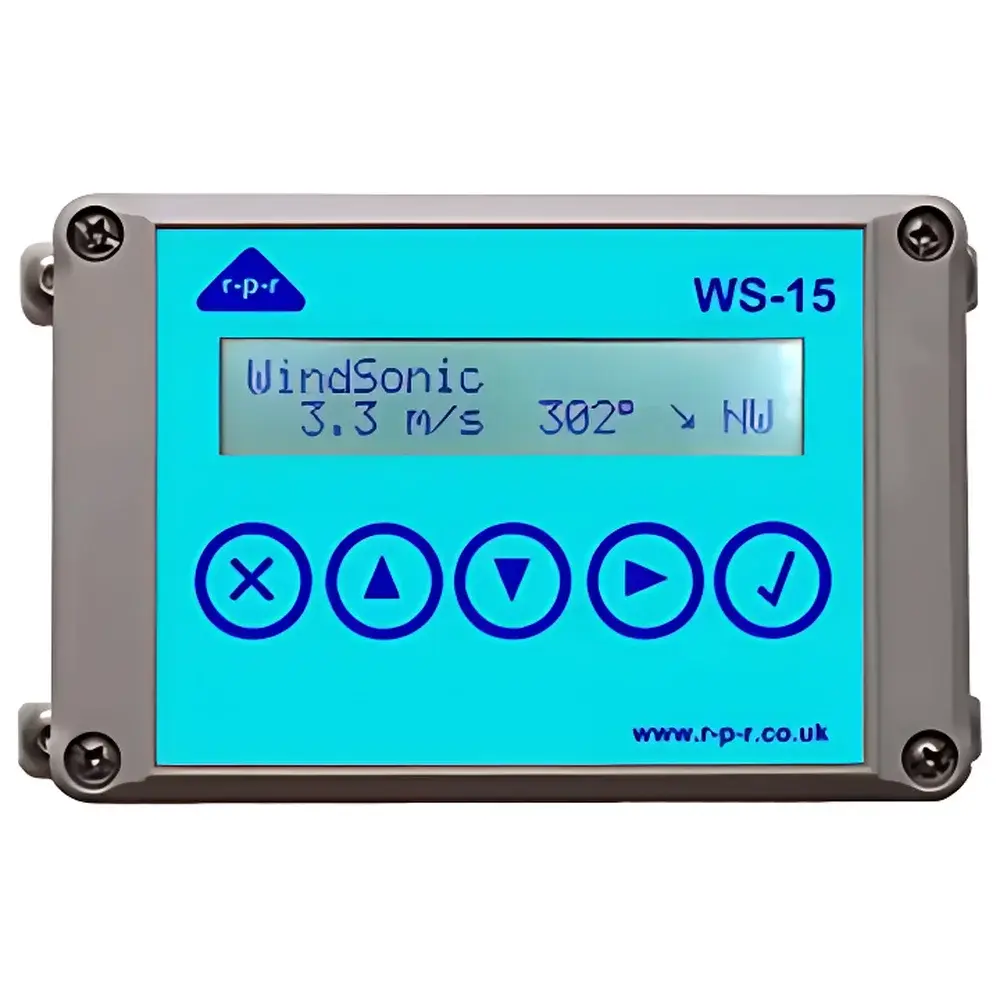

| Brand | RPR |
|---|---|
| Origin | United Kingdom |
| Model | WS-15A |
| Display Type | 2-line LCD with backlight |
| Dimensions (H×W×D) | 140 mm × 100 mm × 65 mm |
| Display Area | 120 mm × 80 mm |
| Enclosure Material | Grey polycarbonate |
| IP Rating | IP65 |
| Operating Temperature | −10 °C to +70 °C |
| Power Supply | 9–30 VDC |
| Current Consumption | 20–35 mA @ 12 VDC (backlight on) |
| Power Protection | Reverse polarity protection, internal fuse |
| Input Interfaces | RS232 / RS422 / RS485 (optically isolated) |
| Output Interface | RS232 serial output |
| Relay Output | SPDT, 24 VDC / 0.5 A max, contact resistance ≤ 0.15 Ω |
| Sensor Compatibility | Gill WindSonic ultrasonic anemometer, MetPak professional weather station, MaxiMet compact weather station |
| Wind Speed Units | m/s, knots, mph, km/h, fpm |
| Wind Direction Display | 3-digit numeric (0–359°) + directional arrow |
| Alarm Functionality | Configurable high/low wind speed thresholds with adjustable “Hold-off” and “Hold-on” delay timers for false alarm suppression |
| User Interface | 5-button membrane keypad with menu-driven navigation |
| Mounting | Surface-mountable with four waterproof cable glands |
| Weight | 0.35 kg |
| EMC Compliance | EN 61326:1997 (immunity), EN 60945:2002 (emissions) |
| Brand | DataTaker |
|---|---|
| Origin | Imported |
| Model | DT80 |
| Analog Inputs | 15 single-ended / 10 differential / 5 three- or four-wire |
| Resolution | 8-bit |
| Max Sampling Rate | 40 Hz |
| Excitation Outputs | 5 V / 12 V selectable, up to 150 mA |
| Digital I/O & Counter | 32-bit, up to 100 kHz |
| Communication Ports | RJ45 Ethernet, USB, RS232 (host), RS232/RS485/RS422 (configurable) |
| Protocols | MODBUS RTU (master/slave), MODBUS TCP/IP, SDI-12, ASCII |
| Network Support | HTTP, FTP, SMTP |
| Power Supply | 10–30 VDC |
| RTC Accuracy | ±1 min/year (0–40 °C), ±4 min/year (−40–70 °C) |
| Operating Temperature | −40 to +70 °C, 85% RH non-condensing |
| Enclosure Rating | IP54 |
| Dimensions | 180 × 137 × 65 mm |
| Weight | 1.5 kg |
| Internal Storage | 128 MB CompactFlash (upgradable to 4 GB), optional 8 GB USB storage |
| Internal Battery | 6 V @ 1.2 Ah |
| Key | Brand: Campbell |
|---|---|
| Origin | USA |
| Model | CR1000Xe |
| Operating Temperature (Standard) | -40 to +70°C |
| Operating Temperature (Extended) | -55 to +85°C |
| Analog Inputs | 16 single-ended or 8 differential, plus 2 dedicated 0–20 mA / 4–20 mA current inputs |
| ADC Resolution | 24-bit |
| Max Scan Rate | 100 Hz |
| Communication Interfaces | Ethernet, USB Micro-B, RS-232/RS-485/RS-422, CPI, CS I/O, SDI-12, I²C, SPI |
| Data Storage | 4 MB SRAM + 72 MB flash + microSD slot (up to 16 GB) |
| Power Input | 10–36 VDC |
| Real-Time Clock Accuracy | ±3 min/year (GPS optional for ±10 µs) |
| Enclosure | Anodized aluminum with RF-shielded stainless steel electronics housing |
| Dimensions | 23.8 × 10.1 × 6.2 cm |
| Weight | 0.86 kg |

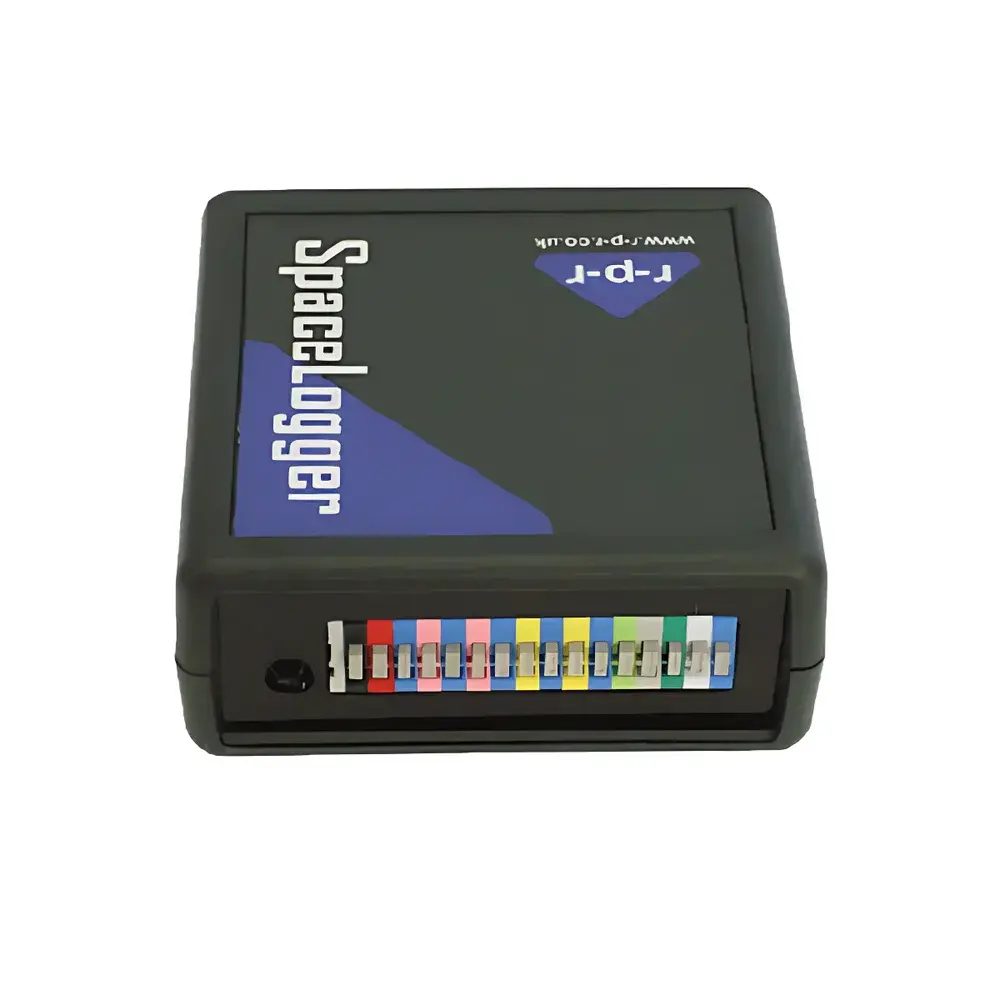

| Brand | RPR |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SpaceLogger |
| Price | USD 720 (FOB UK) |
| Brand | Campbell Scientific |
|---|---|
| Origin | USA |
| Model | CR300 |
| Operating Temperature | -40 to +70 °C (standard, non-condensing) |
| Analog Inputs | 6 single-ended or 3 differential (software-configurable) |
| ADC Resolution | 24-bit |
| Analog Voltage Accuracy | ±(0.04% of reading + offset) at 0–40 °C |
| Pulse Counters | 8 (P_SW, P_LL, C1, C2, SE1–SE4) |
| Excitation Outputs | 2 (VX1, VX2) |
| Digital I/O | 7 configurable terminals (C1, C2, P_SW, SE1–SE4 |
| Communication Interfaces | USB Micro-B, RS-232, Ethernet (10/100BASE-T), PPP, RNDIS |
| Supported Protocols | PakBus, Modbus RTU/TCP, DNP3, SDI-12, TCP/IP, UDP, TLS v1.2, HTTP(S), FTP(S), SMTP/TLS, POP3/TLS, NTP, DHCP, DNS, ICMP, IPv4/IPv6 |
| Real-Time Clock Accuracy | ±1 minute per month (battery-backed) |
| Power Supply | 16–32 Vdc (CHG input) |
| Idle Current Draw | 1.5 mA @ 12 Vdc |
| Active Current Draw | 5 mA @ 12 Vdc (1 Hz scan, 1 analog measurement) |
| Enclosure Material | Powder-coated aluminum |
| Dimensions | 13.97 × 7.62 × 4.56 cm (5.5 × 3.0 × 1.8 in.) |
| Weight | 242–250 g (0.53–0.55 lb) |
| Onboard Memory | 80 MB flash (program/storage), 30 MB dedicated data storage |
| Programming Language | CRBasic (onboard BASIC-like language) |
| Brand | Gill |
|---|---|
| Origin | United Kingdom |
| Model | MetStream 100 |
| Power Consumption | 2 W |
| Operating System | Embedded Linux |
| Serial Interface Support | RS-232 / RS-422 / RS-485 |
| Ethernet Interface | 10/100 Base-T |
| Maximum Sampling Rate | 32 Hz |
| Onboard Storage | 8 GB microSD |
| Surge & EMC Protection | IEC 61000-4-5 Level 3, IEC 61000-4-4 Level 3 |
| Web-Based Configuration | Yes |
| Protocol Support | Modbus RTU/ASCII, NMEA 0183, ASCII text streams, custom serial protocols |
| Brand | CAMPBELL |
|---|---|
| Origin | USA |
| Model | CR310 |
| Operating Temperature | -40 to +70°C (standard, non-condensing) |
| Scan Rate | Up to 10 Hz |
| Analog Inputs | 6 single-ended or 3 differential (user-configurable) |
| Pulse Counters | 8 (P_SW, P_LL, C1, C2, SE1–SE4) |
| Excitation Outputs | 2 (VX1, VX2) |
| Communication Interfaces | USB Micro-B, RS-232, 10/100 Base-T Ethernet (RJ45) |
| Digital I/O | 7 configurable terminals (C1, C2, P_SW, SE1–SE4 |
| ADC Resolution | 24-bit |
| Analog Accuracy | ±(0.04% of reading + offset) at 0–40°C |
| Power Input | 16–32 Vdc (CHG), 10–18 Vdc (BAT) |
| Typical Idle Current | 10 mA @ 12 Vdc (Ethernet link idle) |
| Active Current | 56 mA @ 12 Vdc (Ethernet active, CPU always on) |
| Enclosure | Powder-coated aluminum |
| Dimensions | 16.26 × 7.62 × 5.68 cm (6.4 × 3.0 × 2.2 in.) |
| Weight | 288–306 g (0.64–0.68 lb) |
| Onboard Memory | 80 MB flash for OS/program, 30 MB for data storage |
| Protocols | PakBus, Modbus RTU/TCP, DNP3, SDI-12, TCP/IP, UDP, TLS 1.2, HTTP(S), FTP(S), SMTP/TLS, POP3/TLS, NTP, DHCP, SLAAC, ICMP, Telnet, PPP, RNDIS, Auto-IP |
| Real-Time Clock Accuracy | ±1 minute per month |
| Brand | Gill |
|---|---|
| Origin | USA |
| Model | TFT |
| Display Size | 8.5-inch LED-backlit industrial LCD |
| Viewing Angle | 170° true wide-angle |
| Resolution | WVGA (800 × 480) |
| Wind Data Input | NMEA 0183 (4800 baud) directly from Gill anemometers |
| Power Output | +15 VDC for sensor and daisy-chain expansion |
| Power Input | 100–240 VAC, 50/60 Hz (max. 50 VA) or optional 18–32 VDC |
| Dimensions | 238 × 148.5 × 71 mm |
| Weight | 1.2 kg |
| IP Rating | IP22 |
| Operating Temperature | −15 °C to +55 °C |
| Operating Humidity | 10–93 % RH |
| EMC Compliance | IEC 61000-4-2 (ESD), IEC 61000-4-3 (Radiated Immunity), IEC 61000-4-4 (Fast Transients), IEC 61000-4-5 (Surge), IEC 61000-4-6 (Conducted Immunity) |
| Brand | DataTaker |
|---|---|
| Origin | Imported |
| Model | DT85G |
| Analog Input Channels | 48 single-ended / 32 differential / 16 three- or four-wire |
| Resolution | 18-bit |
| Sampling Rate | up to 40 Hz |
| Excitation Outputs | 5 V / 12 V, max 150 mA |
| Digital I/O & Counter | 32-bit, up to 100 kHz |
| Vibrating Wire Channel | integrated, 500–5000 Hz range, coil resistance 50–200 Ω, excitation pulse 36 V @ 200 µs |
| Communication | RJ45 (Ethernet), USB, RS232/RS485/RS422 |
| Protocols | MODBUS RTU/TCP, SDI-12, ASCII, HTTP, FTP, SMTP |
| Power | 10–30 VDC |
| Internal Battery | 6 V @ 4 Ah |
| Operating Temperature | −40 °C to +70 °C |
| Storage | 128 MB CF (upgradable to 4 GB), optional 8 GB USB drive |
| Enclosure Rating | IP54 |
| Dimensions | 300 × 137 × 65 mm |
| Weight | 2.5 kg |
| RTC Accuracy | ±1 min/year (0–40 °C), ±4 min/year (−40–70 °C) |
| Brand | DataTaker |
|---|---|
| Origin | Imported |
| Model | DT82E |
| Analog Inputs | 6 single-ended / 4 differential / 2 three- or four-wire RTD channels |
| Resolution | 18-bit |
| Sampling Rate | up to 40 Hz |
| Excitation Outputs | 5 V / 12 V selectable, max 150 mA |
| Digital I/O | 8 configurable channels with 32-bit counter (100 kHz max) |
| Communication | RJ45 Ethernet, RS232 serial, SDI-12 master interface |
| Protocols | SDI-12, Modbus RTU (master), Modbus TCP/IP |
| Storage | 128 MB CompactFlash (upgradable), optional 8 GB USB flash |
| Operating Temperature | −40 °C to +70 °C |
| Enclosure Rating | IP54 |
| Dimensions | 180 × 137 × 65 mm |
| Weight | 900 g |
| Real-Time Clock Accuracy | ±1 min/year (0–40 °C), ±4 min/year (−40–70 °C) |
| Power Supply | 10–30 VDC |
| Brand | Campbell Scientific |
|---|---|
| Origin | USA |
| Model | CR1000X |
| Operating Temperature Range | –40 to +70 °C (standard), –55 to +85 °C (extended) |
| Analog Inputs | 16 single-ended or 8 differential |
| ADC Resolution | 24-bit |
| Max Scan Rate | 100 Hz |
| Communication Interfaces | Ethernet, USB Micro-B, RS-232/RS-485/RS-422, CPI, SDI-12, PakBus, Modbus TCP/RTU, DNP3, MQTT, NMEA 0183, I²C, SPI |
| Real-Time Clock Accuracy | ±3 min/year (±10 µs with optional GPS synchronization) |
| Power Supply | 10–18 VDC |
| Idle Current Draw | <1 mA @ 12 VDC |
| Dimensions | 23.8 × 10.1 × 6.2 cm |
| Weight | 0.86 kg |
| Data Storage | 4 MB SRAM + 72 MB flash + microSD slot (up to 16 GB) |
| Brand | DataTaker |
|---|---|
| Origin | Imported |
| Model | DT85 |
| Analog Inputs | 48 single-ended / 32 differential / 16 three- or four-wire |
| Resolution | 18-bit |
| Sampling Rate | up to 40 Hz |
| Excitation Outputs | 5 V / 12 V, 150 mA max |
| Digital I/O & Counters | 32-bit, up to 100 kHz |
| Communication Ports | RJ45 (Ethernet), USB, RS232 (host), RS232/RS485/RS422 (multi-protocol) |
| Protocols | MODBUS RTU/TCP/IP, SDI-12, ASCII, HTTP, FTP, SMTP |
| Power Supply | 10–30 VDC |
| Operating Temperature | −40 °C to +70 °C |
| Enclosure Rating | IP54 |
| Dimensions | 300 × 137 × 65 mm |
| Weight | 2.5 kg |
| Internal Memory | 128 MB CompactFlash (upgradable to 4 GB), optional 8 GB USB storage |
| Real-Time Clock Accuracy | ±1 min/year (0–40 °C), ±4 min/year (−40–70 °C) |
| Brand | Campbell Scientific |
|---|---|
| Origin | USA |

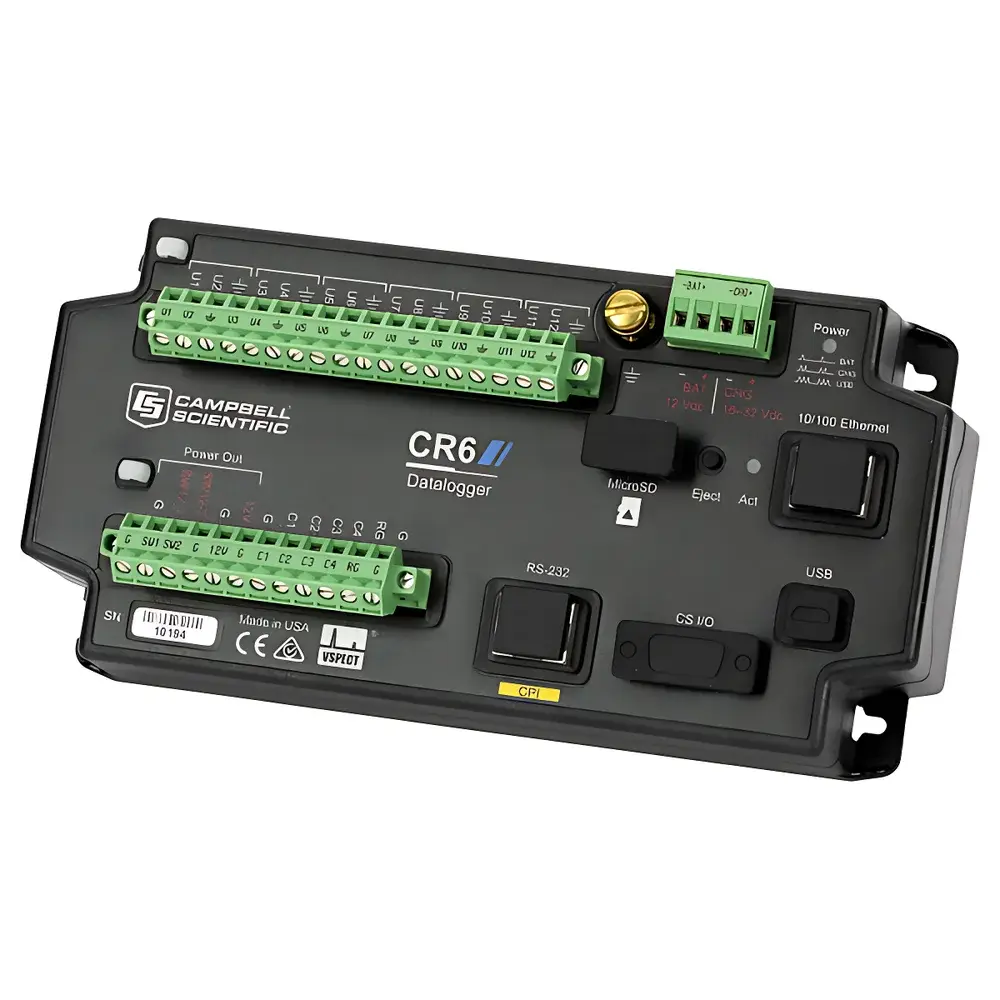

| Model | CR6 |
| Operating Temperature Range | -40 to +70°C (standard), -55 to +85°C (extended) |
| Analog Input Resolution | 24-bit ADC |
| Analog Voltage Accuracy | ±(0.04% of reading + offset) at 0–40°C |
| Input Channels | Up to 12 single-ended or 6 differential analog inputs |
| Communication Interfaces | Ethernet (10/100 RJ-45), USB Micro-B (virtual Ethernet & serial), RS-485, RS-422, SDI-12, CPI, CS I/O |
| Data Storage | 4 MB SRAM + 72 MB flash + microSD slot (up to 16 GB) |
| Power Supply | 10–18 Vdc (BAT), 16–32 Vdc (CHG) |
| Real-Time Clock Accuracy | ±3 min/year (GPS optional: ±10 µs) |
| Vibration Compensation | VSECT® spectral analysis for static vibrating-wire measurements |
| Enclosure | UV-stabilized TPE over impact-resistant polycarbonate (Recycling Code 7) |
| Dimensions | 21.0 × 10.2 × 5.6 cm |
| Weight | 0.42–0.52 kg |
Show next
