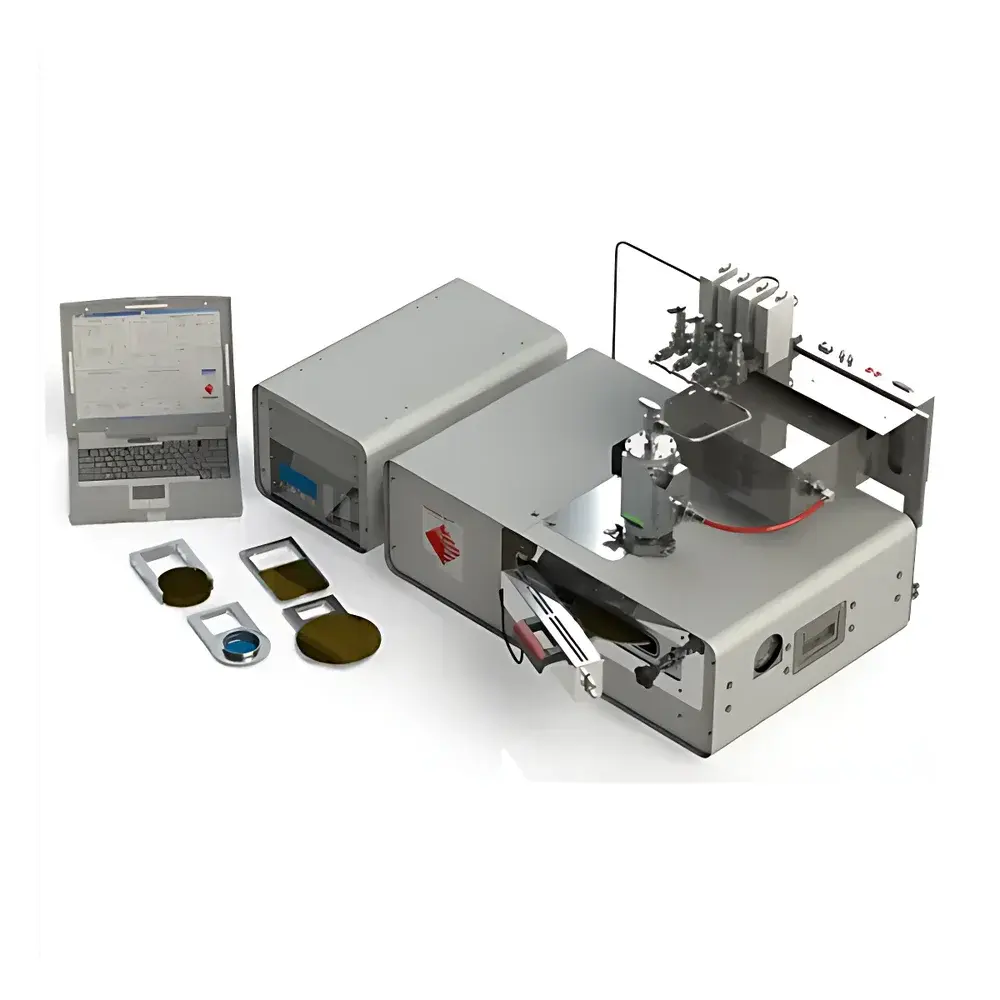

| Brand | Arradiance |
|---|---|
| Origin | USA |
| Model | GEMStar-8 XT |
| Substrate Size | 8-inch (200 mm) |
| Process Temperature | Up to 500 °C |
| Precursor Channels | 8 |
| System Weight | 150 kg |
| Thickness Uniformity | ≤1.5% (across 8-inch wafer) |
| Dimensions | 78 × 56 × 28 cm |
| Thermal Wall | 300 °C aluminum heated chamber |
| Precursor Bottle Temp | up to 175 °C |
| Transport Line Temp | up to 200 °C |
| Plasma Option | ICP-based, 13.56 MHz, 300 W, air-cooled |
| MFC-Controlled Gas Lines | 4 (3 process gases + 1 carrier) |
| Vacuum Interface | Standard CF-40 flanges |
| Compatible With | In-situ metrology modules, powder deposition kits, load-lock, QCM thickness monitoring, ozone generator |

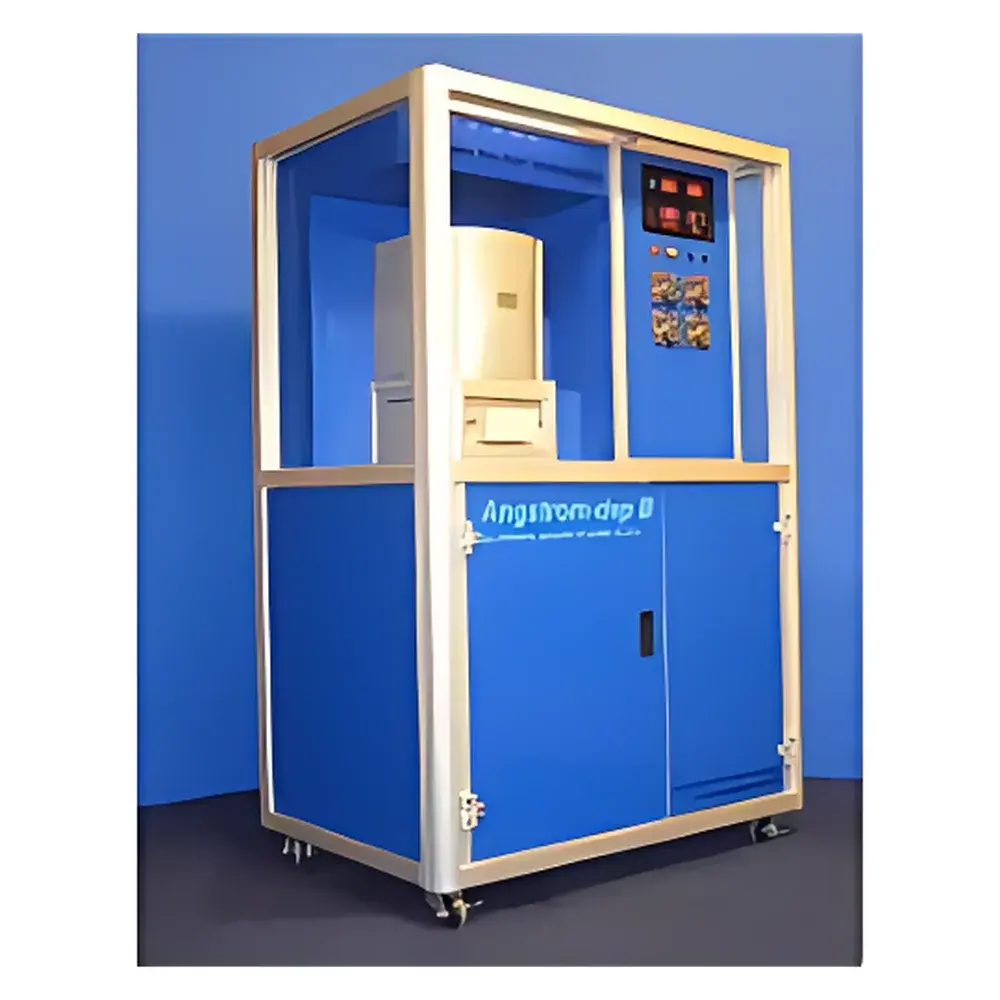

| Brand | Angstrom (USA) |
|---|---|
| Origin | USA |
| Model | Angstrom Dep I |
| Substrate Size | 4–12 inch wafers |
| Process Temperature | Up to 650 °C (optional) |
| Precursor Lines | 4–10 channels |
| Uniformity | <1.5% (RMS, Al₂O₃ on 4″ Si wafer) |
| Weight | 200 kg |
| Dimensions (W × H × D) | 85 × 65 × 180 cm |
