| Brand | AXIC |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | BenchMark 800 |
| Etching Principle | Reactive Ion Etching (RIE) |
| Deposition Principle | Plasma-Enhanced Chemical Vapor Deposition (PECVD) |
| Substrate Compatibility | Up to 200 mm (8-inch) wafers |
| Operation Modes | Single-wafer and batch processing |
| Chamber Configuration | Modular single-chamber and dual-chamber options |
| RF Matching | Automatic impedance matching |
| Pressure Control | Downstream capacitance manometer with optional closed-loop regulation |
| Vacuum Pumping Options | Mechanical pump, mechanical + roots blower, or turbomolecular pump |
| Endpoint Detection | Optional optical emission spectroscopy (OES)-based endpoint monitoring |
| Gas Delivery | Replaceable showerhead with multi-gas capability |
| Electrode Configurations | Planar, RIE, and PECVD-specific electrode modules |
| Software Interface | Windows-based PC control with recipe management and audit trail logging |
| Brand | SENTECH |
|---|---|
| Origin | Germany |

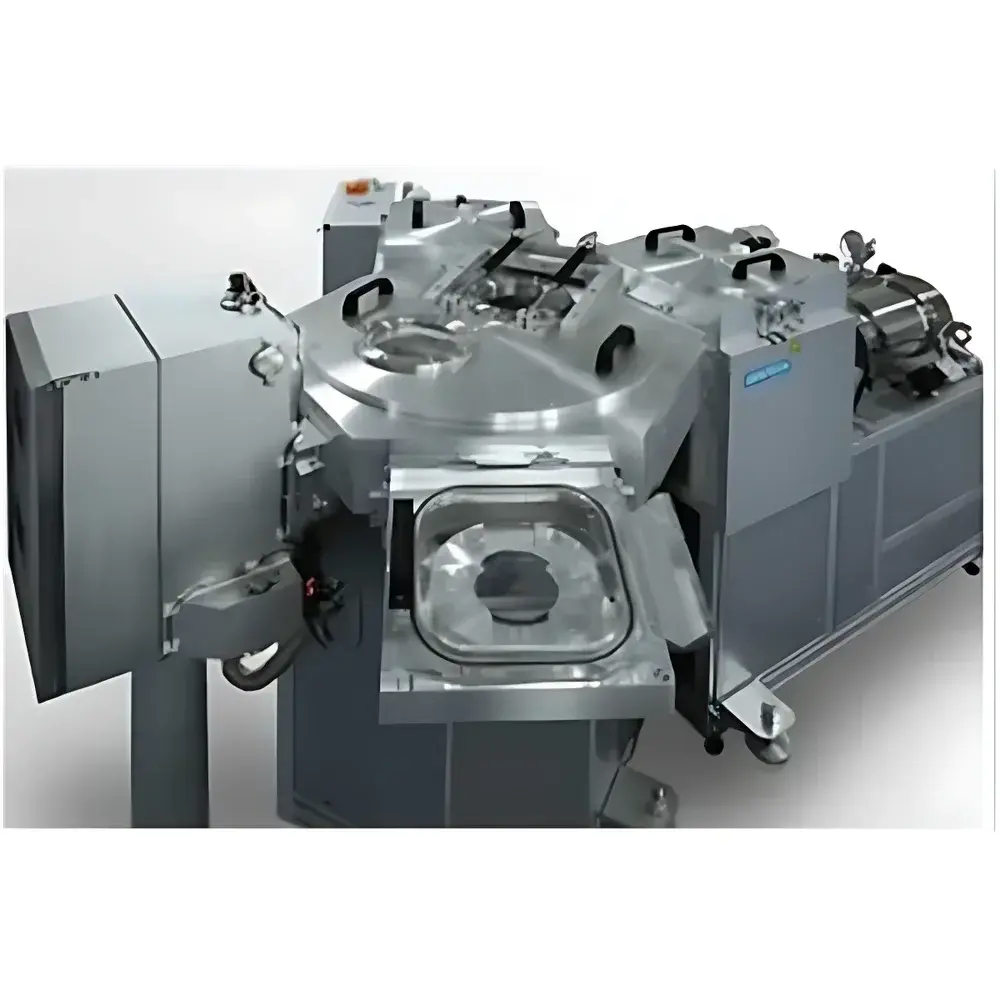

| Model | SENTECH Multi-Chamber Platform |
| Etching Principle | Capacitively Coupled Plasma (CCP) and/or Inductively Coupled Plasma (ICP) |
| Chamber Configuration | Modular multi-port transfer chamber (3–6 ports) |
| Wafer Handling | Load-lock pre-vacuum chamber and/or vacuum cassette station |
| Maximum Wafer Size | 200 mm |
| Integration Capabilities | ICP etcher, RIE etcher, ALD, PECVD, ICPECVD modules |
| Control Interface | GUI-based process control software compliant with industrial automation standards |
| Brand | SAMCO |
|---|---|
| Origin | Japan |
| Model | RIE-200C |
| Etching Principle | Capacitively Coupled Plasma (CCP) Reactive Ion Etching |
| Uniformity | ±2% across 200 mm wafer |
| Configuration | Direct-Load, Parallel-Plate Electrode Architecture |
| Upgrade Options | Endpoint Detection, High-Capacity Vacuum Pumping, Load Lock Integration, Multi-Gas Delivery System |
| Control Architecture | Client-Server Software with PLC-Based Real-Time Hardware Control |
| Compliance | Designed for ISO Class 5 cleanroom integration and compatible with SEMI S2/S8 safety standards |
