| Brand | ADVANCE RIKO |
|---|---|
| Origin | Japan |
| Model | MILA-5000 |
| Instrument Type | General-Purpose Vacuum Rapid Thermal Annealer |
| Sample Diameter | 2-inch (50.8 mm) |
| Temperature Range | 0–1200 °C |
| Maximum Heating Rate | 150 K/s |
| Maximum Cooling Rate | 200 K/s |
| Temperature Accuracy | ±1% of setpoint |
| Temperature Uniformity | ±1% across wafer surface |

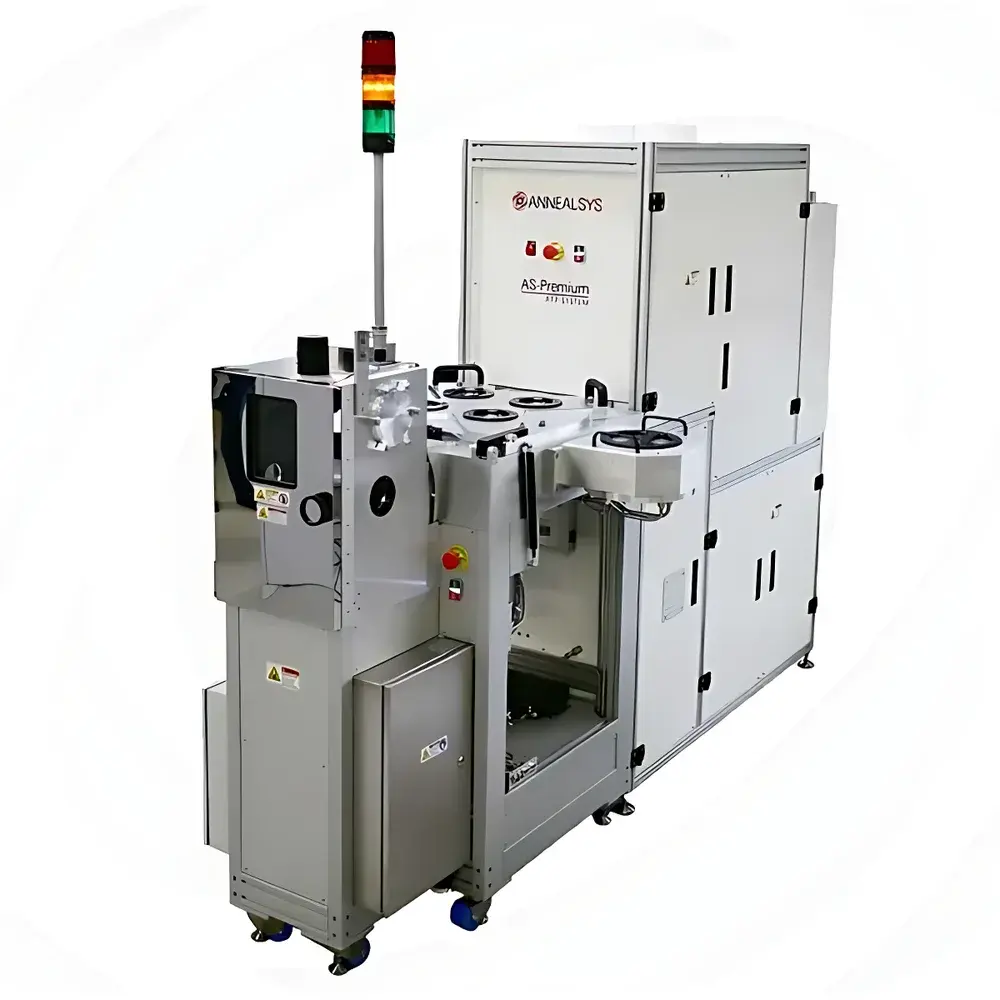

| Brand | Annealsys |
|---|---|
| Origin | France |
| Model | AS-Premium |
| Instrument Type | High-Vacuum Rapid Thermal Annealing Furnace |
| Sample Size | 150 mm (6") / 200 mm (8") / 300 mm (12") wafers |
| Temperature Range | 0–1200 °C |
| Max. Ramp Rate | 150 °C/s |
| Max. Cool-down Rate | 200 °C/s (from 1000 °C to 400 °C) |
| Temperature Accuracy | < ±1% of setpoint |
| Temperature Uniformity | < ±1% across wafer surface |
| Vacuum Base Pressure | ≤ 1 × 10⁻⁶ hPa (with turbo-molecular pump and load-lock) |
| Heating Configuration | Dual-side (top & bottom) halogen lamp array |
| Susceptor Materials | Graphite or SiC-coated graphite |
| Process Atmosphere | Inert (N₂, Ar), oxidizing (O₂), reducing (H₂/N₂), or vacuum |
| Standard Temperature Monitoring | Dual-channel pyrometry + optional thermocouple |
| Control System | SIMATIC S7-based PLC with 7" HMI touchscreen |
| Programmable Recipes | 50 stored profiles, up to 50 segments per recipe |
| Brand | Annealsys |
|---|---|
| Origin | France |
| Model | AS-ONE 150 |
| Instrument Type | High-Vacuum Rapid Thermal Annealing Furnace |
| Maximum Sample Diameter | 150 mm (6-inch) |
| Temperature Range | Up to 1200 °C (standard), up to 1300 °C (optional high-temp configuration) |
| Max. Heating Rate | 160 K/s |
| Max. Cooling Rate | 240 K/s |
| Temperature Accuracy | ±1% of setpoint |
| Temperature Uniformity | ±1% across wafer surface |
| Vacuum Base Pressure | ≤1×10⁻⁶ Torr (with turbomolecular pump) |
| Process Gas Control | 5-channel MFC system |
| Lamp Configuration | 18 high-power infrared lamps (34 kW total) |
| Chamber Dimensions | Ø200 mm × 25 mm |
| Temperature Sensing | Dual-range pyrometry (400–1100 °C & 400–1500 °C) + K-type thermocouple |
| Controller | Digital PID with real-time thermal profiling |
| Footprint | 510 mm × 1425 mm × 800 mm |
| Weight | 240 kg |
| Brand | Annealsys |
|---|---|
| Origin | France |
| Model | Zenith-100 |
| Instrument Type | High-Vacuum Rapid Thermal Annealing Furnace |
| Maximum Sample Diameter | 6-inch (150 mm) |
| Temperature Range | 0–2000 °C |
| Maximum Heating Rate | 150 °C/s |
| Maximum Cooling Rate | 200 °C/s |
| Temperature Accuracy | ±1 °C |
| Temperature Uniformity | ±1% across wafer surface |
| Chamber | Stainless steel, water-cooled, cold-wall design |
| Heating Elements | High-purity tungsten |
| Atmosphere Compatibility | Vacuum, inert (N₂, Ar), or reducing (H₂/N₂) |
| Standard Temperature Sensors | Dual-mode — calibrated pyrometer (for >600 °C) and type C thermocouple (for full range) |
| Control System | Fast-response digital PID controller with real-time thermal profile logging |
| Vacuum Requirement | Turbo-molecular pump mandatory (roughing pump included) |
| Optional Upgrades | Automated pressure control with throttle valve, SiC- or graphite-coated susceptors, CVD-compatible gas inlets |
| Brand | Annealsys |
|---|---|
| Origin | Germany |
| Model | JetFirst 300 |
| Sample Size | 12-inch (300 mm) |
| Temperature Range | 0–1200 °C |
| Max. Ramp Rate | 150 °C/s |
| Max. Cool-down Rate | 200 °C/min (from 1000 °C to 400 °C) |
| Temperature Accuracy | < ±1% of setpoint |
| Temperature Uniformity | < ±1% across wafer surface |
| Vacuum Level | ≤10⁻⁶ hPa (high-vacuum configuration) |
| Heating Source | Dual-zone halogen lamp array (top + bottom) |
| Gas Control | 4-channel MFC-controlled process gas lines (N₂, Ar, O₂, H₂/N₂ mix) |
| Cooling | Water-cooled chamber + N₂ backside purge |
| Control System | SIMATIC S7-based PLC with 7″ HMI touchscreen |
| Programmable Recipes | 50 stored profiles, up to 50 segments per recipe |

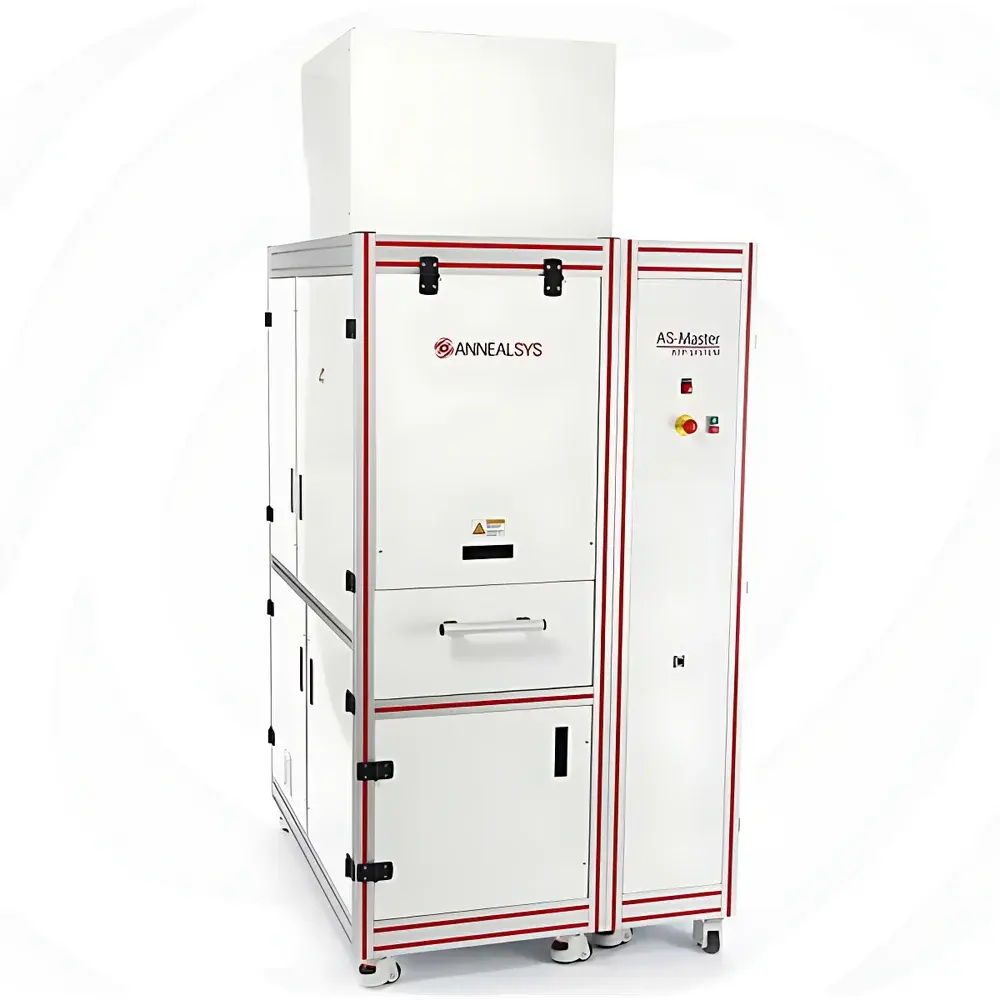

| Brand | Annealsys |
|---|---|
| Origin | France |
| Model | AS-master |
| Instrument Type | High-Vacuum Rapid Thermal Annealing Furnace |
| Maximum Sample Diameter | 200 mm (8-inch wafers) |
| Temperature Range | Ambient to 1450 °C |
| Max Heating Rate | 150 °C/s |
| Max Cooling Rate | 200 °C/s |
| Temperature Accuracy | ±1 °C |
| Temperature Uniformity | ±1% across wafer surface |
| Vacuum Level | ≤1×10⁻⁶ hPa |
| Gas Lines | 4-channel MFC-controlled (N₂, Ar, O₂, custom mix) |
| Heating Source | Halogen infrared lamps with power-based regulation |
| Chamber | Water-cooled quartz tube with double-wall stainless-steel cold-wall construction |
| Temperature Monitoring | Dual K-type thermocouples + dual pyrometers (low-range: 150–1100 °C |
| high-range | 400–1500 °C) |
| Cooling Method | Forced-air (low-noise, no compressed air required for thermal cycling) |
| Power Supply | 3×400 V + N + PE, 75–105 kW |
| Cooling Water | 2–4 bar, ΔP ≤1 bar, flow rate 30–50 L/min |

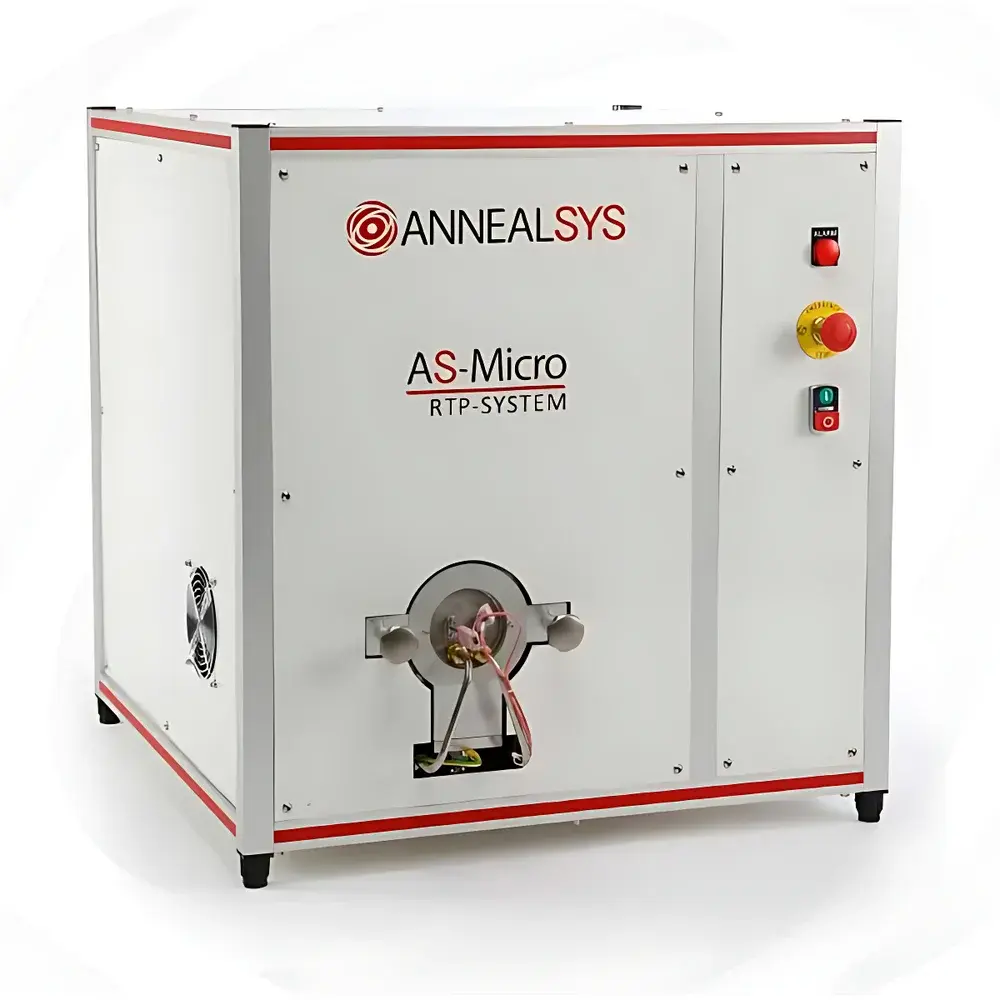

| Brand | Annealsys |
|---|---|
| Origin | France |
| Model | AS-Micro |
| Instrument Type | High-Vacuum Rapid Thermal Annealing Furnace |
| Maximum Sample Size | 3-inch (76 mm) diameter or square |
| Temperature Range | Ambient to 1450 °C |
| Max Heating Rate | 150 °C/s |
| Max Cooling Rate | 200 °C/s |
| Temperature Accuracy | ±1 °C |
| Temperature Uniformity | ±1% across wafer surface |
| Heating Source | IR Halogen Lamps |
| Cooling Method | Forced-air (low-noise, no compressed air required) |
| Chamber Design | Dual-chamber optional |
| Vacuum Capability | Compatible with turbomolecular pump for ≤10⁻⁶ mbar base pressure |
| Control Interface | Ethernet-connected PC software with full PID programmability |
| Gas Handling | Up to 3 process gases, digitally controlled mass flow controllers (MFCs) |
| Thermocouple Configuration | Dual N-type (center + edge) for direct wafer-temperature feedback |
| Brand | Annealsys |
|---|---|
| Origin | France |
| Model | JetLight |
| Instrument Type | High-Vacuum Rapid Thermal Annealing Furnace |
| Sample Size | Up to 3-inch (76 mm) diameter wafers |
| Temperature Range | Ambient to 1450 °C |
| Max Heating Rate | 150 °C/s |
| Max Cooling Rate | 200 °C/s |
| Temperature Accuracy | ±1 °C |
| Temperature Uniformity | ±1% across wafer surface |
| Vacuum Capability | Compatible with turbomolecular pumping systems |
| Control Interface | Ethernet-connected PC-based software with programmable ramp/soak profiles |
| Chamber Design | Dual-chamber option available |
| Heating Source | Array of IR halogen lamps with power-controlled (not voltage-controlled) regulation |
| Cooling Method | Forced-air cooling (low-noise, no compressed air required) |
| Chamber Material | Quartz tube within double-walled stainless-steel cold-wall structure with water-cooled jacket |
| Thermocouple Configuration | Dual N-type thermocouples — center and edge mounted for direct wafer-temperature feedback |
| Gas Handling | Up to 3 process gases with digital mass flow controllers (MFCs) and precision needle valves |
| Optional Accessories | SiC-coated graphite susceptor, high-vacuum turbomolecular pump, dual-chamber configuration |
| Brand | Annealsys |
|---|---|
| Origin | France |
| Model | AS-ONE 100 |
| Instrument Type | High-Vacuum Rapid Thermal Annealing Furnace |
| Maximum Sample Diameter | 150 mm (6-inch) |
| Temperature Range | Up to 1200 °C |
| Max. Heating Rate | 160 K/s |
| Max. Cooling Rate | 240 K/s |
| Temperature Accuracy | ±1% of setpoint |
| Temperature Uniformity | ±1% across wafer surface |
| Vacuum Base Pressure | 10⁻⁶ Torr (with turbomolecular pump) |
| Process Gas Control | 5-channel MFC system |
| Standard Optical Viewport | Fused silica |
| Thermometry | Dual-range pyrometer (150–1100 °C and 400–1500 °C), K-type thermocouple backup |
| Control System | Digital PID with real-time feedback loop |

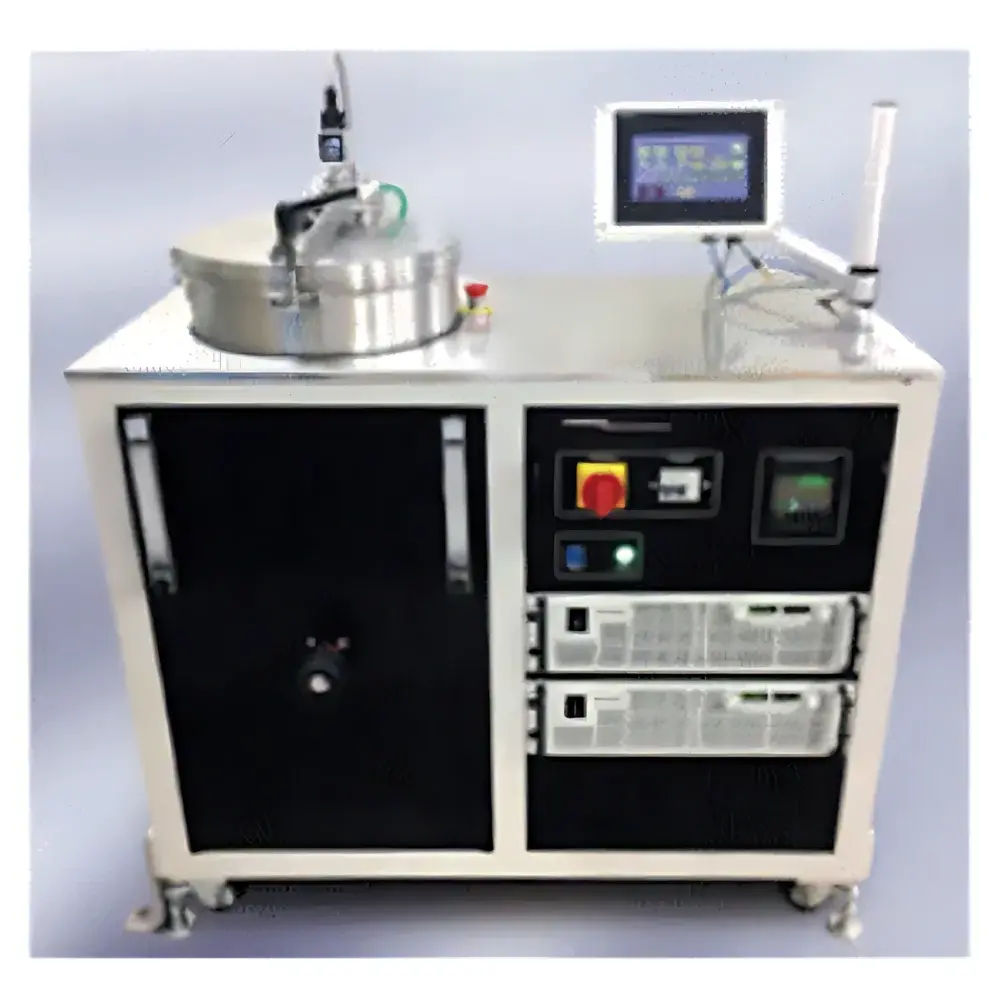

| Brand | Thermic Edge |
|---|---|
| Origin | United Kingdom |
| Model | TE2000, TE3000 |
| Instrument Type | High-Vacuum Rapid Thermal Annealing Furnace |
| Maximum Operating Temperature | 2100 °C (vacuum), 2600 °C (inert atmosphere with tungsten heating zone), 3000 °C (graphite heating zone) |
| Vacuum Level | Down to 5 × 10⁻⁸ mbar (with Edwards EXT75DX turbomolecular pump) |
| Sample Capacity | Up to 200 mm (8-inch) wafers |
| Temperature Uniformity | < ±1% across heating zone |
| Temperature Accuracy | Better than ±1% of setpoint |
| Ramp Rate | ≥100 °C/min (heating), up to 200 °C/s (controlled cooling) |
| Pressure Control Precision | < ±0.5 bar |
| Heating Zone Materials | Graphite or tungsten |
| Vacuum Interface Standard | ISO-KF63 or KF25 |
| Cooling System | Integrated water-cooling circuit |
| Safety Systems | Interlocked electronic door lock, real-time O₂ purge logic, over-temperature and over-pressure alarms, LED status indicators |

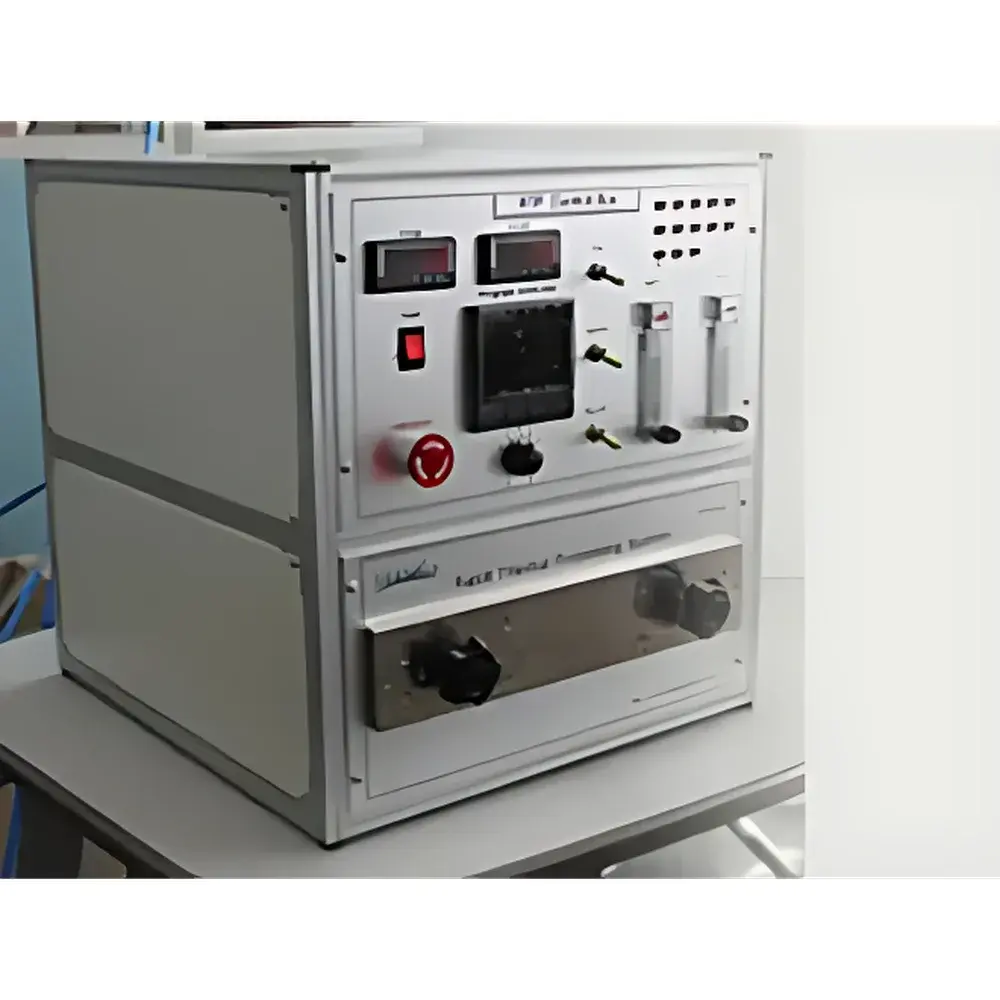

| Brand | ECOPIA |
|---|---|
| Origin | South Korea |
| Model | RTP-1300 |
| Sample Size | 150 mm (6-inch compatible) |
| Max Temperature | 1200 °C |
| Max Ramp Rate | 150 K/s |
| Cool-down Rate | 200 K/s |
| Temp Accuracy | ±1% of setpoint |
| Temp Uniformity | ±1.5% across wafer |
| Atmosphere Options | Vacuum (10⁻³ Torr, optional mechanical pump), N₂, O₂, H₂, Ar, or ambient air |
| Heating Source | 12 or 18 halogen infrared lamps (1.2 kW each) |
| Control Software | Integrated RTP-specific GUI with recipe management, real-time profiling, and data logging |
| Power Supply | 220 V AC, single- or three-phase |
| Dimensions (W×D×H) | 500 × 400 × 500 mm |
| Net Weight | 60 kg |
