| Brand | DAZHAN |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | DZDR-AS |
| Instrument Type | Transient Plane Source (TPS) Method |
| Sample Throughput | Single-sample per test |
| Test Environment | Ambient temperature (with optional environmental chamber integration) |
| Thermal Conductivity Range | 0.00001–50 W/(m·K) |
| Temperature Range | –30 °C to 200 °C |
| Resolution | 0.00001 W/(m·K) |
| Repeatability | ≤1% RSD |
| Accuracy | ±2% (traceable to NIST-certified reference materials) |
| Sample Forms | Solids (bulk, thin films, foams), liquids, powders, pastes, gels, and elastomers |
| Probe Configuration | Dual high-precision TPS sensors (standard) |
| Minimum Solid Sample Dimensions | 15 mm × 15 mm × 7.5 mm (Probe #1) |
| Liquid/Powder Sample Volume | 18 mL via dedicated fixture |
| Measurement Time | ≤160 s per test |
| Power Consumption | <300 W |
| Display | 7-inch color capacitive touchscreen interface |
| Control Architecture | Bidirectional software–instrument communication (USB/Ethernet) |
| Brand | Nanjing Dazhan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Heat Flow Method |
| Model | DZDR-R |
| Dimensions (L×W×H) | 220 × 270 × 600 mm |
| Accuracy | Better than ±3% |
| Thermal Conductivity Range | 0.015–10 W/m·K |
| Repeatability | ≤3% |
| Sample Size | 100 mm × 100 mm |
| Sample Thickness | 2–15 mm |
| Operating Temperature Range | Ambient to 80 °C |
| Power Supply | 220 V / 50 Hz |
| Compliance Standards | MIL-I-49456A, GB 5598–1985, ASTM D5470–95 |
| Brand | DAZHAN |
|---|---|
| Origin | Jiangsu, China |
| Model | DZDR-S |
| Measurement Principle | Transient Plane Source (TPS) Method |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Repeatability | ≤3% |
| Temperature Range | Ambient to 130 °C (extendable to 300 °C) |
| Sample Forms | Solid, Liquid, Gel, Paste, Powder |
| Probe Options | 7.5 mm, 15 mm, 50 mm diameter planar sensors |
| Measurement Time | 5–160 s |
| Dimensions (L×W×H) | 440 × 390 × 220 mm |
| Power Supply | AC 220 V, <500 W |
| Sample Size Requirements | ≥15×15×3.75 mm (for 7.5 mm probe), ≥30×30×7.5 mm (for 15 mm probe), ≥50×50×15 mm (for 50 mm probe) |
| Compliance | ASTM D5334, ISO 22007-2, GB/T 32064–2015 |
| Brand | Nanjing Dazhan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |

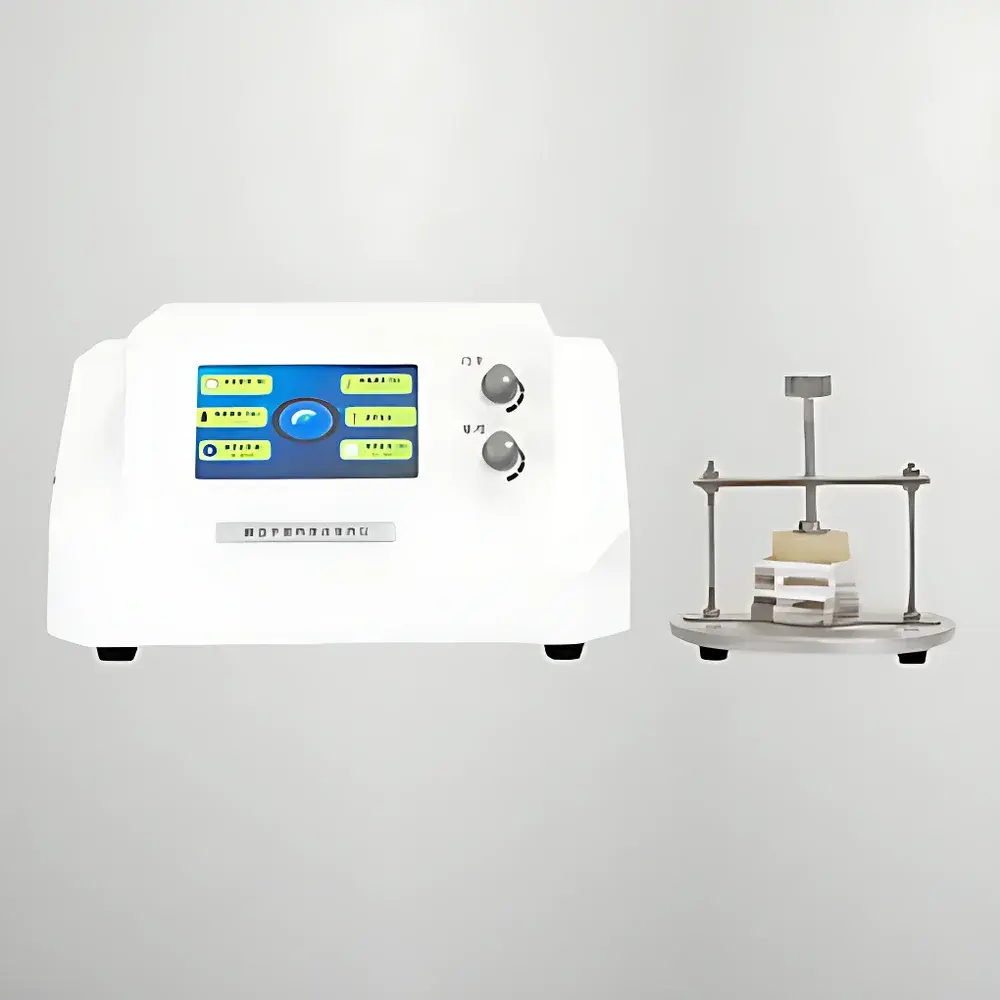

| Model | DZDR-S |
| Instrument Type | Transient Plane Source (TPS) Method |
| Sample Throughput | Single sample per test |
| Test Environment | Ambient temperature (standard) |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Repeatability | ≤3% |
| Sample Forms | Solid blocks, pastes, granular solids, gels, liquids, powders, coatings, thin films, and thermal insulation materials |
| Probe Diameters | 7.5 mm (Probe #1), 15 mm (Probe #2), 50 mm (Probe #3, optional/customizable) |
| Sample Dimensions (min.) | ≥15×15×3.75 mm (Probe #1), ≥30×30×7.5 mm (Probe #2), ≥50×50×7.5 mm (Probe #3) |
| Measurement Duration | 5–160 s (user-configurable) |
| Power Supply | AC 220 V, <500 W |
| Data Acquisition | Integrated high-resolution ADC chip |
| Control Core | ARM-based microprocessor |
| Interface | Color TFT touchscreen, embedded HMI |
| Brand | Nanjing Dazhan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | DZDR-S |
| Instrument Principle | Transient Plane Source (TPS) Method |
| Sample Throughput | Single sample per test |
| Test Environment | Ambient temperature (20–30 °C) |
| Dimensions (L×W×H) | 390 mm × 455 mm × 200 mm |
| Accuracy | ±3% |
| Thermal Conductivity Range | 0.005–300 W/(m·K) |
| Repeatability | ≤3% |
| Atmosphere Requirement | None |
| Sample Forms | Solids, powders, liquids |
| Probe Options | Dual-probe configuration (7.5 mm and 15 mm diameter) |
| Max Sample Temperature | 130 °C |
| Measurement Duration | 5–160 s |
| Power Supply | AC 220 V |
| Max Power Consumption | <500 W |
| Max Sample Temperature Rise | <15 °C |
| Probe Power | <1 W (7.5 mm), <20 W (15 mm) |
| Minimum Sample Size | ≥7.5 mm × 7.5 mm × 7.5 mm (for 7.5 mm probe) |
| Brand | Nanjing Dazhan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Transient Plane Source (TPS) Method |
| Sample Capacity | Single sample per test |
| Test Environment | Ambient temperature (20–30 °C) |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Repeatability | ≤3% |
| Sample Forms | Solids (bulk, film, coating), powders, liquids, pastes, gels, metals, and insulating materials |
| Probe Options | 7.5 mm, 15 mm, and 50 mm diameter (standard) |
| Sample Dimensions (min.) | 15×15×3.75 mm (for 7.5 mm probe), 30×30×7.5 mm (for 15 mm probe), 50×50×7.5 mm (for 50 mm probe) |
| Measurement Duration | 5–160 s (user-configurable) |
| Power Supply | AC 220 V, <500 W |
| Data Acquisition | High-resolution imported ADC chip |
| Control System | ARM-based microprocessor architecture |
| Brand | DAZHAN |
|---|---|
| Origin | Jiangsu, China |
| Model | DZDR-S |
| Measurement Principle | Transient Plane Source (TPS) Method |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Repeatability | ≤3% |
| Temperature Range | Ambient to 130 °C (optional extension: −40 °C to 300 °C) |
| Sample Forms | Solids (bulk, granular, coated, thin-film), Liquids, Gels, Pastes, Powders |
| Test Duration | 5–160 s per measurement |
| Probe Options | 7.5 mm, 15 mm, and 50 mm diameter probes |
| Dimensions (L×W×H) | 440 × 390 × 220 mm |
| Power Supply | AC 220 V, <500 W |
| Max. Probe Power | 1 W (7.5 mm), 20 W (15 mm), 22 W (50 mm) |
| Sample Size Requirements | ≥15×15×3.75 mm (7.5 mm probe), ≥30×30×7.5 mm (15 mm probe), ≥50×50×15 mm (50 mm probe) |
| Software | Integrated TPS data acquisition & thermal property calculation module with real-time curve fitting and ASTM/ISO-compliant reporting |
| Brand | Nanjing Dazhan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | DZDR-S |
| Instrument Type | Transient Plane Source (TPS) Method |
| Sample Throughput | Single sample per test |
| Test Environment | Ambient temperature |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Repeatability | ≤3% |
| Temperature Range | 25–130 °C (optional extension: −40 to 300 °C) |
| Sample Forms | Liquids, thin films, coatings, metals, bulk solids, powders, gels, and insulating materials |
| Probe Diameters | 7.5 mm, 15 mm, 50 mm (modular) |
| Measurement Duration | 5–160 s (user-configurable) |
| Power Supply | AC 220 V, <500 W |
| Sample Dimensions (min.) | 15×15×3.75 mm (for 7.5-mm probe), 30×30×7.5 mm (for 15-mm probe), 50×50×7.5 mm (for 50-mm probe) |
| Optional Accessories | Powder test cell kit |
| Brand | Nanjing Dazhan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |
| Model | DZDR-S |
| Instrument Type | Transient Plane Source (TPS) Method |
| Sample Throughput | Single sample per test |
| Test Environment | Ambient temperature (20–25°C) |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Dimensions (L×W×H) | 440 × 390 × 220 mm |
| Sample Forms | Solids (bulk, film, coating), powders, liquids, gels, pastes, metallic and non-metallic materials |
| Temperature Range | Room temperature to 130°C (optional heating module) |
| Probe Options | 7.5 mm, 15 mm, and 50 mm diameter dual-spiral TPS sensors |
| Measurement Time | 5–160 s (user-configurable) |
| Repeatability | ≤3% |
| Power Supply | AC 220 V, <500 W |
| Minimum Sample Dimensions | ≥15×15×3.75 mm (for 7.5 mm probe), ≥30×30×7.5 mm (for 15 mm probe), ≥50×50×7.5 mm (for 50 mm probe) |
| Powder Test Kit | Included (customizable vessel available) |
| Brand | Nanjing Dazhan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |
| Model | DZDR-S |
| Instrument Type | Transient Plane Source Method |
| Sample Throughput | Single sample per test |
| Test Environment | Ambient temperature |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Dimensions (L×W×H) | 440 × 390 × 220 mm |
| Repeatability | ≤3% |
| Sample Forms | Solids (bulk, granular, paste, film, coating), powders, liquids, gels, foams, and insulating materials |
| Brand | Nanjing Dazhan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Manufacturer |
| Country of Origin | China |
| Model | DZDR-S |
| Instrument Type | Transient Plane Source (TPS) Method |
| Sample Throughput | Single sample per test |
| Test Environment | Ambient temperature (standard) |
| optional range | −40 °C to 300 °C |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Repeatability | ≤3% |
| Sample Forms | Solids (bulk, granular, coated, thin-film), metals, liquids, pastes, gels, powders, and insulating materials |
| Probe Options | 7.5 mm (No. 1), 15 mm (No. 2), 50 mm (No. 3) |
| Measurement Time | 5–160 s |
| Power Supply | AC 220 V |
| Max. Power Consumption | <500 W |
| Minimum Sample Dimensions | ≥15×15×3.75 mm (No. 1), ≥30×30×7.5 mm (No. 2), ≥50×50×7.5 mm (No. 3) |
| Powder Test Kit | Optional custom container included |
| Brand | DAZHAN |
|---|---|
| Origin | Jiangsu, China |
| Model | DZDR-S |
| Measurement Principle | Transient Plane Source (TPS) Method |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Repeatability | ≤3% |
| Temperature Range | Ambient to 130 °C (extendable to −40 °C to 300 °C) |
| Sample Forms | Solid, Liquid, Gel, Paste, Powder, Film, Granular, Metallic, Insulating Materials |
| Probe Options | 7.5 mm, 15 mm, 50 mm diameter dual-spiral probes |
| Measurement Time | 5–160 s (user-configurable) |
| Dimensions (L×W×H) | 440 × 390 × 220 mm |
| Power Supply | AC 220 V |
| Max. Power Consumption | <500 W |
| Probe Power Limits | ≤1 W (Φ7.5 mm), ≤20 W (Φ15 mm), ≤22 W (Φ50 mm) |
| Minimum Sample Dimensions | ≥15×15×3.75 mm (Φ7.5 mm probe), ≥30×30×7.5 mm (Φ15 mm probe), ≥50×50×15 mm (Φ50 mm probe) |
| Optional Accessories | Custom powder test cell |

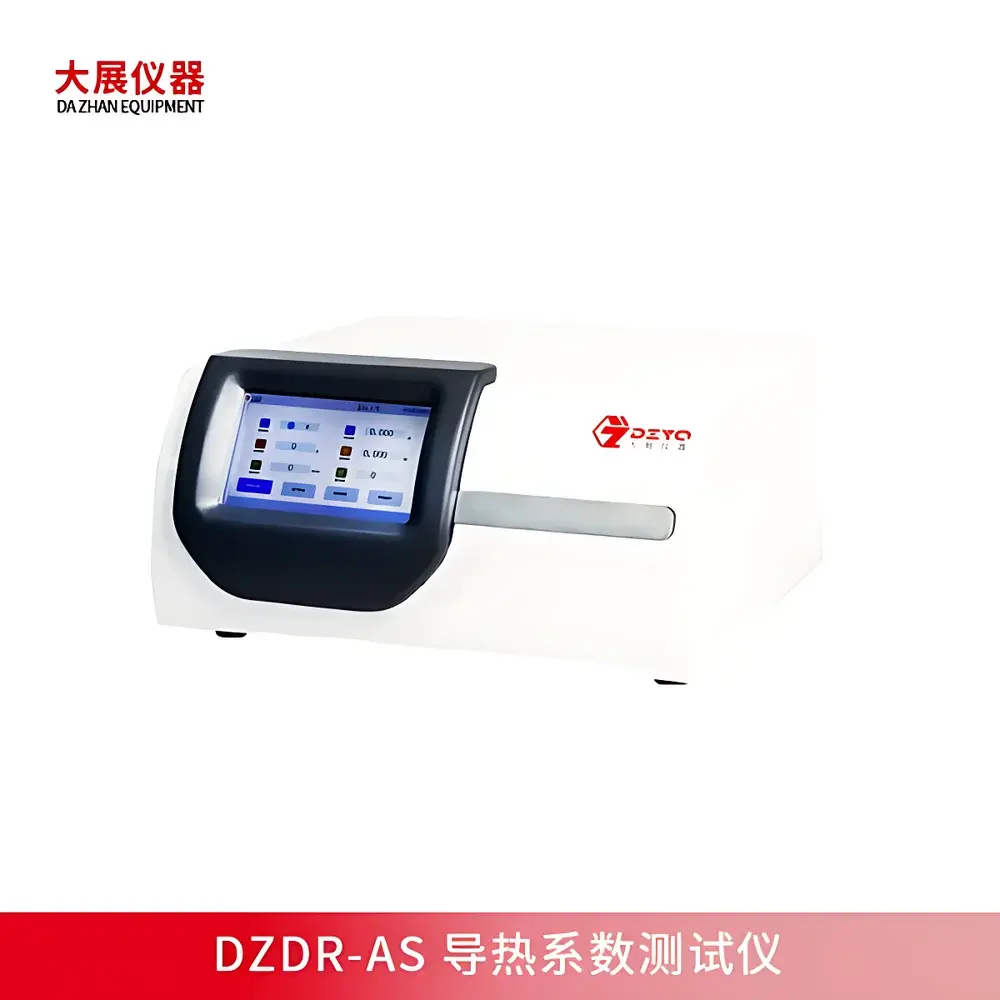

| Brand | DAZHAN |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | DZDR-AS |
| Instrument Type | Transient Plane Source (TPS) Method |
| Sample Throughput | Single sample per test |
| Test Environment | Ambient temperature |
| Thermal Conductivity Range | 0.00001–50 W/(m·K) |
| Resolution | 0.0001 W/(m·K) |
| Repeatability | ≤1% |
| Accuracy | ±0.00001 W/(m·K) |
| Test Atmosphere | Ambient air (no controlled atmosphere) |
| Temperature Range | −30 °C to 200 °C |
| Sample Forms Supported | Solids (bulk, metallic), liquids, powders, pastes, gels, thin films, and aerogels |
| Brand | DAZHAN |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | DZDR-AS |
| Instrument Type | Transient Plane Source (TPS) Method |
| Sample Throughput | Single sample per test |
| Test Environment | Ambient temperature |
| Thermal Conductivity Range | 0.0001–50 W/(m·K) |
| Resolution | 0.0001 W/(m·K) |
| Repeatability | ≤1% |
| Temperature Range | −40 °C to +200 °C (expandable) |
| Sample Forms | Solid blocks, metals, liquids, powders, pastes, gels, thin films, foams, polymers, alloys, minerals, and thermal insulation materials |
| Brand | DAZHAN |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Instrument Type | Transient Plane Source (TPS) Method |
| Sample Throughput | Single-sample mode |
| Test Environment | Ambient temperature operation |
| Thermal Conductivity Range | 0.00001–50 W/(m·K) |
| Resolution | 0.00001 W/(m·K) |
| Repeatability | ≤1% |
| Accuracy | ±1% |
| Temperature Range | −30 °C to 200 °C |
| Sample Forms | Solids (bulk, metallic, thin films), powders, granules, liquids, gels, pastes, and insulating materials |
| Probe Configuration | Dual high-precision TPS sensors (standard) |
| Minimum Solid Sample Dimensions | 15 mm × 15 mm × 7.5 mm (Probe #1) |
| Liquid/Powder Sample Volume | 18 mL via dedicated fixture |
| Measurement Time | ≤160 s per test |
| Power Consumption | <300 W |
| Brand | DAZHAN |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Domestic Instrument Manufacturer |
| Model | DZDR-AS |
| Measurement Principle | Transient Plane Source (TPS) Method |
| Sample Throughput | Single-sample per test |
| Operating Environment | Ambient temperature |
| Thermal Conductivity Range | 0.0001–50 W/(m·K) |
| Resolution | 0.0001 W/(m·K) |
| Repeatability | ≤1% |
| Accuracy | ±0.0001 W/(m·K) |
| Temperature Range | −40 °C to 200 °C (expandable) |
| Sample Form Compatibility | Solid blocks, metals, liquids, powders, gels, pastes, thin films, thermal insulation materials, alloys, ores, polymers, and foams |
| Test Duration | <160 s |
| Probe Configuration | Dual high-precision TPS sensors (standard) |
| Sample Dimensions | Probe #1: 7.5 × 7.5 × 3.75 mm |
| Probe #2 | 15 × 15 × 7.5 mm |
| Power Supply | AC 220 V |
| Max. Power Consumption | <300 W |
| Max. Sample Temperature Rise | <20 °C |
| Probe Power Range | Probe #1: 0–1 W |
| Probe #2 | 0–15 W |
| Brand | Nanjing Dazhan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | DZDR-S |
| Instrument Principle | Transient Plane Source (TPS) Method |
| Sample Throughput | Single sample per test |
| Test Environment | Ambient temperature (20–30 °C) |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Repeatability | ≤3% |
| Measurement Time | 5–160 s (user-configurable) |
| Probe Options | 7.5 mm, 15 mm, and 50 mm diameter (standard and customizable) |
| Sample Geometry Requirements | Minimum planar dimension ≥2× probe diameter |
| Sample Forms Supported | Solid blocks, powders (with optional container), pastes, gels, liquids, granules, coatings, thin films, and thermal insulation materials |
| Power Supply | AC 220 V, <500 W |
| Control Interface | Color TFT LCD with capacitive touchscreen |
| Data Acquisition | High-resolution imported ADC chip |
| Core Processor | ARM-based embedded microcontroller |
| Compliance | Designed to support ASTM D7984, ISO 22007-2, and GLP-aligned data integrity practices |
| Brand | Nanjing Dazhan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |
| Model | DZDR-S |
| Instrument Principle | Transient Plane Source (TPS) Method |
| Sample Throughput | Multiple samples per session |
| Test Environment | Ambient temperature (RT to 130 °C) |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Repeatability | ≤3% |
| Dimensions (L×W×H) | 440 × 390 × 220 mm |
| Sample Forms | Gels, liquids, powders, coatings, thin films, bulk solids, foams, composites |
| Probe Options | 7.5 mm, 15 mm, and 50 mm diameter probes (standard and customizable) |
| Measurement Time | 5–160 s |
| Power Supply | AC 220 V, <500 W |
| Minimum Sample Dimensions | ≥7.5×7.5×3.75 mm (for 7.5 mm probe), ≥15×15×7.5 mm (for 15 mm probe), ≥50×50×7.5 mm (for 50 mm probe) |
| Optional Accessories | Powder test cell, liquid test cup, custom probe fixtures |
| Brand | Nanjing Dazhan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Transient Plane Source Method |
| Sample Throughput | Single sample per test |
| Test Environment | Ambient temperature (standard) |
| optional range | −40 °C to 300 °C |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Repeatability | ≤3% |
| Sample Forms | Liquids, metals, pastes, gels, coatings, thin films, powders, insulating materials, composites |
| Probe Options | 7.5 mm, 15 mm, and 50 mm diameter sensors |
| Minimum Sample Dimensions | ≥15×15×3.75 mm (7.5 mm probe), ≥30×30×7.5 mm (15 mm probe), ≥50×50×7.5 mm (50 mm probe) |
| Test Duration | 5–160 s |
| Power Supply | AC 220 V, <500 W |
| Brand | Nanjing Dazhan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Transient Plane Source (TPS) Method |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Measurement Time | 5–160 s |
| Sample Forms | Solid, Liquid, Powder, Paste, Gel, Thin Film, Coating, Foam, Metallic & Composite Materials |
| Operating Temperature | Ambient to 130 °C |
| Probe Diameters | 7.5 mm, 15 mm, 50 mm (optional) |
| Accuracy | ±3% |
| Repeatability | ≤3% |
| Power Supply | AC 220 V, <500 W |
| Sample Dimensions (min.) | 15×15×3.75 mm (for 7.5 mm probe) |
| Brand | DAZHAN |
|---|---|
| Origin | Jiangsu, China |
| Model | DZDR-AS |
| Measurement Principle | Transient Plane Source (TPS) Method |
| Thermal Conductivity Range | 0.0001–50 W/(m·K) |
| Temperature Range | −40 °C to 200 °C |
| Accuracy | ±0.0001 W/(m·K) |
| Repeatability | ≤1% |
| Measurement Time | ≤160 s |
| Sample Forms | Solids (blocks, metals, films), Liquids, Powders, Gels, Pastes, and Insulating Materials |
| Sample Requirements | Surface must be flat and smooth |
| Probe Configuration | Dual high-precision TPS sensors (standard) |
| Power Consumption | <300 W |
| Solid Sample Dimensions (Probe #1) | ≥15 mm × 15 mm × 3.75 mm |
| Solid Sample Dimensions (Probe #2) | ≥30 mm × 30 mm × 7.5 mm |
| Liquid/Powder Sample Volume | 18 mL (with dedicated fixture) |
| Brand | DAZHAN |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | DZDR-S |
| Instrument Type | Transient Plane Source (TPS) Method |
| Sample Throughput | Single-sample mode |
| Test Environment | Ambient pressure |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Dimensions (L×W×H) | 455 × 390 × 200 mm |
| Repeatability | ≤3% |
| Temperature Range | Room temperature to 130 °C (extendable to 300 °C with optional heating module) |
| Sample Forms | Solids (bulk, film, coating), powders, liquids, pastes, gels, and aerogels |
| Brand | Nanjing Dazhan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Transient Plane Source (TPS) Method |
| Sample Throughput | Single-sample mode |
| Operating Environment | Ambient temperature (20–30 °C) |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Repeatability | ≤3% |
| Sample Forms | Liquids, powders, solids (including metals), gels, pastes, thin films, coatings, and insulating materials |
| Probe Options | 7.5 mm, 15 mm, and 50 mm diameter (standard) |
| Measurement Duration | 5–160 s (user-configurable) |
| Temperature Range | Room temperature to 130 °C |
| Power Supply | AC 220 V, <500 W |
| Minimum Sample Dimensions | ≥15×15×3.75 mm (for 7.5 mm probe), ≥30×30×7.5 mm (for 15 mm probe), ≥50×50×7.5 mm (for 50 mm probe) |
| Powder Test Kit | Included (customizable container set) |
| Brand | Nanjing Dazhan |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | DZDR-S |
| Instrument Type | Transient Plane Source (TPS) Method |
| Sample Throughput | Single sample per test |
| Test Environment | Ambient temperature (20–30 °C) |
| Thermal Conductivity Range | 0.0001–300 W/(m·K) |
| Accuracy | ±3% |
| Sample Forms | Liquids, powders, thin films, gels, pastes, metals, and bulk solids |
| Probe Options | 7.5 mm, 15 mm, and 50 mm diameter dual-spiral probes |
| Measurement Duration | 5–160 s (user-configurable) |
| Repeatability | ≤3% |
| Operating Temperature Range | 20–130 °C |
| Power Supply | AC 220 V, <500 W |
| Minimum Sample Dimensions | ≥15×15×3.75 mm (for 7.5 mm probe), ≥30×30×7.5 mm (for 15 mm probe), ≥50×50×7.5 mm (for 50 mm probe) |
| Optional Accessories | Powder test cell, liquid test cup, custom probe/sample holder configurations |
Show next
