| Brand | Ju Chuang Environmental |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

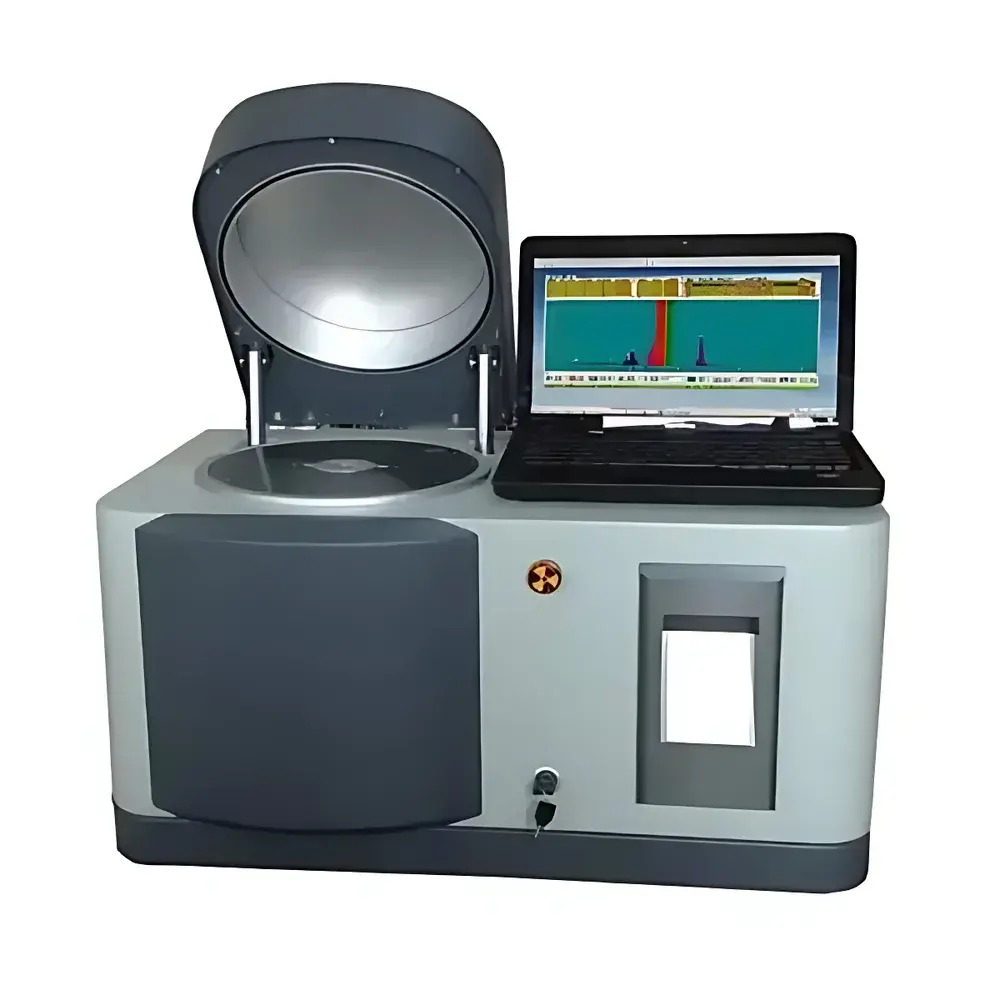

| Model | JC-350X |
| Form Factor | Benchtop/Floor-Standing |
| Instrument Type | Conventional EDXRF |
| Application Scope | General-Purpose |
| Detection Range | 0.07 ppm – 99.9% |
| Energy Resolution | 125 eV (at Mn Kα) |
| Repeatability | ≤0.1% RSD (for major elements, 100 s counting) |
| Detector | Peltier-cooled Silicon Drift Detector (SDD) |
| Measurement Range | 1–45 keV |
| High Voltage | 5–50 kV |
| Tube Current | 5–1000 µA |
| Vacuum Level | ≤10⁻² Pa within 10 s (operational range: 10⁻¹–10⁻⁵ Pa) |
| Sample Imaging | 5 MP CCD camera with real-time positioning |
| Power Consumption | 50 W (main unit), 550 W (vacuum pump) |
| Dimensions | 720 × 440 × 435 mm (W×D×H) |
| Weight | 65 kg |
