| Brand | BM |
|---|---|
| Origin | Shanghai, China |
| Model | XSP-BM-30AD |
| Microscope Type | Computer-Integrated Biological Microscope |
| Eyepiece Configuration | Binocular |
| Optical System | Infinity-Corrected UIS (Universal Intermediate System) |
| Eyepieces | Widefield Plan 10×/Φ22 mm and 16×/Φ15 mm |
| Objectives | Infinity-Corrected Achromatic Plan Objectives (4×/0.10, 10×/0.25, 40×/0.65, 100× oil/1.25) |
| Total Magnification Range | 40×–1600× |
| Mechanical Stage | 175 × 150 mm with 80 × 50 mm travel and 0.1 mm vernier scale |
| Interpupillary Adjustment | 55–75 mm |
| Focus Mechanism | Coaxial coarse/fine focusing (30 mm travel), fine focus graduation: 0.002 mm, built-in stop and tension control |
| Condenser | Abbe condenser, N.A. 1.25, centerable and iris diaphragm adjustable |
| Filters | Blue, green, yellow interference filters |
| Illumination | 6 V / 20 W halogen lamp with Köhler illumination and continuous brightness control |
| Digital Imaging System | 5 MP CMOS camera with MCL-Z C-mount adapter |
| Brand | BM |
|---|---|
| Origin | Shanghai, China |
| Model | XSP-BM-13C |
| Instrument Type | Upright Fluorescence Microscope |
| Excitation Source | Mercury Arc Lamp (100 W) with B/G Filter Sets |
| Transmitted Illumination | 6 V / 20 W Halogen Lamp |
| Eyepieces | 10× / Ø20 mm (standard), optional 16× / Ø15 mm |
| Objective System | Infinity-Corrected Fluorescence Objectives (4×, 10×, 40×, 100× oil, NA up to 1.25) |
| Mechanical Stage | 180 × 150 mm platform, 75 × 50 mm travel range |
| Condenser | Adjustable Abbe condenser, NA 1.25 with iris diaphragm |
| Observation Head | 30° inclined binocular head with 360° rotation capability |
| Focusing Mechanism | Coaxial coarse/fine focus, 30 mm vertical travel, fine focus graduation 0.002 mm, tension adjustment and limit stop |
| Fluorescence Filters | Blue (B), Green (G), Yellow (Y) excitation/emission sets |
| Interpupillary Distance | 55–75 mm |
| Tube Factor | 1× (standard infinity system) |
| Brand | BM |
|---|---|
| Origin | Shanghai, China |
| Microscope Type | Upright Microscope |
| Eyepiece Configuration | Binocular |
| Optical System | UIS Infinity-Corrected |
| Objective Lenses | 4×/0.10, 10×/0.25, 40×/0.65 (Spring), 100×/1.25 (Oil Immersion) |
| Eyepieces | WF10×/22 mm, WF16×/15 mm |
| Total Magnification Range | 40×–1600× |
| Mechanical Stage | Dual-layer, 155 × 145 mm, 80 × 50 mm Travel |
| Focus Mechanism | Coaxial Coarse/Fine Adjustment, 30 mm Travel, Fine Focus Graduation: 2 µm |
| Condenser | Abbe N.A. 1.25 with Centering Adjustment and Iris Diaphragm |
| Illumination | 6 V / 20 W Halogen Lamp, Köhler Illumination, Continuously Variable Brightness Control |
| Filter Set | Blue, Green, Yellow |
| Included Accessories | Immersion Oil, Spare Bulb (6 V / 20 W), Fuse (1 A), Power Cord, User Manual, Certificate of Conformance, Warranty Card |
| Brand | BM |
|---|---|
| Origin | Shanghai, China |
| Model | BM-18F3 |
| Microscope Type | Upright Biological Microscope |
| Observation Head | Hinged Trinocular Head with Interpupillary Adjustment (55–75 mm) |
| Eyepieces | Widefield 10×/22 mm |
| Objectives | Infinity-Corrected Achromatic Objectives — 4×, 10×, 40×(S), 100×(S) Oil Immersion |
| Stage | Dual-layer Mechanical Stage (180 × 150 mm) |
| Travel Range | 75 × 50 mm |
| Condenser | Abbe Condenser, NA 1.25, with Iris Diaphragm and Filter Holder |
| Focus Mechanism | Coaxial Coarse/Fine Focus |
| Fine Focus Graduation | 2 µm |
| Illumination | 6 V / 20 W Halogen Lamp (110 V / 220 V Compatible) |
| LED Pointer System | Adjustable Brightness, Arrow-Shaped Cursor, Fully Movable Within Field of View |
| Brand | BM Microscopes |
|---|---|
| Origin | Shanghai, China |
| Model | XSP-BM-17 |
| Microscope Type | Upright |
| Optical Design | Infinity-Corrected (UIS) |
| Eyepiece Configuration | Binocular |
| Standard Eyepieces | Widefield 10×/Φ22 mm |
| Optional Eyepieces | 16×/Φ15 mm |
| Objective Set | Infinity Plan Achromatic 4× (NA 0.10, WD 20.00 mm), 10× (NA 0.25, WD 13.50 mm), 40× (NA 0.65, WD 0.68 mm), 100× Oil (NA 1.25, WD 0.20 mm) |
| Total Magnification Range | 40×–1000× |
| Mechanical Stage | 140 × 160 mm, Travel Range 76 × 45 mm |
| Focusing System | Coaxial coarse/fine focus with 30 mm travel |
| Fine Focus Graduation | 2 µm |
| Condenser | Abbe condenser, NA 1.25, adjustable iris diaphragm |
| Filters | Blue and green interference filters |
| Illumination | Adjustable-intensity LED light source |
| Tube Angle | 30° inclined, 360° rotatable hinge joint |
| Compliance | Designed for ISO 10993-compatible lab environments |
| Brand | BM |
|---|---|
| Origin | Shanghai, China |
| Model | BM-18F2 |
| Microscope Type | Inverted Teaching Microscope |
| Eyepiece Configuration | Binocular |
| Optical System | Infinity-Corrected |
| Illumination | 6V/20W Halogen with Köhler Illumination |
| Objective Lenses | 4×, 10×, 40×(S), 100×(S) Oil Immersion (Achromatic Infinity-Corrected) |
| Eyepieces | Widefield 10×/22 mm |
| Stage | Double-layer Mechanical Stage (180 × 150 mm |
| Condenser | NA 1.25 Abbe Condenser with Iris Diaphragm and Filter Holder |
| Focus Mechanism | Coaxial Coarse/Fine Focus (Fine Focus Graduation: 2 µm) |
| Interpupillary Adjustment Range | 55–75 mm |
| Brand | BM Optical |
|---|---|
| Origin | Shanghai, China |
| Microscope Type | Upright |
| Configuration | Trinocular |
| Optical Design | UIS Infinity-Corrected System |
| Eyepieces | Widefield 10×/Φ22 mm (standard), optional 16×/Φ15 mm |
| Objectives | Infinity-Corrected Achromatic, 4×/0.10, 10×/0.25, 40×/0.65, 100× oil/1.25 |
| Total Magnification Range | 40×–1000× |
| Mechanical Tube Length | ∞ |
| Stage | 140 × 160 mm mechanical stage with 76 × 45 mm travel |
| Focus Mechanism | Coaxial coarse/fine focus, fine focus graduation: 2 µm |
| Condenser | Abbe condenser, NA 1.25, adjustable iris diaphragm |
| Filters | Blue and green interference filters |
| Illumination | Adjustable-intensity LED light source |
| Compliance | Designed to meet ISO 10934-1 (Microscopes — Nomenclature of components) and GB/T 2985–2019 (Biological microscopes — Requirements and test methods) |
| Brand | BM-Beam |
|---|---|
| Origin | Shanghai, China |

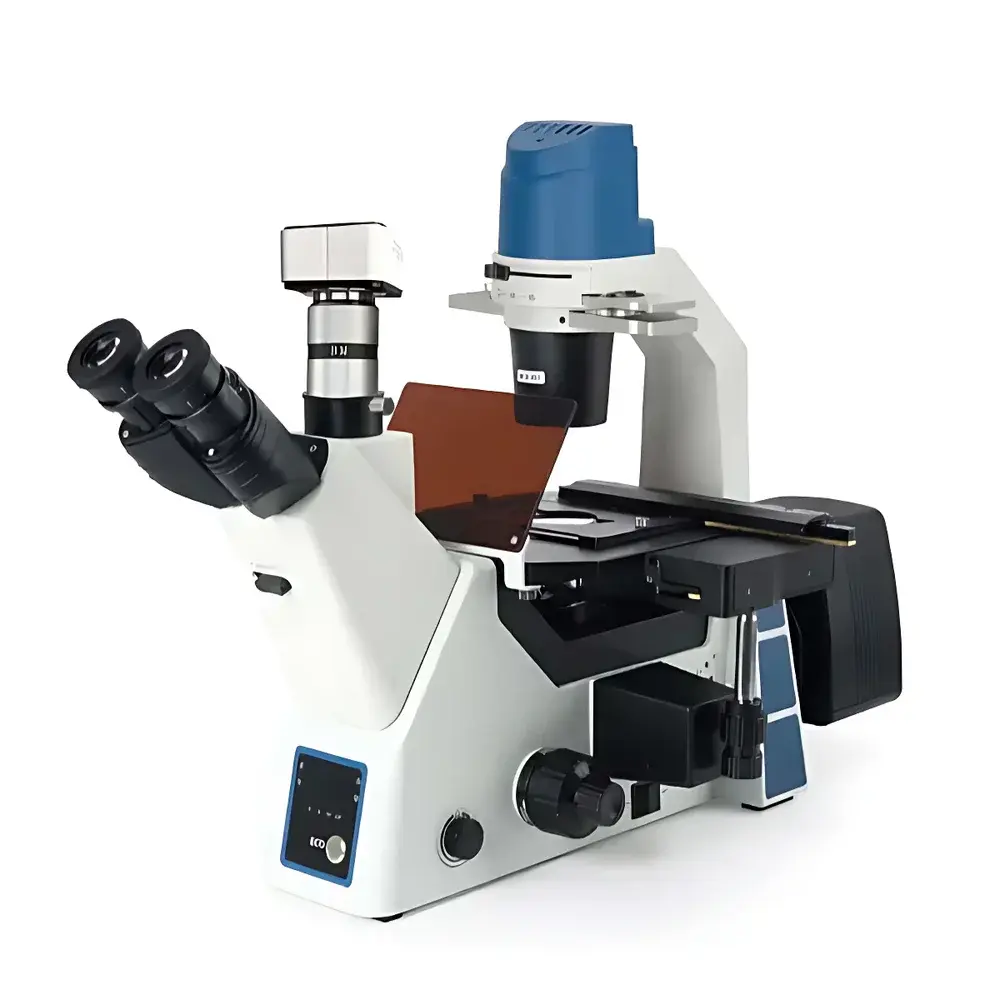

| Model | BM-40YD |
| Instrument Type | Inverted Fluorescence Microscope |
| Research Grade Classification | Yes |
| Fluorescence Filter Cubes | UV1 (385 nm center), B1 (470 nm center), G1 (560 nm center), R1 (630 nm center, optional) |
| Light Source | LED-based, 385 nm / 470 nm / 560 nm triple-channel excitation |
| Control Interface | PC software-controlled fluorescence filter turret and illumination |
| Focusing Mechanism | Coaxial coarse/fine manual focus with 0.002 mm fine adjustment resolution |
| Condenser | NA 0.3, long working distance (WD = 72 mm), removable, phase-adjustable slider with dual centering knobs |
| Observation Head | 45° inclined hinge-type trinocular, 360° rotatable, interpupillary distance 50–75 mm, dual-mode beam splitter (100% eyepiece / 100% camera) |
| Stage | Three-layer mechanical stage, 215 × 250 mm platform, 120 × 80 mm travel range |
| Objective Lenses | Infinity-corrected semi-apochromatic plan fluor objectives (4×/0.13, WD 18.5 mm |
| Optical System | Infinity-corrected semi-plan achromat optical design |
| Illumination | Adjustable warm/cool white transmitted LED, independent intensity control per channel, IR motion sensing, LED fluorescence status indicator |
| Fluorescence Light Engine | Four-position motorized filter turret with servo-driven gear transmission, integrated LED driver for simultaneous or sequential excitation control |
| Brand | BM |
|---|---|
| Origin | Shanghai, China |
| Microscope Type | Upright Biological Microscope |
| Eyepiece Configuration | Binocular |
| Mechanical Tube Length | 160 mm |
| Objective Lenses | 4× (NA 0.10, WD 37.5 mm), 10× (NA 0.25, WD 7.31 mm), 40× (NA 0.65, WD 0.63 mm), 100× Oil (NA 1.25, WD 0.18 mm) |
| Eyepieces | Widefield 10×/Φ18 mm (standard), optional 16×/Φ11 mm |
| Total Magnification Range | 40×–1600× |
| Stage | Dual-layer mechanical stage (110 × 120 mm, travel 70 × 30 mm) |
| Interpupillary Adjustment | 50–75 mm |
| Focus Mechanism | Coaxial coarse/fine focusing, fine focus graduation 0.02 mm |
| Condenser | Abbe condenser, NA 1.25, adjustable iris diaphragm |
| Filter | Blue filter included |
| Illumination | Adjustable-intensity LED light source with integrated Type-C rechargeable power module and onboard cable management |
| Brand | BM |
|---|---|
| Origin | Shanghai, China |
| Model | BM-19AY |
| Instrument Type | Upright Fluorescence Microscope |
| Excitation Source | 100 W High-Pressure Mercury Lamp |
| Observation Head | Trinocular, 30° Inclined, 360° Rotatable |
| Eyepieces | Wide-Field Plan Eyepieces (10×/Φ22 mm) |
| Objectives | Infinity-Corrected Fluorescence Plan Achromatic Objectives (4×, 10×, 40×, 100× oil) |
| Illumination | Epi-Fluorescence (U, V, B, G filter sets) + Transmitted Köhler Illumination (12 V/30 W Halogen) |
| Focusing | Coaxial Coarse/Fine Manual Focus (30 mm Travel, 0.002 mm Fine Graduation) |
| Stage | 180 × 150 mm Mechanical Stage with 75 × 50 mm Travel and 0.1 mm Vernier Scale |
| Tube Lens Focal Length | 200 mm |
| Optical System | Infinity-Corrected (∞) |
| Regulatory Status | Not a Medical Device |
| Brand | Yoke |
|---|---|
| Origin | Shanghai, China |
| Model | XSP-8CA |
| Microscope Type | Digital Biological Microscope |
| Eyepiece Configuration | Binocular |
| Objective Lens System | Finite-conjugate Achromatic Objectives (Standard: 4×, 10×, 40× spring-loaded |
| Optional | 100× oil-immersion spring-loaded) |
| Eyepieces | Wide-field WF10× and WF16× (pair included) |
| Head | Interchangeable铰链式 binocular head with 30° inclined eyepieces |
| Nosepiece | Quadruple revolving nosepiece |
| Stage | Double-layer mechanical stage (135 × 140 mm) with coaxial X–Y controls |
| Focus Mechanism | Coaxial coarse/fine focusing |
| fine focus graduation | 0.002 mm |
| Condenser | Abbe condenser, NA = 1.25, with iris diaphragm |
| Illumination | High-brightness, continuously adjustable LED (12 V DC, powered via wide-input 100–230 V AC adapter) |
| Compliance | Designed for routine laboratory use in teaching, clinical screening, and life science research environments |
| Software Compatibility | Compatible with standard USB digital imaging modules (not included) |
| Brand | BM |
|---|---|
| Origin | Shanghai, China |
| Microscope Type | Upright |
| Eyepiece Configuration | Binocular |
| Mechanical Tube Length | 160 mm |
| Objective Lenses | 4× (NA 0.10, WD 37.5 mm), 10× (NA 0.25, WD 7.31 mm), 40× (NA 0.65, WD 0.63 mm), 100× oil immersion (NA 1.25, WD 0.18 mm) |
| Eyepieces | Wide-field 10×/Φ18 mm and 16×/Φ11 mm |
| Total Magnification Range | 40×–1600× |
| Stage | Mechanical 130×130 mm with 70×30 mm travel and 0.1 mm vernier scale |
| Interpupillary Adjustment | 55–75 mm |
| Focusing System | Coaxial coarse/fine focus with 15 mm travel |
| fine focus graduation | 0.002 mm |
| Condenser | Abbe condenser, NA 1.25, adjustable iris diaphragm |
| Filters | Blue, green, yellow |
| Illumination | 6 V / 20 W halogen or LED lamp, continuously variable brightness |
| Brand | BM |
|---|---|
| Origin | Shanghai, China |

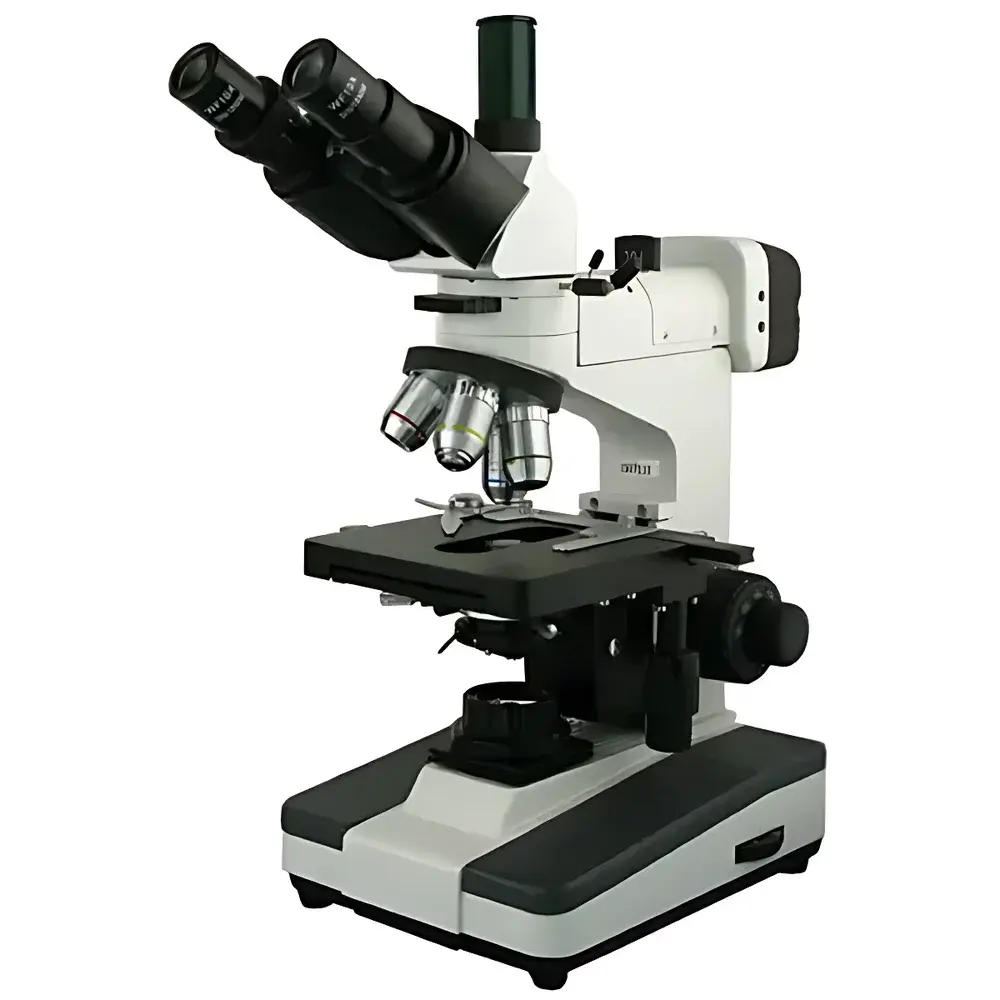

| Model | BM-12 |
| Type | Trinocular Digital Biological Microscope |
| Illumination | Dual-mode (Transmitted & Reflected Halogen, 6V/20W) |
| Eyepiece Port | Trinocular |
| Objective Mount | Standard DIN 4X–100X Oil |
| Condenser | NA 1.25 Abbe with Iris Diaphragm & Centering Mechanism |
| Focusing | Coaxial Coarse/Fine Adjustment (Fine Graduation: 2 µm) |
| Stage | Dual-layer Mechanical Stage (140 × 140 mm, 75 × 40 mm Travel) |
| Polarizer System | Rotatable Analyzer (0–360°), Removable Polarizer & Analyzer |
| Filters | Insert-type Green/Blue/Yellow |
| Brand | BM |
|---|---|
| Origin | Shanghai, China |
| Microscope Type | Upright Biological Microscope |
| Optical Design | UIS Infinite Optical System |
| Eyepiece Configuration | Binocular, 30° Inclined, 360° Rotatable Head |
| Eyepieces | Widefield 10×/Φ22 mm and 16×/Φ15 mm |
| Objectives | Infinity-Corrected Achromatic Plan Objectives (4×/0.10, 10×/0.25, 40×/0.65, 100× oil/1.25) |
| Mechanical Tube Length | 160 mm |
| Total Magnification Range | 40×–1600× |
| Stage | Mechanical XY Translation Platform (175 × 150 mm, 80 × 50 mm Travel, 0.1 mm Vernier Scale) |
| Interpupillary Adjustment | 55–75 mm |
| Focus Mechanism | Coaxial Coarse/Fine Focus (30 mm Travel, Fine Focus Graduation: 2 µm) |
| Condenser | Abbe Condenser, N.A. 1.25, Centerable, with Iris Diaphragm |
| Filters | Blue, Green, Yellow |
| Illumination | 6 V / 20 W Halogen Lamp, Continuously Variable Brightness Control |
