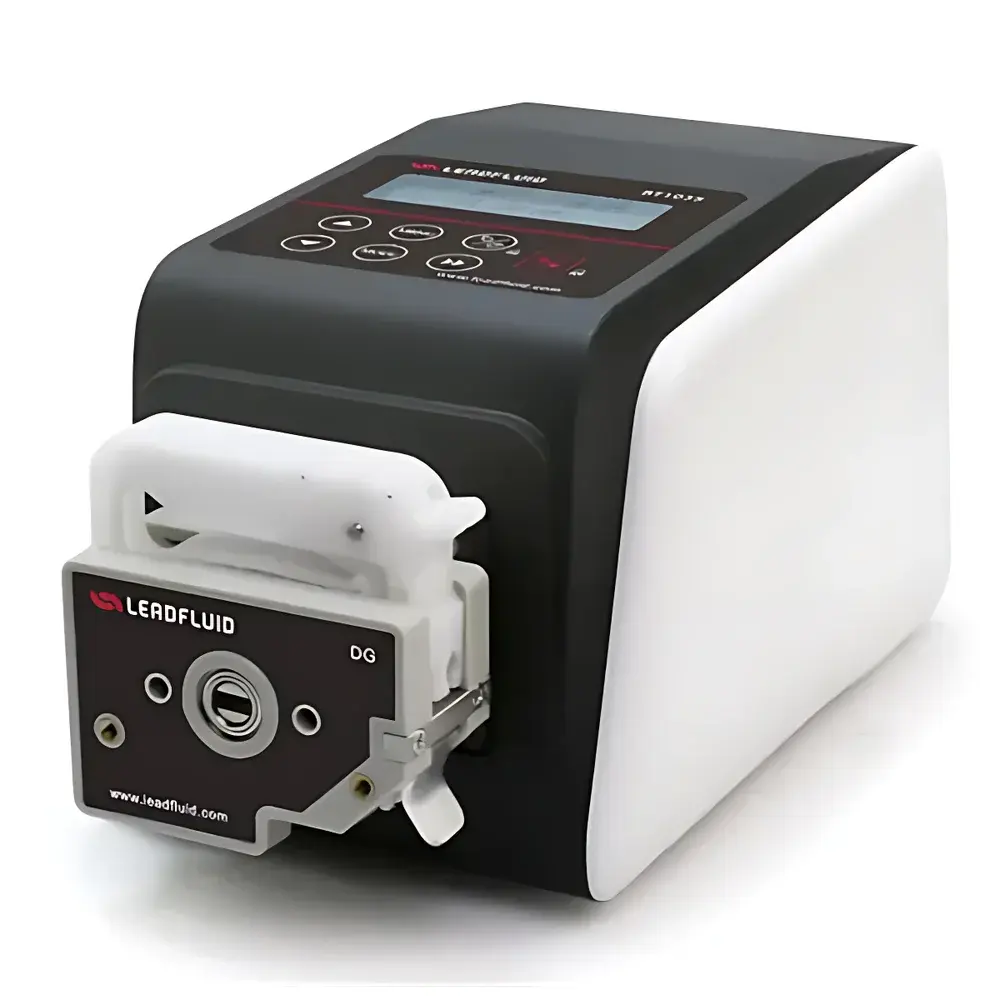

| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | BT103S |
| Flow Rate Range | 0.00011–500 mL/min |
| Speed Range | 0.1–100.0 rpm |
| Speed Resolution | 0.1 rpm |
| Speed Accuracy | < ±0.2% |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | < 30 W |
| Operating Temperature | 0–40 °C |
| Relative Humidity | < 80% RH |
| Dimensions (L×W×H) | 235 × 140 × 145 mm |
| Weight | 2.8 kg |
| Protection Rating | IP31 |
| Communication Interface | RS485, Modbus RTU protocol compliant |
| External Control | Digital I/O (5–24 V), Analog Input (0–5 V / 0–10 V / 4–20 mA configurable) |
| Optional Features | Occlusion alarm, leak detection, thermal printer interface, mobile app remote control (via LeadFluid APP) |
| Brand | WIGGENS |
|---|---|
| Origin | Shanghai, China |
| Model | A410 |
| Pump Type | Dual-Stage Diaphragm Pump |
| Ultimate Vacuum | ≤13 mbar |
| Flow Rate | ≤25 L/min |
| Motor Speed | 1450 rpm |
| Dimensions (W×D×H) | 230 × 155 × 173 mm |
| Weight | 4.5 kg |
| Rated Power | 95 W |
| Noise Level | 50 dB(A) |
| Power Supply | 220–240 V / 50 Hz |
| Inlet/Outlet Port | 10 mm ID |
| Protection | Thermal Overload Cut-Off |
| Brand | LabTech |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | VAC-PTFE Series |
| Pricing | Available Upon Request |
| Lubrication | Oil-Free Mechanical Design |
| Diaphragm Material | Monolithic PTFE (One-Piece Molded) |
| Diaphragm Thickness | Enhanced for Extended Duty Cycle |
| Construction | Corrosion-Resistant Coated Housing & Internals |
| Noise Level | <52 dB(A) |
| Vibration | Low-Amplitude Balanced Drive |
| Vacuum Range Options | -0.08 MPa to -0.098 MPa (adjustable by model variant) |
| Air Displacement | High-Capacity Dual-Head Diaphragm Configuration |
| Compatibility | Suitable for Aqueous, Organic, Acidic, and Particle-Laden Filtrates |

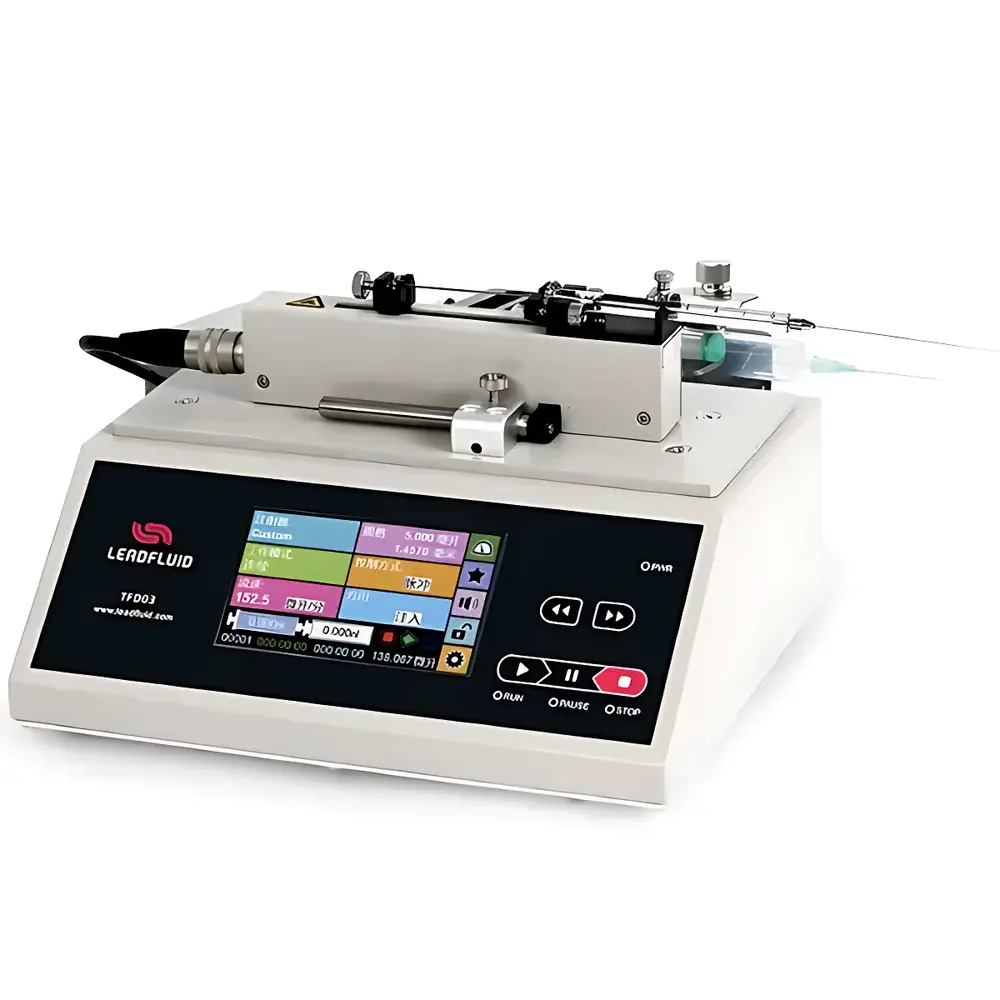

| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | TFD03-01 |
| Pump Type | Micro-syringe Pump |
| Flow Rate Range | 0.005 nL/min to 152.456 µL/min |
| Accuracy | < ±0.5% |
| Repeatability | < ±0.5% |
| Stroke Resolution | 0.1905 µm/µstep |
| Max Stroke | 70 mm |
| Linear Force | >1 kgf |
| Operating Voltage | AC 100–240 V, 50/60 Hz |
| Communication Interface | RS485, Modbus RTU Protocol |
| Display | 4.3-inch Color TFT Touchscreen |
| Control Modes | Infuse, Withdraw, Infuse-Then-Withdraw, Withdraw-Then-Infuse, Continuous Cycle |
| Syringe Compatibility | 0.5 µL to 100 µL (preloaded OEM profiles + custom ID input) |
| Environmental Rating | 5–40 °C, RH <80% |
| Power Input | Wide-range universal AC input |
| Status Outputs | 2 isolated digital outputs (Run/Stop and Direction) |
| Input Triggers | Two falling-edge digital inputs for Start and Stop control |
| Backlight Adjustment | Yes |
| Keypad Lock & Mute | Yes |
| Parameter Retention | Non-volatile memory with power-loss recovery |

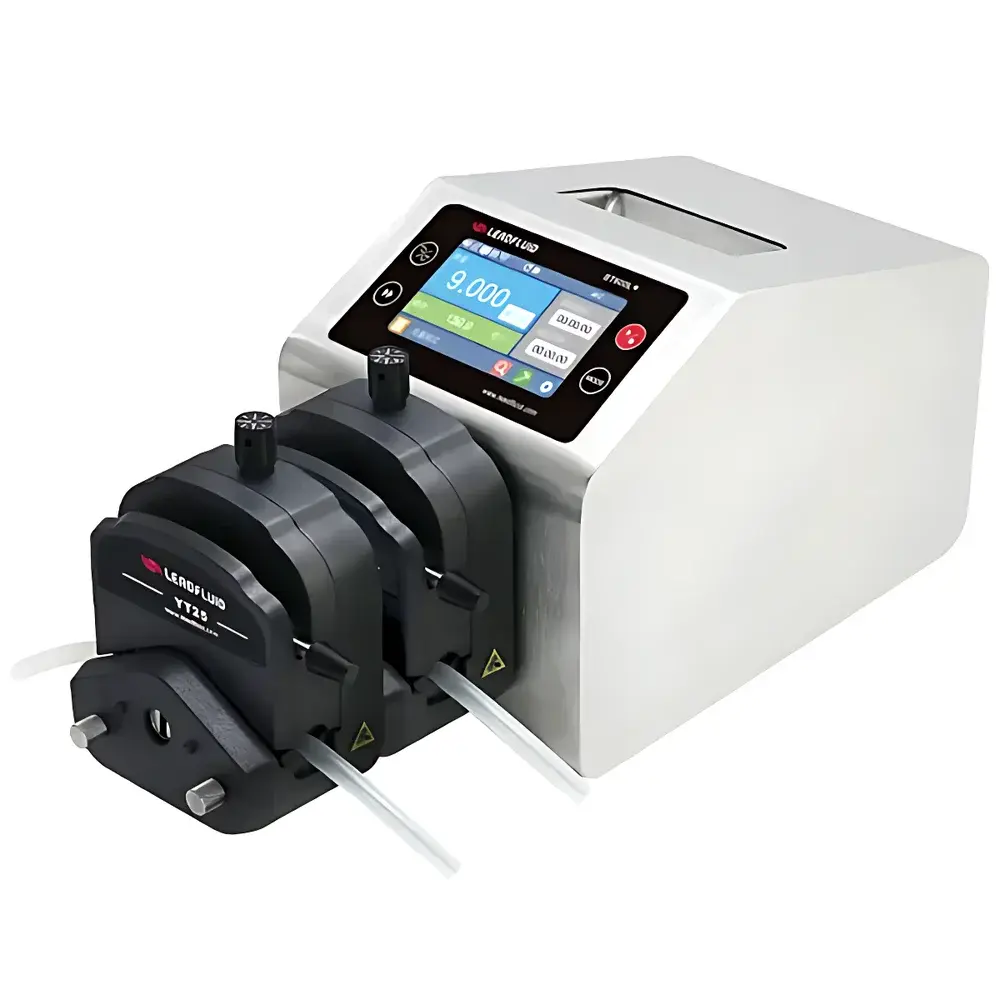

| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | BT600L |
| Instrument Type | Peristaltic Pump |
| Flow Rate Range | 0.005–3000 mL/min |
| Speed Range | 0.1–600 rpm |
| Speed Resolution | 0.1 rpm |
| Speed Accuracy | < ±0.2% |
| Operating Time Range | 0.10–99.99 s/min/h (selectable unit) |
| Interval Time Range | 0.1–999.9 s/min/h (selectable unit) |
| Cycle Count | 1–999 (0 = continuous) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | < 60 W |
| Ambient Operating Conditions | 0–40 °C, RH < 80% |
| Dimensions (L×W×H) | 292 × 160 × 183 mm |
| Enclosure Rating | IP31 |
| Weight | 4.5 kg |
| Delayed Start & Timed Stop | 1 s – 999 h 59 min 59 s |
| Analog Output | 0–5 V (speed status) |
| Digital Interface | RS485, Modbus RTU compliant |
| External Control Input | Start/Stop, Direction (5–24 V logic), Analog 0–5 V / 0–10 V / 4–20 mA configurable |
| Isolated I/O | Yes |
| PCB Protection | Conformal coating (3-layer spray) |
| Thermal Management | Adaptive fan control |
| Housing Material | Stainless steel (304) |
| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | BQ80S |
| Flow Rate Range | 0.0035–34 mL/min |
| Speed Range | 0.1–80 rpm |
| Speed Resolution | 0.1 rpm |
| Speed Accuracy | < ±0.2% |
| Operating Time Range | 0.1 s to 999 days |
| Interval Time Range | 0.1 s to 999 days |
| Dispense Count | 1–999 cycles (0 = continuous) |
| External Control Inputs | Dry-contact or 5–24 V level for start/stop & direction |
| Communication Interface | RS485, Modbus RTU protocol |
| Power Supply | AC 100–240 V, 50/60 Hz (with adapter) |
| Power Consumption | <10 W |
| Noise Level | ≤60 dB(A) |
| Operating Environment | 0–40 °C, RH <80% |
| Enclosure Dimensions (DW10-1) | 152 × 112 × 107 mm |
| Enclosure Dimensions (DW10-3) | 164 × 112 × 107 mm |
| Ingress Protection | IP31 |
| Compatible Pump Heads | DW10-1 (single-channel), DW10-3 (triple-channel) |
| Tubing Compatibility | Wall thickness 0.8–1.0 mm, ID ≤3.17 mm |

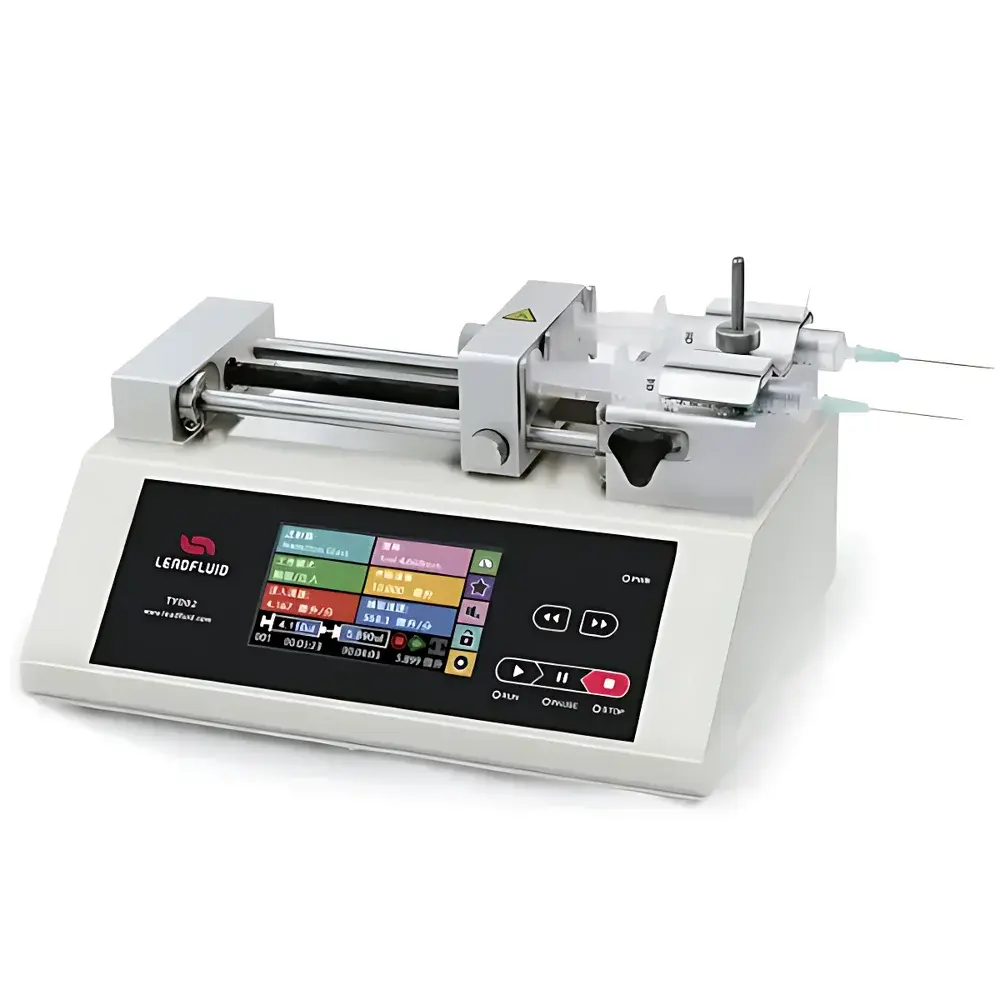

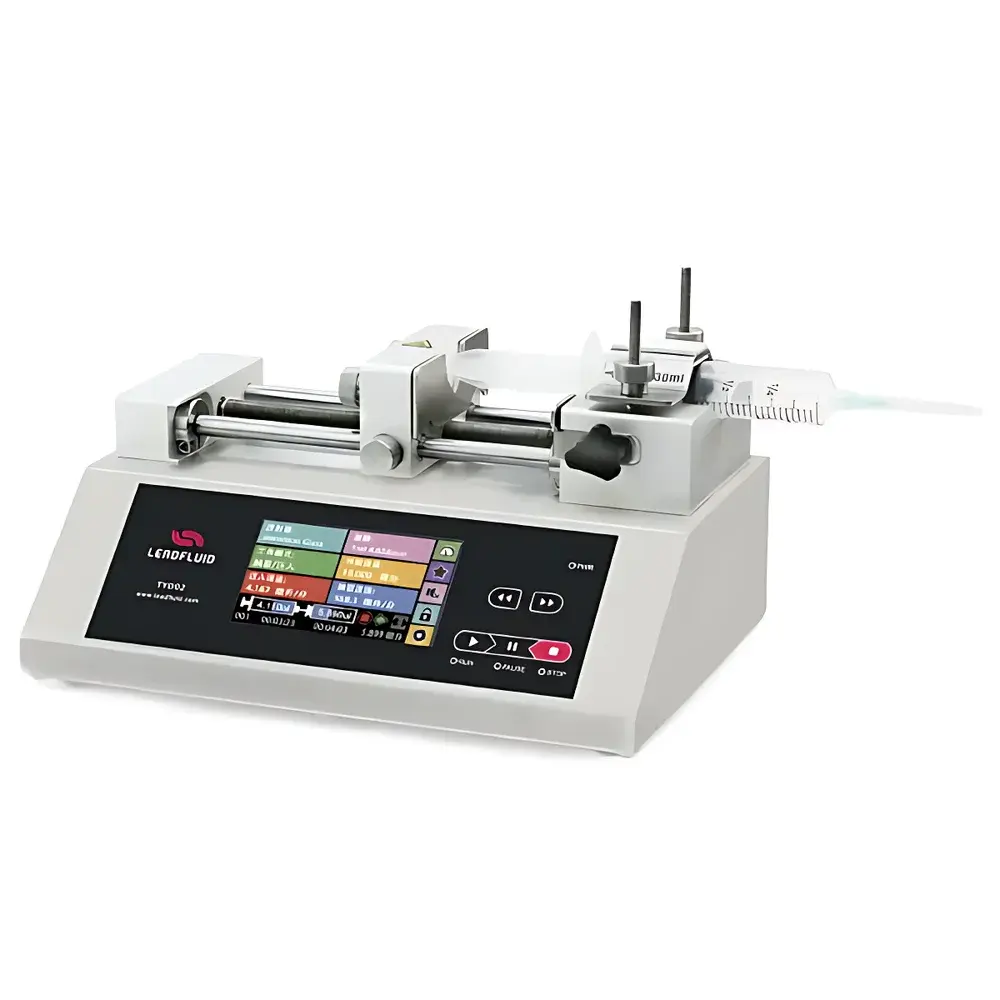

| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | TYD02-02 |
| Instrument Type | Microfluidic Syringe Pump |
| Flow Rate | 0.184 nL/min to 173.718 mL/min |
| Accuracy | < ±0.35% |
| Repeatability | < ±0.35% |
| Stroke | 140 mm |
| Linear Force | >20 kgf |
| Stroke Resolution | 0.156 µm/µstep |
| Syringe Capacity Range | 10 µL to 140 mL |
| Line Speed Range | 1 µm/min to 150 mm/min |
| Control Interface | RS485 (Modbus RTU) |
| Power Input | AC 100–240 V, 50/60 Hz |
| Dimensions | 290 × 205 × 180 mm |
| Weight | 4.4 kg |

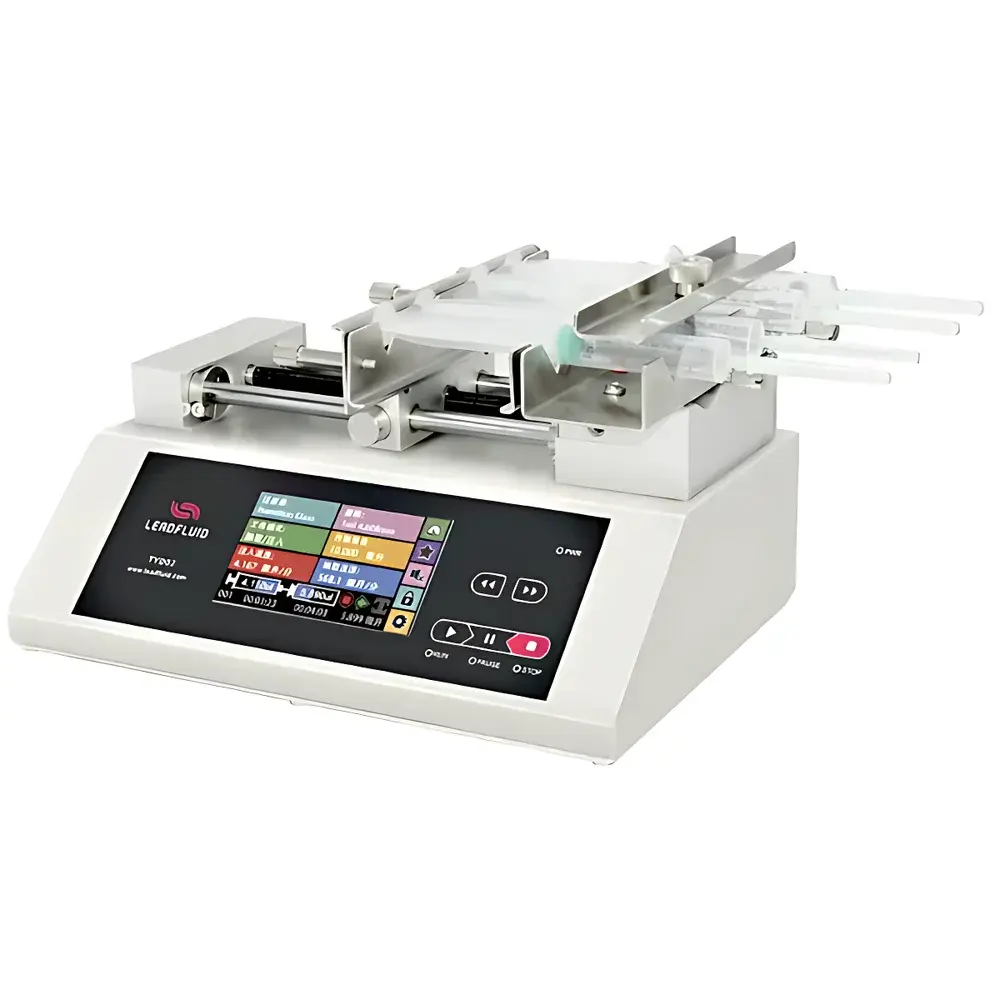

| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | TYD02-04 |
| Instrument Type | Micro-syringe Pump |
| Flow Rate Range | 0.001 µL/min to 200 mL/min |
| Accuracy | ≤ ±0.5% |
| Repeatability | ≤ 0.1% |
| Syringe Capacity Support | 10 µL – 10 mL |
| Display | 4.3-inch HD capacitive touchscreen |
| Communication Interface | RS485 with Modbus RTU protocol |
| Mechanical Precision (Stroke Control) | < ±0.35% |
| Bearing System | High-strength aerospace-grade angular contact bearings |
| EMI Resistance | Rated for continuous operation in high-voltage electrostatic fields |
| Power Input | Wide-range AC/DC input |
| Enclosure | All-metal housing with anti-static and corrosion-resistant coating |

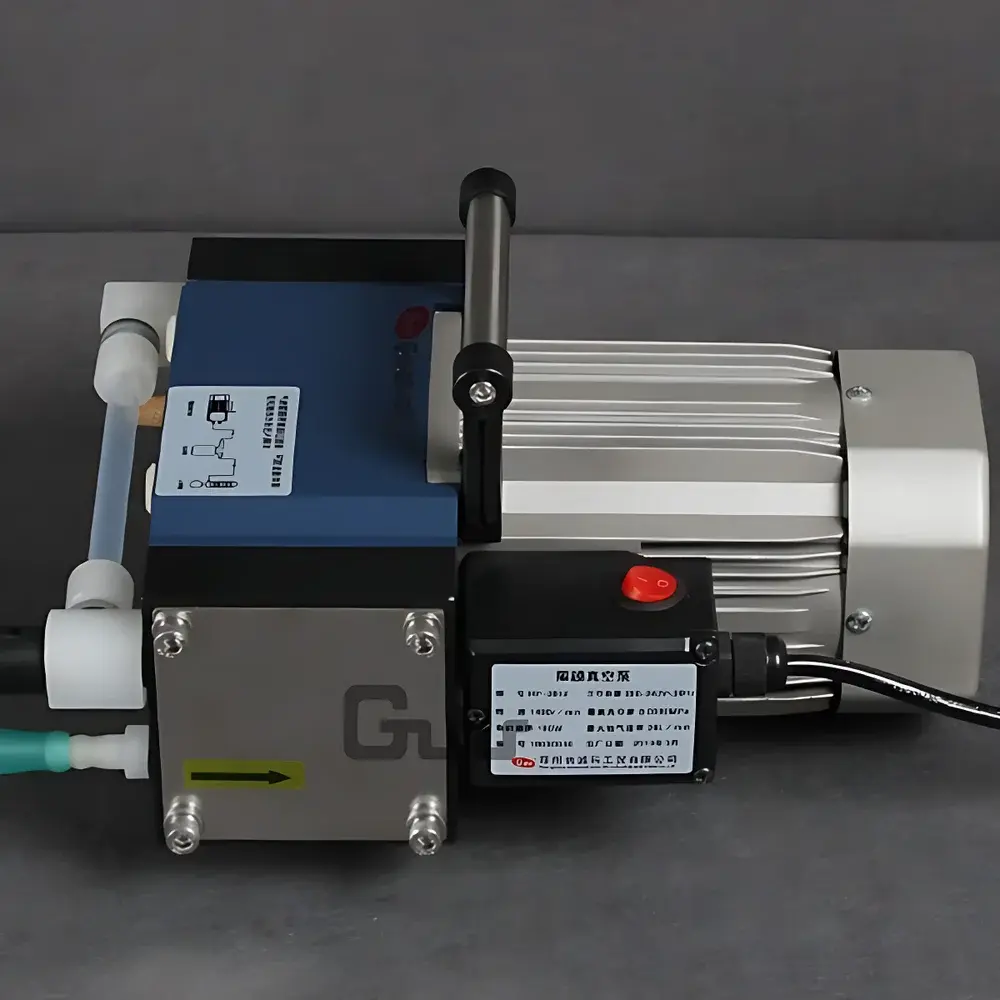

| Brand | Great Wall |
|---|---|
| Origin | Henan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | MP-201Z |
| Instrument Type | Diaphragm Vacuum Pump |
| Product Type | Oil-Free Vacuum Pump |
| Ultimate Vacuum | 8 mbar (0.0992 MPa) |
| Pumping Speed | 25 L/min |
| Motor Power | 180 W |
| Input Voltage/Frequency | 220–240 V~, 50 Hz |
| Motor Speed | 1300 rpm |
| Inlet Port Diameter | Ø6 mm |
| Dimensions (W×D×H) | 300 × 230 × 170 mm |
| Net Weight | 10 kg |
| Construction Material (Gas-Wetted Parts) | PTFE-coated or PTFE-molded components |
| Thermal Performance | Low-temperature-rise motor design |
| Durability | Validated for >1500 hours continuous operation under rated load |

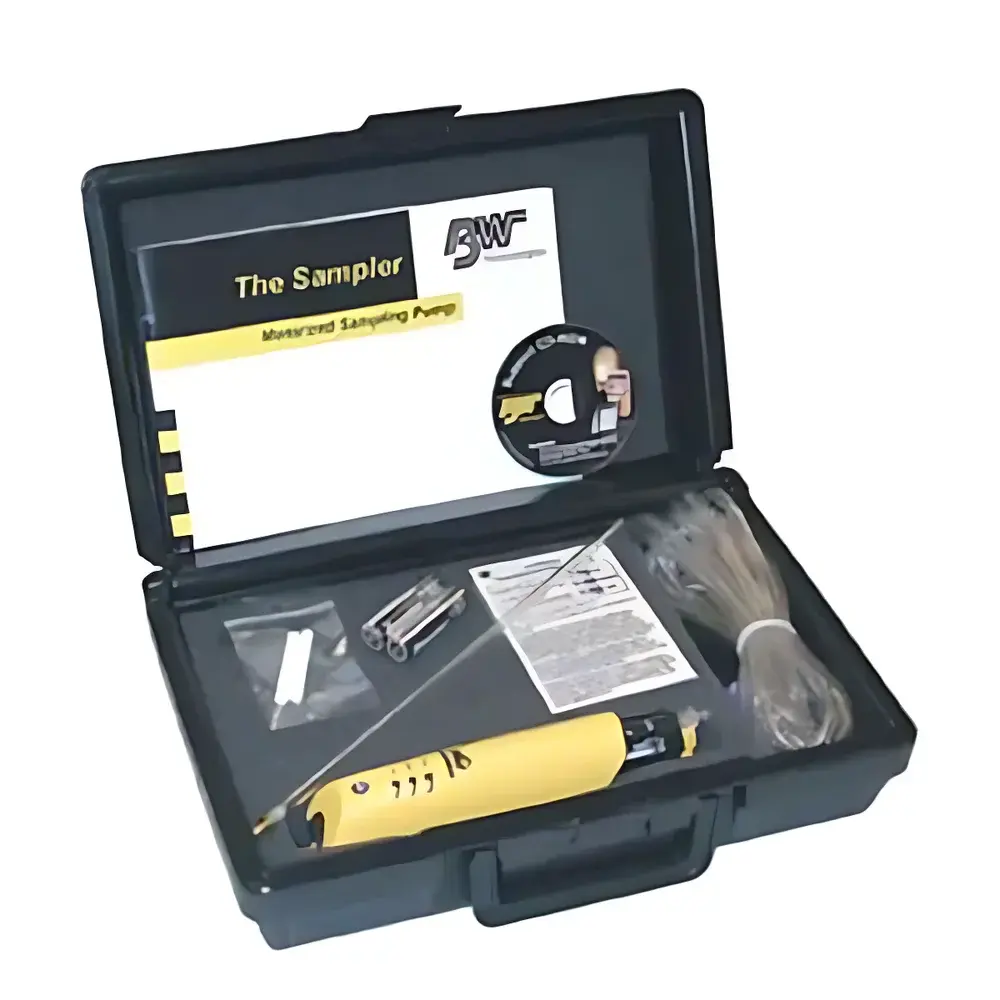

| Brand | BW |
|---|---|
| Origin | Canada |
| Model | GA-SPAKv |
| Dimensions | 18.8 × 3.35 × 5.4 cm |
| Weight | 175 g |
| Operating Temperature | –20 to +50 °C (North American mode) |
| Relative Humidity | 5–95% RH (non-condensing) |
| Sampling Flow Rate | 300 mL/min (typical) |
| Maximum Sampling Distance | 15.2 m (50 ft) |
| Sampling Delay | 3 s per 0.3 m (1 ft) |
| Power Source | Two AA alkaline or NiMH rechargeable batteries (up to 30 h runtime) |
| Inlet Connection | 1/8″ (3.2 mm) barb for flexible tubing |
| Audible/Visual Alarms | 90 dB sounder |
| Compliance | Designed for use with BW Technologies single- and multi-gas detectors in accordance with OSHA 1910.146, CSA Z1000, and ATEX/IECEx-certified accessories (when paired with certified gas monitors) |

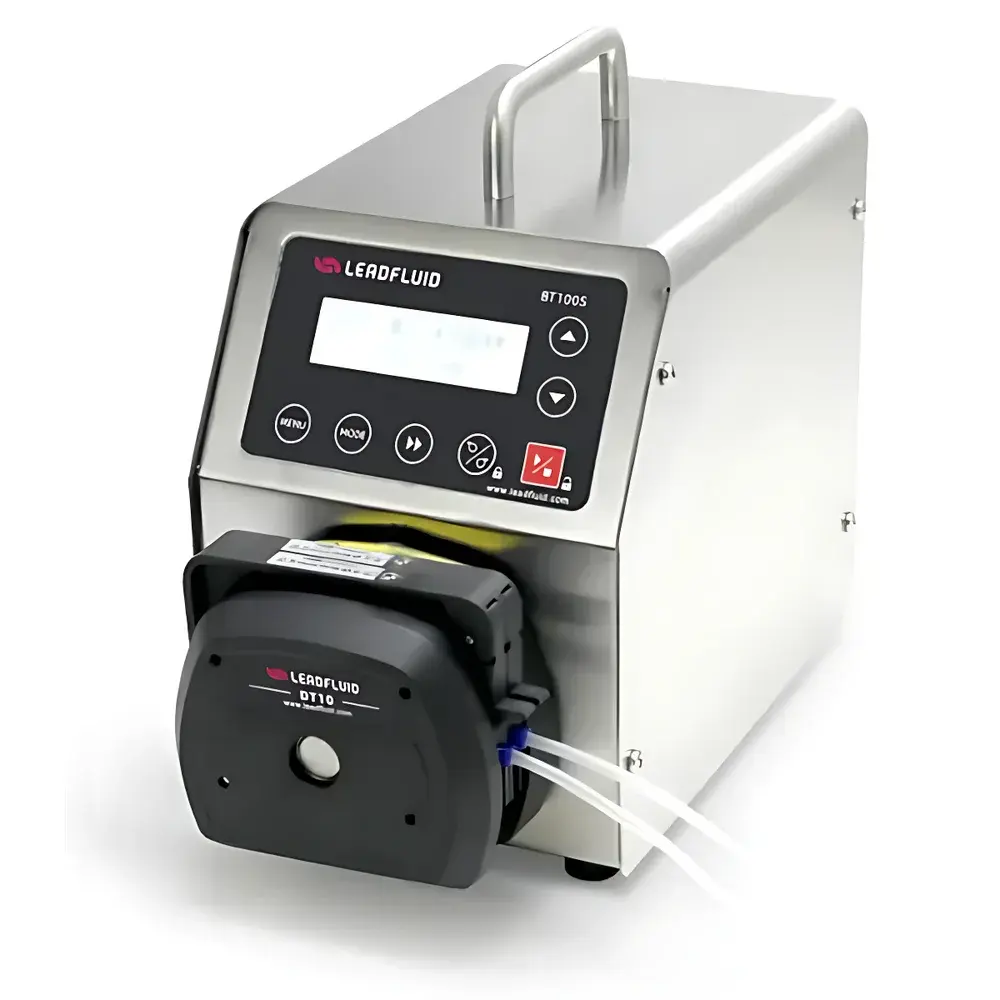

| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | BT100S |
| Flow Rate Range | 0.00011–750 mL/min |
| Speed Range | 0.1–150 rpm |
| Speed Resolution | 0.1 rpm (≤100 rpm), 1 rpm (>100 rpm) |
| Speed Accuracy | < ±0.2% |
| Operating Time Setting | 0.1 s to 999 days (adjustable unit) |
| Interval Time Setting | 0.1 s to 999 days (adjustable unit) |
| Cycle Count | 1–999 cycles (0 = continuous) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | < 40 W |
| Ambient Temperature | 0–40 °C |
| Relative Humidity | < 80% |
| Dimensions (L×W×H) | 261 × 150 × 237 mm |
| Enclosure Material | Stainless Steel 304 |
| Protection Rating | IP31 |
| Weight | 3.5 kg |
| Communication Interface | RS485, Modbus RTU protocol |
| External Control Inputs | Opto-isolated digital signals (5–24 V), analog inputs (0–5 V / 0–10 V / 4–20 mA) |
| External Status Outputs | Start/Stop, Forward/Reverse logic-level signals |
| Software Compatibility | LF-LCD-OS firmware with bilingual (EN/CN) UI, LeadFluid Mobile App (optional) |
| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |

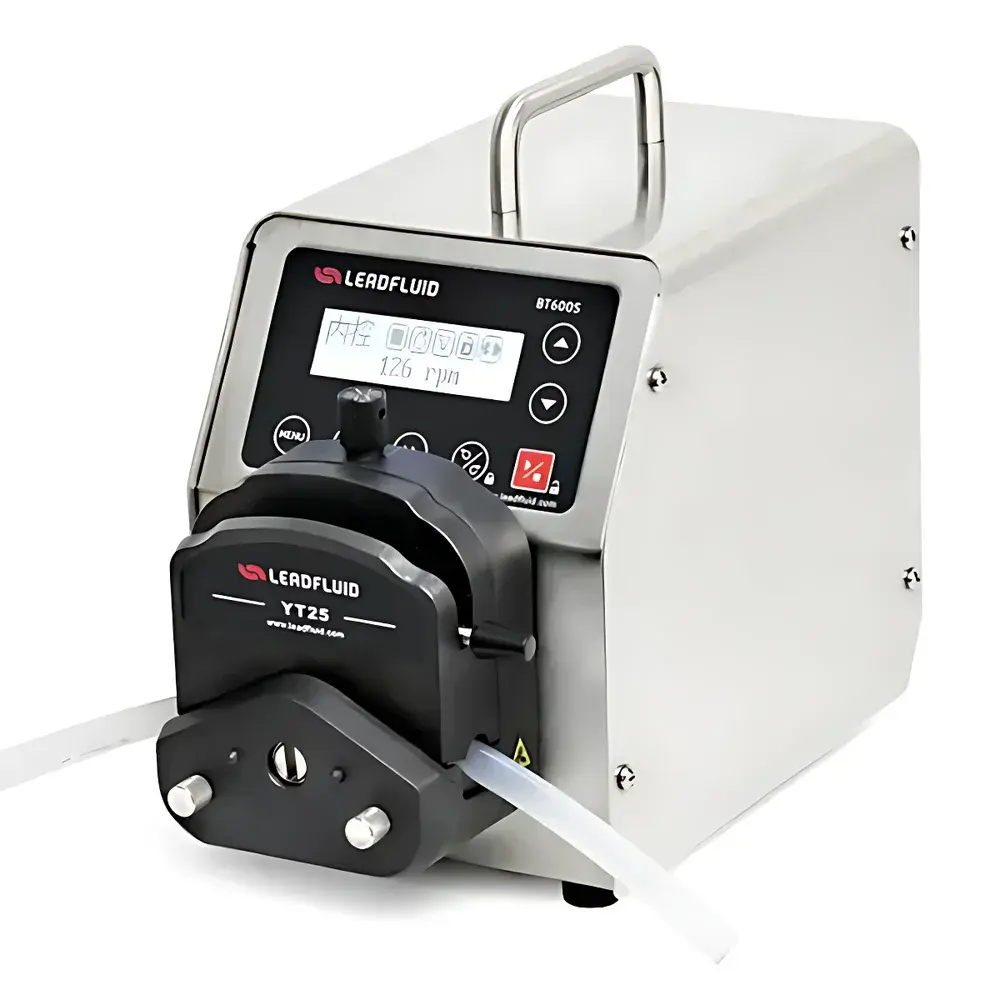

| Model | BT600S |
| Pump Type | Peristaltic Pump |
| Flow Rate Range | 0.005–3000 mL/min |
| Speed Range | 0.1–600 rpm |
| Speed Resolution | 0.1 rpm (≤100 rpm), 1 rpm (>100 rpm) |
| Speed Accuracy | < ±0.2% |
| Operating Time & Interval Range | 0.1–999 s/min/h/d (unit-selectable) |
| Cycle Count | 1–999 (0 = continuous) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | <60 W |
| Dimensions (L×W×H) | 261 × 150 × 237 mm |
| Weight | 4.3 kg |
| Enclosure Material | Stainless Steel 304 |
| Protection Rating | IP31 |
| Communication Interface | RS485 (Modbus RTU compatible) |
| External Control | Digital I/O (opto-isolated), Analog Input (0–5 V / 0–10 V / 4–20 mA configurable) |
| Output Signals | Run/Stop, Direction status |
| Operating Environment | 0–40 °C, RH <80% |

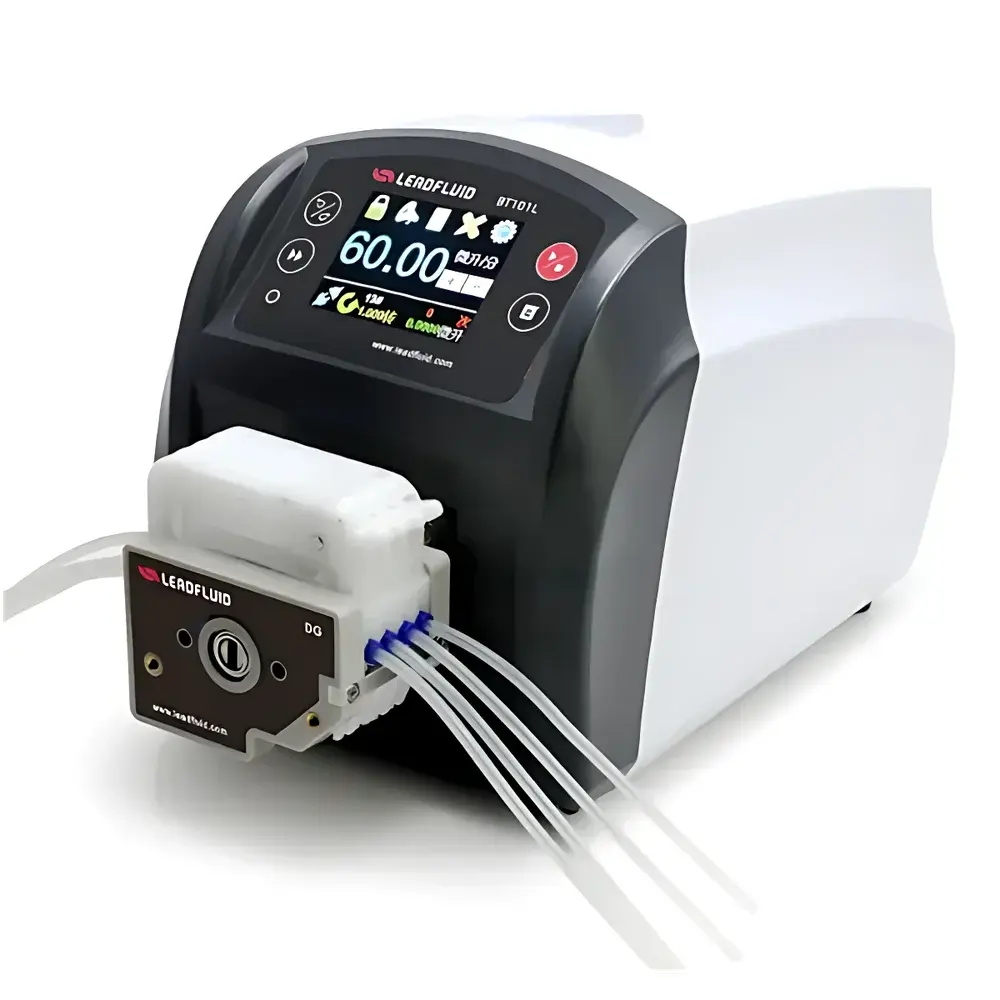

| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | BT101L |
| Pump Type | Peristaltic Pump |
| Flow Rate Range | 0.00011–750 mL/min |
| Speed Range | 0.1–150 rpm |
| Speed Resolution | 0.1 rpm |
| Speed Accuracy | < ±0.2% |
| Communication Interface | RS485 (Modbus RTU compatible) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | < 30 W |
| Operating Temperature | 0–40 °C |
| Relative Humidity | < 80% RH |
| Dimensions (L×W×H) | 258 × 180 × 197 mm |
| Weight | 3.6 kg |
| Ingress Protection | IP31 |
| External Control | TTL-level digital input (5 V / 12 V standard, 24 V optional), analog speed control (0–5 V standard, 0–10 V / 4–20 mA optional) |
| Enclosure Material | ABS engineering plastic |
| Isolation Design | Dual-layer circuit isolation with conformal coating |

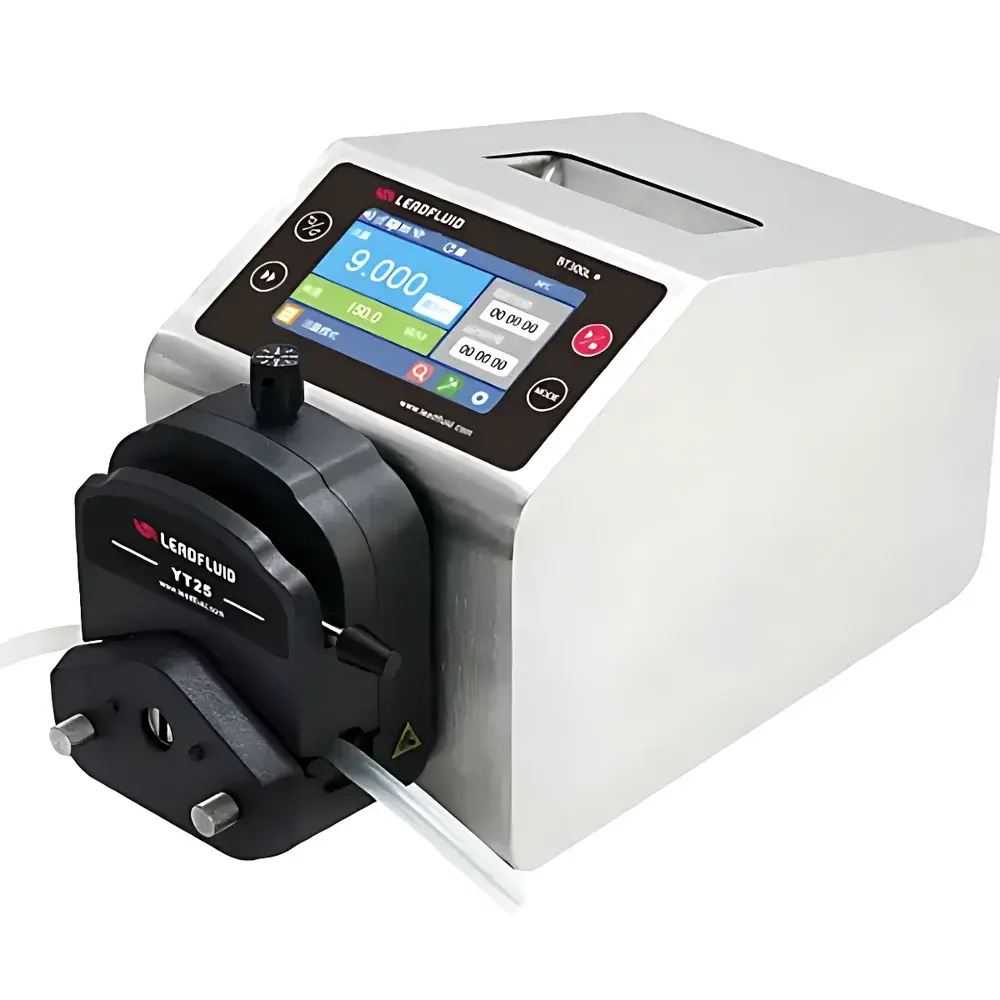

| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | BT300L |
| Flow Rate Range | 0.005–1750 mL/min |
| Speed Range | 0.1–350 rpm |
| Speed Resolution | 0.1 rpm |
| Speed Accuracy | < ±0.2% |
| Operating Temperature | 0–40 °C |
| Relative Humidity | < 80% |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | < 50 W |
| Dimensions (L×W×H) | 292 × 160 × 183 mm |
| Weight | 4.5 kg |
| Protection Rating | IP31 |
| Communication | RS485 (Modbus RTU), DB15 external I/O interface, WiFi (via LeadFluid APP) |
| Control Inputs | Digital (5–24 V), Analog (0–5 V / 0–10 V / 4–20 mA) |
| External Signal Isolation | Galvanically isolated |

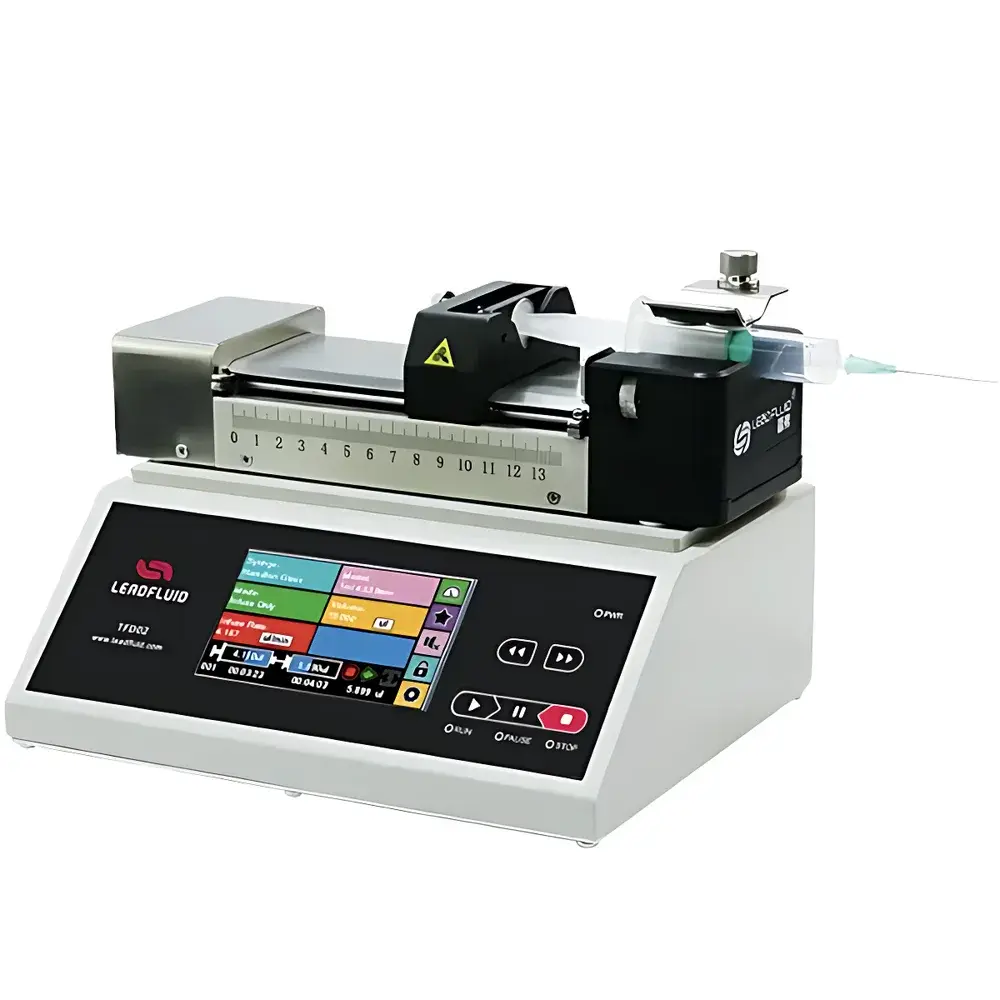

| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | TFD02-01 |
| Pump Type | Micro-syringe Pump |
| Flow Rate | 0.184 nL/min to 83.318 mL/min |
| Accuracy | < ±0.35% |
| Repeatability | < ±0.35% |
| Stroke | 110 mm |
| Linear Force | >10 kgf |
| Stroke Resolution | 0.156 µm/µstep |
| Speed Range | 1 µm/min to 150 mm/min |
| Syringe Capacity | 10 µL to 60 mL |
| Communication | RS485, Modbus RTU |
| Power Input | AC 100–240 V, 50/60 Hz |
| Operating Temperature | 5–40 °C, RH <80% |
| Weight | 2.0 kg (controller) + 1.8 kg (drive unit) |

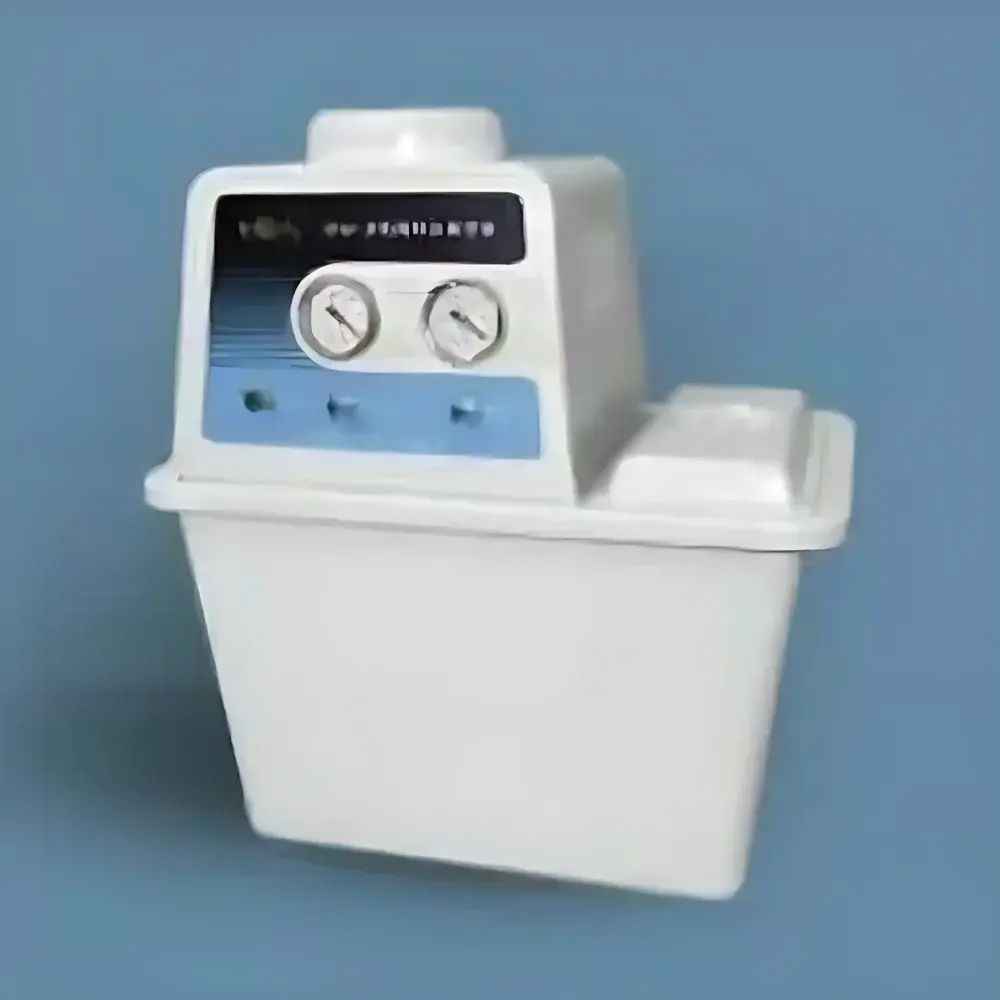

| Brand | The Great Wall |
|---|---|
| Origin | Shanghai, China |
| Model | SHB-III |
| Pump Type | Water-Circulating Vacuum Pump |
| Oil-Free Design | Yes |
| Air Displacement Rate | 10 L/min |
| Ultimate Vacuum | 0.098 MPa (20 mbar) |
| Dimensions (W×D×H) | 385 × 280 × 420 mm |
| Weight | 9.5 kg |
| Motor Power | 180 W |
| Water Tank Capacity | 15 L |
| Operating Temperature Range | 5–35 °C |
| Relative Humidity Limit | ≤70% |
| IP Rating | IP20 |
| Dual Vacuum Ports | Yes |
| Integrated Check Valve | Yes |
| Motor Shaft Material | 304 Stainless Steel |
| Sealing Material | Fluoroelastomer (FKM) |
| Fluid Silencer | Integrated |
| Water Reuse System | Closed-loop Circulation |
| Brand | LeadFluid |
|---|---|
| Model | TGD01 |
| Type | Microfluidic Syringe Pump |
| Flow Rate Range | 0.001 µL/min to 215 mL/min |
| Accuracy | ≤ ±0.35% (when stroke > 30% of max) |
| Repeatability | ≤ 0.1% |
| Maximum Linear Force | 91 kg |
| Stroke | 140 mm |
| Stroke Resolution | 0.156 µm/µstep |
| Push Speed | 1 µm/min to 190 mm/min |
| Injector Capacity | 0.5 µL to 140 mL |
| Display | 4.3" color LCD with real-time animation |
| Control Interface | Touchscreen + dedicated function keys |
| Communication | RS485, Modbus RTU protocol |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Operating Environment | 5–40 °C, RH < 80% |
| Enclosure Rating | IP31 |
| Weight | 6.6 kg |
| Dimensions | 305 × 222 × 190 mm |
| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | YD02-01 |
| Pump Type | Microfluidic Syringe Pump |
| Flow Rate Range | 0.001 µL/min – 100 mL/min |
| Accuracy | ≤ ±0.5% |
| Repeatability | ≤ 0.1% |
| Stroke | 140 mm |
| Linear Force | >20 kgf |
| Stroke Resolution | 0.156 µm/µstep |
| Speed Range | 1 µm/min – 150 mm/min |
| Syringe Capacity | 10 µL – 140 mL |
| Display | 4.3-inch Color TFT Touchscreen |
| Communication | RS485, MODBUS RTU Protocol |
| Power Input | AC 100–240 V, 50/60 Hz |
| Dimensions (W×D×H) | 290 × 205 × 180 mm |
| Weight | 4.4 kg |
| Operating Environment | 5–40 °C, <80% RH |
| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | TYD03-01 |
| Instrument Type | Micro-syringe Pump |
| Flow Rate | 0.037 nL/min to 16.663 mL/min |
| Accuracy | < ±0.35% |
| Repeatability | < ±0.35% |
| Stroke | 110 mm |
| Linear Force Range | 1–100% adjustable (≥16 kgf rated) |
| Syringe Capacity | 10 µL to 60 mL |
| Line Speed | 0.2 µm/min to 30 mm/min |
| Resolution | 0.03125 µm/µstep |
| Communication | RS485, Modbus RTU protocol |
| Power Input | AC 100–240 V, 50/60 Hz |
| Dimensions | 245 × 195 × 140 mm |
| Weight | 3.2 kg |
| Operating Environment | 5–40 °C, RH < 80% |
| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |

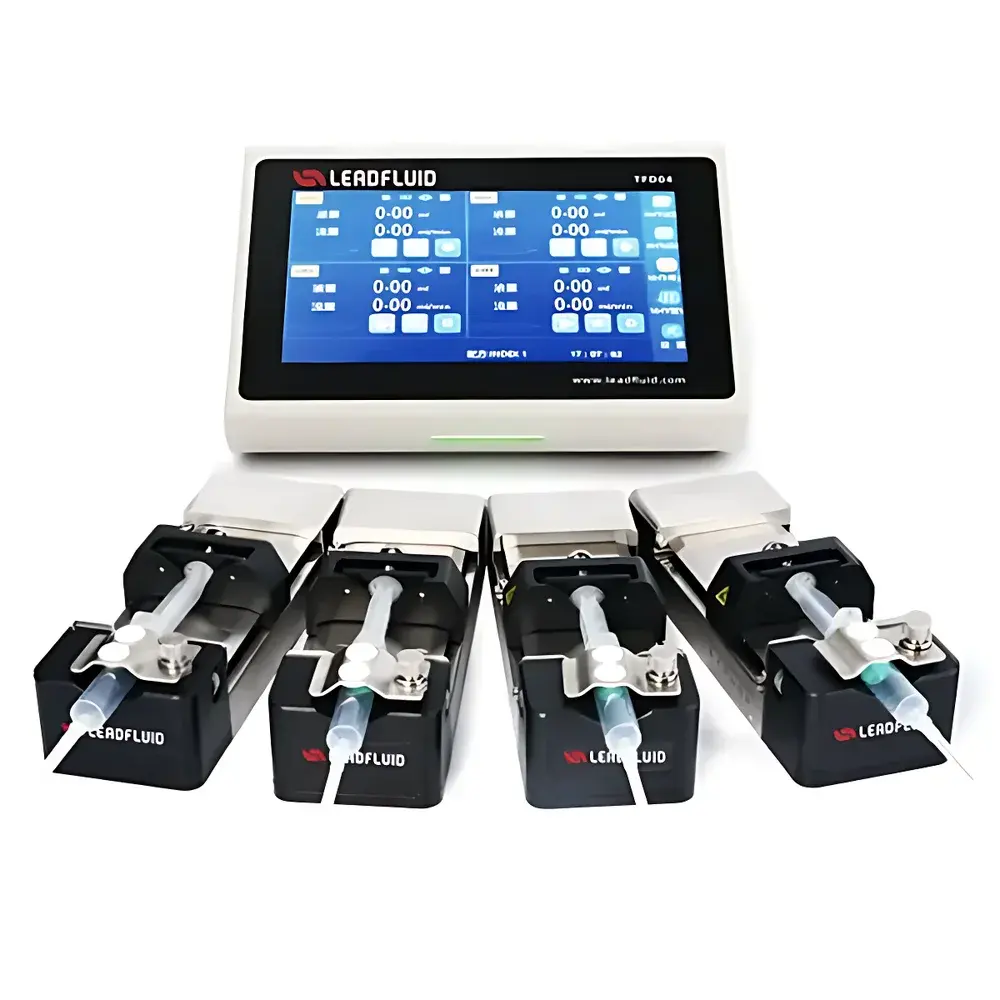

| Model | TFD04 |
| Instrument Type | Micro-volume Syringe Pump |
| Flow Rate Range | 0.184 nL/min – 83.318 mL/min |
| Accuracy | < ±0.5% |
| Repeatability | < ±0.5% |
| Channel Capacity | 1–8 independently controlled channels |
| Syringe Compatibility | 0.5 µL – 60 mL (with interchangeable drive units) |
| Control Interface | 7-inch 65,536-color capacitive touchscreen |
| Communication Protocol | RS485 with Modbus RTU support |
| Input Voltage | AC 100–240 V, 50/60 Hz |
| Operating Temperature | 5–40 °C |
| Relative Humidity | < 80% RH |
| Enclosure | Reinforced metal chassis with corrosion-resistant coating |
| Power Consumption | 40 W (controller) + 30 W per drive unit |
| Dimensions (W×H×D) | 200 × 142 × 88 mm |
| Weight | 2.0 kg (controller only) |
| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |

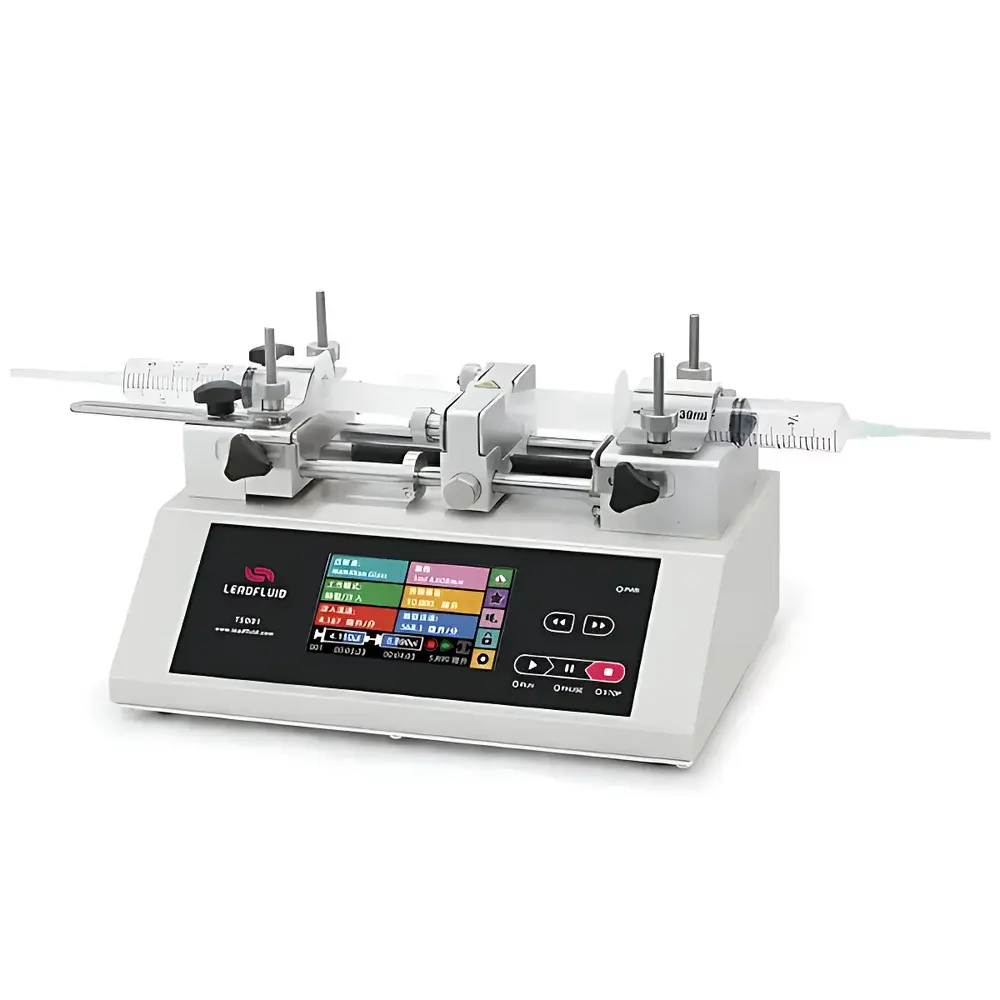

| Model | TSD01-01 |
| Pump Type | Micro-syringe Pump |
| Flow Rate Range | 0.001 µL/min – 100 mL/min |
| Accuracy | ≤ ±0.5% |
| Repeatability | ≤ 0.1% |
| Linear Force | >20 kgf |
| Step Resolution | 0.15625 µm per microstep |
| Travel Speed | 1 µm/min – 150 mm/min |
| Display | 4.3-inch color TFT touchscreen |
| Communication Interface | RS485 (Modbus RTU protocol) |
| Power Input | AC 100–240 V, 50/60 Hz |
| Operating Temperature | 5–40 °C, RH <80% |
| Enclosure | Full-metal, ESD-safe, corrosion-resistant coating |
| Brand | Yarong |
|---|---|
| Origin | Shanghai, China |
| Model | SHZ-III |
| Pump Type | Oil-Free Circulating Water Vacuum Pump |
| Air Displacement (per port) | 10 L/min |
| Maximum Vacuum | 0.098 MPa |
| External Dimensions | 40 × 39 × 45 cm |
| Weight | 10.5 kg |
| Motor Power | 180 W |
| Voltage | 220 V AC / 50 Hz |
| Water Tank Capacity | 15 L |
| Number of Vacuum Ports | 2 |
| Material | PP (polypropylene) housing and impeller |
| Flow Rate | 60 L/min (total system circulation) |
| Lift Height | 8 m |
| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | TYD01-02 |
| Instrument Type | Micro-syringe Pump |
| Flow Rate Range | 0.184 nL/min – 83.318 mL/min |
| Accuracy | < ±0.35% |
| Repeatability | < ±0.35% |
| Brand | LabTech |
|---|---|
| Origin | Beijing, China |
| Pump Type | Diaphragm Vacuum Pump |
| Chemical Resistance | PTFE-Coated Components & Fluoropolymer Wetted Parts |
| Compliance | Suitable for GLP/GMP Environments (Audit-Ready Data Logging Optional) |
| Motor Power | Consult Factory |
| Ultimate Vacuum | Consult Factory |
| Pumping Speed | Consult Factory |
| Dimensions & Weight | Consult Factory |
| Certifications | CE, RoHS, ISO 9001 Manufacturing |
Show next
