| Brand | Supmile |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | KBS-650 |
| Instrument Type | Ultrasonic Cell Disruptor |
| Operating Frequency | 20 kHz |
| Maximum Ultrasonic Power Output | 650 W |
| Adjustable Power Range | 0–100% |
| Sample Volume Capacity | 0.5–500 mL |
| Processing Volume per Cycle | Up to 600 mL |
| Probe Diameter Options | Φ2, Φ3, Φ8 (standard), Φ10, Φ12, Φ15 mm |
| Duty Cycle Adjustment | 1–999 s |
| Timer Range | 0–24 h |
| Transducer Material | TC4 Titanium Alloy |
| Safety Features | Overload Protection, Audible/Visual Alarm, LED Illuminated Touch Interface, Motorized Vertical Probe Positioning with Wireless Remote Control |
| Structural Design | Modular Stackable Assembly (Optional Integrated or Separated Generator–Transducer Configuration) |
| Brand | DLAB |
|---|---|
| Origin | Beijing, China |
| Model | MX-C |
| Temperature Range | 0–60 °C |
| Operating Frequency | 20–25 kHz |
| Ultrasonic Power Output | 0–300 W |
| Sample Volume per Tube | 0.5–50 mL |
| Throughput | 8 samples (max. 2 mL/tube) |
| Vortex Motion | Orbital shaking with 4 mm orbit diameter |
| Speed Range | 0–3000 rpm (adjustable) |
| Power Input | 60 W |
| Voltage | 100–120 V / 200–240 V, 50/60 Hz |
| Dimensions (L×W×H) | 127 × 130 × 160 mm |
| Weight | 2.0 kg |
| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Instrument Type | Ultrasonic Cell Disruptor |
| Model | SCIENTZ-950E |
| Temperature Range | 0–99°C |
| Operating Frequency | 20–25 kHz (auto-tracking & adaptive) |
| Ultrasonic Power Output | 5–950 W (adjustable) |
| Sample Volume Capacity | 100 µL – 600 mL (probe-dependent) |
| Brand | Hechuang |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HC-1500T |
| Instrument Type | Ultrasonic Cell Disruptor |
| Temperature Range | 0–120 °C |
| Operating Frequency | 25 kHz |
| Ultrasonic Power Output | 1500 W |
| Sample Volume Capacity | 0.2–2000 mL |
| Control Interface | 7-inch capacitive touchscreen |
| Pulse Mode | Adjustable from 0.1 s to 999.9 s (on/off) |
| Amplitude Compensation | Auto-compensated |
| Transducer Material | PZT ceramic (lead zirconate titanate) |
| Probe Material | ASTM-grade TC4 titanium alloy (Ti-6Al-4V) |
| Standard Probe Diameter | 15 mm (optional: 8/10/12/20 mm) |
| Integrated Cooling Compatibility | Yes |
| Enclosure | Powder-coated steel frame with polymer housing |
| Dimensions (W×D×H) | 350 × 300 × 500 mm |
| Built-in Stainless Steel Vertical Stage | Yes |
| Brand | Hechuang |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | HC-2000E |
| Instrument Type | Ultrasonic Cell Disruptor |
| Temperature Range | 0–120 °C |
| Operating Frequency | 20–25 kHz |
| Ultrasonic Power Output | 2000 W |
| Sample Volume Capacity | 0.2–2000 mL |
| Control Interface | 7-inch capacitive touchscreen |
| Pulse Mode Timing | 0.1 s to 999 min (on/off cycles independently configurable) |
| Probe Material | ASTM F136 TC4 titanium alloy |
| Transducer | PZT-4 piezoelectric ceramic (CV33-grade) |
| Amplitude Adjustment | 0–100% continuous |
| Real-time Display | Amplitude %, frequency (Hz), cumulative operating time, temperature (if external probe connected) |
| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |

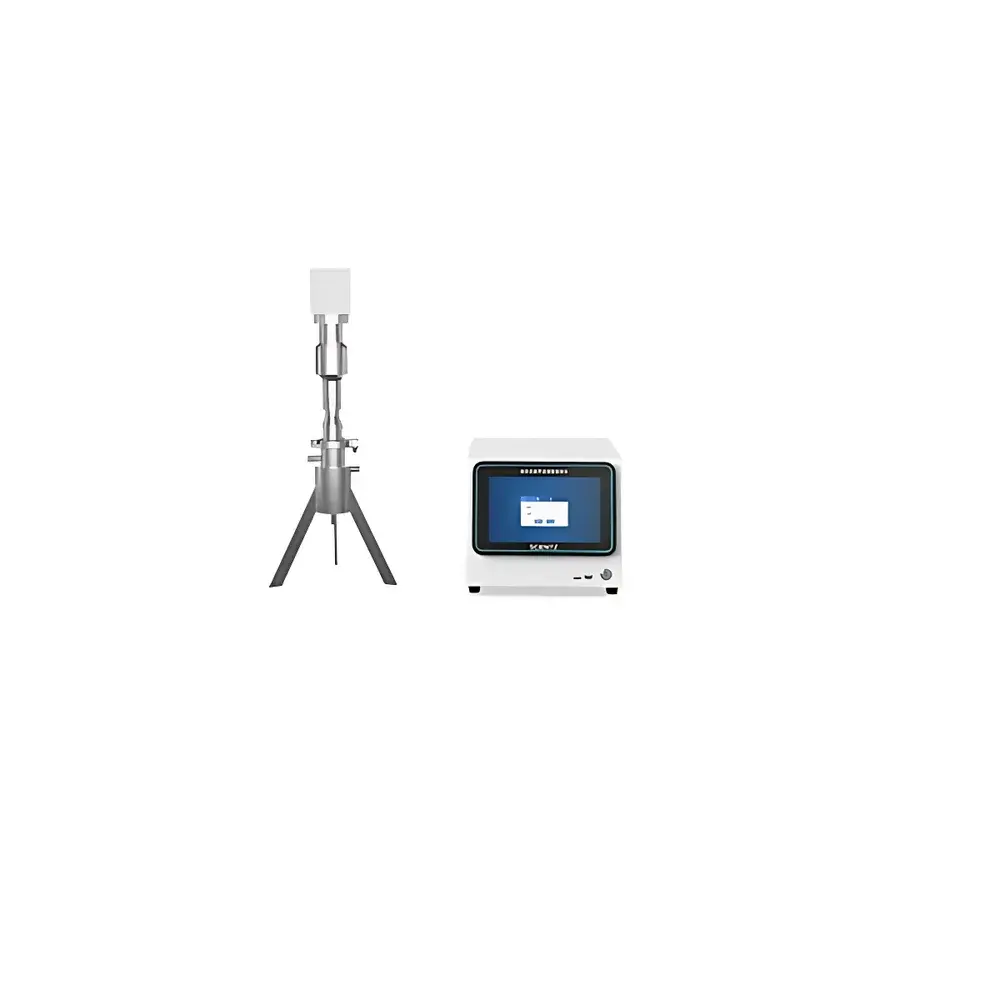

| Model | CFU-750W-M1 |
| Instrument Type | Ultrasonic Cell Disruptor |
| Operating Frequency | 20 kHz ± 1 kHz |
| Ultrasonic Power Output | 750 W |
| Temperature Control Range | −30 °C to 100 °C |
| Sample Throughput | 1–50 L/h |
| Reactor Material | SUS316 Stainless Steel |
| Transducer & Horn Material | Titanium Alloy (Grade 5) |
| Control Interface | 10-inch Capacitive Touchscreen |
| Data Logging | Internal storage with USB export |
| Communication Protocol | Modbus-TCP over RJ45 Ethernet |
| User Access Control | Three-tier permission system (Admin / Operator / Guest) |
| Sterilization Compatibility | In-situ steam sterilization (SIP) or offline autoclaving (121 °C, 2 bar, 30 min) |
| Cooling Architecture | Double-jacketed reactor with external chiller integration (e.g., DC-3006) |
| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Model | SCIENTZ-08-II |
| Instrument Type | Non-contact ultrasonic cell disruptor (cup-horn system) |
| Operating Frequency | 40 kHz |
| Adjustable Ultrasonic Power | 1800 W |
| Sample Volume Range | 5 µL – 15 mL |
| Sample Capacity | 1–16 tubes |
| Power Adjustment Range | 1–99% |
| Timer Range | 1–999 min |
| Duty Cycle | 0.1–99.9% |
| Tank Volume | 1.5 L |
| Compatible Vessel Formats | 1–2 mL × 16 wells, 5 mL × 8 wells, 10–15 mL × 8 wells |
| Temperature Monitoring | Yes |
| Input Voltage | 220/110 V ±0.5%, 50/60 Hz |
| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Model | JY88-IIN |
| Instrument Type | Ultrasonic Cell Disruptor |
| Temperature Range | 0–99.9 °C |
| Operating Frequency | 20–25 kHz |
| Ultrasonic Power Output | 250 W (adjustable from 1% to 100%) |
| Sample Volume Capacity | 10–200 mL |
| Display | 7-inch Touchscreen Interface |
| Duty Cycle Range | 0.1–99.9% |
| Standard Probe | 6 mm titanium alloy (TC4) horn |
| Optional Probes | 2 mm, 3 mm, 10 mm |
| Safety Features | Overtemperature, overload, and timer alarms |
| Dimensions (Main Unit) | 430 × 245 × 300 mm |
| Weight (Unit + Transducer) | 8.5 kg |
| Optional Acoustic Enclosure Dimensions | 345 × 345 × 535 mm |
| Brand | SCIENTZ |
|---|---|
| Origin | Zhejiang, China |
| Model | UP-250 |
| Instrument Type | Ultrasonic Cell Disruptor |
| Operating Frequency | 19–25 kHz |
| Ultrasonic Output Power | 250 W |
| Sample Volume Capacity | 0.5–10 mL |
| Display | 4.3-inch Touchscreen |
| Control Modes | Automatic & Manual (footswitch optional) |
| Pulse Duration | 0.1–99 s (on/off) |
| Total Sonication Time | 0.1–99 min |
| Horn Diameter | 3 mm |
| Dimensions (UP-250) | 270 × 245 × 116 mm |
| Power Supply | 220 V / 50 Hz |
| Brand | Scientz |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | SCIENTZ-650J |
| Instrument Type | Ultrasonic Cell Disruptor |
| Temperature Range | 0–99.9°C |
| Operating Frequency | 20–25 kHz |
| Ultrasonic Power Output | 650 W (adjustable from 1% to 100% in 1% increments) |
| Sample Volume Capacity | 100 µL – 250 mL |
| Display | 7-inch capacitive touchscreen |
| Probe Options | Standard 6 mm tapered probe |
| optional probes | 2, 3, 8, 10, and 13 mm diameter |
| Probe Material | TC4 titanium alloy (aerospace-grade α+β titanium alloy) |
| Cooling Mode | External circulating chiller compatible / internal temperature monitoring with auto-shutdown |
| Safety Features | Overload protection, overtemperature cutoff (user-definable threshold), real-time thermal monitoring, timed operation with ±0.1 s resolution |
| Control Modes | Continuous and pulsed ultrasonication (pulse on/off ratio programmable) |
| Enclosure | Acoustically damped steel chassis with integrated sound-absorbing panels |
| Dimensions (W×D×H) | 312 × 334 × 510 mm |
| Weight | Approx. 28 kg |
| Internal Illumination | LED lighting for sample chamber visibility |
| Sanitization | UV-C lamp integrated into lid assembly (optional activation cycle) |
| Brand | DELEITE |
|---|---|
| Origin | Shanghai, China |
| Model | DLT-2400 |
| Instrument Type | Ultrasonic Cell Disruptor |
| Operating Frequency | 20 kHz ± 0.5 kHz |
| Ultrasonic Power Output | 2400 W (continuously adjustable from 1% to 100%) |
| Sample Volume Capacity | 500–2000 mL |
| Temperature Control Range | 0–99.9 °C |
| Duty Cycle Adjustment | 0.1–99.9% |
| Display | 7-inch TFT capacitive touchscreen |
| Probe Material | TC4 titanium alloy |
| Standard Horn Diameter | Φ25 mm (optional horns: Φ3, 6, 10, 15, 20, 22, 25, 28 mm) |
| Safety Features | Overcurrent, overvoltage, overtemperature, and timer fault protection |
| Cooling | Integrated NTC thermistor-based sample temperature monitoring |
| Configuration | Separated main unit + acoustic isolation chamber with motorized lift stage and LED illumination |
| Optional Upgrades | UV sterilization module |
