| Brand | Beijing Liuyi (LY) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | WD-9413C |
| Imaging Mode | Visible-Light Gel Imaging System |
| CCD Resolution | 1.3 MP (optional upgrade to 5 MP or 6.4 MP) |
| Bit Depth | 8-bit |
| Dynamic Range | 62 dB |
| CCD Sensor Size | 1/4″ |
| Signal-to-Noise Ratio | 62 dB |
| Lens | Professional 6× Motorized Optical Zoom Lens |
| Brand | LY |
|---|---|
| Origin | Beijing, China |
| Model | WD-9413BX |
| Instrument Type | Standard Gel Imaging System |
| CCD Resolution | 1.3 MP (optional 6.4 MP) |
| Bit Depth | 8-bit |
| Detection Sensitivity | >1 pg double-stranded DNA stained with ethidium bromide (EB) |
| Signal-to-Noise Ratio | 62 dB |
| Lens | Professional 6× optical zoom lens |
| UV Transillumination Area | 252 × 252 mm (302 nm) |
| Reflected UV Wavelengths | 254 nm & 365 nm |
| Visible Light Transillumination Area | 260 × 175 mm (white light panel) |
| Camera Pixel Size | 5.2 µm × 5.2 µm |
| Exposure Time Range | 1/100000–1/50 sec |
| Dimensions (W × D × H) | 460 × 420 × 670 mm |
| Brand | DELEITE |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |

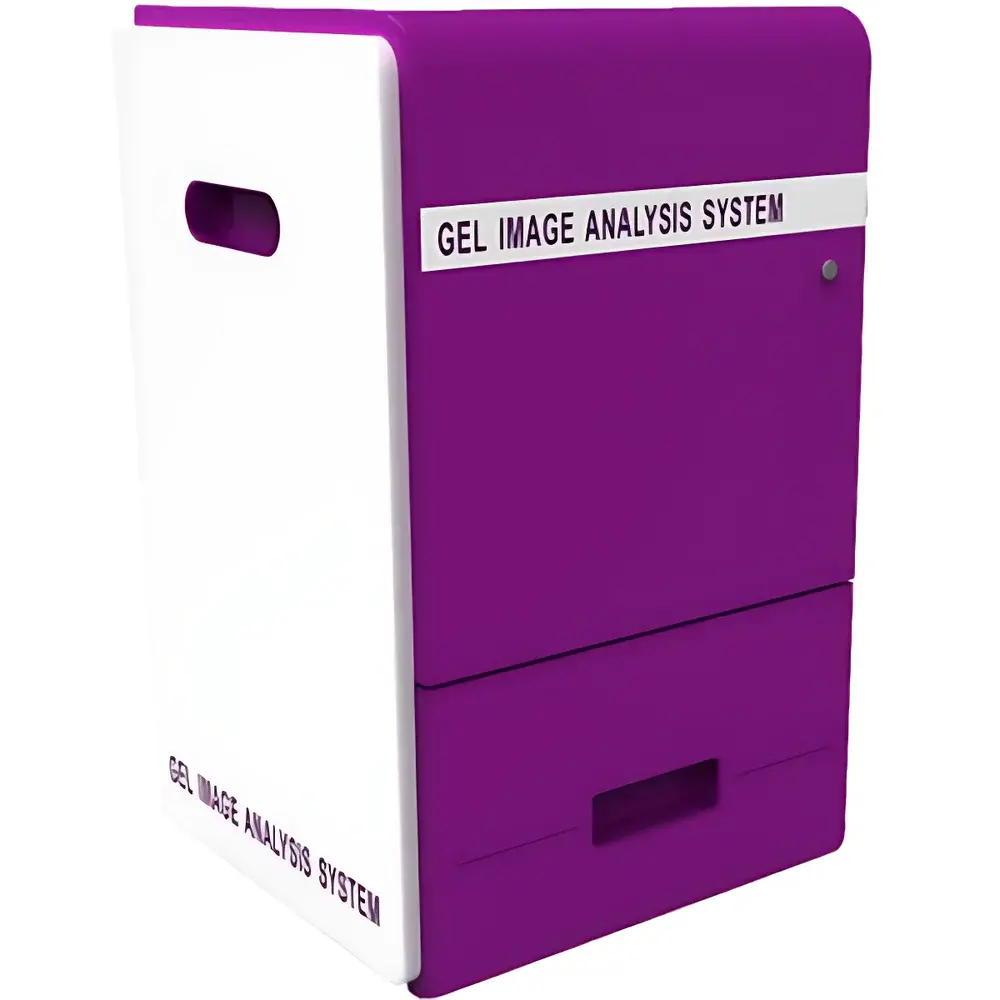

| Model | Geliant-D503 |
| Instrument Type | Standard Gel Imaging System |
| CCD Resolution | 2592 × 1944 (5.03 MP) |
| Bit Depth | 16-bit (65,536 gray levels) |
| Dynamic Range | 65,536 gray levels |
| CCD Sensor Size | 13.48 mm × 10.11 mm |
| Pixel Size | 5.2 µm × 5.2 µm |
| Detection Sensitivity | ≤ 0.02 ng double-stranded DNA (ethidium bromide staining) |
| Signal-to-Noise Ratio | 69.8 dB |
| Lens | Imported 6× motorized zoom lens, f/1.2, focal length 8–48 mm |
| Transmission UV Source | Standard 302 nm (high-efficiency ballast, η > 80%, rated lamp life ≥ 40,000 on/off cycles) |
| Transmission White Light | Adjustable-intensity LED uniform illuminator |
| Transmission Blue Light | Optional 470 nm |
| Reflected UV | Optional 254 nm / 365 nm |
| Reflected White Light | Dual-side high-brightness cold LED |
| UV Transilluminator Area | 210 mm × 260 mm |
| Visible Light Transilluminator Area | 210 mm × 260 mm |
| Integrated Gel Cutting Hood | Standard |
| Control Architecture | Fully programmable microprocessor-controlled module (lens zoom/focus/aperture, transmission/reflection illumination, cutting light) |
| Auto UV Shut-off | Configurable timer (1–60 min inactivity) |
| Enclosure | Light-tight dark chamber with interlocked UV safety cutoff |
| Software | DELEITE GelCapture & GelAnalyzer Suite (free lifetime installation, updates, remote training, and on-site support per contractual agreement) |
| Brand | LY |
|---|---|
| Origin | Beijing, China |
| Model | WD-9413D |
| Instrument Type | Standard Gel Imaging System |
| CCD Resolution | 5 MP |
| Bit Depth | 16-bit |
| Detection Sensitivity | 20 pg dsDNA stained with ethidium bromide (EB) |
| Optical Lens | Imported 6× motorized zoom lens with electric tri-variable aperture and high-transmission optics (parameters synchronized in software) |
| UV Transillumination Area | 220 × 250 mm (302 nm) |
| Visible Light Transillumination Area | 190 × 270 mm |
| UV Reflectance Wavelengths | 254 nm & 365 nm |
| White Light Reflection | Dual-side high-intensity LED |
| Filter | 590 nm coated bandpass filter for nucleic acid gels |
| Exposure Time Range | 1 ms – 180 s |
| Pixel Binning Options | 1×1, 2×2, 4×4 |
| Frame Rate | 35 fps |
| Image Resolution | 600 DPI (horizontal/vertical) |
| Interface | USB 3.0 |
| Safety Features | UV door interlock shutdown, retractable drawer design with light-tight enclosure |
| Software | Integrated gel acquisition and analysis suite with auto-exposure, image stacking, and background subtraction algorithms |
| Brand | Beijing Liuyi (LY) |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | WD-9413A |
| Imaging Mode | Visible-light and UV Transillumination/Reflectance |
| CCD Resolution | 3072 × 2304 pixels |
| Bit Depth | 8-bit |
| Detection Sensitivity | >1 pg double-stranded DNA stained with ethidium bromide (EB) |
| Signal-to-Noise Ratio | ≥66 dB |
| UV Transillumination Wavelengths | 302 nm (primary), 254 nm & 365 nm (reflective) |
| UV Illumination Area | 252 × 252 mm |
| White Light Transillumination Area | 260 × 175 mm |
| Dimensions (W × D × H) | 430 × 456 × 755 mm |
