| Brand | Corning |
|---|---|
| Origin | USA |
| Manufacturer Status | Authorized Distributor |
| Origin Category | Imported |

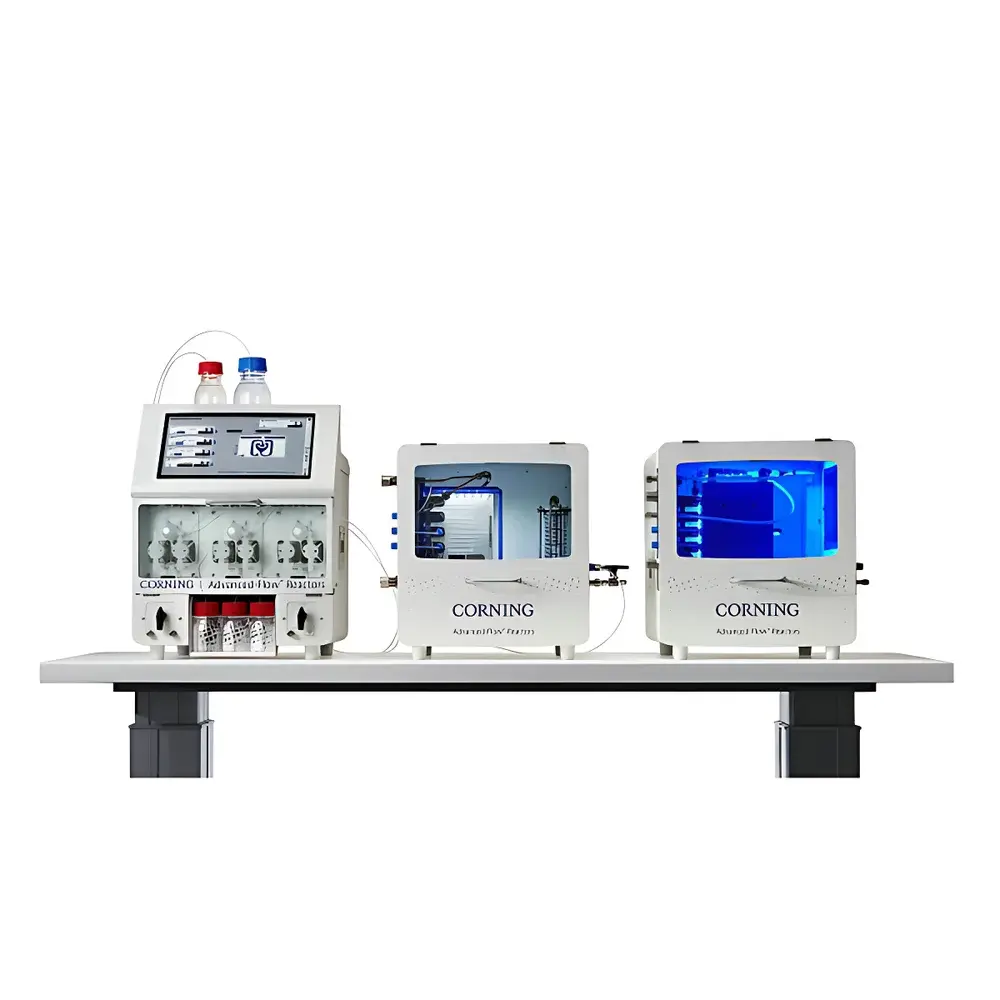

| Model | Lab |
| Instrument Classification | Microchannel Reactor |
| Usable Volume | Small-Scale |
| Instrument Material | Specialty Glass |
| Operating Pressure | Low to Medium Pressure (0–18 bar g) |
| Capacity | 10 mL |
| Flow Rate Range | 0–10 mL/min |
| Operating Temperature Range | −40 °C to 200 °C |
| Reactor Module Internal Volume | 2.7 mL per module |
| Light Sources | 365 nm, 385 nm, 405 nm, 475 nm, 610 nm, and 4000 K white LED |
| LED Irradiance | >100 mW/cm² (adjustable) |
| Cooling | Liquid-cooled LED modules |
| Control Interface | Wireless wavelength & intensity selection |
| Sealing Materials | PFA, PETE, Perfluoroelastomer |
| Brand | Corning |
|---|---|
| Origin | USA |

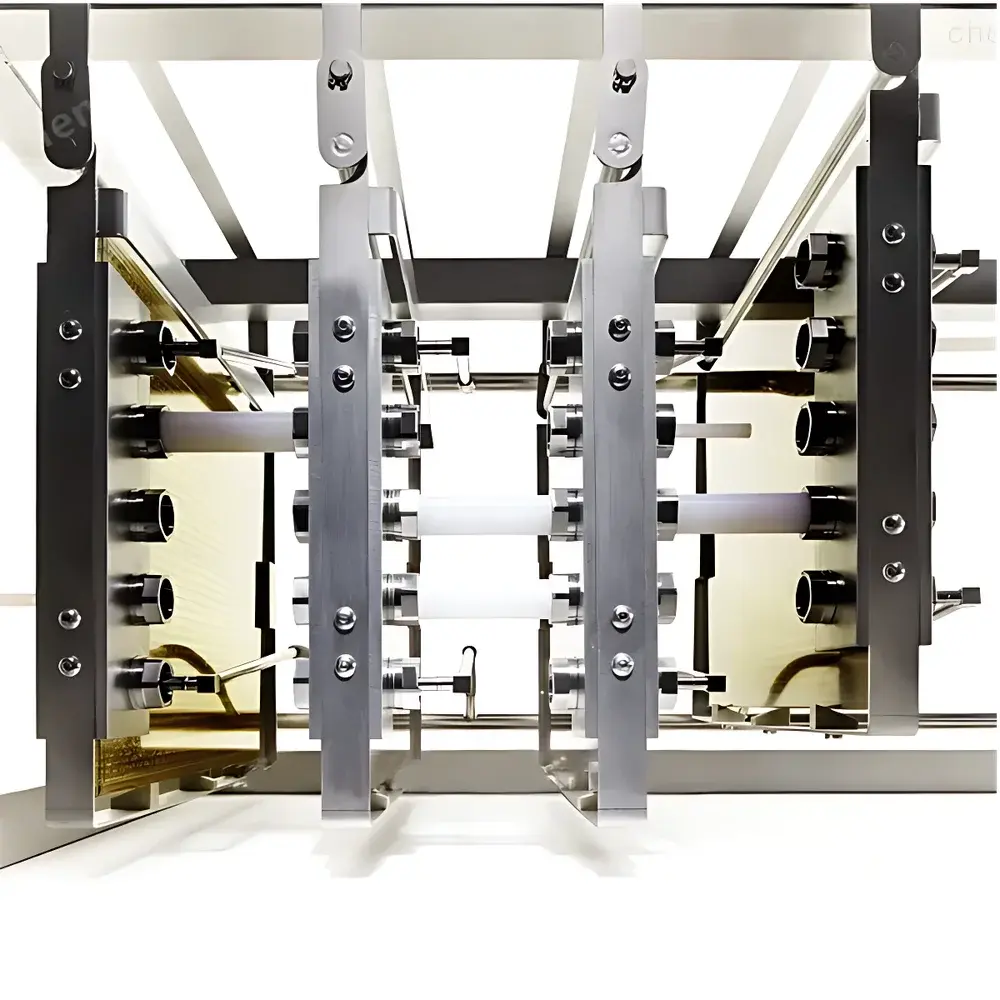

| Model | G3 / G3 Photochemical |
| Instrument Type | Microchannel Reactor |
| Construction Material | Borosilicate Glass |
| Operating Pressure | ≤1.8 MPa (260 psi) |
| Temperature Range | −25 °C to 200 °C |
| Fluid Throughput Capacity | Up to 1000 m³/year |
| Illumination Compatibility | LED-based, six discrete wavelengths (365 nm–455 nm), dual-side irradiation |
| Scalability | Direct process transfer from Corning G1 to G3 platform |
| Regulatory Alignment | Designed for GLP-compliant continuous manufacturing environments |
| Brand | Corning |
|---|---|
| Origin | USA |
| Manufacturer Status | Authorized Distributor |
| Origin Category | Imported |

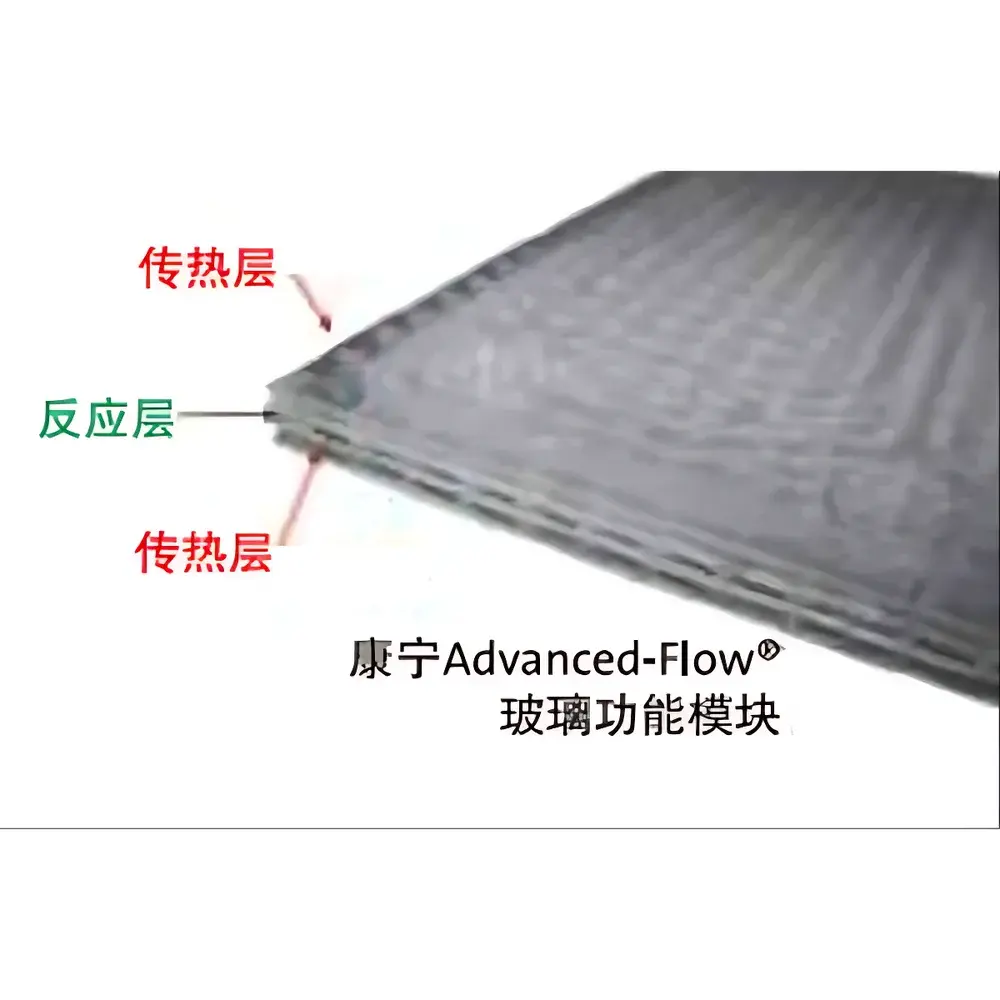

| Model | Microchannel Reactor |
| Quotation | Upon Request |
| Instrument Classification | Microchannel Reactor |
| Sample Volume Capacity | Microliter-to-milliliter scale (microfluidic regime) |
| Construction Material | Chemically resistant glass-ceramic composite |
| Total System Volume | 10 L (modular stack configuration) |
| Maximum Operating Pressure | ≤20 bar (2.0 MPa) |
| Maximum Operating Temperature | 200 °C |
| Vacuum Capability | Not applicable (designed for pressurized operation) |
| Brand | Gongyi Yuyi Instrument |
|---|---|
| Origin | Henan, China |
| Model | MCR-3 |
| Microwave Frequency | 2450 MHz ±15 Hz |
| Microwave Output | Continuous wave, adjustable up to 800 W |
| Total Input Power | ≤1300 W |
| Temperature Control Range | Ambient to 250 °C |
| Temperature Control Accuracy | ±1 °C |
| Temperature Measurement Method | Contact-type PTFE-coated platinum resistance sensor (Class 0.2 accuracy) |
| Maximum Operating Pressure | Medium-pressure compatible (with optional vacuum accessory: –0.098 MPa) |
| Reaction Vessel Compatibility | 50–500 mL standard ground-glass joints (open-system configuration) |
| Construction Material | Stainless steel cavity and housing |
| Integrated Features | Built-in magnetic stirrer (stepless speed control), inert gas inlet port, ventilation/exhaust ducting, safety interlock door switch, magnetron overheat protection, multi-segment programmable operation (up to 5 segments), real-time temperature curve display, Flash memory parameter retention |
| Brand | Corning |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

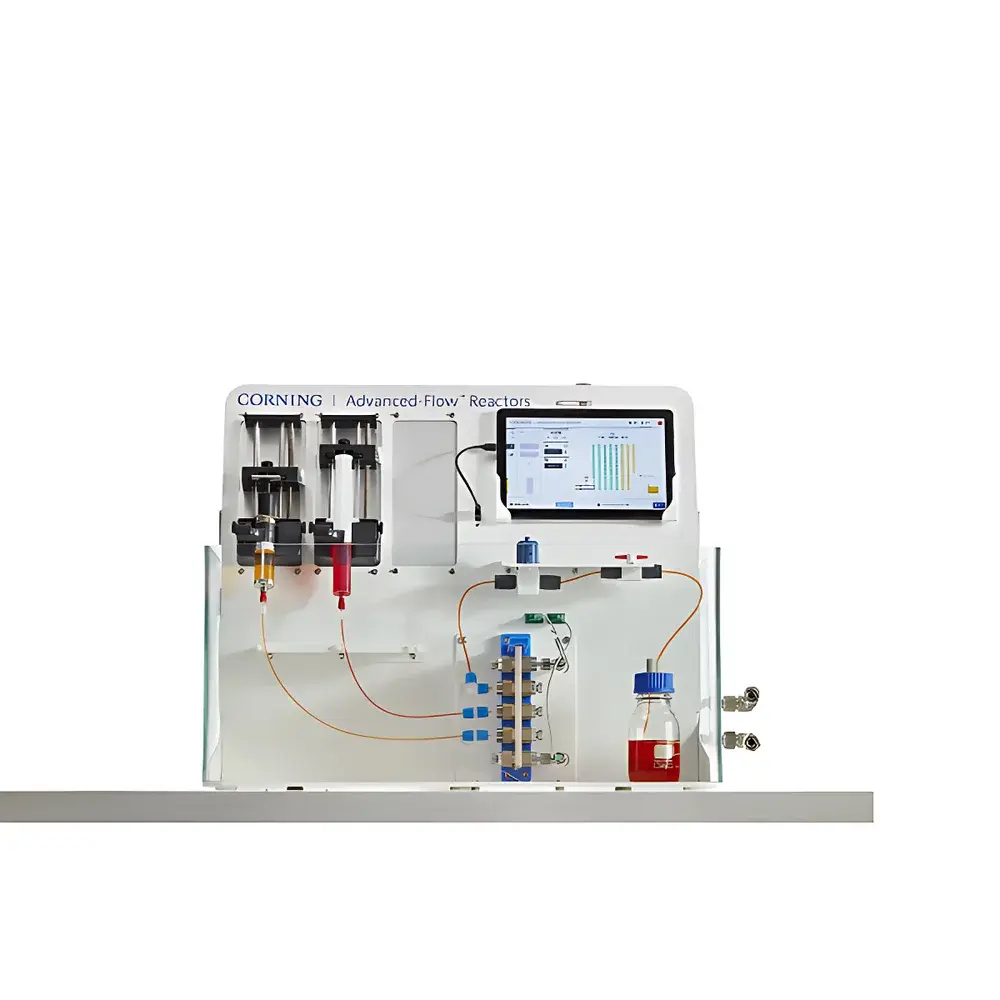

| Model | Nebula |
| Pricing | Upon Request |
| Instrument Classification | Microchannel Reactor |
| Usable Volume | Small-scale |
| Material | Specialty Glass |
| Operating Pressure | Low-pressure |
| Capacity | 0.5 mL |
| Additional Application Fields | Food Science, Biotechnology, Agriculture, Petrochemicals |
| Vacuum Capability | 0.6 MPa |
| Brand | Corning |
|---|---|
| Origin | USA |
| Manufacturer Status | Authorized Distributor |
| Product Category | Imported Instrument |
| Model | G1 Photochemical |
| Instrument Type | Microchannel Reactor |
| Usable Volume | Small-scale |
| Construction Material | Borosilicate Glass |
| Operating Pressure | Low-pressure (up to 18 bar) |
| Flow Rate Range | 15–250 mL/min |
| LED Wavelength Options | 365 nm, 385 nm, 405 nm, 485 nm, 610 nm, and 4000 K White Light |
| Illumination Intensity | Up to 100 mW/cm² |
| Illumination Geometry | Dual-side transverse illumination through glass walls |
| Thermal Management | Integrated liquid-cooled LED array |
| Scalability Path | Direct process transfer to Corning G3 Photochemical Reactor |
| Brand | The Great Wall |
|---|---|
| Origin | Henan, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | GR-50EX |
| Price | USD 3,350 (FOB Henan) |
| Construction Material | Borosilicate Glass 3.3 (DIN ISO 3585) |
| Temperature Range | −80 °C to +200 °C |
| Pressure Rating | −0.1 MPa (vacuum) to 0 MPa (atmospheric only) |
| Frame | SUS304 stainless steel + 6061-F aluminum alloy with epoxy powder coating |
| Mobility | Locking casters (two with brakes) |
| Drive Motor & Control Box | Exd II BT4 certified explosion-proof (IEC 60079-1, GB 3836.1–2010) |
| Stirring Shaft | SUS304 core with full PTFE overmolding |
| Impeller | Solid PTFE blades |
| Sealing System | Proprietary dual-lip mechanical seal with graphite-impregnated PTFE stationary ring |
| Drain Valve | Zero-holdup PTFE-lined ball valve with bottom-mounted flush port |
| Jacket Inlet/Outlet | Dual 1/2″ NPT stainless steel ports with flexible insulated SS braided hoses (stress-relieved connection) |
| Brand | Corning |
|---|---|
| Origin | USA |
| Manufacturer Status | Authorized Distributor |
| Origin Category | Imported |

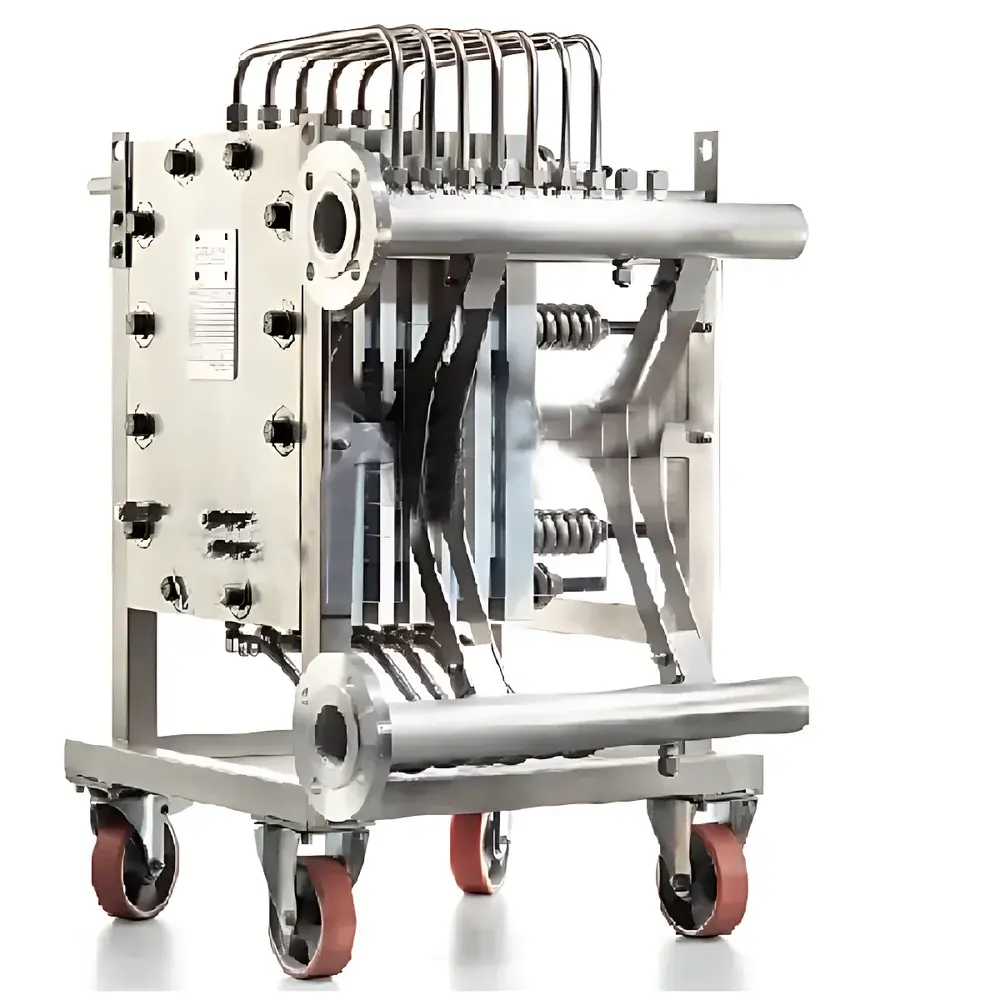

| Model | G4 |
| Pricing | Upon Request |
| Instrument Classification | Microchannel Reactor |
| Usable Volume | Small-Scale |
| Construction Material | Silicon Carbide (SiC) Ceramic with PFA Tubing and Perlast® Seals |
| Operating Pressure | Low-Pressure (≤10 bar typical, compatible with atmospheric to moderate pressurized operation) |
| Fluid Throughput Capacity | Up to 2000 m³/year |
| Regulatory Compliance | Designed for GLP/GMP-aligned continuous manufacturing environments |
| Brand | Yarong |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | RV-605 |
| Instrument Category | Jacketed Glass Reactor |
| Usable Volume | 5 L |
| Construction Material | GG17 Borosilicate Glass |
| Operating Pressure Range | Atmospheric to –0.098 MPa (absolute) |
| Jacket Type | Double-layer Circulating Jacket |
| Stirring Speed | 100–1400 rpm |
| Motor Power | 90 W (120 W peak) |
| Torque | 6000 g·cm |
| Drive System | Brushless AC Speed-Controlled Motor with Digital Frequency Converter |
| Sealing System | PTFE–Glass Dual-Stage Rotary Seal |
| Port Configuration | Five Standard Ground-Glass Ports (NS29/32 & NS24/29), Large-Diameter Bottom Discharge Valve |
| Temperature Control | External Circulating Fluid (e.g., coolant, hot oil, or water) via Jacket |
| Compliance | Designed for GLP-compliant laboratory synthesis workflows |
| Brand | Great Wall |
|---|---|
| Origin | Henan, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

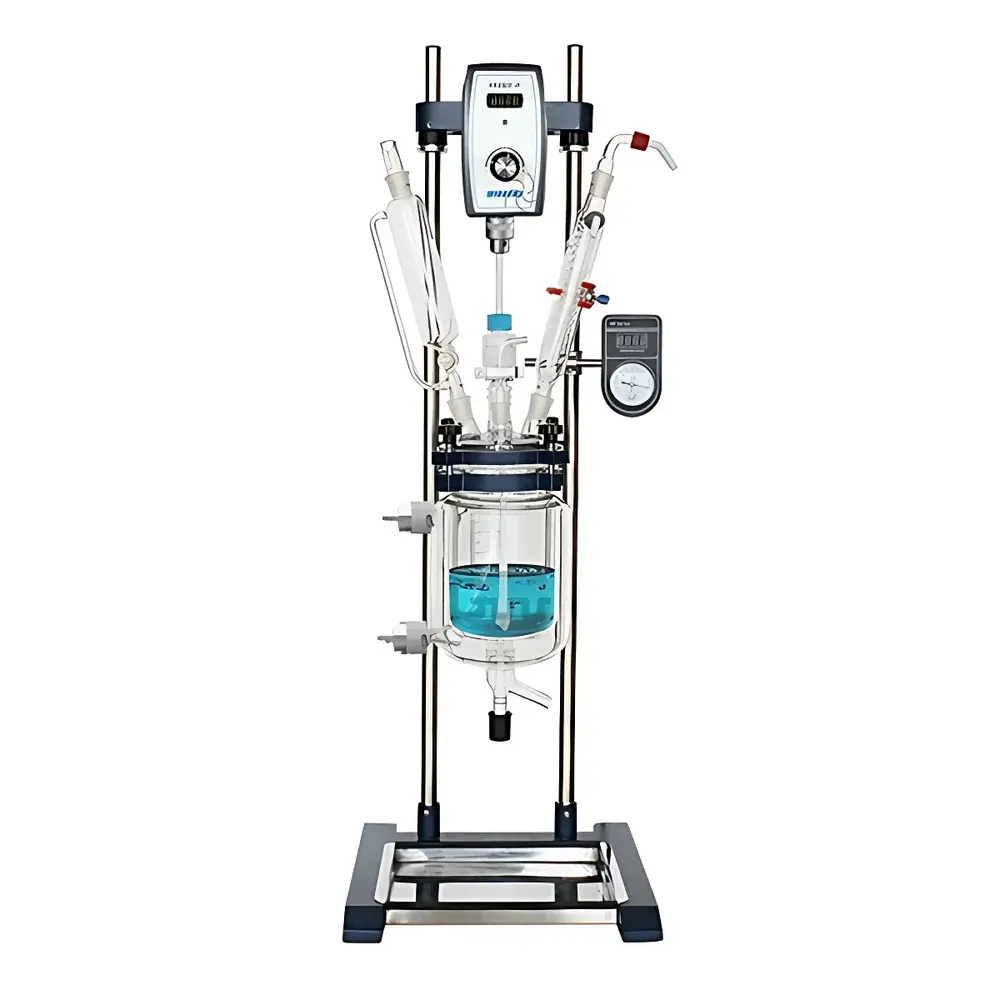

| Model | GR-3L |
| Instrument Classification | Jacketed Glass Reactor |
| Usable Volume | 3 L |
| Vessel Material | Borosilicate Glass 3.3 |
| Operating Pressure Range | –0.1 to 0.0 MPa (gauge) |
| Vacuum Level | ≤ –0.098 MPa (absolute) |
| Jacket Pressure Rating | ≤ +0.03 MPa |
| Temperature Range | –80 °C to +200 °C |
| Stirring Speed | 50–500 rpm |
| Stirring Power | 70 W |
| Torque | 70 N·cm |
| Temperature Sensor | Pt100 (±0.1 °C accuracy) |
| Condenser Surface Area | ~0.025 m² |
| Constant-Pressure Funnel Capacity | 200 mL |
| Frame Material | SUS304 Stainless Steel |
| Sealing Material | PTFE |
| Electrical Supply | 110 V / 60 Hz or 220–240 V / 50–60 Hz |
| Dimensions (W×D×H) | ~480 × 420 × 1200 mm |
| Weight | Approx. 45 kg |
| Brand | The Great Wall |
|---|---|
| Origin | Henan, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic |

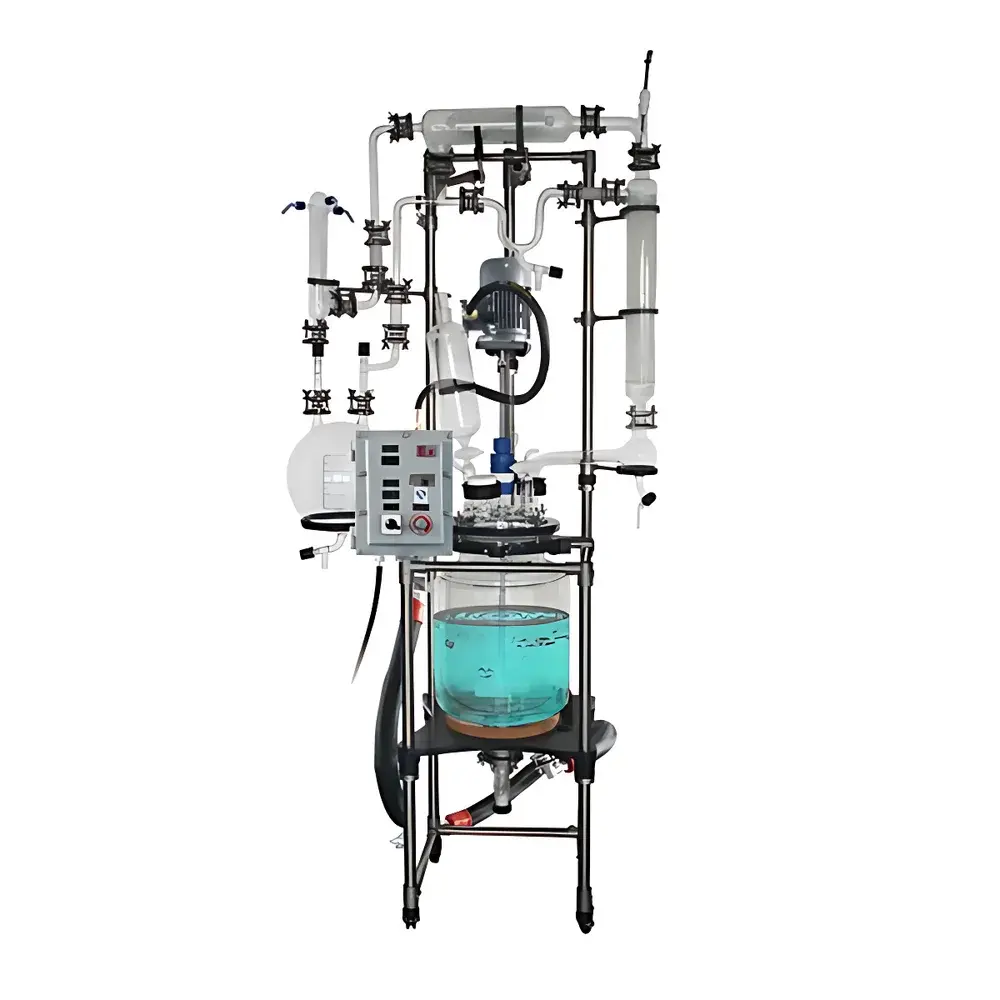

| Model | GR-20TEx |
| Instrument Classification | Reaction Vessel |
| Usable Volume | Small-Scale |
| Construction Material | Borosilicate Glass 3.3 |
| Operating Pressure | Low-Pressure |
| Capacity | 20 L |
| Vacuum Range | −0.1 MPa to 0.0 MPa |
| Jacket Volume | ~6.0 L |
| Condenser Heat Transfer Area | ~0.249 m² |
| Constant-Pressure Funnel Capacity | 2000 mL |
| Temperature Range | −80 °C to +200 °C |
| Max. ΔT (Jacket–Vessel) | ≤80 °C |
| Jacket Pressure Limit | ≤0.03 MPa |
| Number of Lid Ports | 6 |
| Temperature Sensor | Pt100 (±0.1 °C display accuracy) |
| Frame Material | SUS304 Stainless Steel |
| Mobility | Equipped with Locking Casters |
| Motor | 180 W Three-Phase Asynchronous Motor |
| Speed Control | Variable-Frequency Drive (50–500 rpm) |
| Stirrer Type | Paddle Agitator with PTFE Blades |
| Stirrer Shaft | SUS304 core with PTFE cladding |
| Sealing Bearings | Precision Ceramic-Enhanced |
| Explosion Protection | Exd II BT4 Certified (All explosion-proof components independently certified) |
| Feed/Discharge Valve | Corrosion-Resistant Side-Outlet Design with Zero Liquid Retention |
| Cooling/Heating Interface | Stainless Steel Flexible Insulated Hoses |
| Ambient Operating Conditions | 5–35 °C, ≤70% RH |
| Discharge Valve Height | ~320 mm above floor |
| Brand | Deleite |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |

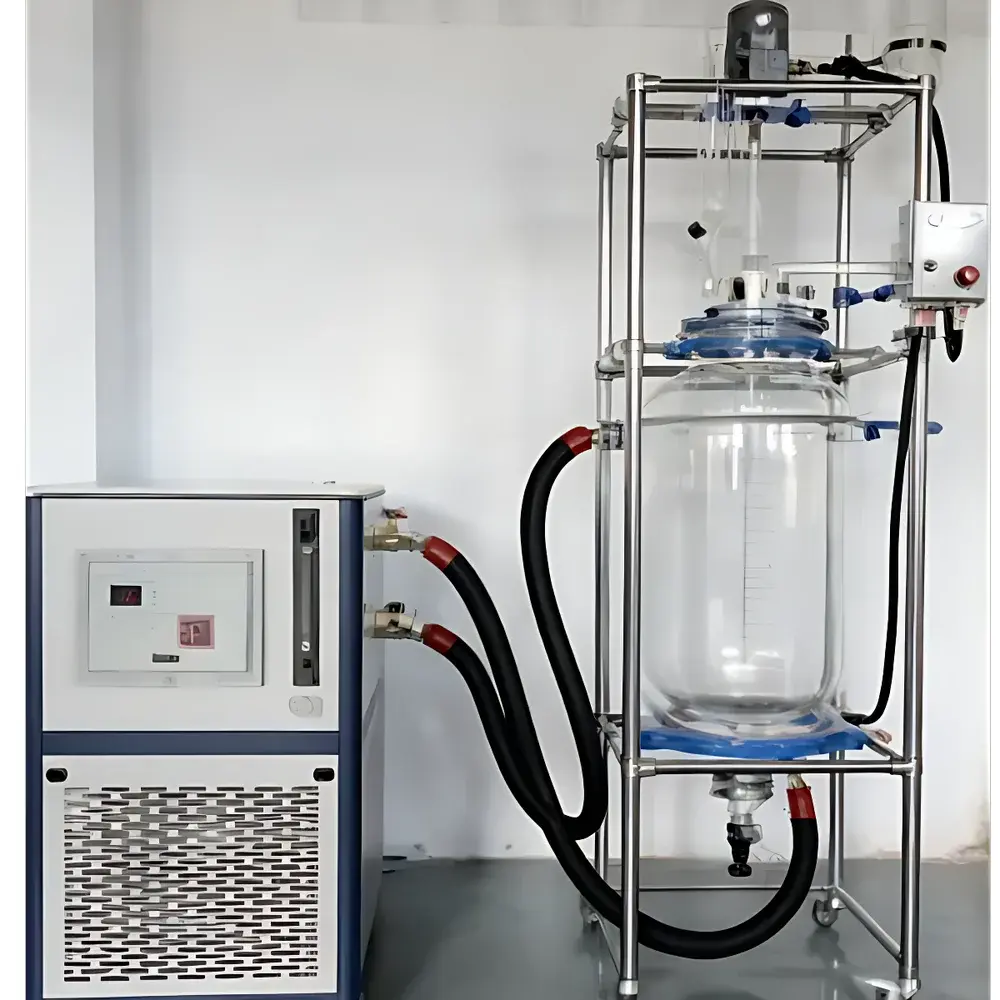

| Model | DLT-EPR-2L |
| Capacity | 2 L |
| Vessel Material | Borosilicate Glass 3.3 (Duran®/Pyrex® grade) |
| Operating Pressure Range | Ambient to –0.095 MPa (absolute) |
| Temperature Range | –60 °C to +200 °C |
| Stirring Speed | 0–800 rpm (digital speed control, explosion-proof motor) |
| Motor Power | 120 W |
| Sealing System | Mechanical seal with ceramic–PTFE hybrid components |
| Stirrer Type | Single-layer anchor impeller (PTFE-coated stainless steel shaft, Ø8 mm) |
| Lid Configuration | 5-port standard ground-glass interface (1× 19# for temperature probe |
| Cooling/Heating Jacket | Dual-layer borosilicate glass with Φ12 mm jacket inlet/outlet (PTFE tubing compatible) |
| Base Frame | 304 stainless steel |
| Bottom Discharge Valve | Glass–PTFE composite plug valve |
| Electrical Supply | 220 V AC, 50 Hz |
| Compliance | Designed for GLP-compliant laboratory synthesis under vacuum or atmospheric conditions |
| Brand | Yarong |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

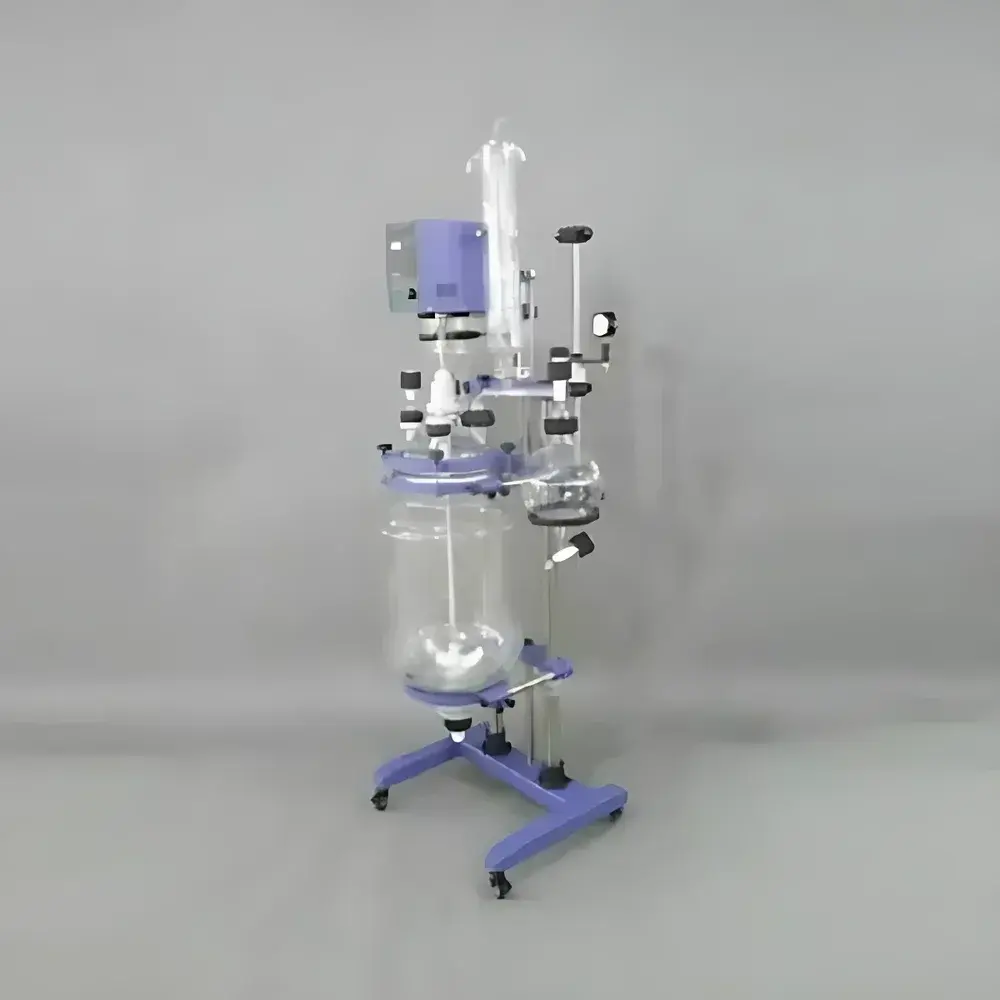

| Model | RV-620A |
| Instrument Category | Jacketed Glass Reactor |
| Vessel Capacity | 20 L |
| Construction Material | GG17 Borosilicate Glass |
| Operating Pressure Range | Ambient to –0.1 MPa (Vacuum) |
| Jacket Type | Double-Walled Circulating Jacket |
| Stirring Speed Range | 100–1400 rpm |
| Motor Power | 250 W |
| Torque | 15,000 g·cm |
| Overall Dimensions | 62 × 50 × 180 cm |
| Temperature Control Method | External Circulating Fluid (Hot Oil / Coolant / Water) |
| Bottom Discharge | PTFE Valve with Flanged Interface |
| Lid Configuration | Four-Port Standard Taper (24/40, 29/32, etc.) |
| Compliance | Designed for GLP-compliant lab environments |
| Brand | Corning |
|---|---|
| Origin | USA |
| Manufacturer Status | Authorized Distributor |
| Product Category | Imported |

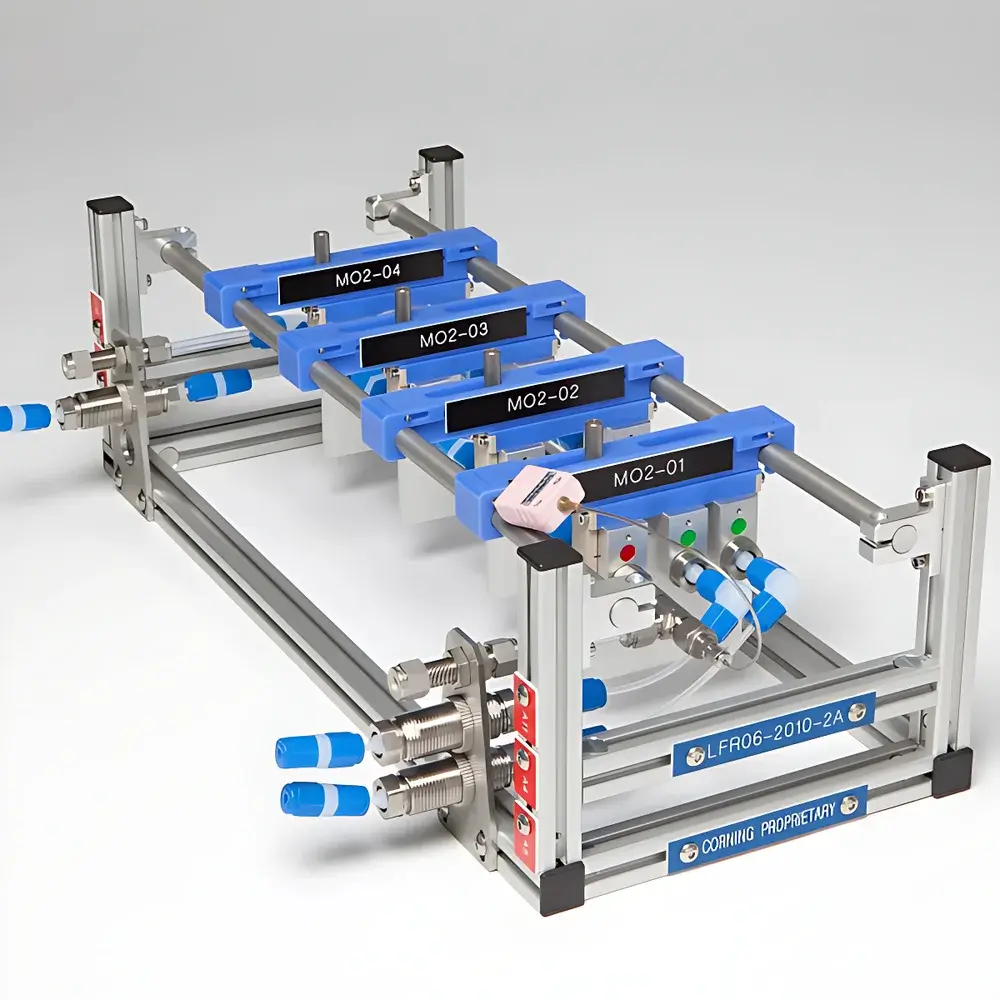

| Model | G1 SiC |
| Pricing | Upon Request |
| Instrument Type | Microchannel Reactor |
| Sample Volume Capacity | Trace (≤2.5 mL) |
| Construction Material | Silicon Carbide (SiC) |
| Operating Pressure Range | Medium Pressure (up to 18 bar) |
| Total Internal Volume | 1.7 mL (per reactor unit, configurable) |
| Brand | The Great Wall |
|---|---|
| Origin | Henan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | GRF-80CE |
| Instrument Category | Jacketed Glass Reactor |
| Volume Class | Medium-Scale |
| Construction Material | Borosilicate Glass 3.3 |
| Operating Pressure | Low Vacuum to Atmospheric (–0.1 to 0 MPa) |
| Capacity | 80 L |
| Ultimate Vacuum | –0.098 MPa |
| Jacket Volume | ~25 L |
| Condenser Heat Transfer Area | ~0.954 m² |
| Feed Bottle Volume | 10 L |
| Receiver Bottle Volume | 20 L |
| Temperature Range | –80 °C to +200 °C |
| Stirring Motor | 370 W DC Brushless |
| Speed Range | 20–500 rpm |
| Speed Accuracy | ±1 rpm (display), ±0.7% (≤300 rpm), ±1% (>300 rpm) |
| Max Torque | 5.4 N·m |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Frame Material | Q235 + 6061-F Aluminum + SUS304 |
| Drip Tray Material | SUS316L |
| Stirrer Shaft & Blade | SUS304 core with PTFE cladding / PTFE blades |
| Sealing | Proprietary PTFE-coated bearing assembly |
| Temperature Sensor | PT100 (PTFE-sheathed) |
| Max ΔT (inner/outer wall) | ≤80 °C |
| Drain Valve | Zero-holdup PTFE-lined valve, 380 mm above floor |
| Interface | RS485 port on control panel |
| Port Configuration | 7 standard ground-glass and flanged openings (60# stirrer, 35# temp sensor, 50# condenser, dual 34# liquid feed, 40# feed bottle, 95# solid feed) |
Show next
