| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | BT103S |
| Flow Rate Range | 0.00011–500 mL/min |
| Speed Range | 0.1–100.0 rpm |
| Speed Resolution | 0.1 rpm |
| Speed Accuracy | < ±0.2% |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | < 30 W |
| Operating Temperature | 0–40 °C |
| Relative Humidity | < 80% RH |
| Dimensions (L×W×H) | 235 × 140 × 145 mm |
| Weight | 2.8 kg |
| Protection Rating | IP31 |
| Communication Interface | RS485, Modbus RTU protocol compliant |
| External Control | Digital I/O (5–24 V), Analog Input (0–5 V / 0–10 V / 4–20 mA configurable) |
| Optional Features | Occlusion alarm, leak detection, thermal printer interface, mobile app remote control (via LeadFluid APP) |
| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | BT600L |
| Instrument Type | Peristaltic Pump |
| Flow Rate Range | 0.005–3000 mL/min |
| Speed Range | 0.1–600 rpm |
| Speed Resolution | 0.1 rpm |
| Speed Accuracy | < ±0.2% |
| Operating Time Range | 0.10–99.99 s/min/h (selectable unit) |
| Interval Time Range | 0.1–999.9 s/min/h (selectable unit) |
| Cycle Count | 1–999 (0 = continuous) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | < 60 W |
| Ambient Operating Conditions | 0–40 °C, RH < 80% |
| Dimensions (L×W×H) | 292 × 160 × 183 mm |
| Enclosure Rating | IP31 |
| Weight | 4.5 kg |
| Delayed Start & Timed Stop | 1 s – 999 h 59 min 59 s |
| Analog Output | 0–5 V (speed status) |
| Digital Interface | RS485, Modbus RTU compliant |
| External Control Input | Start/Stop, Direction (5–24 V logic), Analog 0–5 V / 0–10 V / 4–20 mA configurable |
| Isolated I/O | Yes |
| PCB Protection | Conformal coating (3-layer spray) |
| Thermal Management | Adaptive fan control |
| Housing Material | Stainless steel (304) |
| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | BQ80S |
| Flow Rate Range | 0.0035–34 mL/min |
| Speed Range | 0.1–80 rpm |
| Speed Resolution | 0.1 rpm |
| Speed Accuracy | < ±0.2% |
| Operating Time Range | 0.1 s to 999 days |
| Interval Time Range | 0.1 s to 999 days |
| Dispense Count | 1–999 cycles (0 = continuous) |
| External Control Inputs | Dry-contact or 5–24 V level for start/stop & direction |
| Communication Interface | RS485, Modbus RTU protocol |
| Power Supply | AC 100–240 V, 50/60 Hz (with adapter) |
| Power Consumption | <10 W |
| Noise Level | ≤60 dB(A) |
| Operating Environment | 0–40 °C, RH <80% |
| Enclosure Dimensions (DW10-1) | 152 × 112 × 107 mm |
| Enclosure Dimensions (DW10-3) | 164 × 112 × 107 mm |
| Ingress Protection | IP31 |
| Compatible Pump Heads | DW10-1 (single-channel), DW10-3 (triple-channel) |
| Tubing Compatibility | Wall thickness 0.8–1.0 mm, ID ≤3.17 mm |
| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | BT100S |
| Flow Rate Range | 0.00011–750 mL/min |
| Speed Range | 0.1–150 rpm |
| Speed Resolution | 0.1 rpm (≤100 rpm), 1 rpm (>100 rpm) |
| Speed Accuracy | < ±0.2% |
| Operating Time Setting | 0.1 s to 999 days (adjustable unit) |
| Interval Time Setting | 0.1 s to 999 days (adjustable unit) |
| Cycle Count | 1–999 cycles (0 = continuous) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | < 40 W |
| Ambient Temperature | 0–40 °C |
| Relative Humidity | < 80% |
| Dimensions (L×W×H) | 261 × 150 × 237 mm |
| Enclosure Material | Stainless Steel 304 |
| Protection Rating | IP31 |
| Weight | 3.5 kg |
| Communication Interface | RS485, Modbus RTU protocol |
| External Control Inputs | Opto-isolated digital signals (5–24 V), analog inputs (0–5 V / 0–10 V / 4–20 mA) |
| External Status Outputs | Start/Stop, Forward/Reverse logic-level signals |
| Software Compatibility | LF-LCD-OS firmware with bilingual (EN/CN) UI, LeadFluid Mobile App (optional) |
| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | BT600S |
| Pump Type | Peristaltic Pump |
| Flow Rate Range | 0.005–3000 mL/min |
| Speed Range | 0.1–600 rpm |
| Speed Resolution | 0.1 rpm (≤100 rpm), 1 rpm (>100 rpm) |
| Speed Accuracy | < ±0.2% |
| Operating Time & Interval Range | 0.1–999 s/min/h/d (unit-selectable) |
| Cycle Count | 1–999 (0 = continuous) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | <60 W |
| Dimensions (L×W×H) | 261 × 150 × 237 mm |
| Weight | 4.3 kg |
| Enclosure Material | Stainless Steel 304 |
| Protection Rating | IP31 |
| Communication Interface | RS485 (Modbus RTU compatible) |
| External Control | Digital I/O (opto-isolated), Analog Input (0–5 V / 0–10 V / 4–20 mA configurable) |
| Output Signals | Run/Stop, Direction status |
| Operating Environment | 0–40 °C, RH <80% |
| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | BT101L |
| Pump Type | Peristaltic Pump |
| Flow Rate Range | 0.00011–750 mL/min |
| Speed Range | 0.1–150 rpm |
| Speed Resolution | 0.1 rpm |
| Speed Accuracy | < ±0.2% |
| Communication Interface | RS485 (Modbus RTU compatible) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | < 30 W |
| Operating Temperature | 0–40 °C |
| Relative Humidity | < 80% RH |
| Dimensions (L×W×H) | 258 × 180 × 197 mm |
| Weight | 3.6 kg |
| Ingress Protection | IP31 |
| External Control | TTL-level digital input (5 V / 12 V standard, 24 V optional), analog speed control (0–5 V standard, 0–10 V / 4–20 mA optional) |
| Enclosure Material | ABS engineering plastic |
| Isolation Design | Dual-layer circuit isolation with conformal coating |
| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | BT300L |
| Flow Rate Range | 0.005–1750 mL/min |
| Speed Range | 0.1–350 rpm |
| Speed Resolution | 0.1 rpm |
| Speed Accuracy | < ±0.2% |
| Operating Temperature | 0–40 °C |
| Relative Humidity | < 80% |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | < 50 W |
| Dimensions (L×W×H) | 292 × 160 × 183 mm |
| Weight | 4.5 kg |
| Protection Rating | IP31 |
| Communication | RS485 (Modbus RTU), DB15 external I/O interface, WiFi (via LeadFluid APP) |
| Control Inputs | Digital (5–24 V), Analog (0–5 V / 0–10 V / 4–20 mA) |
| External Signal Isolation | Galvanically isolated |

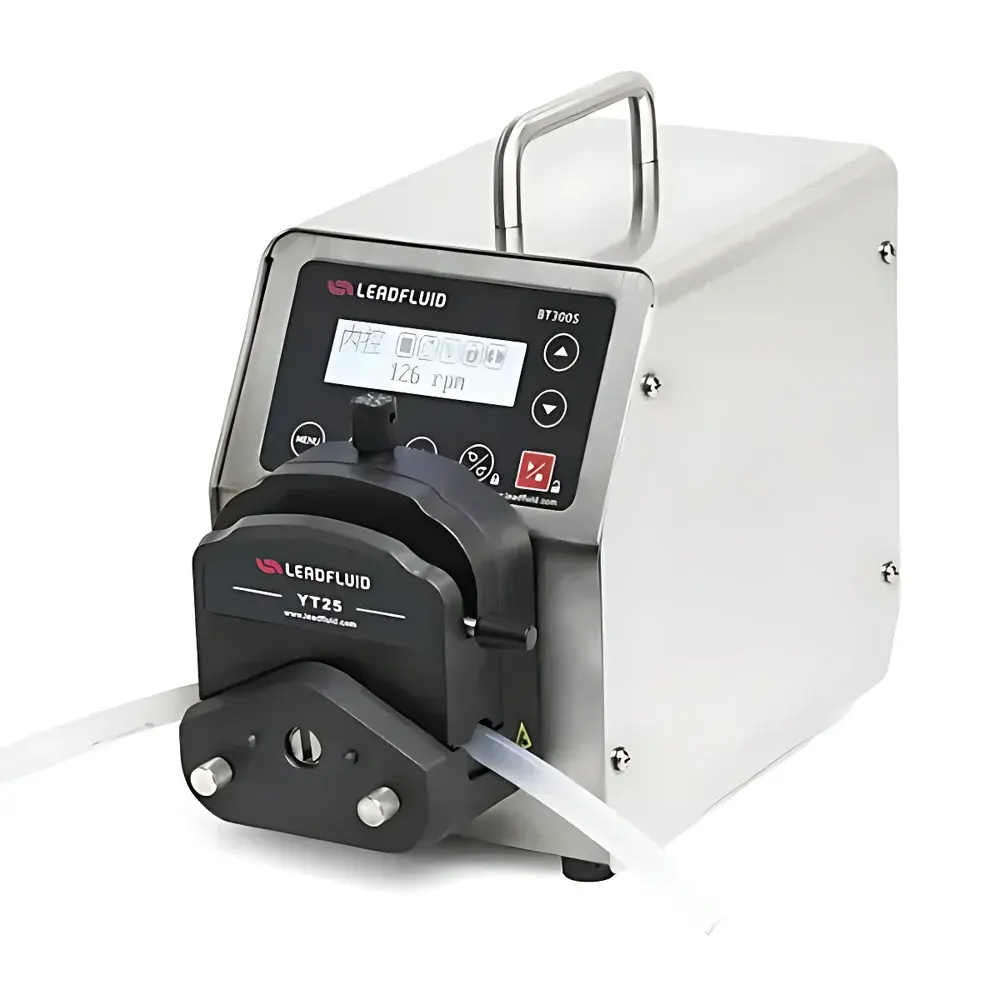

| Brand | LeadFluid |
|---|---|
| Origin | Hebei, China |
| Model | BT300S |
| Flow Rate Range | 0.005–1750 mL/min |
| Speed Range | 0.1–350 rpm |
| Speed Resolution | 0.1 rpm (≤100 rpm), 1 rpm (>100 rpm) |
| Speed Accuracy | < ±0.2% |
| Operating Time & Interval | 0.1–999 s/min/h/d (selectable unit) |
| Cycles | 1–999 (0 = continuous) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | <50 W |
| Dimensions (L×W×H) | 261 × 150 × 237 mm |
| Weight | 4.3 kg |
| Enclosure Material | Stainless Steel 304 |
| Ingress Protection | IP31 |
| Communication Interface | RS485 (Modbus RTU compatible) |
| External Control | Opto-isolated digital I/O, analog input (0–5 V / 0–10 V / 4–20 mA configurable) |
| Output Signals | Start/Stop, Direction status |
| Certifications | CE-marked per EN 61326-1 (EMC), EN 61010-1 (Safety) |
