| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | ED-S Solid.Line |
| Instrument Type | Standard Drying Oven |
| Temperature Range | Ambient +7 °C to 250 °C |
| Temperature Uniformity | ±0.8 °C |
| External Dimensions (W×H×D) | 614 × 625 × 577 mm |
| Internal Dimensions (W×H×D) | 400 × 440 × 350 mm |
| Internal Volume | 62 L |
| Chamber Material | Stainless Steel (AISI 304) |
| Heating Technology | APT.line™ Preheating Chamber Technology |
| Air Circulation | Natural Convection (Free Convection) |
| Safety | Independent Adjustable Temperature Safety Device, Class 2 (DIN 12880), Optical Alarm |
| Controller | Time-Programmable Digital Controller |
| Accessories | 2 Chrome-Plated Wire Shelving Inserts |
| Exhaust Valve | Adjustable |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | ED/FD Series |
| Heating Principle | Natural Convection (ED) / Forced Air Convection (FD) |
| Temperature Range | Ambient +5 °C to 300 °C |
| Control System | Microprocessor-based with LED Display & Integrated Timer (0–99 h 59 min or continuous) |
| Safety Class | DIN 12880 Compliant, Dual-Level Thermal Protection (TWB) |
| Chamber Materials | High-Performance Stainless Steel (AISI 304), Electrogalvanized Steel Enclosure with Corrosion-Resistant Coating |
| Chamber Volumes | 23 L, 53 L, 115 L, 240 L, 400 L, 720 L |
| Interface | RS422 for APT-COM Data Management Software (Optional) |
| Interior Design | Rounded Corners, Smooth Welded Surfaces, Removable Shelving, Tempered Glass Inner Door |
| Insulation | Advanced Low-Conductivity Mineral Wool |
| Surface Finish | Anti-Dust Powder Coating |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | FD56 / FD115 / FD260 / FD720 |
| Temperature Range | Ambient +10 °C to 300 °C |
| External Dimensions (W×H×D, mm) | 1165×1590×870 |
| Internal Dimensions (W×H×D, mm) | 1000×1300×570 |
| Heating Method | Forced-air circulation (APT.line™ preheating chamber technology) |
| Internal Volume | 60–741 L |
| Max. Load Capacity | 70–315 kg |
| Shelf Load Capacity | 30–45 kg per shelf |
| Temp. Uniformity at 150 °C | ±0.3–±2.5 K |
| Temp. Stability at 150 °C | ±0.3–±0.6 K |
| Heating Time to 150 °C | 15–25 min |
| Recovery Time after Door Opening (150 °C) | 4–6 min |
| Power Rating (230 V) | 1.1–2.3 kW |
| Power Rating (400 V) | 4.5 kW |
| Standard Shelves | 2 (max. 4–16 depending on model) |
| Safety Class | Independent dual-stage temperature safety device (DIN 12880, Class 2) with optical alarm |
| Interface | USB port for data logging |
| Compliance | DIN 12880, EN 61000-6-3, EN 61000-6-4, CE |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | M53 / M115 / M240 / M400 / M720 |
| Temperature Range | Ambient +5 °C to 300 °C |
| Internal Volume | 53–720 L |
| External Dimensions (W×H×D) | 1235 mm × 1690 mm × 865 mm |
| Internal Dimensions (W×H×D) | 1000 mm × 1200 mm × 610 mm |
| Heating Method | Forced Convection (Hot Air) |
| Temperature Uniformity at 150 °C | ±1.3–1.9 K |
| Temperature Fluctuation at 150 °C | ±0.3 K |
| Heating Time to 150 °C | 15–21 min |
| Recovery Time after 30-sec Door Opening at 150 °C | ≤3 min |
| Max. Load Capacity | 40–120 kg |
| Max. Shelf Load | 15–45 kg |
| Standard Shelves | 2 (adjustable), Max. Shelves: 5–16 |
| Power Rating (230 V) | 1.2–2.7 kW |
| Power Rating (400 V) | 3.45 kW |
| Interface | Ethernet, USB for Data Logger Export |
| Safety | Dual Independent Temperature Safety Devices (DIN 12880 Class 2 & Class 3.1), Redundant Pt100 Sensor |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | E28 |
| Instrument Type | Standard Drying Oven |
| Temperature Range | 60 °C to 230 °C |
| Temperature Uniformity | ±0.5 °C (at 150 °C, steady state) |
| External Dimensions (W×H×D) | 580 × 405 × 425 mm |
| Internal Chamber Dimensions (W×H×D) | 400 × 280 × 250 mm |
| Internal Volume | 28 L |
| Net Weight (empty) | 22 kg |
| Max. Load Capacity | 25 kg |
| Max. Load per Shelf | 10 kg |
| Heating Method | Forced Air (Natural Convection with Fan-Assisted Preheating via APT.line™) |
| Recovery Time after 30-sec Door Opening (at 150 °C) | ≤19 min |
| Heating Time to 150 °C | ≤36 min |
| Rated Power | 0.8 kW (120 V / 230 V) |
| Shelves Supplied | 2 chrome-plated adjustable shelves |
| Timer Range | 0–120 min |
| Safety Device | Temperature Safety Controller Class 1 (DIN 12880) |
| Exhaust Valve | Adjustable mechanical damper |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | FD-S 56 / FD-S 115 |
| External Dimensions (W×H×D, mm) | 590×580×515 (FD-S 56) / 740×790×555 (FD-S 115) |
| Internal Dimensions (W×H×D, mm) | 400×440×350 (FD-S 56) / 550×550×390 (FD-S 115) |
| Interior Volume | 55 L / 106 L |
| Net Weight (empty) | 41 kg / 57 kg |
| Temperature Range | Ambient +10 °C to 250 °C |
| Temperature Uniformity at 150 °C | ±2.6 K / ±2.4 K |
| Temperature Fluctuation at 150 °C | ±0.5 K |
| Heating Time to 150 °C | 20 min / 22 min |
| Power Consumption at 150 °C | 290 Wh/h / 340 Wh/h |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | FED56 / FED115 / FED260 / FED720 |
| Temperature Range | Ambient +10 °C to 300 °C |
| Interior Volume | 60 L to 741 L |
| Temperature Uniformity at 150 °C | ±0.3 K to ±2.0 K |
| Heating Time to 150 °C | 15–30 min |
| Recovery Time after Door Opening (at 150 °C) | 4–6 min |
| Max Load Capacity | 70–315 kg |
| Shelf Load Capacity | 30–45 kg per shelf |
| Power Supply | 230 V (1.1–2.3 kW) / 400 V (4.5 kW) |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | FDL |
| Internal Volume | 115 L |
| Temperature Range | Ambient +10 °C to 300 °C |
| Temperature Uniformity at 150 °C | ±2.5 K |
| Temperature Fluctuation | ±0.8 K |
| Heating Time to 150 °C | 20 min 30 sec |
| Recovery Time after 30-sec Door Opening at 150 °C | 12 min |
| Rated Power (230 V) | 2.9 kW |
| Net Weight (empty) | 90 kg |
| Max. Total Load | 60 kg |
| Max. Load per Shelf | 30 kg |
| Standard Shelves | 2 (up to 5 optional) |
| Fresh Air Filter Class | M6 |
| Door Seal Material (standard) | FKM (solvent-resistant, ≤200 °C) |
| Optional Seal | Silicone (solvent-limited, ≤300 °C) |
| Safety Compliance | EN 1539:2010-08 |
| Independent Temperature Safety Device | DIN 12880 Class 2 |
| Controller | Programmable with Interval & Real-time Scheduling |
| Interface | RS 422 |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | ED-S 56 / ED-S 115 |
| External Dimensions (W×H×D, mm) | 590×580×515 (ED-S 56) / 740×790×555 (ED-S 115) |
| Internal Dimensions (W×H×D, mm) | 400×440×350 (ED-S 56) / 550×550×390 (ED-S 115) |
| Interior Volume | 62 L / 118 L |
| Net Weight (empty) | 41 kg / 57 kg |
| Temperature Range | Ambient +7 °C to 250 °C |
| Temperature Uniformity at 150 °C | ±2.8 K |
| Temperature Fluctuation at 150 °C | ±0.8 K |
| Heating Time to 150 °C | 60 min / 55 min |
| Power Consumption at 150 °C | 180 Wh/h / 310 Wh/h |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | BD Series Microbiological Incubator |
| Temperature Range | Ambient +5 °C to 100 °C |
| Safety Class | Independent Adjustable Temperature Safety Device, Class 3.1 (DIN 12880) |
| Heating Technology | APT.line™ Preheating Chamber |
| Air Circulation | Free Convection |
| Door | Inner Door Made of Tempered Safety Glass (ESG) |
| Shelving | 2 Chrome-Plated Adjustable Shelves |
| Stackable Configuration | Up to 115 L Total Volume |
| Exhaust Valve | Adjustable with Timer Function |
| Controller | Microprocessor-Based with Time Function |
| Interface | RS 422 Serial Port |
| Internal Volume | 20 L (BD23) / 400 L (BD400) |
| External Dimensions (W×H×D mm) | 435×495×520 (BD23) / 1235×1025×765 (BD400) |
| Internal Dimensions (W×H×D mm) | 222×330×277 (BD23) / 1000×800×500 (BD400) |
| Net Weight | 27 kg (BD23) / 135 kg (BD400) |
| Brand | BINDER |
|---|---|
| Origin | Germany |

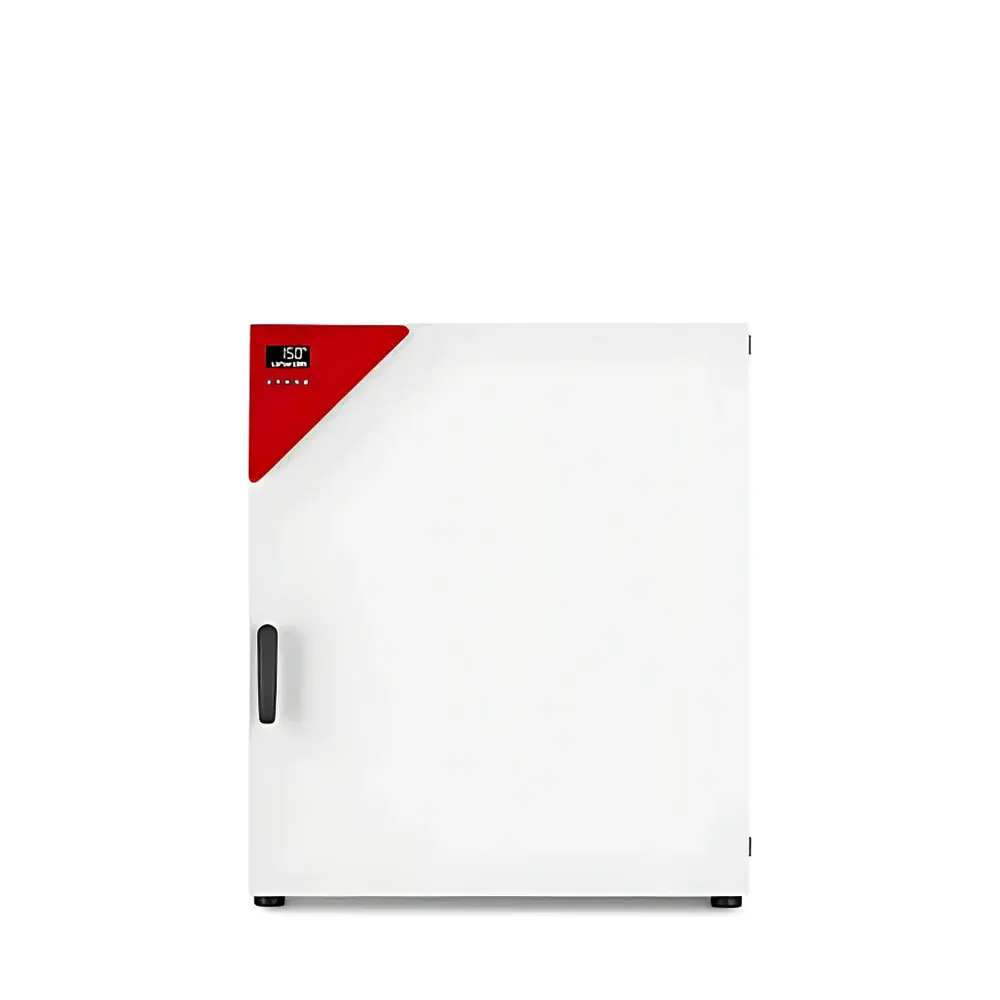

| Model | ED Series |
| Temperature Range | Ambient + 5 °C to 300 °C |
| Temperature Uniformity (at 150 °C) | ±0.4 K to ±0.8 K |
| Internal Dimensions (W×H×D) | 960 × 1280 × 605 mm |
| External Dimensions (W×H×D) | 1165 × 1590 × 870 mm |
| Interior Volume | 743 L |
| Net Weight (empty) | 169 kg |
| Max. Load Capacity | 315 kg |
| Max. Load per Shelf | 45 kg |
| Heating Method | Natural Convection |
| Power Supply (230 V) | up to 2.25 kW |
| Power Supply (400 V) | 4.1 kW |
| Shelving | 2 standard / up to 16 stainless steel chrome-plated shelves |
| Safety | Dual-stage independent temperature safety device (DIN 12880 Class 2), optical alarm |
| Interface | USB port for data logging |
| Compliance | DIN 12880, EN 61000-6-3, EN 61000-6-4, CE |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | ED23 / ED400 |
| External Dimensions (W×H×D, mm) | 435×495×520 (ED23) / 1235×1025×765 (ED400) |
| Internal Dimensions (W×H×D, mm) | 222×330×300 (ED23) / 1000×800×520 (ED400) |
| Interior Volume | 20 L (ED23) / 400 L (ED400) |
| Net Weight (empty) | 27 kg (ED23) / 125 kg (ED400) |
| Max. Load Capacity | 25 kg (ED23) / 90 kg (ED400) |
| Max. Load per Shelf | 12 kg (ED23) / 35 kg (ED400) |
| Temp. Range | +5 °C above ambient to 300 °C |
| Temp. Uniformity at 150 °C | ±2.8 K (ED23) / ±3 K (ED400) |
| Temp. Fluctuation at 150 °C | ±0.5 K |
| Heating Time to 150 °C | 28 min (ED23) / 71 min (ED400) |
| Recovery Time after Door Opening (150 °C) | 28 min (ED23) / 31 min (ED400) |
| Rated Power | 0.8 kW (230 V version, ED23) / 3.4 kW (400 V version, ED400) |
| Shelving | 2–4 chrome-plated shelves (ED23) / 2–10 chrome-plated shelves (ED400) |
| Safety | Dual-stage temperature safety device (DIN 12880), optical alarm |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | FD23 |
| Type | Standard Forced-Air Drying Oven |
| Internal Volume | 20 L |
| External Dimensions (W×H×D) | 435 × 495 × 520 mm |
| Internal Dimensions (W×H×D) | 222 × 330 × 300 mm |
| Net Weight (empty) | 27 kg |
| Max. Load Capacity | 25 kg |
| Max. Load per Shelf | 12 kg |
| Temperature Range | Ambient +5 °C to 300 °C |
| Temp. Uniformity at 150 °C | ±2.5 K |
| Temp. Fluctuation at 150 °C | ±0.3 K |
| Heating Time to 150 °C | 25 min |
| Recovery Time (30-sec door opening, 150 °C) | 6 min |
| Rated Power (230 V) | 0.8 kW |
| Shelving | 2 standard chrome-plated shelves (up to 4 optional) |
| Safety | Dual-stage temperature safety device (DIN 12880), optical alarm |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | VDL |
| Temperature Range | Ambient +15 °C to 200 °C (optional up to 250 °C) |
| Internal Volume | 23 L / 53 L / 115 L |
| Compliance | DIN 12880 Class 2 Temperature Safety Device, ATEX Zone 2/22 (Ex II -/3G c IIB T3–T1 Gc X), RS 422 Interface |
| Construction | Electropolished AISI 316Ti stainless steel chamber, silicone door gasket, spring-mounted safety glass door |
| Features | APT.line™ preheating technology, inert gas inlet with precision dosing valve, compressed air interface for overpressure lockbox, optical temperature alarm, pressure monitoring (<125 mbar release threshold), cross-flow air circulation, programmable ramp/soak profiles, dual aluminum extension shelves, time-of-operation indicator, calibrated venting valve |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | FED400 |
| External Dimensions (W×H×D, mm) | 1235 × 1025 × 765 |
| Internal Dimensions (W×H×D, mm) | 1000 × 800 × 510 |
| Internal Volume | 400 L |
| Net Weight (empty) | 145 kg |
| Max. Total Load | 90 kg |
| Max. Load per Shelf | 35 kg |
| Temperature Range | Ambient +5 °C to 300 °C |
| Temperature Uniformity at 150 °C | ±3.8 K |
| Temperature Fluctuation at 150 °C | ±0.7 K |
| Heating Time to 150 °C | 29 min 30 s |
| Recovery Time after 30-sec Door Opening at 150 °C | 6 min |
| Rated Power (208 V / 400 V) | 3.4 kW |
| Shelf Quantity (standard / max) | 2 / 10 |
| Fan Speed | Adjustable |
| Exhaust Valve | Continuously Adjustable |
| Controller | Advanced Timer Functionality with Optical Overtemperature Alarm |
| Safety | Dual-stage Independent Temperature Limitation (DIN 12880 Class 2) |
| Interface | RS 422 |
| Insulation | High-efficiency Mineral Wool |
| Shelves | 2 Chrome-plated, Height-adjustable |
| Brand | BINDER |
|---|---|
| Origin | Germany |
| Model | FP53 / FP115 / FP240 / FP400 / FP720 |
| Temperature Range | 5 °C to 300 °C |
| External Dimensions (W×H×D) | 1035 × 825 × 745 mm (FP240) |
| Internal Dimensions (W×H×D) | 800 × 600 × 510 mm (FP240) |
| Chamber Material | Stainless Steel |
| Internal Volume | 53–720 L |
| Net Weight (empty) | 44–194 kg |
| Max. Load Capacity | 40–120 kg |
| Shelf Load Capacity | 15–45 kg per shelf |
| Temp. Uniformity at 150 °C | ±1.8–±2.5 K |
| Temp. Stability at 150 °C | ±0.3 K |
| Heating Time to 150 °C | 24–39 min |
| Recovery Time (150 °C, 30-sec door opening) | 5–20 min |
| Rated Power (230 V) | 1.2–2.7 kW |
| Rated Power (400 V) | 3.45 kW |
| Fan Speed | Adjustable |
| Safety Classes | DIN 12880 Class 2 & Class 3.1 |
| Interface | Ethernet |
| Data Logging | Internal, USB exportable (CSV format) |
| Shelves | 2–16 chrome-plated, removable |
| Door Handle | Ergonomic design |
| Exhaust Valve | Motorized, adjustable |
Show next
