| Brand | Attocube Systems AG |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Instrument Type | Confocal Raman Microscope |
| Spectral Range | 400–1000 nm |
| Spectral Resolution | <1 cm⁻¹/pixel (with 1800 lines/mm grating) |
| Spatial Resolution | <400 nm (at 532 nm excitation) |
| Minimum Detectable Raman Shift | 10 cm⁻¹ |
| Spectral Reproducibility | ±0.1 cm⁻¹ (typical, after spectral calibration) |

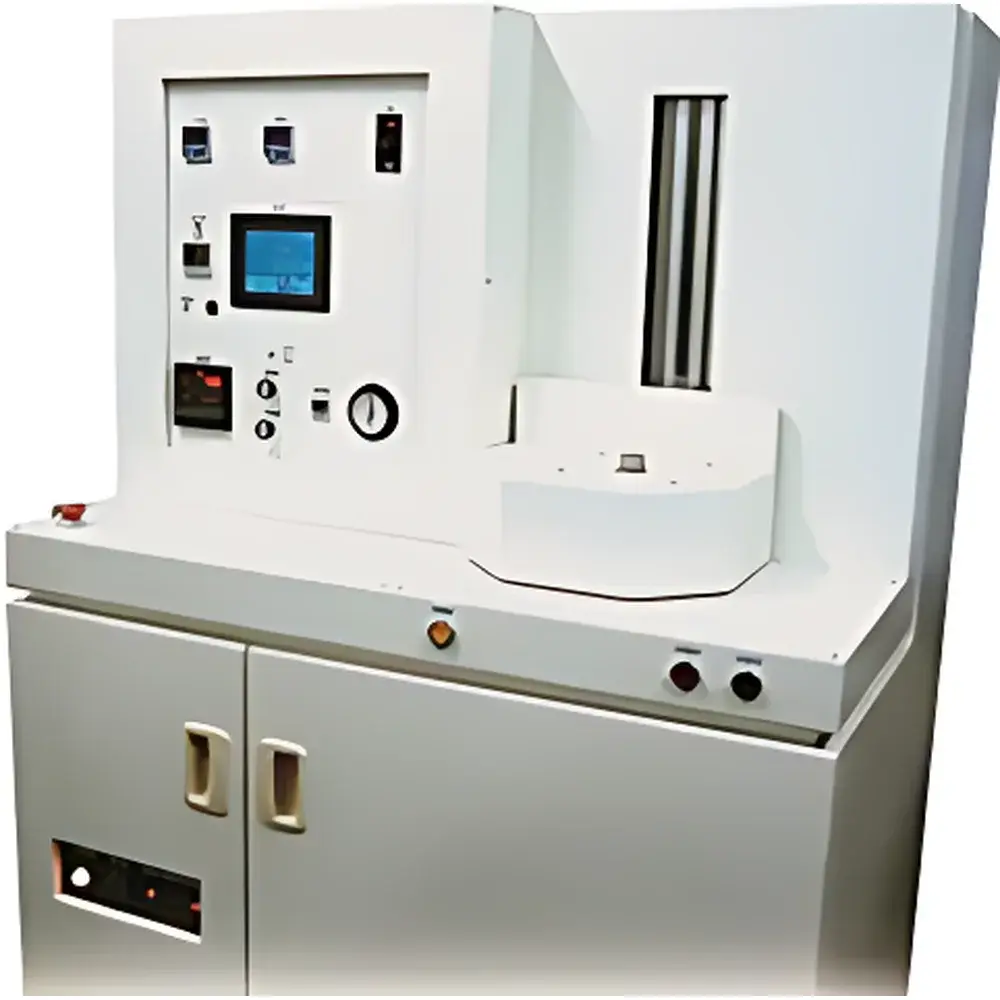

| Brand | ADVANCE RIKO |
|---|---|
| Origin | Japan |
| Heating Methods | Infrared & High-Frequency Induction |
| Temperature Range | −150 °C to 1350 °C |
| Sample Geometry | Ø3 mm × 10 mm (cylindrical) |
| Max. Heating Rate | 100 °C/s (RT → 1350 °C) |
| Max. Cooling Rate | −80 °C/s (1350 °C → 400 °C, He gas quench) |
| Sub-ambient Capability | Liquid nitrogen cooling to −150 °C |
| System Footprint | ~1300 mm W × 1000 mm D × 1700 mm H |
| Compliance | Designed for ASTM E831, ISO 11357-6, and JIS Z 2247 thermal expansion–based phase transition analysis |
| Brand | Anasazi |
|---|---|
| Origin | USA |
| Model | EFT-60 / EFT-90 |
| Instrument Type | Benchtop High-Field NMR Spectrometer |
| Operating Frequency | 60 MHz / 90 MHz (¹H) |
| Sample Type | Liquid Solutions |
| Resolution | < 0.5 Hz (full width at half maximum, FWHM, for 1% ethylbenzene in CDCl₃) |
| Sensitivity | ≤ 0.001 mmol/L (for ¹H, single-scan, standard 5 mm tube) |
| Magnet System | AlNiCo permanent magnet with active temperature stabilization |
| Nuclei Supported | ¹H, ¹³C, ¹⁹F, ³¹P, ²³Na, ⁵⁹Co, ²⁹Si, and other quadrupolar/nuclear spin-½ nuclei |
| Software Platform | EFT-NMR v5.x with pulse sequence library and GLP-compliant audit trail |
| Compliance | Designed to support ISO/IEC 17025, ASTM E2823, and USP <724> method validation workflows |
| Brand | Pulstec |
|---|---|
| Origin | Japan |
| Model | s-Laue/m-Laue |
| X-ray Source | Tungsten anode |
| Voltage/Current | 30 kV / 1.6 mA |
| Cooling | Air-cooled |
| Irradiation Spot Size | φ0.8 mm (standard collimator) |
| Sample-to-Detector Distance | 33 mm |
| Typical Exposure Time | 15 s |
| Sample Stage | 6-axis (Θ, translation, radial, X, Y, Z) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Max. Power Consumption | 150 W |
| Safety | Integrated door interlock |
| Dimensions (s-Laue) | 224 × 414 × 480 mm |
| Dimensions (m-Laue) | 800 × 600 × 600 mm |
| XY Translation Stage | Included on m-Laue only |
